Вакуумный стол для резки вакуумные чашки деревообрабатывающий станок с ЧПУ

Вакуумный стол для резки вакуумные чашки деревообрабатывающий станок с ЧПУ

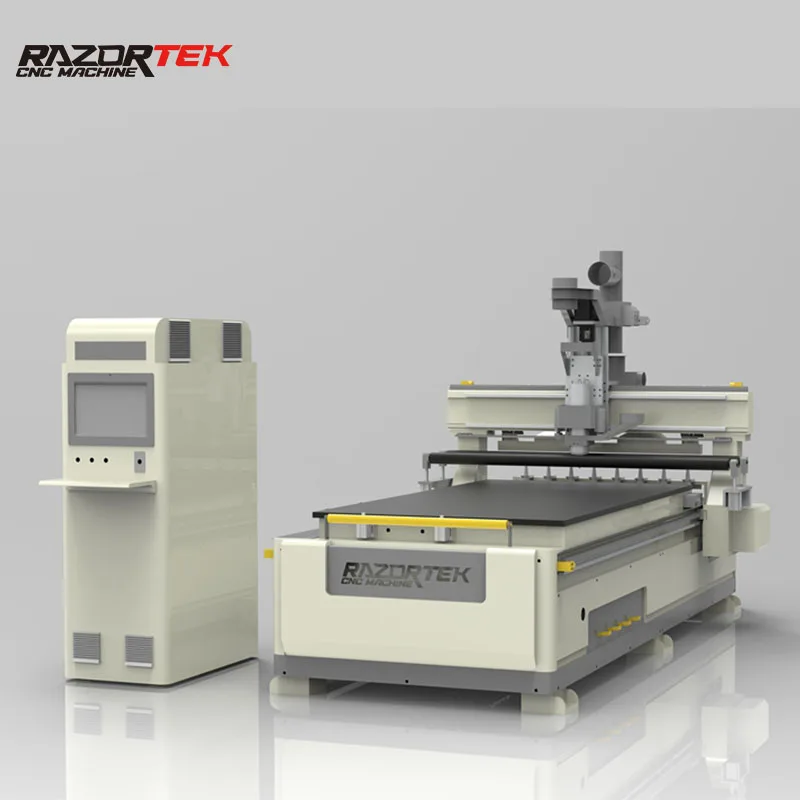

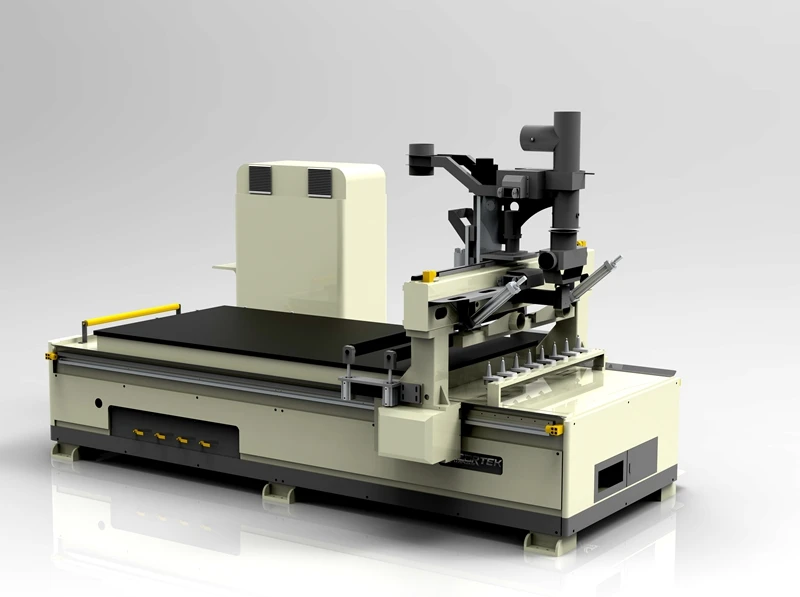

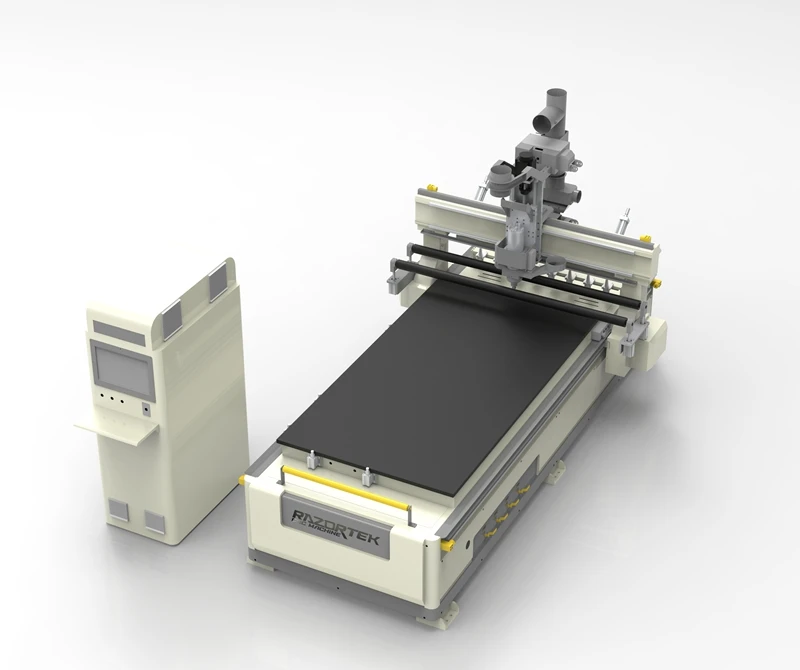

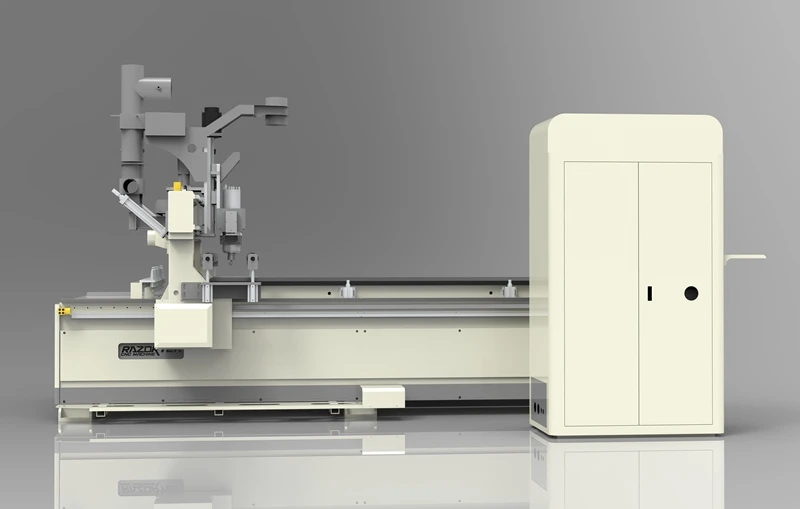

razortek new design 8 pcs linear atc spindle with vacuum table cnc router mechanical drilling frame

Advanced:

1.Mainly configuration

#1300*2500*250mm

#9KW HQD air cooling ATC spindle(24000RPM),

#8pc linear tool changer.

#X Y axis taiwan Kotec helical gear transmission,

#Taiwan Kotec 30 rails .Z axis Taiwan TBI ballscrew transmission,

#Japan SHIMPO Reducer for x,y axis

#3 Axis LNC 2200 control system + 18inch display

#Vacuum table and 5.5kw air vacuum pump

#Shenzhen INOVANCE 850W Servo motor

#Auto oil lubrication,Filter, tool sensor.

#4kw dust collector ,10 meters PU pipe

#auto feed wheel and side Auxiliary feeding wheel

#mechanical drilling frame and gantry

#Air cylinder position pins ,X-2,Y-3

Optional:

A. Choose Japan YASKAWA servo 850w.

B. Oil mist spray for metal milling

C. lamello function

D. Taiwan Syntec controller

Mechanical drilling frame, gantry by 5 axis cnc

Stong gantry ,ensure stable

Genuine Taiwan Kotec rail guidem  Taiwan Vastun helical gear

Mechanical drilling, high precision ,                                                                    TAIWAN GENUINE TBI ballscrew

Tool bits holder     ,   8 pcs linear ATC bits

Air drying system                                                                          Multi-function shortcut keys

Taiwan Syntec controller

Air cylinder pins and auxiliary roller

Dust prevent sliding block

dust extraction

Automatic oil lubrication   . taiwan delta servo(optional)

Tool sensor  and the air drying and cleaning system .

INOVANCE 850W Servo motor(standard)

2.Technical Data

Description

Parameter

Model

RZ1325C2

RZ1530C2

RZ2030C2

RZ2040C2

Working Area

1300*2500*250mm

1500*3000*250mm

2000*3000*250mm

2000*4000*250mm

X,Y,Z Traveling Positioning Accuracy

0.01mm/300mm

X,Y,Z Repositioning Accuracy

0.03mm/300mm

Lathe Structure

Seamless welded steel structure

X,Y Structure

Rack and pinion, gear drive,Japan SHIMPO reducer

Taiwan 30mm square guide rails

Z Structure

Taiwan-made rolling ball screw,

Taiwan 30mm square guide rails

Max. Idling Speed

70m/min

Spindle

HQD/HSD Air cooled 9.0kw

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC220V,1PH or 220V/380V,3PH, 50/60Hz

Motor and driver

850w servo motor and drivers

Command

G code (HPGL,U00,mmg,plt)

Operating System

TAIWAN LNC2200

Diameter of Cutter

φ3.175-φ22(ER32)

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

Vacuum with T slot

Tool Magazine

14pcs/8-slot Tool Magazine with 8 ISO 30 tools

Net/Gross Weight

1200/1350KG

1400/1600KG

1650/1800KG

1950/2150KG

3.Application

Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, interior doors, sofa legs, headboards ,game cabinets, computer tables, sewing machines table etc.

4.Service after sale

1.Guarantee:18months guarantee of the whole machine.

2.Software issue:Our technician is able to re-install or set up by remote for free.

3.Hardwareissue:Main parts(excluding the consumables) shall be replaced/repairedfree of charge if there is any problemduring the warranty period.

4.Support onlineOur technician is able to teach you online to run the machine or eliminate the fault for free.

5.Training in Razortek factory ,We are able to train your staff after placed order in our factory for free.

6.On-site training(Recommendedthe most effective way),We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight,visa,hotel,training costs, etc.)

RAZORTEK Started CNC Machine business Since 2014 July,Located in Jinan city,Shandong Province.Main products including CNC Router, Laser Machine,Digital Knife Cutter,All machines passed the European Union CE authentication，American FDA certificate . CNC Equipment is exported to most countries in the world, including Europe, America, Asia, Oceania . more than 70 countries and areas, and supply OEM service for our cooperator agents.

FAQ:

Q1.Before send me an inquiry on our cnc , it is better for you to provide me the following information
what is the working area you need? And what job you mainly do ? like woodworking ,or aluminum milling ,wood cutting ,acrylic cutting etc.

Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.

Q3. How long is the delivery time?
For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. we can do FOB or CIF or DAP price,we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves
