4 * Intel 2 5G Lans брандмауэр мини-ПК Celeron N5105 N5095 четырехъядерный DDR4 NVMe AES-NI pfSense роутер ПК

4 * Intel 2 5G Lans брандмауэр мини-ПК Celeron N5105 N5095 четырехъядерный DDR4 NVMe AES-NI pfSense роутер ПК

Processors

Cores & Threads

L3 Cache

Base Frequency

Max Turbo Frequency

Graphics

Celeron N5105

4 cores, 4 threads

4M

2.00 GHz

2.90 GHz

Intel UHD Graphics 450MHz-800MHz

Product Highlight

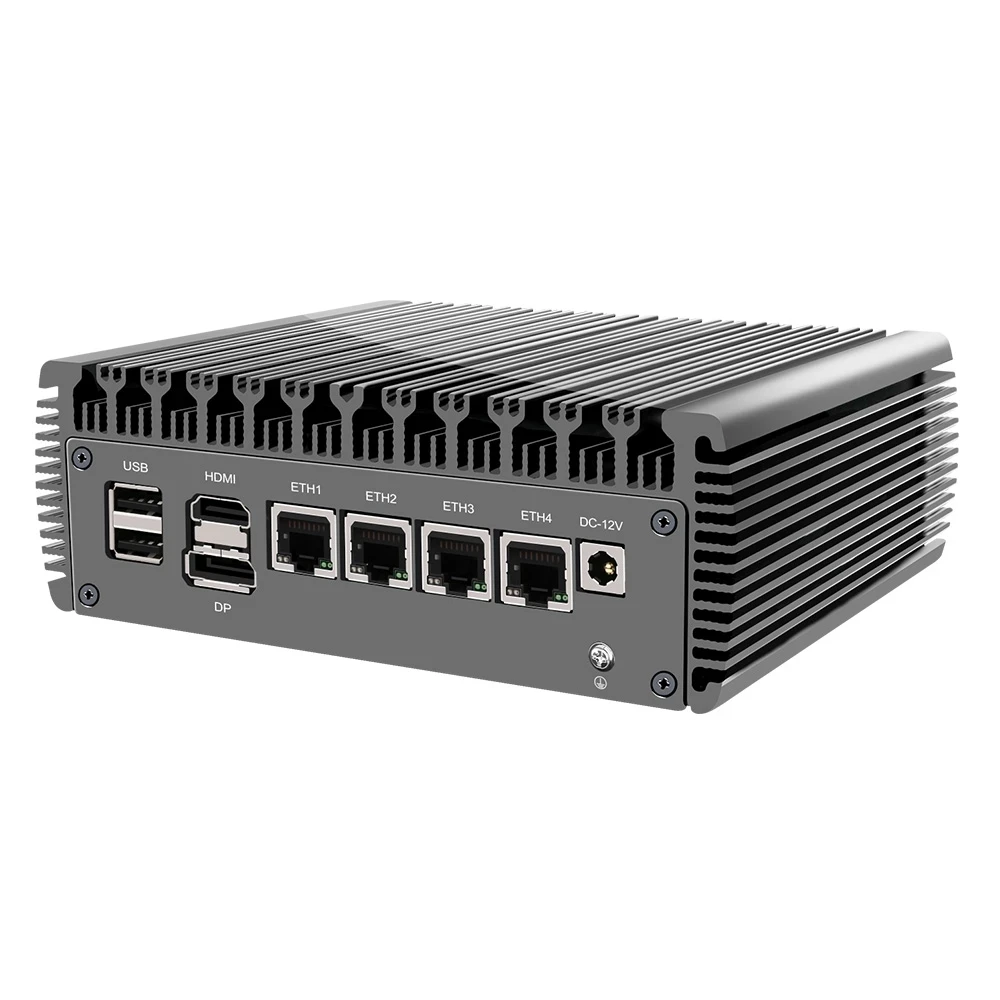

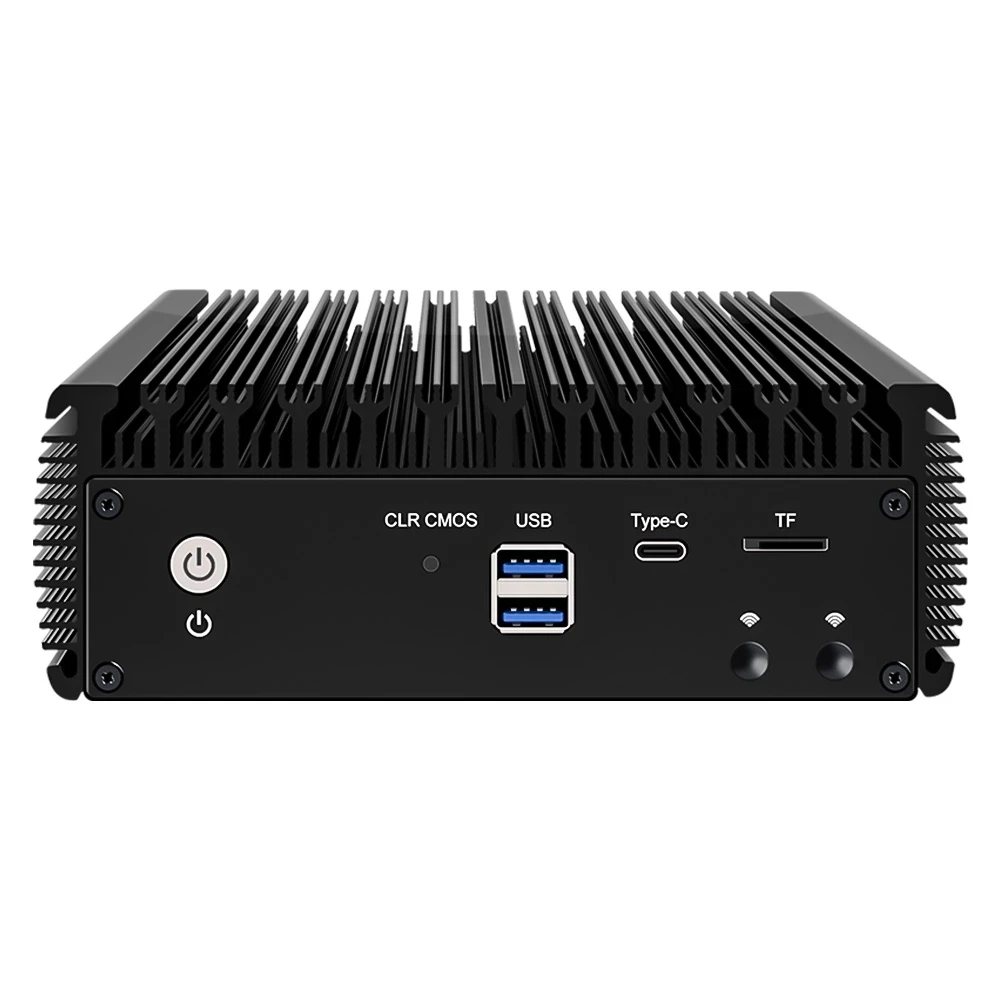

-4xIntel i225-V B3 2.5G UDE filter pure RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.

-2xDDR4 SODIMM non-ecc ram slot, max support 64GB.

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA SSD/HDD.

-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x1 2280 SSD with PCB adapter board (optional).

-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.

-Support wide voltage 12-19V input.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Full Aluminum Alloy high quality solid-built shell with Y-section ice thorns, excellent cooling performance, Exquisite production craft on outside design.

-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xSATA Cable
1xScrews Bag

All bundles on sale DO NOT include WiFi(antennas), WiFi(antennas) cost US $10, M.2 2232 to M.2 2280 PCB adapter board cost US $15. If you need, pay atthis link.

DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer's man-made damage and faulty.

Welcome to click the picture of VESA Bracket to order together if you need:

Free Operating System: Default installed pfSense.Other systems we can install free are like OPNsense, Windows, Linux, Ubuntu etc if you need.Seller is irresponsible and makes no compensation for trial system.

500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.

Upgrading link:https:/item/1005001805737528.html

(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
