CCTV камера система безопасности 16CH DVR NVR видеонаблюдения 5MP AHD наружная Всепогодная

CCTV камера система безопасности 16CH DVR NVR видеонаблюдения 5MP AHD наружная Всепогодная

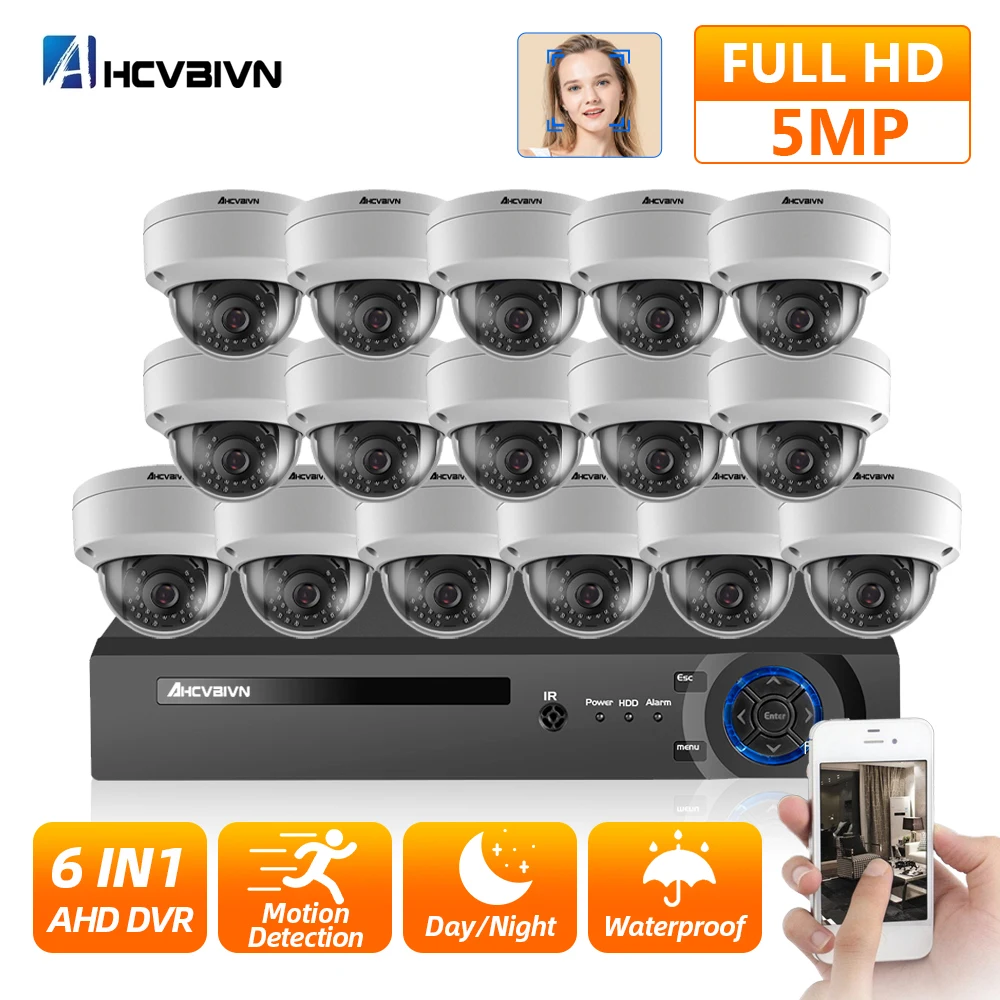

H.265 8CH 16CH 5MP AHD DVR Kit Analog CCTV System 8 Channel 5MP HD Outdoor Waterproof Dome Camera P2P Security Surveillance Set

Main Features:

1.5MP Ultra HD Video,Advanced H.265 Video Compression;
2.HD 5MP AHD Camera& 6 in 1 Hybrid Digital Video Recorder;
3.Support AI Human Detection& Face Human Playback;
4.all camera adopts heavy-duty metal housing,IP66 Weatherproof Outdoor;
5.Ultra HD Day & Night Vision,Plug and Play,Easy to Setup;
6.Support Android,iphone,ipad,pc,vms view;
7.Support Motion Detection, Email Alerts, Video Playback and Multi-Language;
8. Remote View Anywhere Anytime;

Packing List:

1 X 16CH H.265 AHD 5MP DVR NVR HVR 6 in 1 Digital Video Recorder;
8/16 x HD 5.0MP indoor outdoor IR Day Night vision weatherproof cameras;
1 x power adapter for DVR;
1 X USB Mouse for DVR;
1 X Remote Control for DVR;
Hard Disk optional !!!!

5MP High Quality Video

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

Face Detection & Face Playback

Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Intelligent Face Playback: Intelligent Face video playback, saving time, not missing every details.

IP66 Weatherproof

Use them as outdoor cameras or indoor cameras, as they are built tough towithstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extraprotection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

Day&Night Vision

The smart IR-Cut filter switches automatically between day and night toreduce color cast in day time and enhance image brightness at night making sureyou can get vivid surveillance footage from dawn to dark.

Motion Detection & E-mail Alert

Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .

H.265 Advantage

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

Smart Playback

You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

Easy remote view setting

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

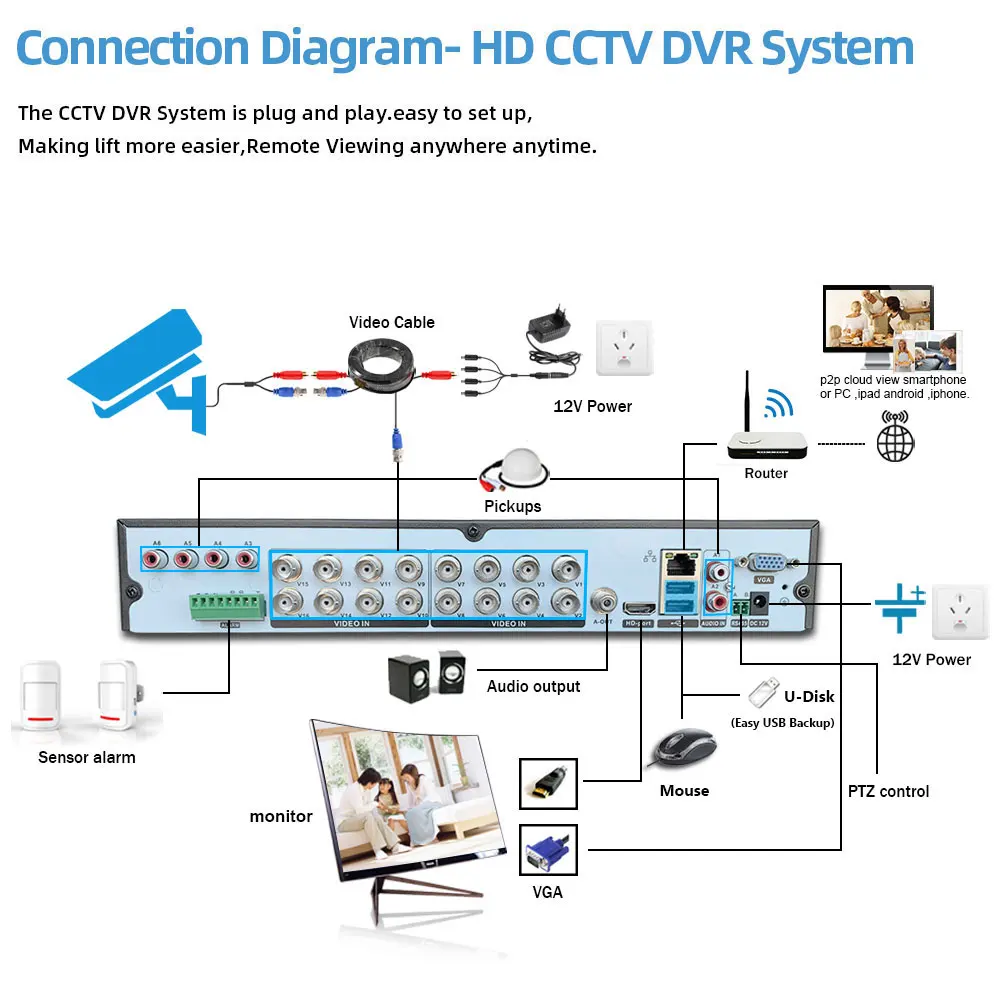

Connection Diagram

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

Remote access anywhere,anytime

Based On P2P (Peer To Peer) Technology, Support Plug-And-Play Installation.
Access The Camera Through Its Web Interface Via Internet Explorer,
Also Comes With a Free Smartphone App (Android & Iphone) For Remotely View From Anywhere.
Support IOS And Android Device Access. Scan QR-Code To Login. Download Free App In Apple App Store / Google Play.

H.265 16CH 5MP DVR Specifications

System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface
Operation interface：16bit real color GUI interface support
Preview ： 1/4/8/9/16

Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA:High definition
Analog input ：16CH*5MP
Network input:4CH*5MP/16CH*1080P
Motion detection：Support
Email Alert : Support
Face Detection:Support
Face Playback:Support
Smart Playback:Support
Remote Access:Support

Audio
Audio compression ：G.711A
Intercom : Yes
Record&Playback
Record mode：manual>alarm>motion detection>timing
Local playback：5MP
Video search：Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface
Video input：16CH BNC
Video output : 1ch VGA
Loop output : N/A
Audio I/O :6CH input/1CH output
Alarm I/O:4CH input/1CH output
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :2* SATA ports,max support 2* 8TB(HDD is optional)

Other
Power :DC 12V
USB Mouse：included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L370mm* W305mm* H70mm
Weight :2.5KG

DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

H.265 5.0MP AHD Camera Specifications

Video
Video Compression:H.265
Image sensor:1/3"inch 5.0 megapixel
Video quality:5.0MP
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night

General
Operating Power:DC 12V
Operating Temperature:-50°F~122°F / -40°C ~50°C
Minimum Illumination: 0.01 Lux
Setting:Brightness, Contrast,Saturation,Sharpness,White balance
Auto-exposure control (AEC): Auto white balance (AWB); Auto band filter (ABF)
Noise Reduction: Support 2D/3D
BitRate Control:VBR/CBR
Digital WDR: Support
Email Alerts:Support
Motion Detection:Support

Weatherproof
IP66 Weatherproof:Support
Housing material:Metal
Indoor / Outdoor:Suitable for Indoor or Outdoor use

Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:20pcs IR LEDs
