Тахометр AD 85 мм 6000 7000 8000 об/мин тахометр с 7-цветсветодиодный светодиодным

Тахометр AD 85 мм 6000 7000 8000 об/мин тахометр с 7-цветсветодиодный светодиодным

Specification:

- Name: 85mmTachometer

- 7 Colors Backlight

- High Precision

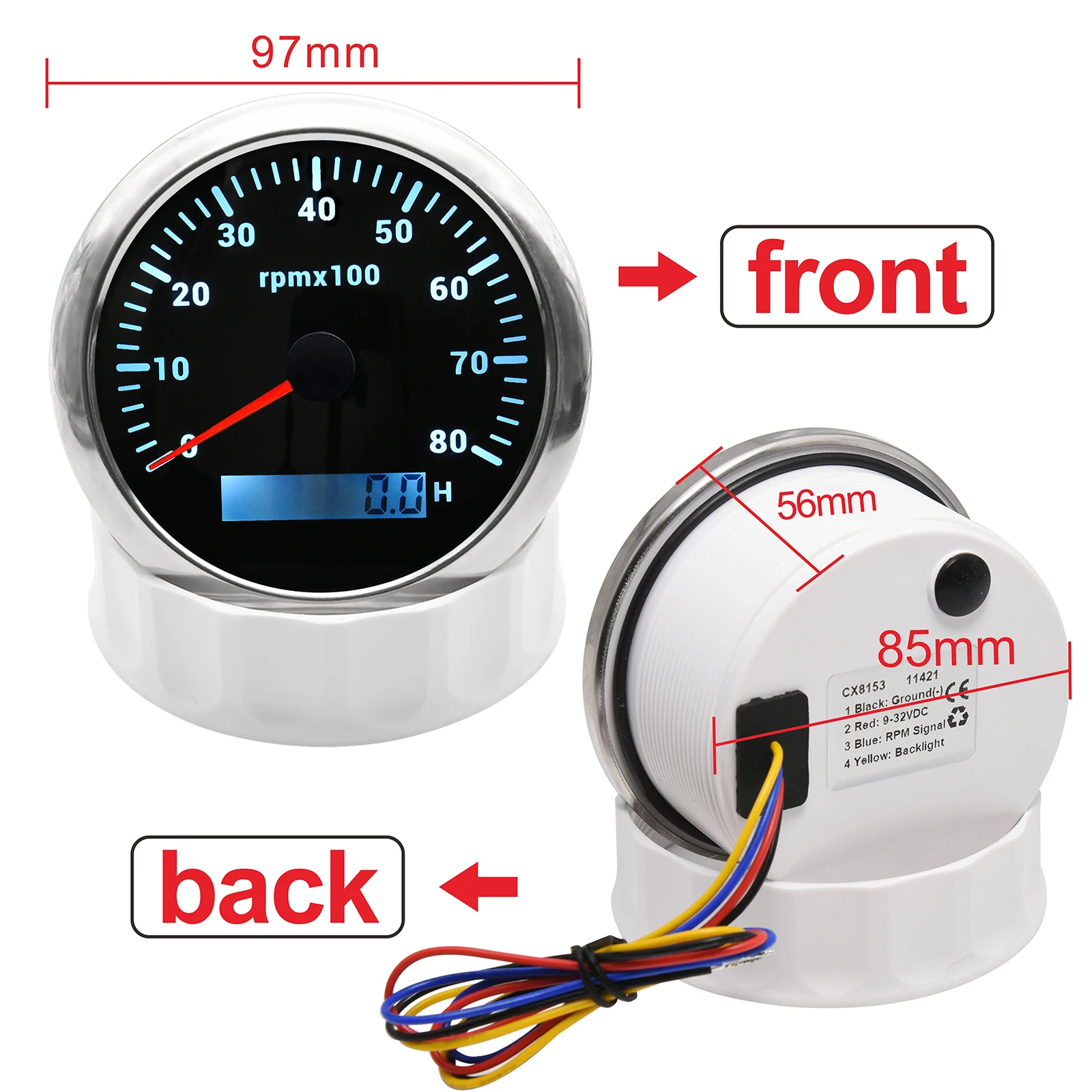

- Size: 85mm

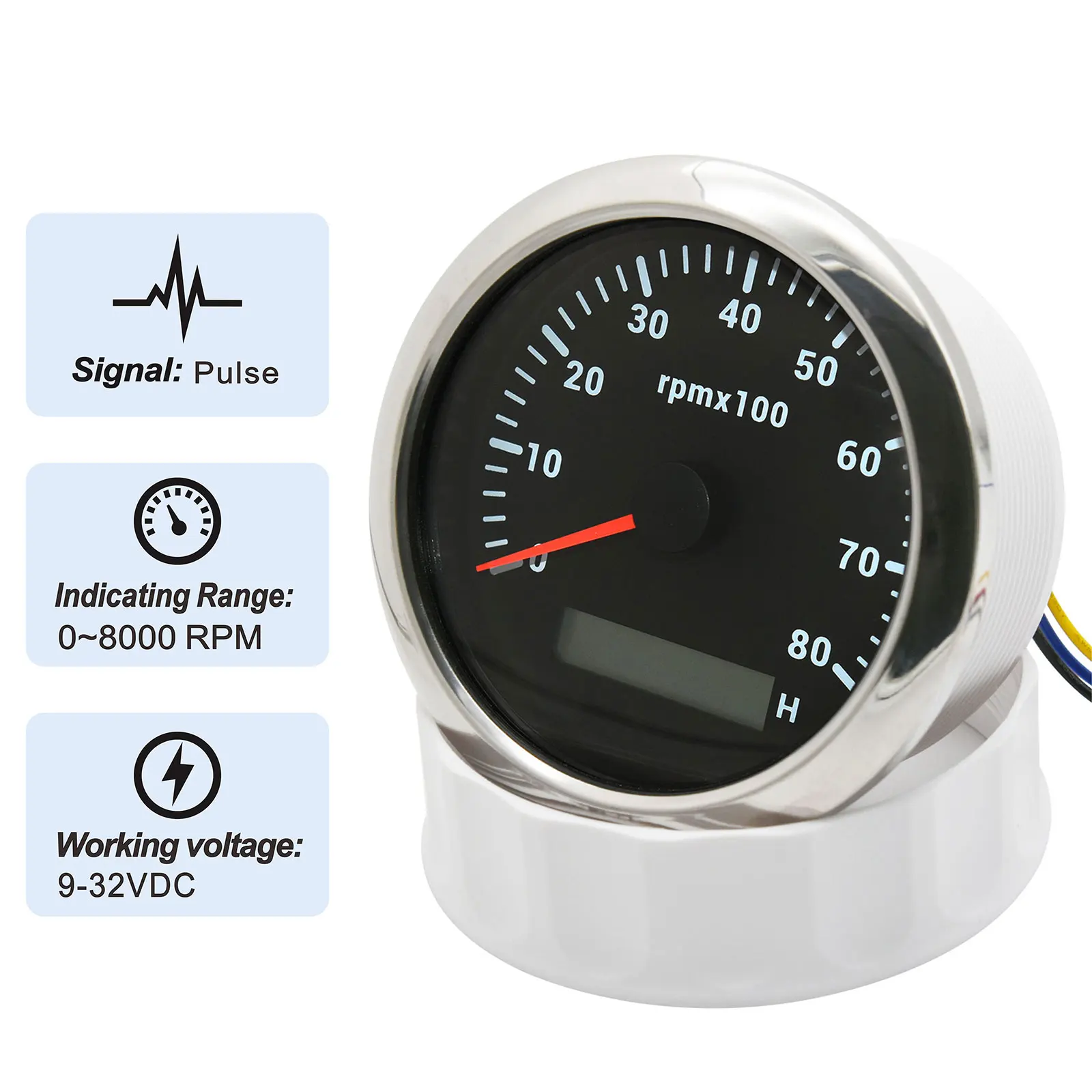

- Signal : Pulse

- Working voltage: 9-32VDC

- Working current: ＜120mA

- Backlight :7 Color backlight

- Engine hours: 0.0-99999.9H

- Working temperature: -30-70℃

- Storage temperature: -40-85℃

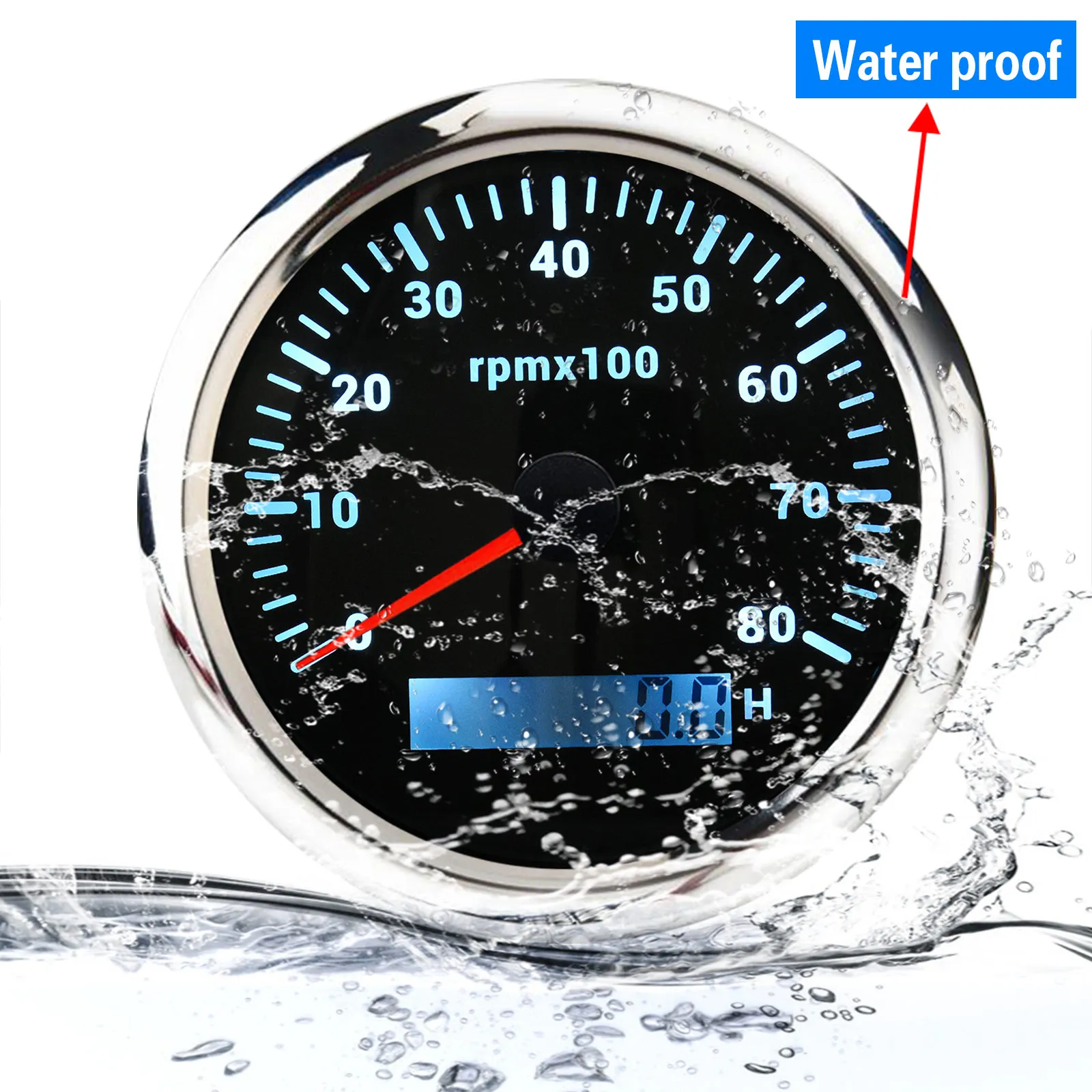

- Waterproof and dustproof grade IP67.

- Functions: current tacho/RPM and hour

- Operation mode: LCD display, stepper motor

- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Package 1 Included:

1 X 85mm Boat Tachometer

1 X Cable

1 X Installation

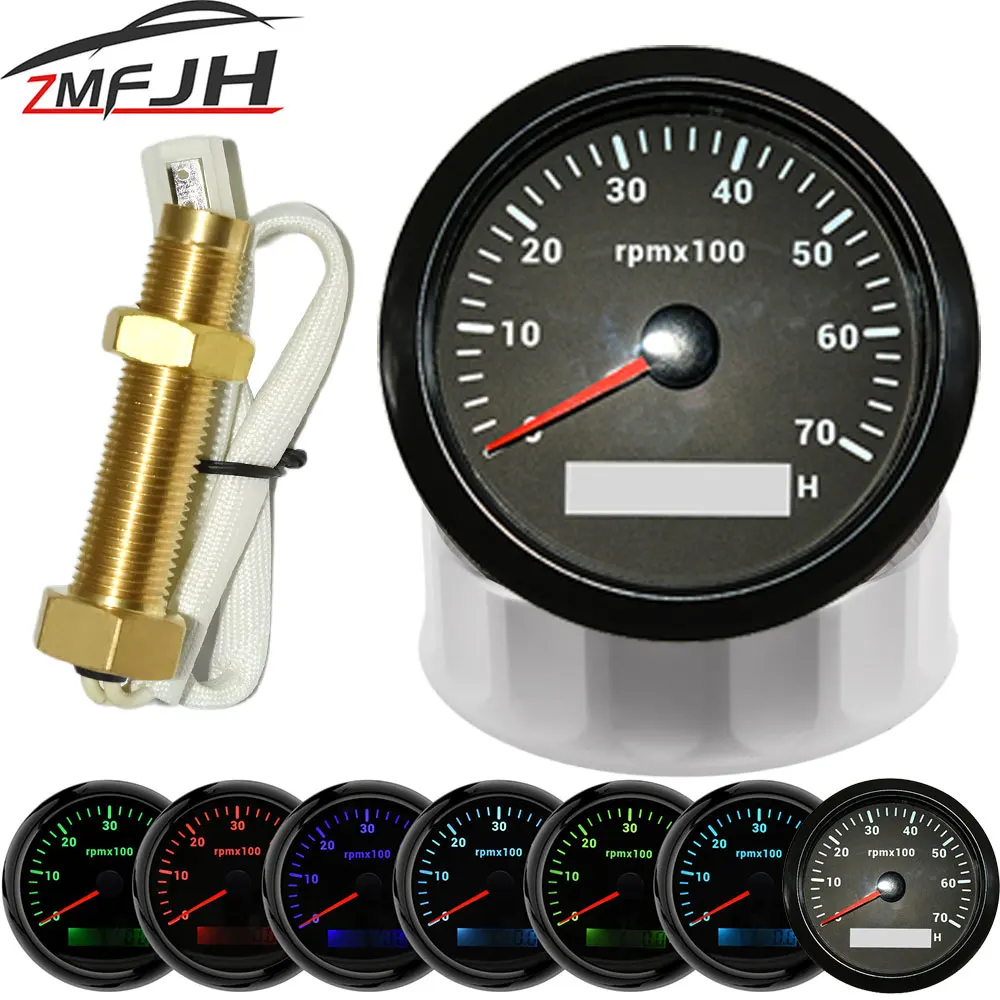

1 X Tacho Sensor (M16/M18)

Package 2 Included:

1X Tacho Sensor （M16/M18）

Feature :

- Waterproof:IP 67

- Excellent anti-fogging function;

- With curved glass( with anti-fog function).

- 316 Stainless steel bezel with curved glass;

- Convenient Installation by multi-plug socket connecting way;

- ( red,yellow,orange,green,blue,purple,white ), customers can adjust any color that you like

- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Indicating Range:

0-6000RPM[85MM Diameter]

0-7000RPM[85MM Diameter]

0-8000RPM[85MM Diameter]

Sensor Specification:

[1].Name: Tachometer Gauge Sensor
[2] Use for Gear Rotation Speed Measurement
[3] Combining The Advantages of Stable Signal, Wide Range of Operating Temperature, Small Size, Simple Assembly, Etc
[4] Signal Duty Factor: 47±5%
[5] Output Signal: Sine Wave
[6] Operating Temperature:-40 to 85℃
[7] Inductance Distance: Less Than 1mm
[8] Tooth Module: 2~6
[9] Connecting Way: Two Wires Connecting
[10] Protection Rank:Waterproof IP67
Please attention:
Please attention we have 2 model sensor size: M18: 80mm*18mm (L*W) ,
M16: 72.12mm *16mm(L*W)
