Умный термостат для бойлера Wi-Fi 24 В 220 |

Умный термостат для бойлера Wi-Fi 24 В 220 |

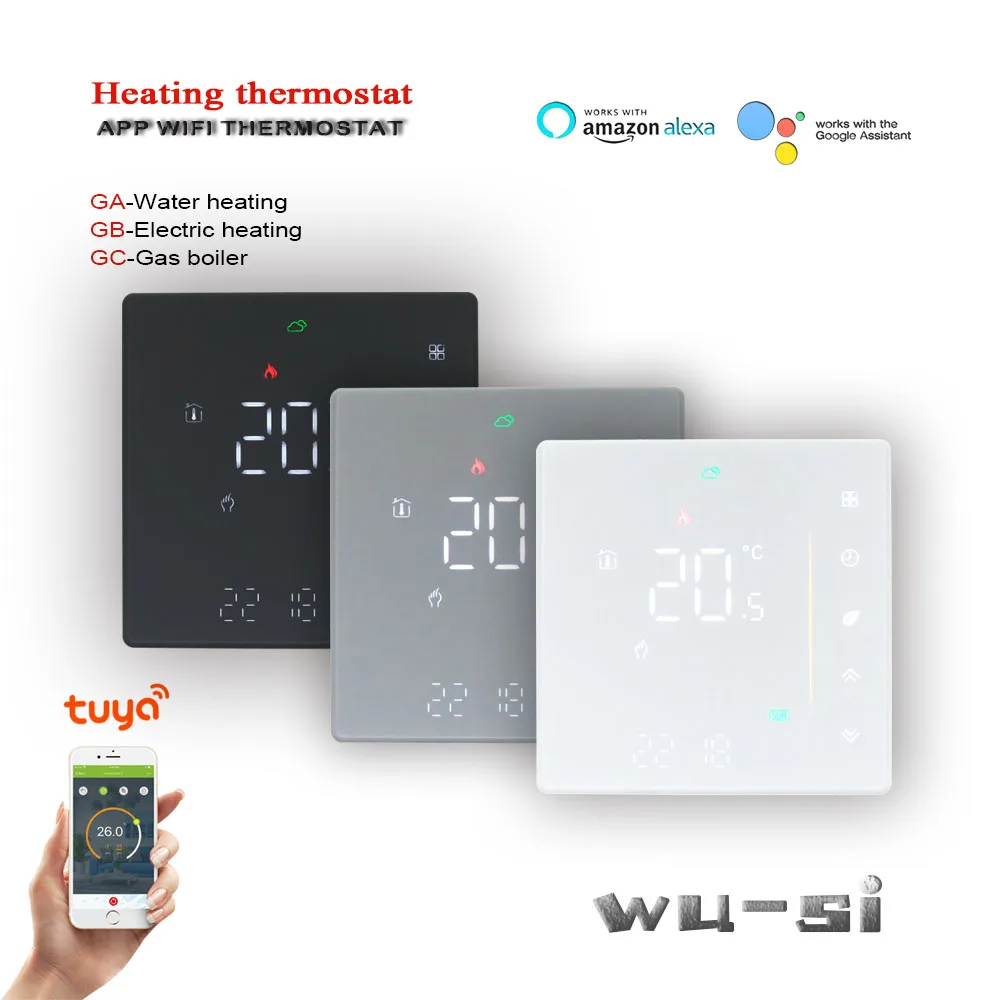

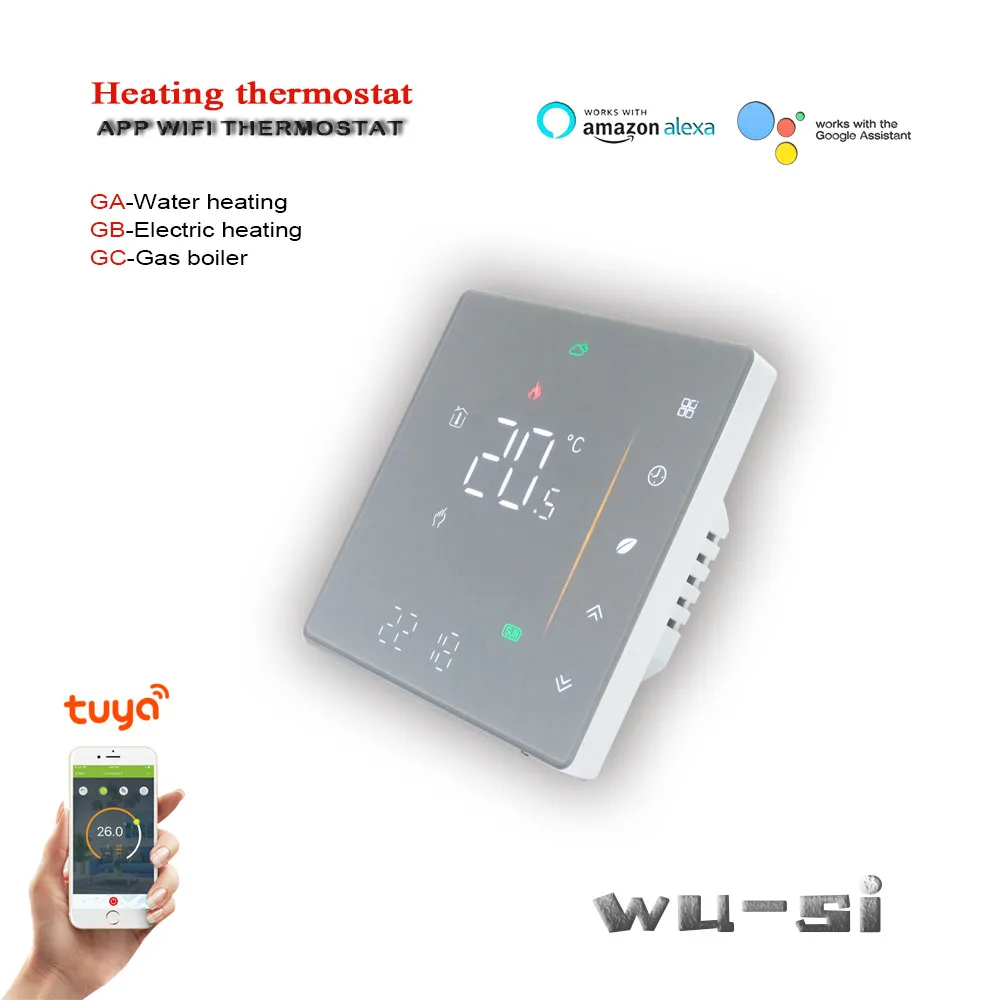

BHT-006 series is suitable for water heating/electric underfloor heating/gas boiler control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.Modern Touch Screen wifi Thermostat has been developed to on/off control connect the device of the room temperature and setting temp. as reaching the aim of comfort and saving energy by your mobile phone.

Power supply: 24VAC,95 ~ 240VAC, 50 ~ 60HZ

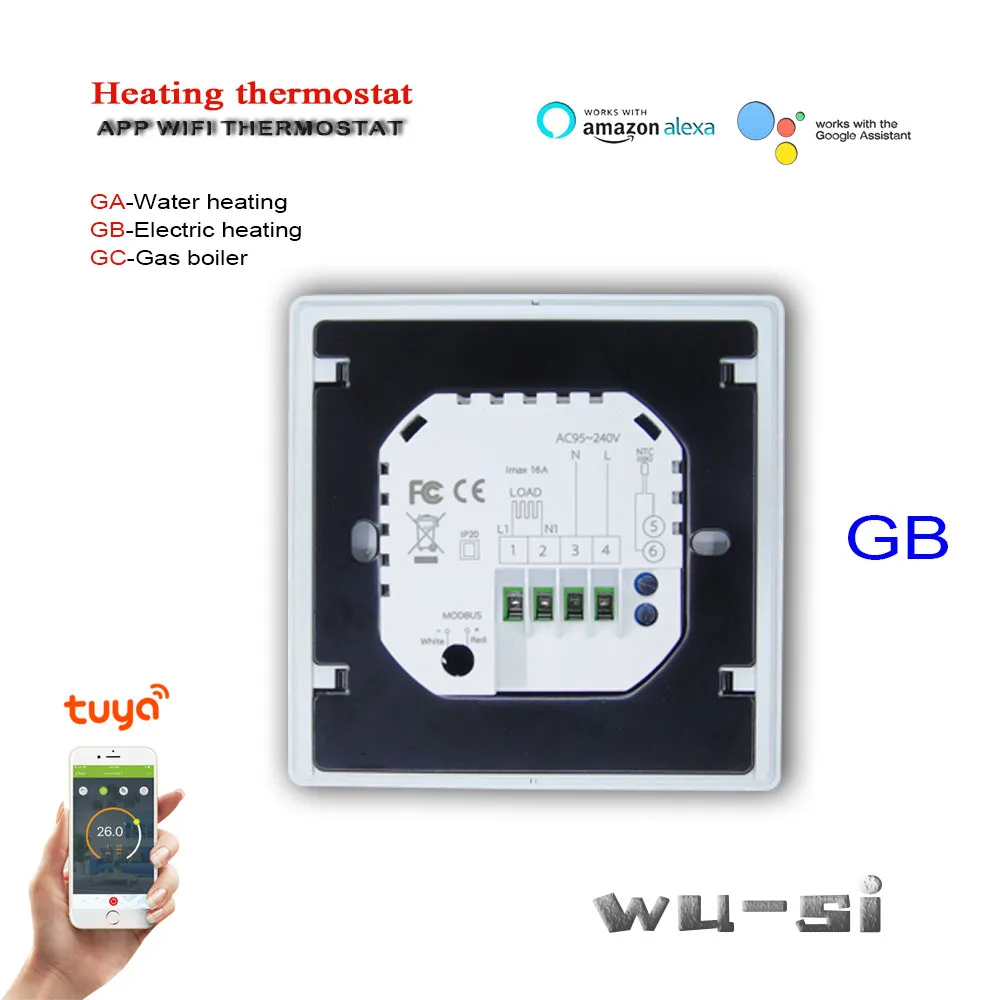

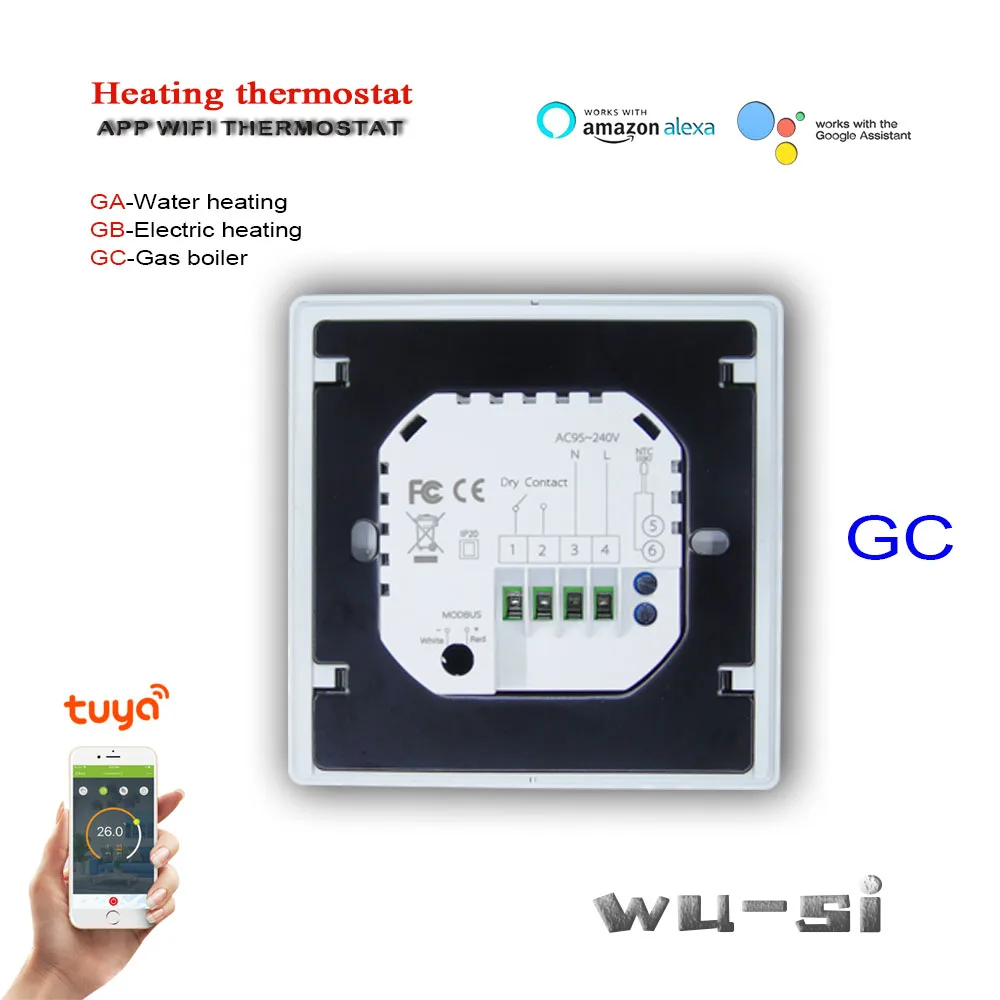

Current load: 5A Water heating /Gas boiler(GA,GC) ,16A Electric heating(GB)

Sensor: NTC3950, 10K

Accuracy: ± 1 ° C

Set Temp. Range: 5 -35 ° C

Dispaly Temp. Range: 5 ~ 99° C

Ambient temperature. : 0 ~ 45 ° C

Environment Humidity: 5 ~ 95% RH (Non Condensing)

Storage Temp. : -10 ~ 45 ° C

Power Consumption: <1.5W

Timing error: <1%

Shell Material: PC + ABS (Fireproof)

Installation Box: 86 * 86mm Square or European 60mm Round Box

Wire Terminals: 2 * 1.5mm2 or 1 * 2.5mm2 wire

Protection class: IP20

Buttons: Capactive Touch Buttons

Features

The thermostat is suitable for installation within a standard 86mm pattress box or European 60mm pattress box
.

Step 1. Keep power off. See Fig 1

Step 2. Remove the mounting plate by rotating the LCD part. See Fig 2.

Step 3. Connect the power, load into the appropriate terminals. (See "Wiring your thermostat" for details and Fig 3).

Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

Step 5. Fasten body of thermostat and the mounting plate. See Fig 5.

Step 6. Installation complete . See Fig 6.
