PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation |

Сохраните в закладки:

Цена:US $34.80 - 52.82RUB*

Количество:

Доставка в Эль-Монте, по России и СНГ


  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation | - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Sep-18-2025 40.79 руб. 42.90 руб. 41 руб.
    Aug-18-2025 40.84 руб. 42.91 руб. 41 руб.
    Jul-18-2025 34.77 руб. 36.72 руб. 35 руб.
    Jun-18-2025 39.61 руб. 41.12 руб. 40 руб.
    May-18-2025 34.26 руб. 36.49 руб. 35 руб.
    Apr-18-2025 39.71 руб. 41.79 руб. 40 руб.
    Mar-18-2025 38.42 руб. 40.54 руб. 39 руб.
    Feb-18-2025 38.40 руб. 40.68 руб. 39 руб.
    Jan-18-2025 38.70 руб. 40.3 руб. 39 руб.

    Новые товары

    Характеристики

    PWM Solar Charge Controller 12V/ 24V Self-Adapting LCD Panel Battery Discharge Regulator Temperature Compensation |

    Описание товара

    The PWM Solar Charge Controller support 12V/ 24V automatic identification for system voltage. It has different working modes and is suitable for both home and commercial use.

    Features:
    Automatic identification for system voltage: 12V/ 24V. The solar controller is suitable for various specifications of solar panel, applicable to both home and commercial use.
    Uses brand new electronic components and advanced chip, features stable performance and low error rate.
    Different working modes facilitate the solar controller's application to different types of load, such as streets lights and monitoring devices.
    PWM charging mode improves charging efficiency than ordinary solar controllers and the battery being charging is not easy to get damaged.

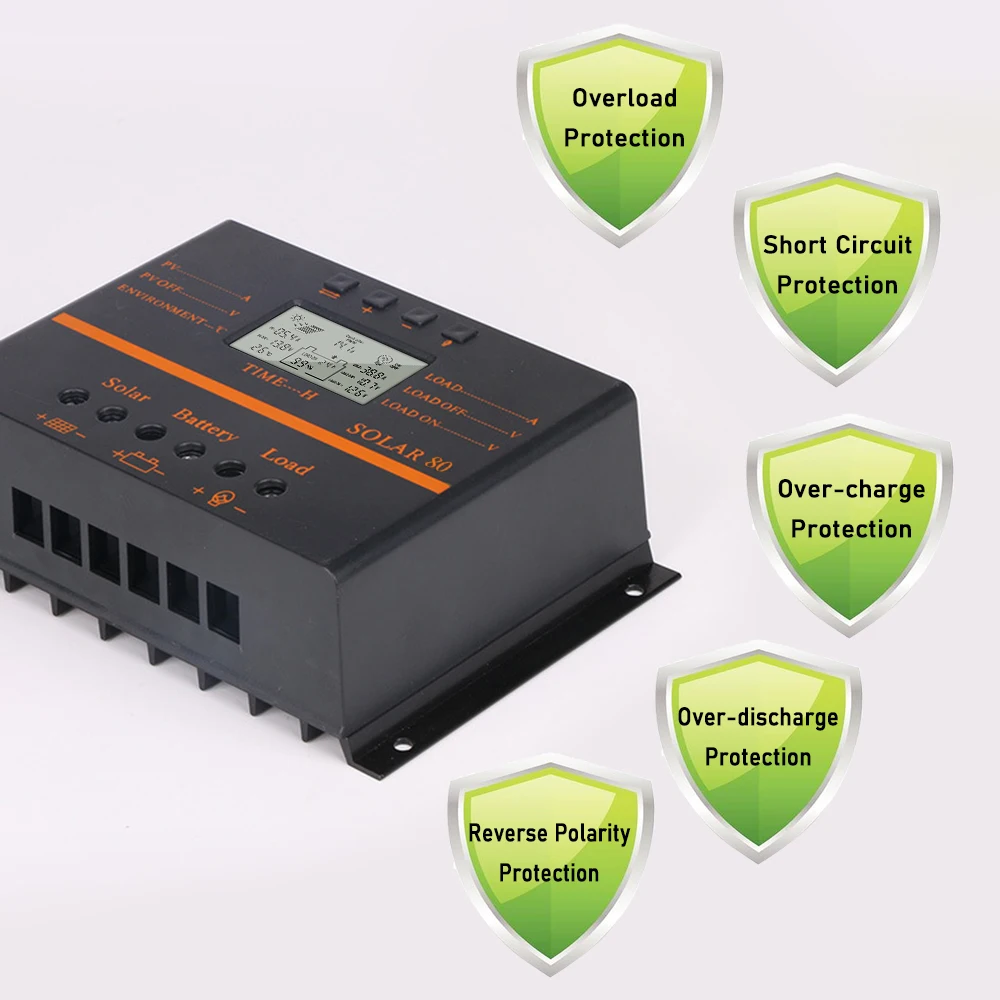

    Multiple protections provide safe use, such as over-charge, over-discharge, overload protection, as well as short circuit and reverse polarity protection.

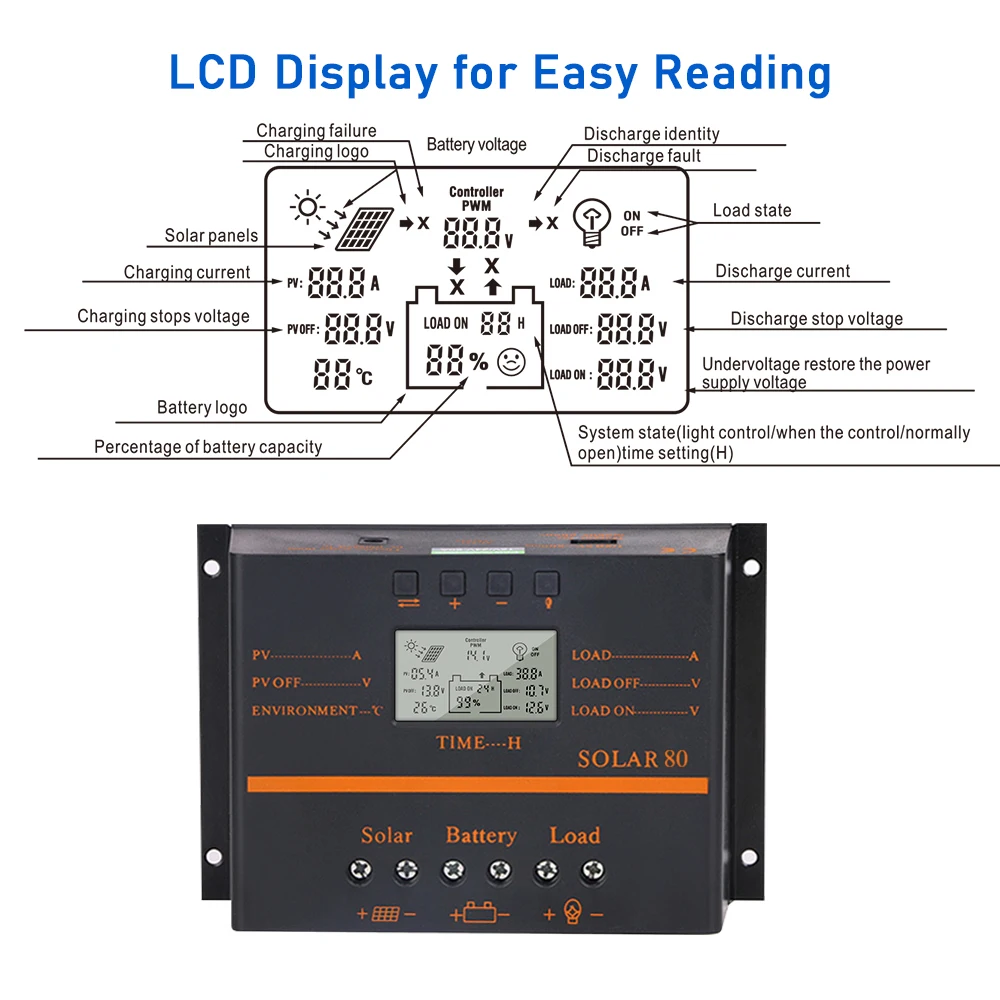

    Easy-to-read LCD screen and user-friendly operating keys ensure convenient and intuitive operations.
    With temperature compensation employed, charging parameters can be automatically adjusted.
    Selected ABS casing is wear-resistant, anti-impact and weather resistant; aluminum alloy heat sink provides rapid heat dissipation to prolong service life.

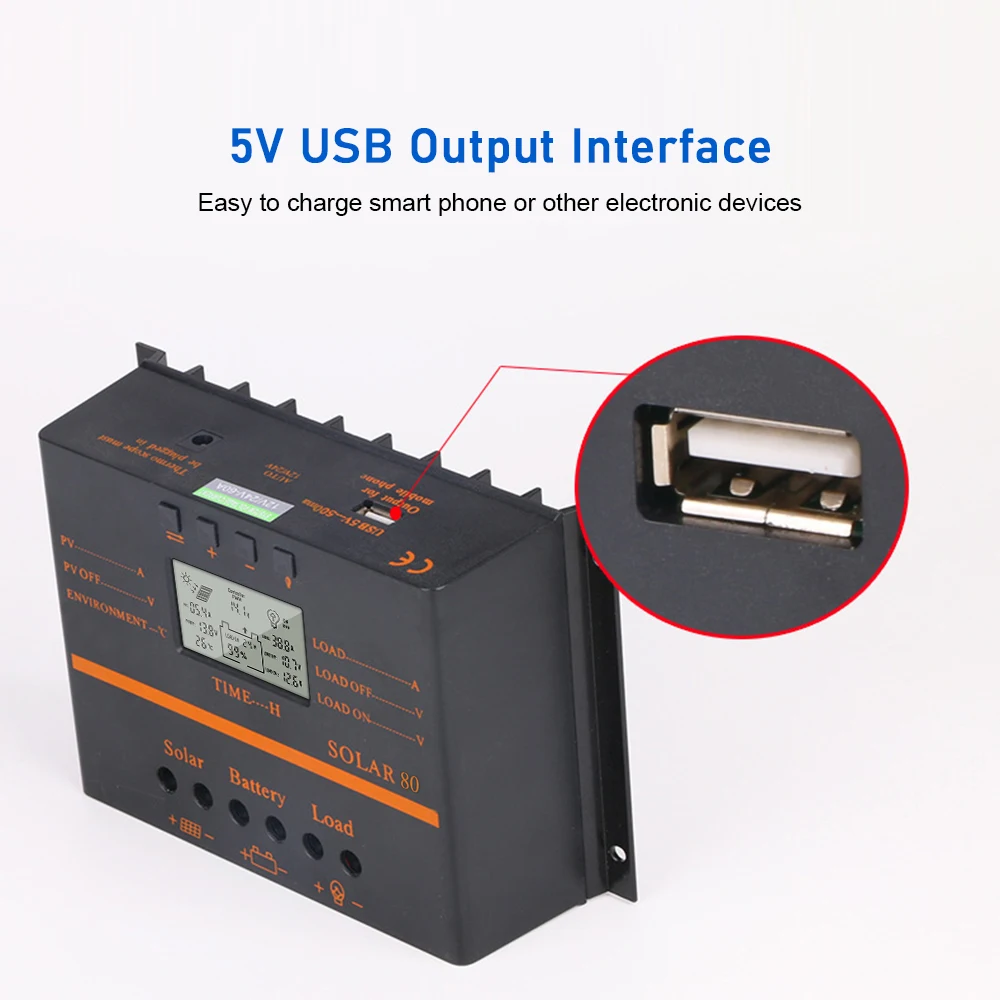

    5V USB output interface for easily charging smart phone or other electronic devices.

    Note: Size and color may be slightly different because of manual measurement and different light conditions. Thanks for understanding.

    Specifications:
    Rated Current (Charging/ Load): 40A/ 50A/ 60A/ 80A (Optional)
    Color: Black
    Material: ABS + Aluminum Alloy
    Display: Digital LCD Screen
    System Voltage: 12V/ 24V Auto
    Charging Mode: PWM
    Overload Protection: 1.25 x Rated Current, 60S; 1.5 x Rated Current, 5S
    Short Circuit Protection: ≥3 x Rated Current
    No-load Loss: ≤15mA
    Charge Loop Drop: ≤0.26V
    Discharge Loop Drop: ≤0.15V
    Over-voltage Protection: 17V; x2/24V
    Working Temperature: -35~55℃
    Boost Charging Voltage: 14.6V; x2/24V
    Direct Charging Voltage: 14.4V; x2/24V
    Float Charging Voltage: 13.6V; x2/24V
    Charging Recovery Voltage: 13.2V; x2/24V
    Temperature Compensation: -5mv/℃/2V
    Under-voltage Voltage: 12.0V; x2/24V
    Over-discharge Voltage: 11.1V; x2/24V
    Over-discharge Recovery Voltage: 12.6V; x2/24V
    Item Size: 190 * 130 * 60mm / 7.48 * 5.12 * 2.36in
    Installation Size: 178 * 97mm / 7.01 * 3.82in
    Package Size: 21 * 14 * 7cm / 8.27 * 5.51 * 2.76in
    Package Weight: 612g / 1.35lbs

    Package List:
    1 * PWM Solar Charge Controller
    1 * User Manual (English)
