Description:

1. Digital optical fiber divider 1x3: A fiber optic signal splitter to three sets of SPDIF/slink/optical signal receiving equipment. With power adapter, plug and play.

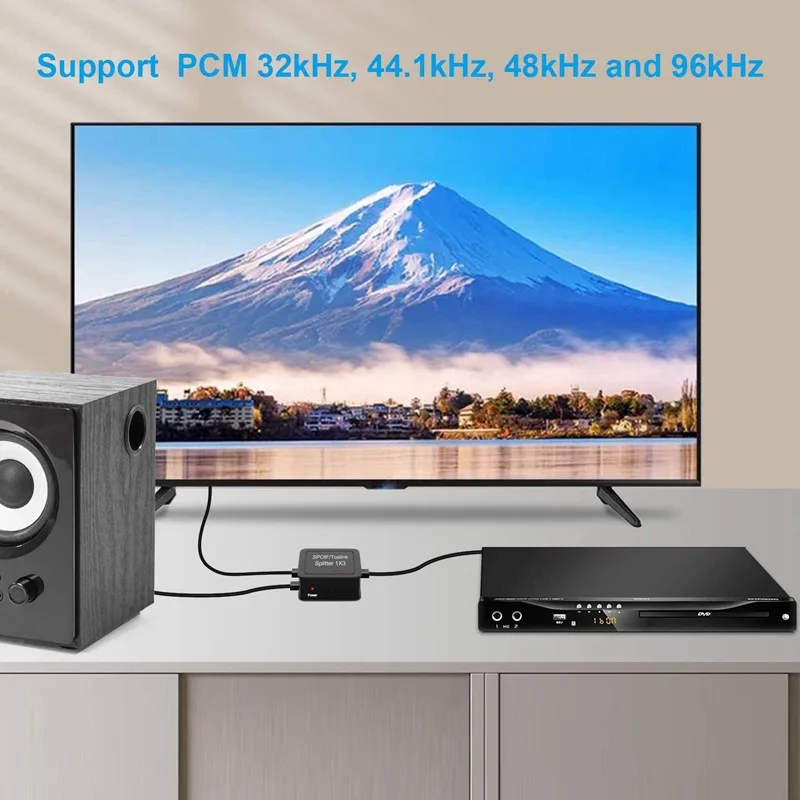

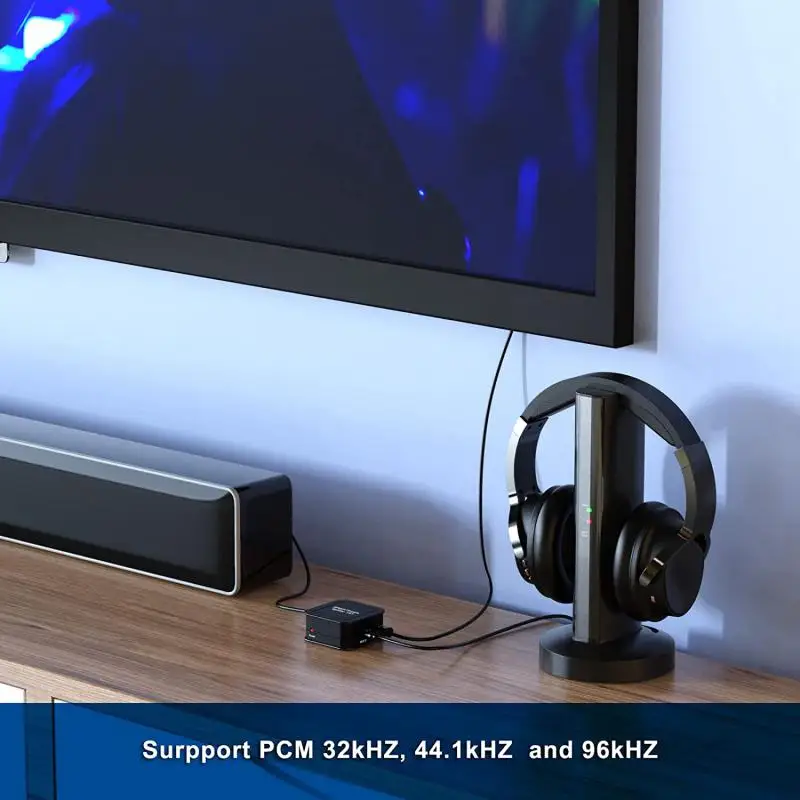

2. Support audio format: support Dolby-AC3/DTS/LPCM2. 0, supports PCM stereo 32kHz, 44.1kHz, 48kHz and 96kHz, and the maximum transfer rate is up to 16 Mbps.

3. Long-distance signal transmission: the use of optical fiber cables has less loss. 2dB/M, output distance up to 40m/130ft.

4. Overvoltage Protection: The built-in chip can prevent damage caused by connecting the incomparable power adapter to the machine

5. Memory function: support the memory of the last working state when it is turned off, so that you will not be interrupted.

Operating and Connecting:

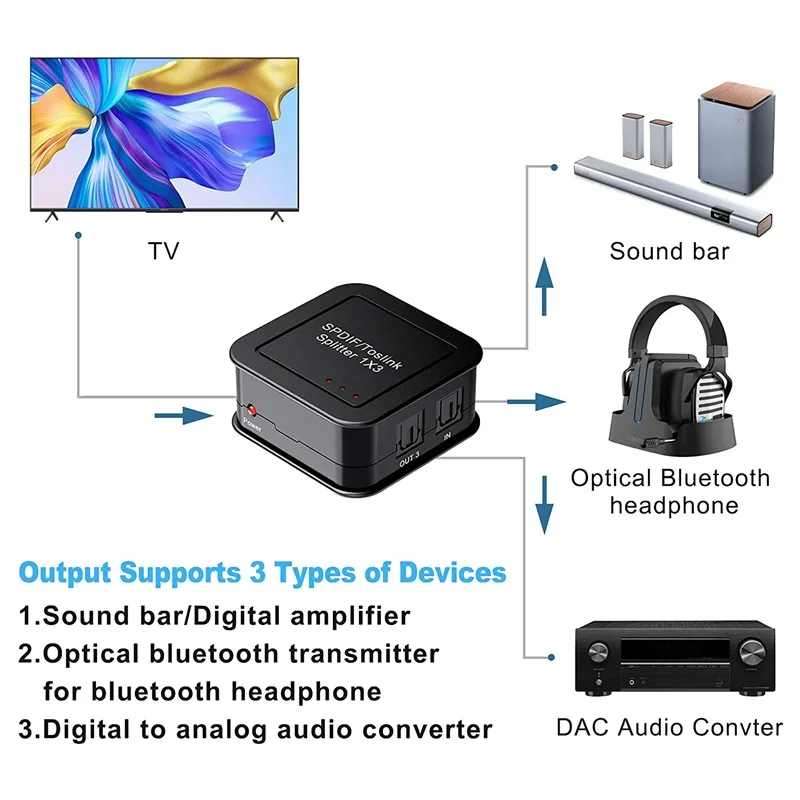

1. To use the optical fiber cable to connect the optical fiber signal source(such as blue-ray, the computer and so on) with the splitter input.

2. To le the splitter output port connected to the optical fiber signal receiver(such as amplifier, home theater and so on) by using the optical cable.

3.Connect 5V power supply to the splitters DC input port.

Specifications:

Support audio format: LPCM2.0/Dolby-AC3

Peak wavelength: 650nm

Max baud rate: 16Mbps

Output cable distance: ≤40m (Use the optical fiber cable loss less the 0.2Db/m)

Max working current: 100mA

Power adapter format: lnput:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/500mA

Operating Temperature range: 5 to 90%RH(No Condensation)

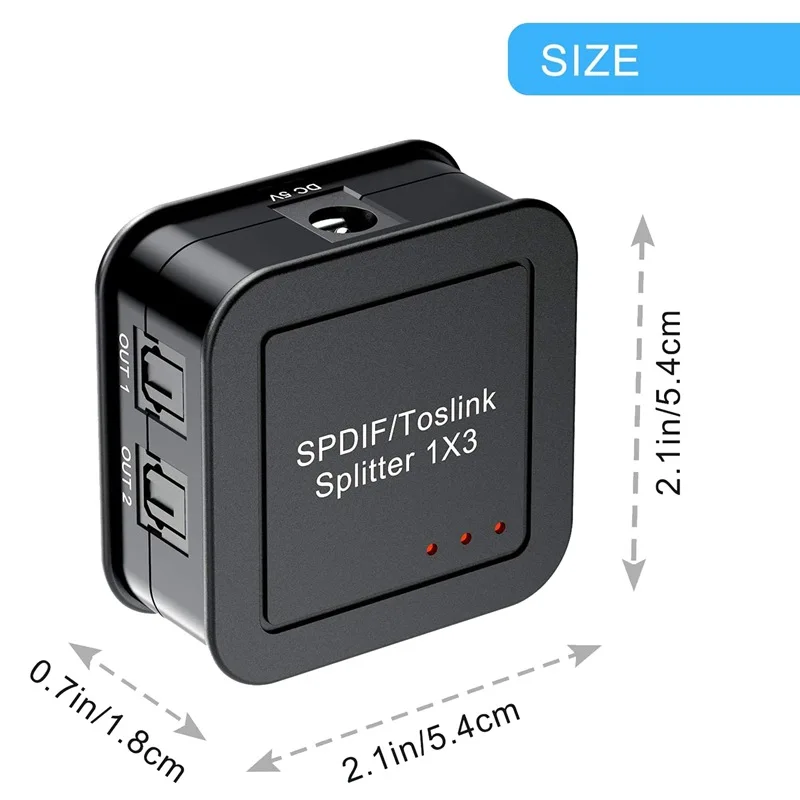

Dimension( L X W X H): 54X54X23.5(mm)

Weight: 35g

Package Included:

1*Main unit

1* Fiber Optic Cable

1*5V Power Adaptor

1*Operation Manual

Notes:

Notes:

Please use the machine as the insted to keep the long use lifetime of the machine.

1.The machine should be placed at the sport far from the Damp, High-Temperature,Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohblited.

4. Please hold the power adapter head and do not pull the power cord when cut off from the socket.

5. Please turn the power off when the machine is not used for long time.
