Tag Pet Engraver 30W 50 Watt Fiber Laser Marking Machine 50W

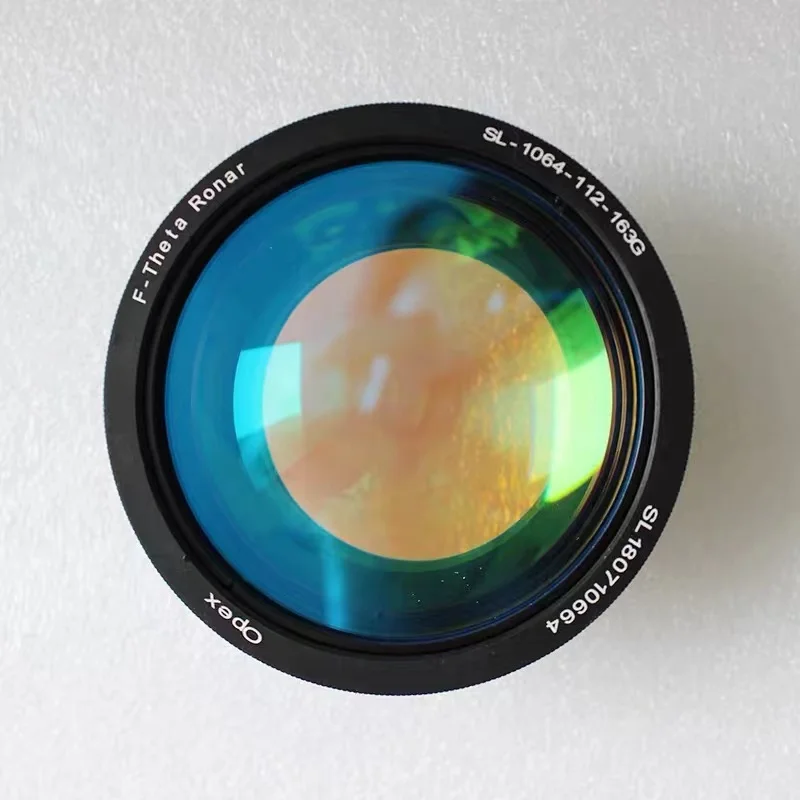

How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ，
Bigger Lens Engrave Bigger Area ，
Smaller Lens Engrave Deeper Depth,

if 20w laser choose 300mm*300mm lens , that means your focus distance is very tall ,power come to mark object is

cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,
30w choose 70mm*70mm , 110mm*110mm , 175mm*175mm
50w choose 70mm*70mm , 110mm*110mm , 175mm*175mm ,200mm*200mm ,300mm*300mm.

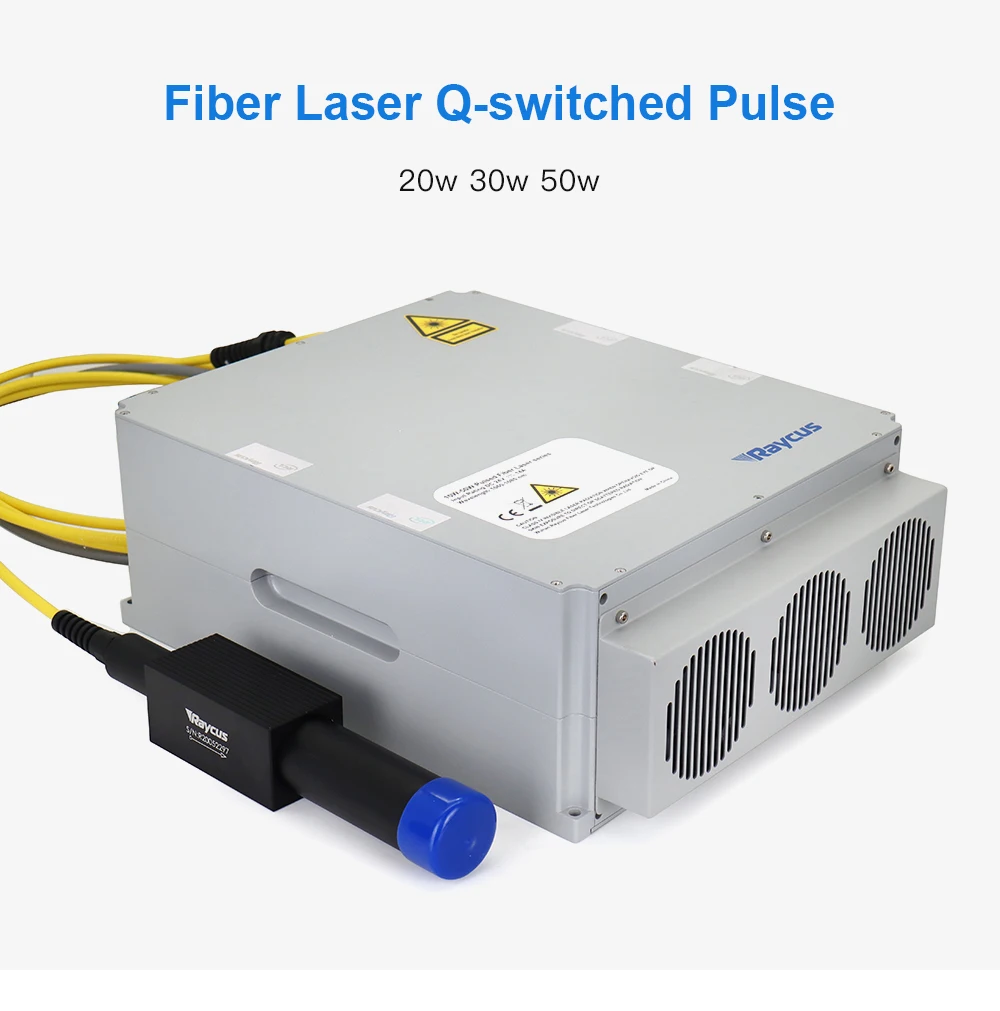

How to choose a fiber laser marking machine? Raycus, JPT or MAX？

Raycus and jpt is different laser source brand , they have the same function ,
but raycus is good at deep engrave , hollow design and cutting, jpt is good at engrave have a fine touch.

About Shipping and Tax

As we know, for high price product, Some countries need pay tax for customs clearance .
if you have any question with customs clearance , please contact us .

CONTACT INFORMATION:

Jussie

Email: jussiexu/@/hotmail.com

Viber: +86 18766528490

Whatsapp: +86 18364111012

Skype: Jussie.cnc

Mobil phone: +86 18364111012

Fiber Laser Marking Machine Features

1. The bird ring laser marking machine adopts integrated design, equipped with electric multi-station rotating platform (the platform shape can be customized for your own ear tag parts), easy operation and environmental protection.

2. The eartag printer laser marking machine adopts imported Germany laser source with high-quality beam mode and optical frequency control, the marking accuracy of the ear tag engraver is very high and the marking effect is clear, animal ear tags can be
achieved permanent and anti-counterfeit mark by this ear tag engraver.

3. The bird ring laser engraving machine meet the coding equipment technical requirements of Agriculture Ministry livestock ear tags production systems technical
specifications, and the bird ring laser marking machine can be marked on the surface of a variety of livestock earmark logo and two-dimensional code and other information.

4. The bird ring laser marking machine adopt professional custom work platform, and equipped with Perfect laser special coding software, the processing time of work pieces by bird ring laser marking machine is shorter and more efficient.

5. The marking speed of the bird ring laser marking machine is fast, no consumables and the the whole energy consumption of the bird ring laser marking machine is low. Long service life and low cost.

Item  /  Model

KMF-20/30/50/60/70/100W

Laser source

Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)

Laser power

20w, 30w, 50w,60w,70w,100w

Laser type

Fiber laser

Graphic Format Supported

PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF

Marking speed

≤8000mm/S

Max.Marking Depth

≤0.4mm

Laser Wavelength

1064nm

Marking lines

0.06-0.1mm

Minimum line width

0.06mm

Minimum character

0.15mm

Resolution ratio

0.01mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Equipment Dimensions

710*500*730mm(different model has different size,detailed can be confirmed with sellers)

Net Weight:

61kg

(different configuration has small difference)

Unit Power

≤500W

Optional Spare Parts

 Rotary/Protection glasses/outside red light/night lightand so on.

Machine Advantages:

Applied Materials:

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.

Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.

Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .

We Kamilaser high educated engineers make machines with heart for these detail we can see it takes time to

make a good machine.

»»  Packaging & Shipping

1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.

2.All the spare parts of the machine were covered by some soft materials,mainly using pearl

wool.

Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding waterproof and

rust proof.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Warranty for 3 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.                                                    When you have any questions, no matter machine or operate, you can contact us directly.

If any parts broken, we will replace a new one for you in free.

After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken.

In addition to these main accessories, we can gain an in-depth understanding of
the machine configuration of the accessories and technical debugging of the
main quality of the machine. It only provides you with a machine that runs
stably and has a low failure rate. Machine accessories are related to the long
life of the machine. In the short term, it is impossible to compare the
stability and failure rate of the machine!

4:
Never let price become the only guiding factor for the company's business marketing.

Expand your own marketing ideas and position high-quality markets.

5:
Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say,

I can provide it. Just the price is different!
