16s2p 60V10AH 1000W Lithiumion Battery 67.2V 10Ah Electric Bike Wheelchair E Motorcycle Battery+Charger |

16s2p 60V10AH 1000W Lithiumion Battery 67.2V 10Ah Electric Bike Wheelchair E Motorcycle Battery+Charger |

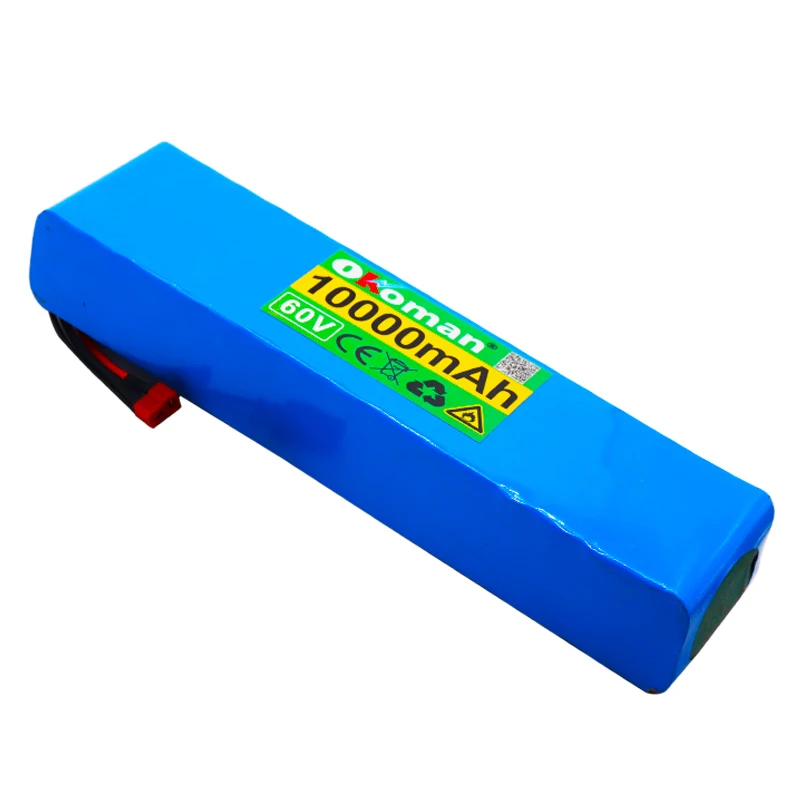

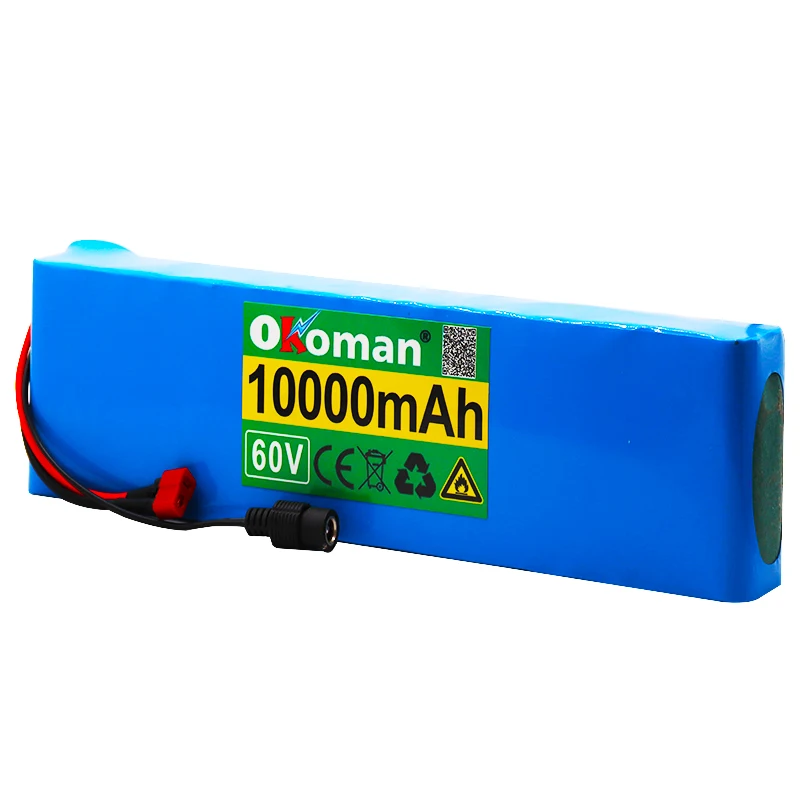

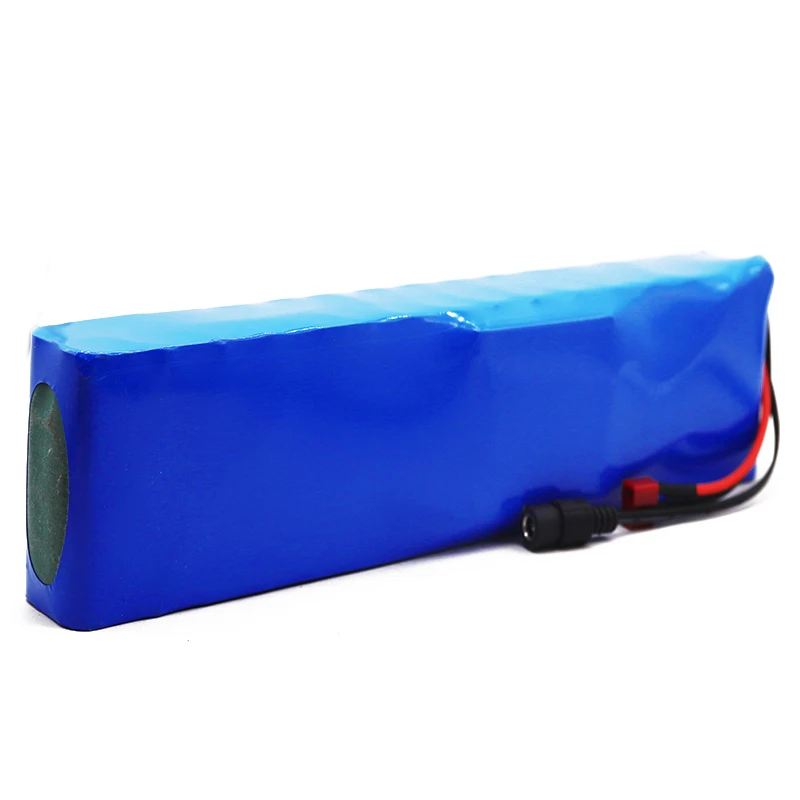

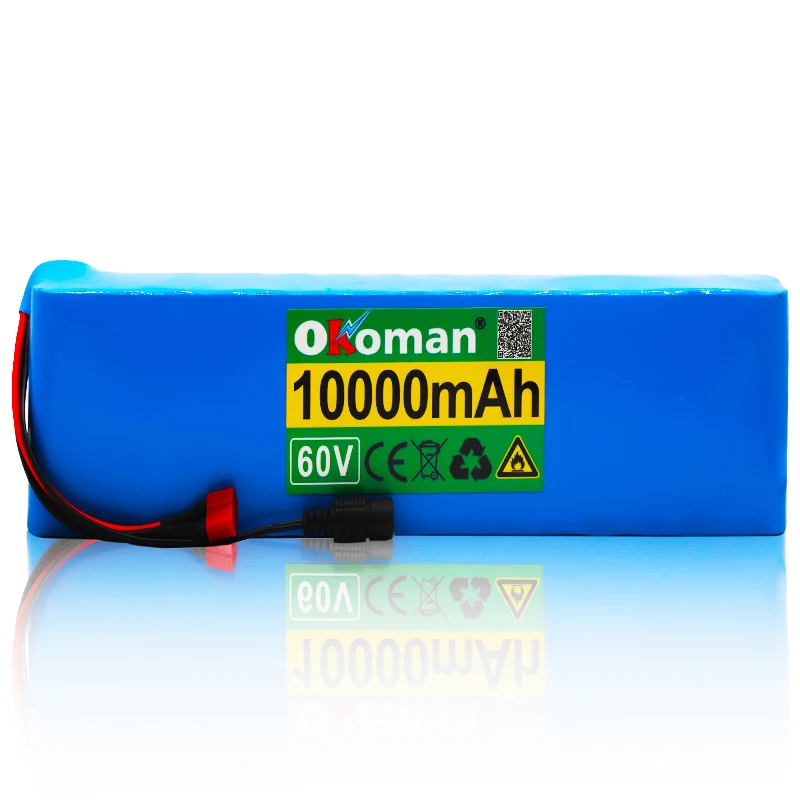

16s2p 60V 10AH 1000W Lithium ion Battery 67.2V 10000mAh electric bike battery electric wheelchair battery e motorcycle battery+charger
Basic Information
- Cell count: 32pcs
- Configuration: 16 sets in series (16S) of 2 cells (2P) in parallel , Built-in BMS protection,With overcharge, over discharge, short circuit protection
- Pack: Blue PVC
- Weight: less than 2kg

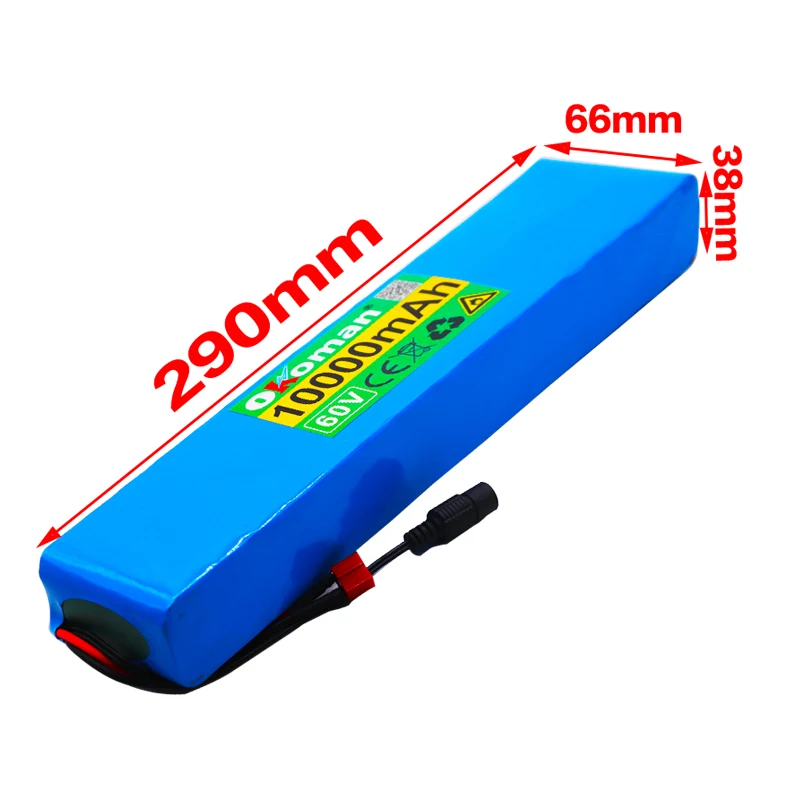

- Width: 38mm
- Height: 66mm
- Length: 290mm
* Manual measurement, there will be deviations.
Energy
- Nominal Voltage: 60V
- Output Voltage Range: 44v - 67.2v
- Nominal Capacity: 10Ah
- Nominal Power : 420Wh
Application:
electric bicycle motor ebike scooter
Cycle Life:
- More than 500 times, Capacity and performance will decrease as the number of cycles increases.
*Test results will be affected by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation.
At a temperature of 25 , the deviation between the pure resistance discharge test result and the nominal data is controlled within 10%, which is normal.
Warranty:
- Warranty period: 1year,Calculated from the delivery success date.
- Ingress of water, disassembly, modification, failure to use a matching charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.
- Warranty treatment method: Usually the replacement parts are sent to the buyer for replacement.Buyers can also choose to send the product to the seller for repair,but the buyer is responsible for all shipping costs , including the shipping cost that the seller sends to the buyer after the repair.

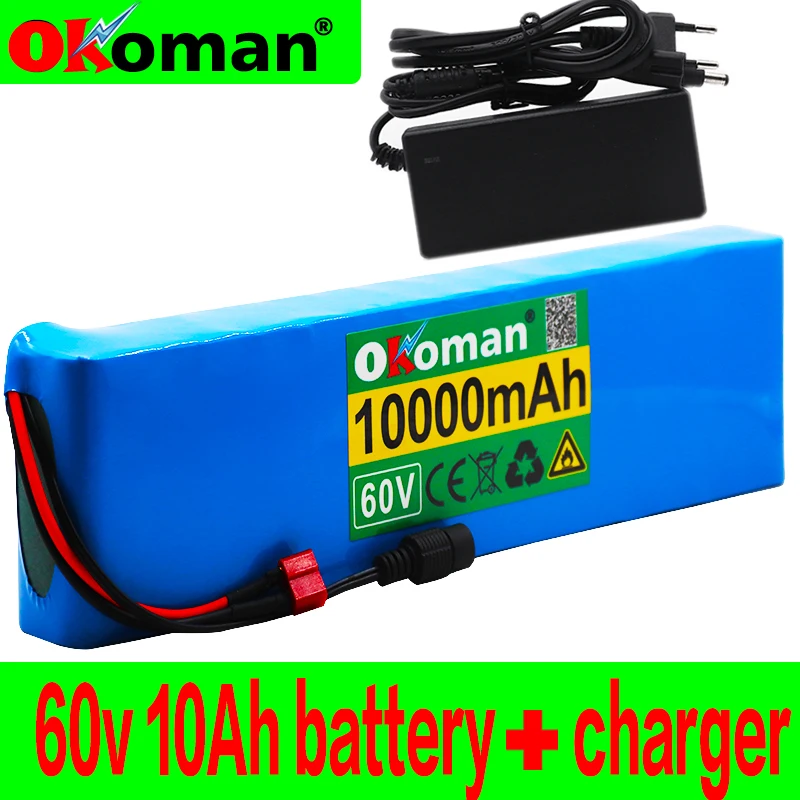

shopping list:
1pcs 60v 10Ah battery with BMS("T" plug is sent by default, if you need "XT60" plug, please contact us, thank you!)
1pcs 67.2v 2A charger (European plug is sent by default, if you need US/Canada plug, please contact us, thank you!)
