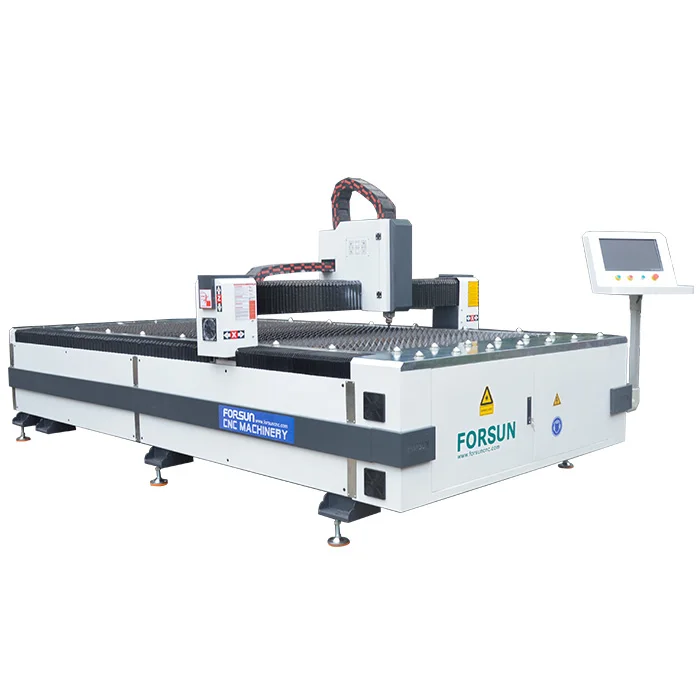

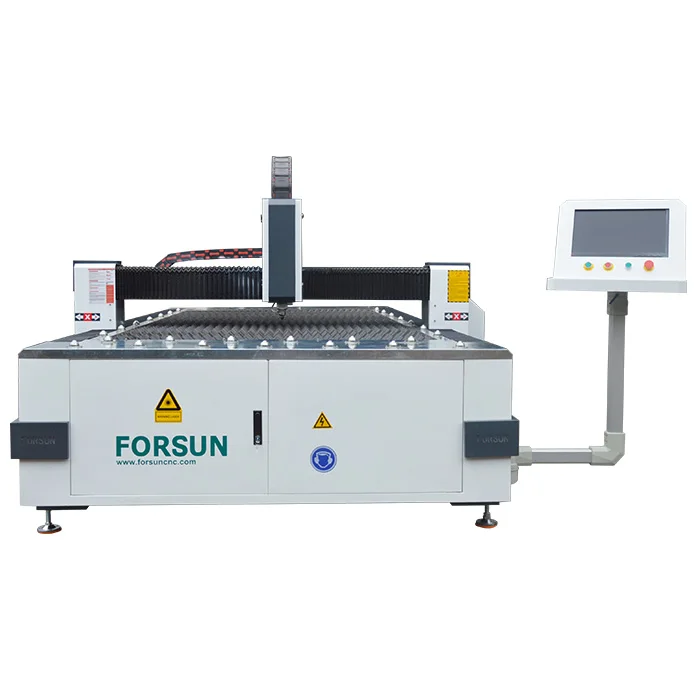

What's the feature of CNC Fiber Laser Cutting Machine?

Ø Effective cutting size : 3000*1500mm*200mm

Ø Raytools Fiber Laser Cutting Head

ØCypcut control system

Ø Delta servo motor

Ø Raycus / Maxphotonics Fiber Laser

Ø Sawteeth working table

Ø Taiwan TBI Ball Screw,Germany Helical Rack and Pinion

Optional parts :

Ø4th Rotary Axis for Metal Tubes

ØEnclosed cover,protect from laser.

ØJapan Shimpo Reducer

What is the Advantage of our CNC Fiber Laser Cutting Machine ?

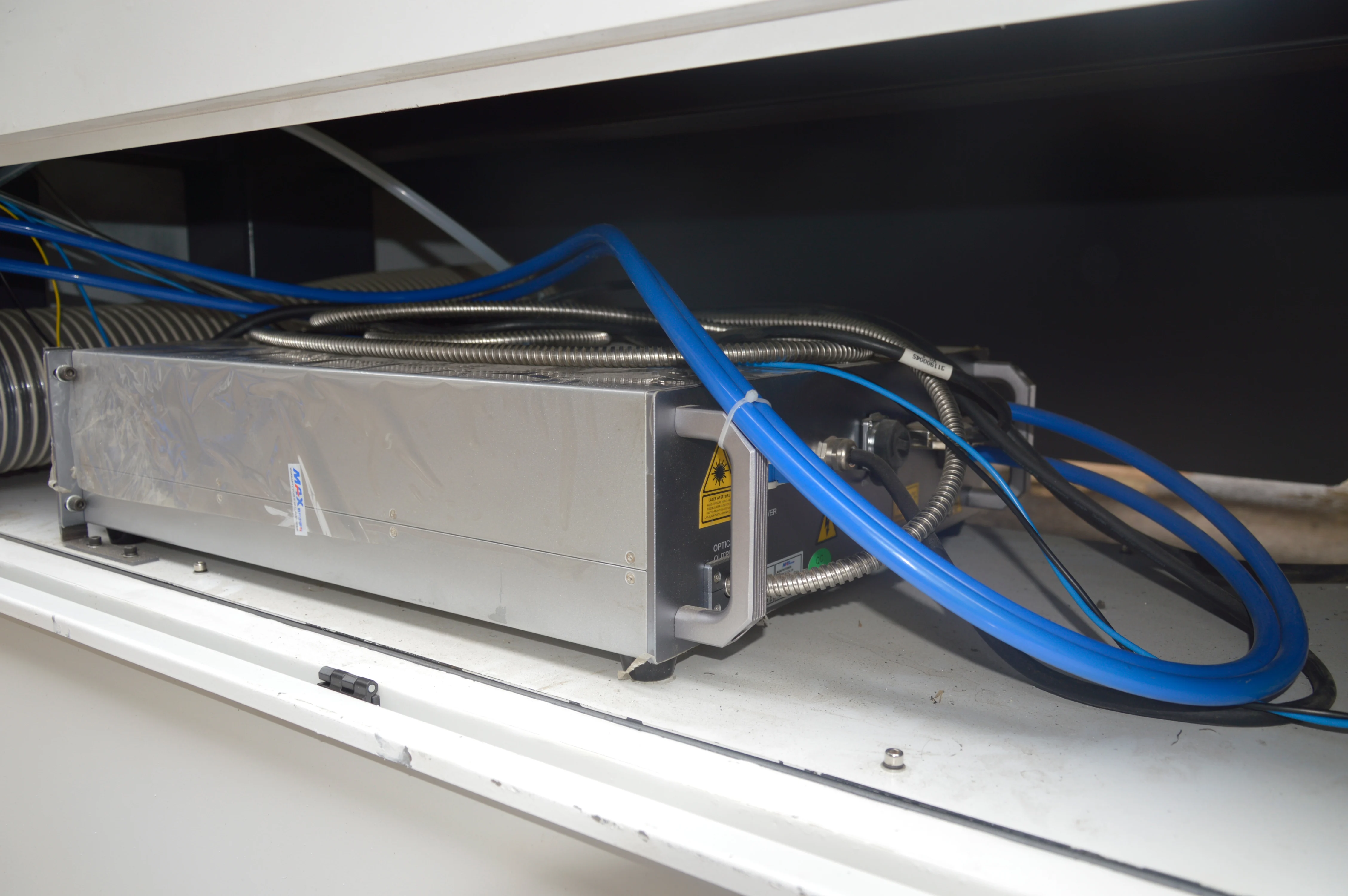

Famous Brand Raycus / Maxphotonics

-Solid state laser lasts over 50,000hrs; Various power options of 500w, 750w, 1000w,1500W,2000W,3000W etc

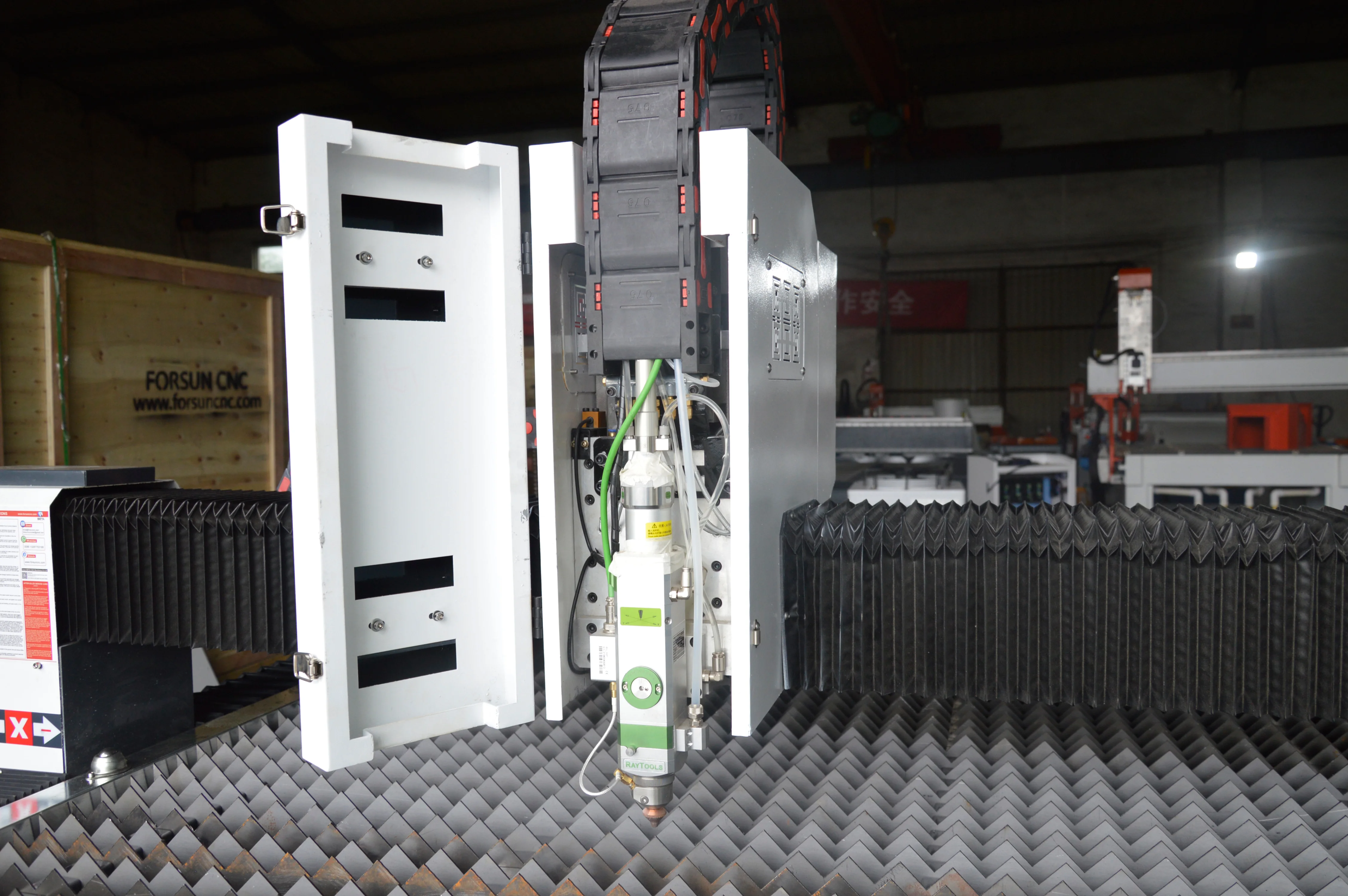

2.Auto focusing

Capacitive Auto-height adjusting Raytools cutting headCutting Head

-Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

3.Servo system

Japan YASKAWA Servo driver and motor

-With strong power and high precision

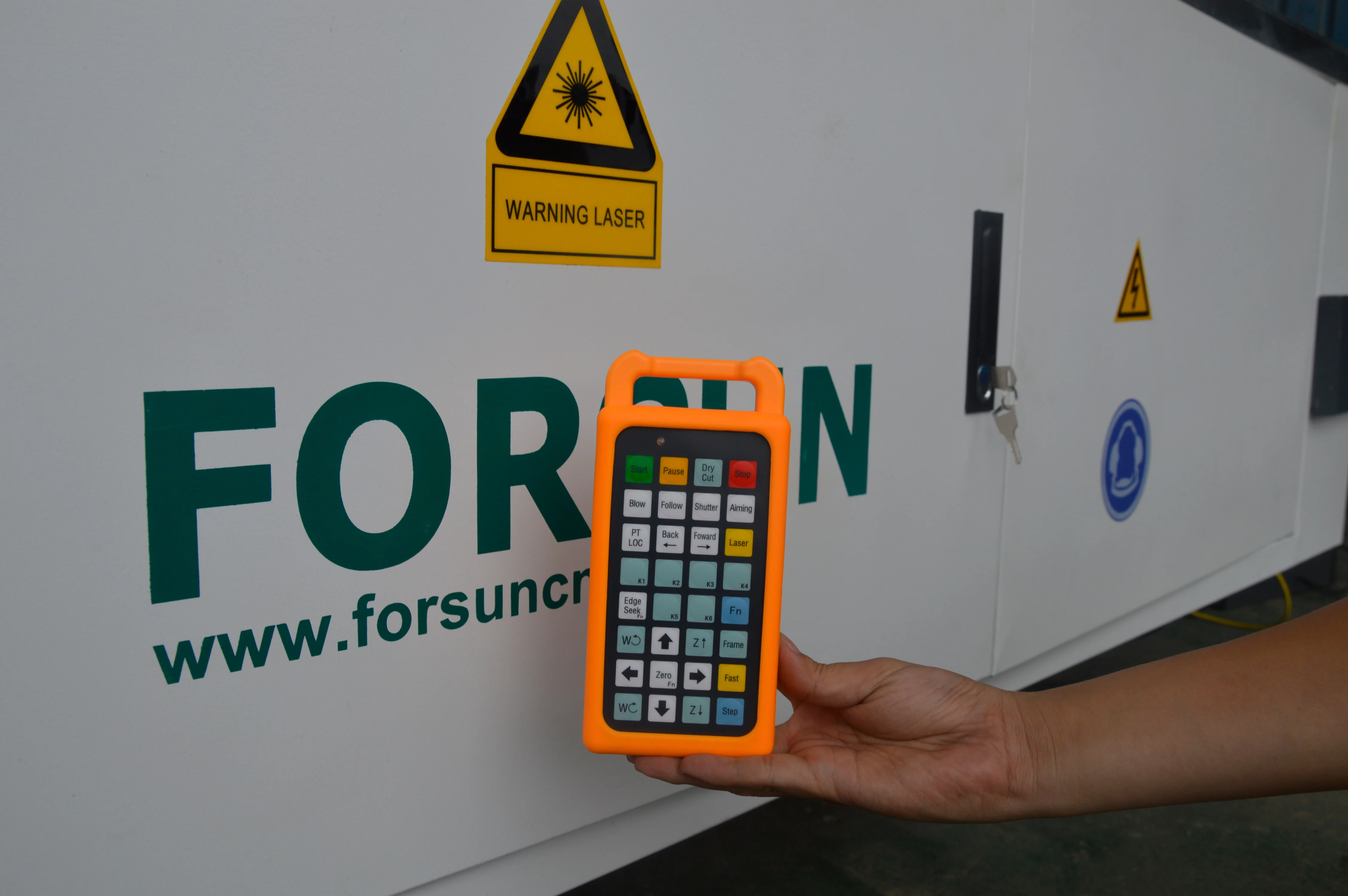

4.Control system

Cypcut control system

-Which can realize intelligent layout of graphics,automatically choosing and matching cutting paths, save processing time

5.Reducer

Japan Shimpo Reducer

-The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable

6.High accuracy

Precision cutting

-Which can reach ±0.02mm/300mm

NO

Description

Parameter

1

Laser Source

Raycus / Maxphotonics

2

Positioning Accuracy

±0.02mm/300mm

3

Laser Power

500w, 750w, 1000w,1500W,2000W,3000W etc

4

Maxinum Speed

100M/min

5

Running Environment Temperature

0 - 45 Centigrade

6

Relative Humidity

30% - 75%

7

Voltage

3PH, AC 380V/50HZ

What's the benefit of Forsun CNC Fiber Laser Cutting Machine?

Applicable Industry:

This machin is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.

Applicable Materials:

Carbon steel: 0-20mm; Stainless steel: 0-10mm.

Professional used to cut thin sheet metal, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

Packaging of CNC Fiber Laser Cutting Machine?

Services of CNC Fiber Laser Cutting Machine?

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
