Working principle:

Plasma is a gas that is heated to a very high temperature and is highly ionized. It transfers the arc power to the workpiece. The high heat melts the workpiece and is blown off, forming the working state of plasma arc cutting.

Product name

1530 120A Plasma cutting machine

Working area

1500*3000mm

Lathe bed

Very thick steel structure

Machine Power

8.5kw

Working voltage

380V three phase 60hz

Reposition precision

0.02mm

Processing precision

0.1mm

Torch Height control

automatic

Plasma power supply

China LGK120A

Control system

China SJTU-CNC

Motors

stepper drive motors

Software

STARCAM

Plasma Air Pressure

Max.0.8Mpa

Working Temperature

-10°C-60°C. Relative Humidity, 0-95%.

LCD Display Dimension

7 Inches

Control Cypcut:

Cypcut, software is a three-dimensional cutting software, you can directly read UG, SolidWorks software export IGS format files, automatically extract the section to be cut and the track to be cut, without manual editing and selection.
Fast and convenient automatic leveling and center correction function eliminates the cumbersome manual operation, improve the accuracy of cutting; automatically according to the size of the pipe to calculate the pipe rotation and single-sided cutting head when the lifting height, to avoid cutting the process of collision.
But also greatly reduces the single-sided cutting when the unnecessary lift, save time.

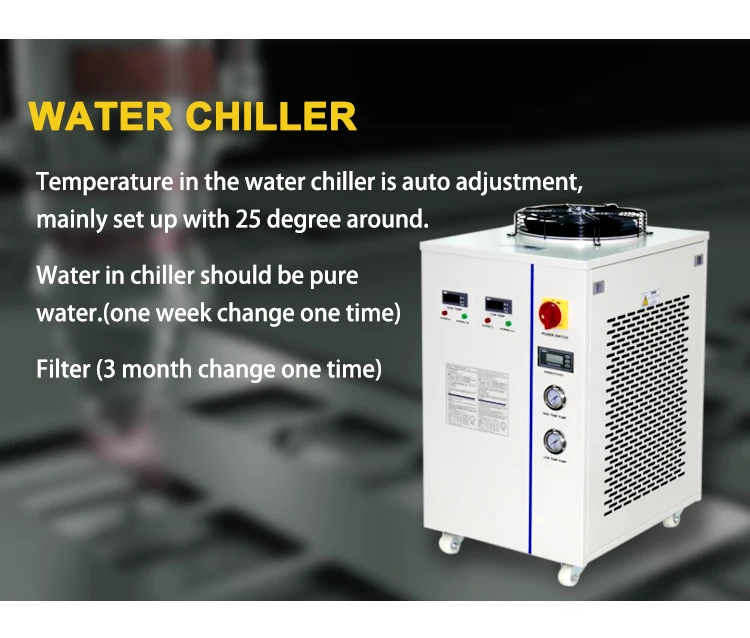

Water Chiller:
When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.
Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.
Water in chiller should be pure water.(one week change one time).
Filter (3 month change one time).

Raytools BT240S-Laser Cutting head:
The BT240S series Laser Cutting Heads are released based on the BT240 from Switzerland RAYTOOLS AG in 2017, which are suitable for medium and high power fiber lasers in industrial applications. Compared to the BT240 series, the upgraded version of BT240S series in dust-proof design and customer experience are made a comprehensive optimization. As we all know, collimation lens is very likely to be contaminated when inserting or removing optical fibers,so the BT240S series are avoided this risk by adding an top protective window to the collimation assembly. At the same time, the bottom protective window structure is also fully upgraded, we add a dust cover on it. Double protection design enhance the user experience in the replacement of protective window greatly, and the lens contamination risk is almost zero.

1. Packaging:

Packed by standard import & export wooden cases or carton boxes.

2. Shipping:

By logistics; by automobile; by train; by shipping; by air etc.

1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
