2D Desktop Barcode Scanner Handsfree 1D 2D QR PDF417 Code Scanner With Adjustable Scan Head For PC POS Windows Linux Android

Physical Parameter

Material：ABS+TPU
Power Supply：DC 5V ±5%
Operating Current ：0.26A(Standby);0.29A(Operating);0.33A(Max)[Average]
Power consumption：1.30W(Standby);1.45W(Operating);1.65W(Max)[Average]
Weight：291.0g±5g

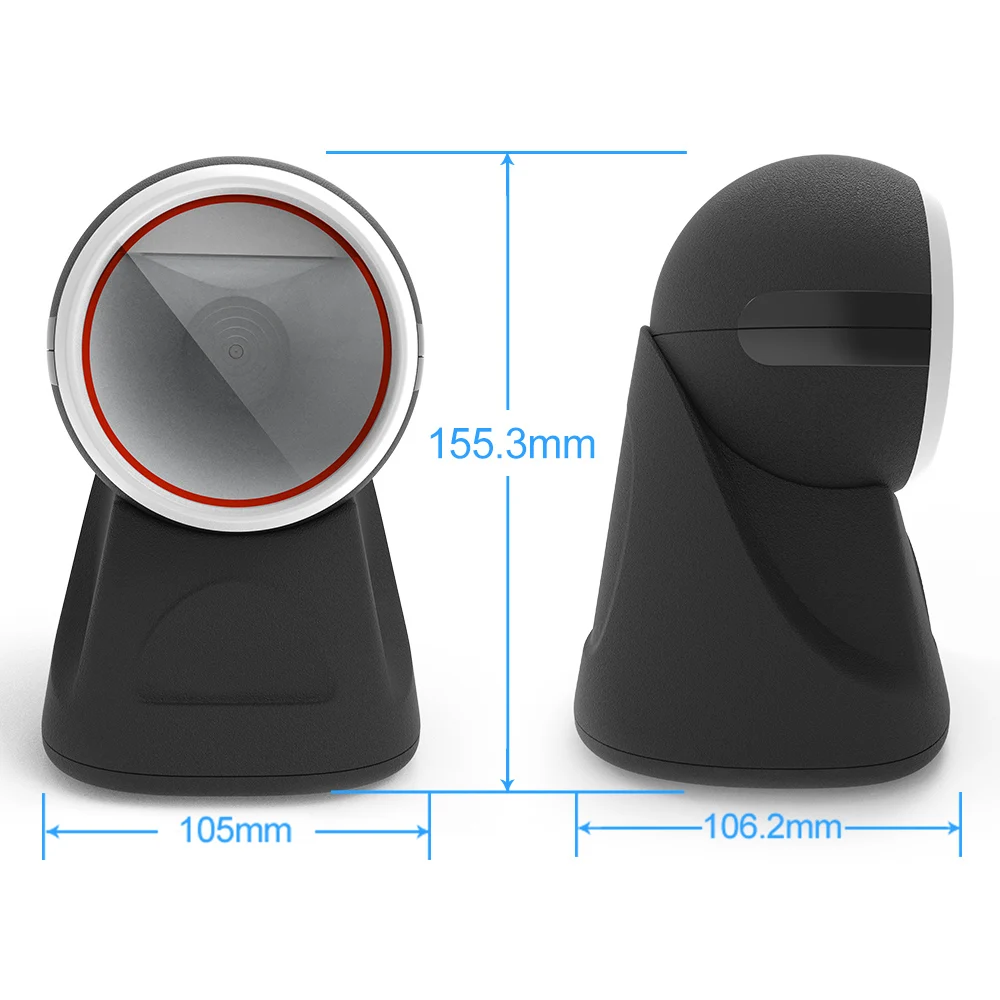

Size(L * W * H) ：106.2 * 105.0 * 155.3mm

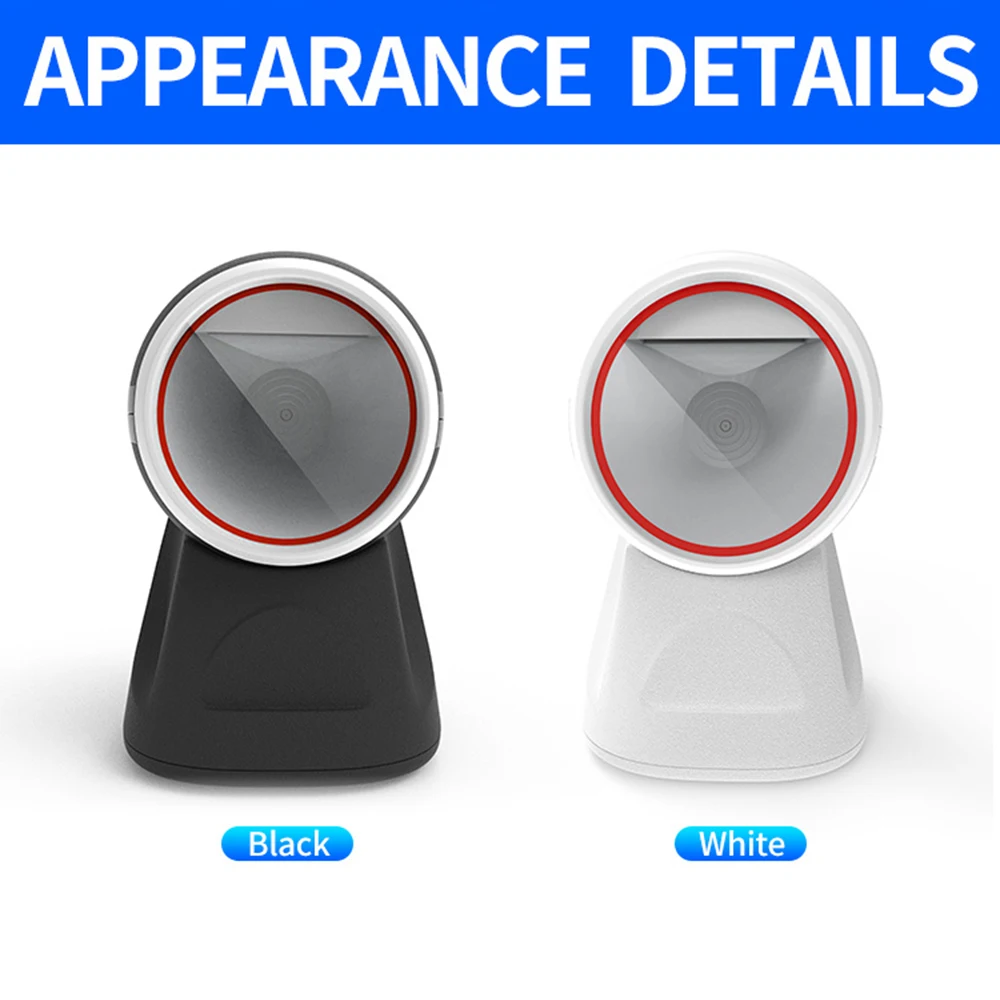

Color ：Black,white

Performance Parameter

Interface ：USB

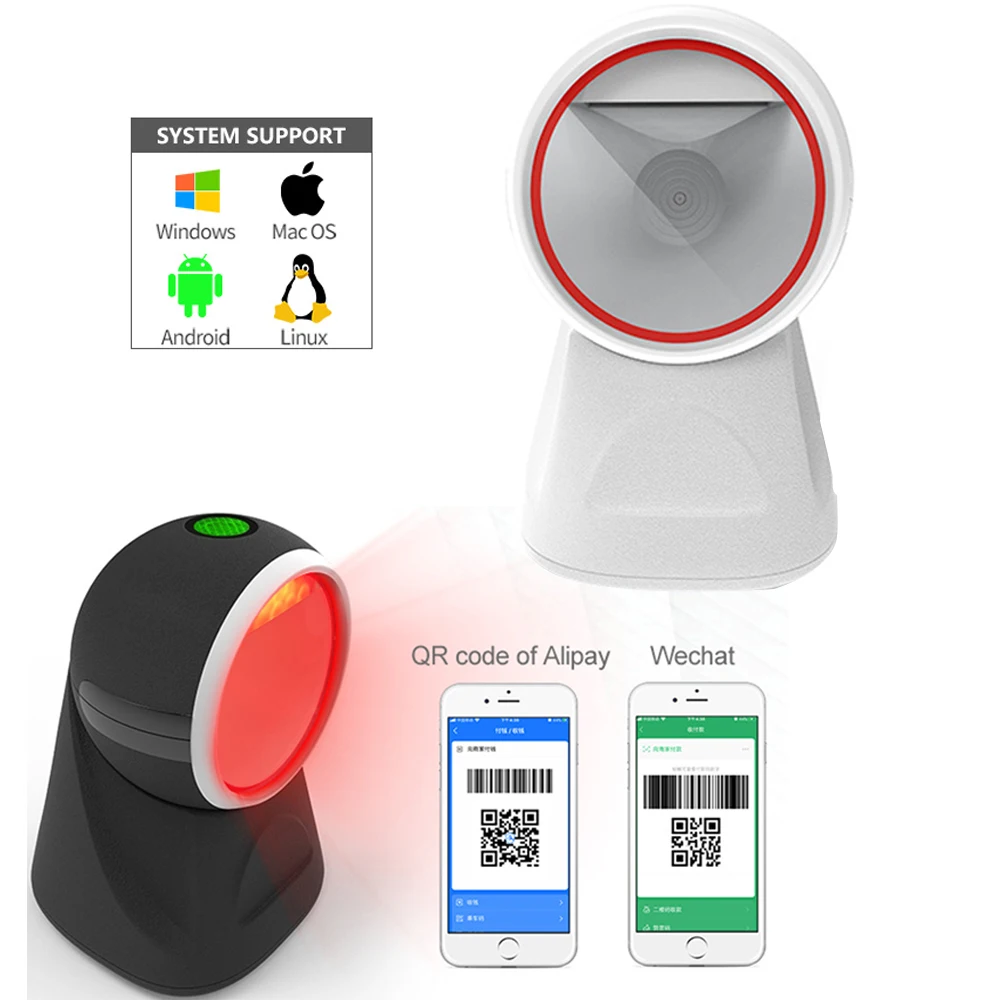

System supported ：Linux,Android,Windows XP,7,8,10,MAC
Language supported ：English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland; Romania; Slovakia;
[Support virtual keyboard]
Sensor ：Planar CMOS sensor 480 * 640
Light Source ：Red LED
Processor ：32-bit ARM MCU + DSP
Motion Tolerance ：85cm/sec[10mil QR]
Resolution ：Code39 ≥5mil
Error Rate ：1/5000000
Reading Mode ：Image
Triggle Mode ：Auto-sensing
Prompt Mode ：Buzzer+Indicator Light(LED)

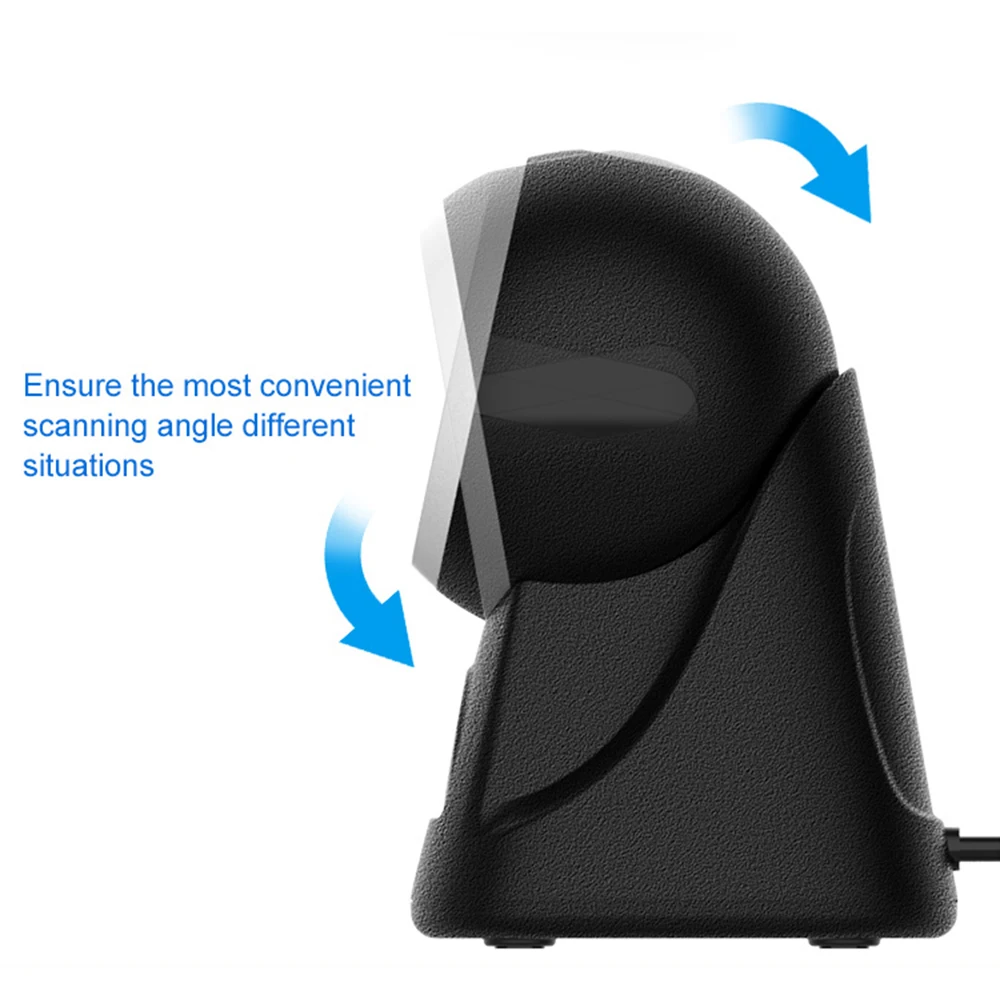

Scanning Angle ：Rotation 360°, elevation ± 55°, deflection ± 55°
Invoice Code supported ：Support
Print Contrast ：≥30%

Decoding Capability

1D:
Interleaved 2 of 5 ITF-6 ITF-14 ISB-128 Code 11 UCC/EAN-128 GS1 Databar Industrial 2 of 5 Matrix 2 of 5 Code 32
Code 128 EAN-13 EAN-8 Code 39 UPC-A Codabar Standard 2 of 5
Plessey MSI-Plessey UPC-E
Code 93 GS1 composite code
2D:
PDF417 Data Matrix QR Code Micro PDF417
HanXin AZTEC Maxicode Micro QR
