DC 12V-24V 4-Channel Network Relay Module Support UDP Mode TCP Client Mode TCP Host Mode Power Supply

1. The relay module supports 3 modes, including UDP mode, TCP client mode and TCP host mode

2. Use the W5500 chip to respond stably and quickly to network packets

3. 4-way relay output 4-way led lights identify 4-way relay status

4. Relay withstand voltage: 10A/250VAC 10A/30VDC

5. The high and low level of the input control terminal can control the relay to close

product description

This product is used to control the opening and closing of relays over a network. Support 3 modes: UDP mode, TCP client mode, TCP host mode. Use the W5500 chip to respond to network packets stably and quickly.

Function parameter

Input voltage power supply range: 12V~24V

Control level input: 5V

Relay withstand voltage: 10A/250VAC 10A/30VDC

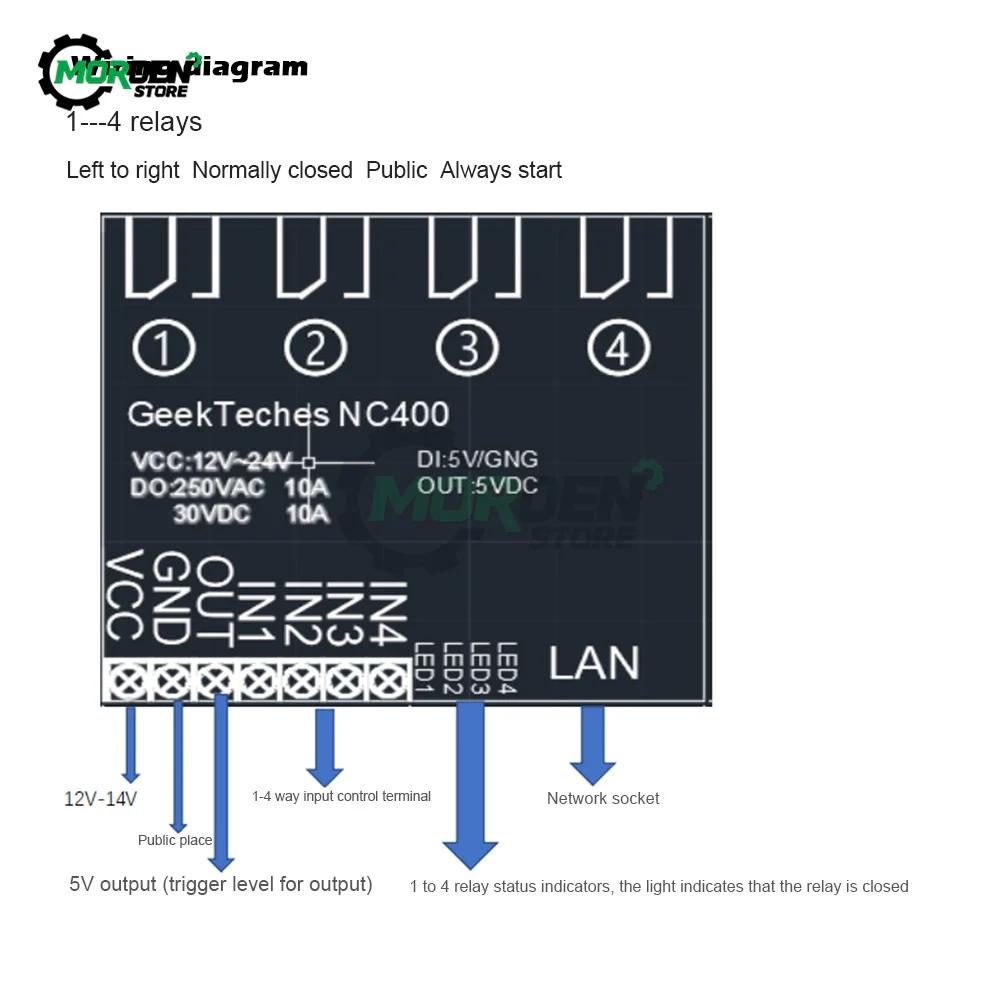

4-way relay output 4-way LED lights identify the state of the 4-way relay.

The corresponding LED lights on means the corresponding relay is closed.

The high and low levels of the input control terminal can control the relay to close.

The high and low levels of the input control terminal have higher priority than network control.

High/low level trigger can be selected by internal jumper cap (default low level trigger)

Network Configuration

Use a network cable to connect the machine to the same gateway as the host computer.

Configure the IP address, gateway, etc. in turn according to the network communication protocol

It can be used after configuring the standard address through the network debugging assistant or other host computer software. This product defaults to UDP working mode.

Package list:

Network Relay Module X1
