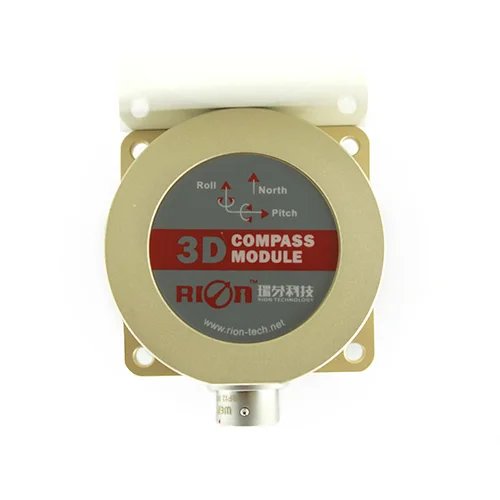

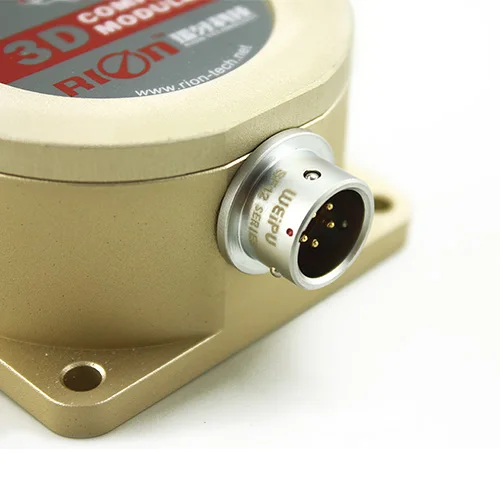

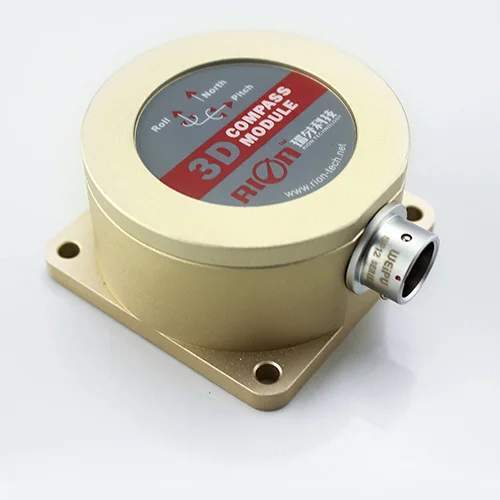

High Reliable 3D Digital Compass Orientation Electronic China RS232 Sensor Factory |

Brand NameNoneOriginMainland ChinaTypePower Tool PartsMeasurement unitpiece/piecesEach pack1Model NumberDCM302BPlace of OriginChinaBrand NameRIONBrandcompass sensorVoltage - SupplyDC5VOutput Typedigital (RS232, RS485, TTL )Operating Temperature-40℃~+85℃Mounting TypehorizontalPackage / CaseAluminum alloy oxidationMeasuring RangeHeading 0-360° , Roll /Pitch +/-85°TechnologyMEMSdigital compass Heading range360degBest heading accuracy0.3degRoll range+/-85degPitch range+/-85degInterface portRS232 /RS485/TTL optionaldigital compass MTBF≥40000 hours/timeWorking temperature-40C ~+85CStorage temperature-40C ~+100CProductionIP67UsagePosition Sensor32 274,92 ₽32 274,92 ₽Add to CartBuy now32 274,92 ₽loaderDescriptionFriends, if you have any questions please contact WhatsApp +86 13973026333 #detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:244.65811965811963px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:244.65811965811963px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:18px}#detail_decorate_root .magic-10{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-11{padding:0;font-size:16px;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-12{padding:0;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-13{margin:0;padding:0}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:186.9718309859155px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:186.9718309859155px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;overflow:hidden;width:164px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;overflow:hidden;width:518px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:605.4075235109718px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:-27px;margin-left:7px;width:676px;height:546px}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:585.6164383561644px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:585.6164383561644px}#detail_decorate_root .magic-26{width:446px}#detail_decorate_root .magic-27{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-29{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-30{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-31{font-size:16px}#detail_decorate_root .magic-32{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-33{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-34{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-35{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-36{position:relative;left:0;top:0;width:371px;height:278.975px}#detail_decorate_root .magic-37{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-38{position:relative;left:0;top:0;width:371px;height:245.465px}#detail_decorate_root .magic-39{overflow:hidden;width:247.33333333333334px;height:171.11111111111114px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:247px;height:171px}#detail_decorate_root .magic-41{overflow:hidden;width:247.33333333333334px;height:170.22941970310393px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:254px;height:170px}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:253px;height:170px}#detail_decorate_root .magic-44{overflow:hidden;width:247.33333333333334px;height:165.3654463712267px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:247px;height:165px}#detail_decorate_root .magic-46{overflow:hidden;width:247.33333333333334px;height:165.22267206477736px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:247px;height:167px}#detail_decorate_root .magic-48{overflow:hidden;width:247.33333333333334px;height:163.49937578027465px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:247px;height:163px}#detail_decorate_root .magic-50{overflow:hidden;width:247.33333333333334px;height:163.49937578027465px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-51{margin-top:-44.05937921727396px;margin-left:10.013495276653172px;width:247px;height:318px}#detail_decorate_root .magic-52{overflow:hidden;width:247.33333333333334px;height:163.2199730094467px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-53{margin-top:-124.16734143049933px;margin-left:11.01484480431849px;width:247px;height:356px}#detail_decorate_root .magic-54{overflow:hidden;width:247.33333333333334px;height:183.4388888888889px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:247px;height:183px}#detail_decorate_root .magic-56{overflow:hidden;width:247.33333333333334px;height:183.24696356275305px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:273px;height:183px}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width:247px;height:186px}#detail_decorate_root .magic-59{overflow:hidden;width:247.33333333333334px;height:164.73593073593074px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-60{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-61{overflow:hidden;width:247.33333333333334px;height:164.22132253711203px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:247px;height:177px}#detail_decorate_root .magic-63{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:166px;height:241px}#detail_decorate_root .magic-65{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:148px;height:196px}#detail_decorate_root .magic-67{margin-top:0;margin-left:0;width:148px;height:199px}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:148px;height:207px}#detail_decorate_root .magic-69{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-70{margin-top:0;margin-left:0;width:750px;height:750px} Product Description   High Reliable 3D Digital Compass Orientation Electronic Compass China RS232 Digital Compass Sensor Factory     Products Desc.    DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.  DCM302B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.
Main Feature ●Heading accuracy:0.5°～0.8°                              ●Tilt angle measuring range :±85°      ●Tilt angle resolution: 0.1°                                   ●Tilt angle accuracy: 0.1° ●Wide temperature :  -40℃～+85℃                          ●Size:  L60×W59×H33mm ●With hard magnetic ,soft magnetic and angle compensation     ●DC 5V power supply   ●Standard RS232/RS485/TTL output interface                  ● IP 67 protection class
  Application
  ●Satellite antenna search satellite               ●Marine navigation surveying and mapping ●GPS integrated navigation                    ●Antenna servo control ●Gun emission system                         ●Infrared imager ●Laser range finder                            ●Map for plotter ●ROV underwater robot navigation              ●Oceanography measurement instruments     ●Special occasion robot                        ●Unmanned aircraft



Parameter    The best heading accuracy 0.5° tilt<10° 1.0° tilt <30° 2.0° tilt<40° 2.5 tilt° <70°   Pitch accuracy 0.1°<15°(Measuring range) 0.2°<30°(Measuring range) 0.3°<60°(Measuring range) 0.3°<85°(Measuring range) Pitch tilt range ±85°   Roll accuracy  0.1°<15°(Measuring range) 0.2°<30°(Measuring range) 0.3°<60°(Measuring range) 0.3°<85°(Measuring range) Roll tilt range ±85° Resolution 0.1° Compass tilt the best compensation angle range <40° Hard iron calibration Yes Soft iron calibration Yes Magnetic field interference calibration method Plane rotation in 1circle(2D Calibration) Dimension L60×W59×H29mm Weight 20g RS-232/RS485/TTL interface connector 5PINconnector Start delay <50MS Maximum output rate 20Hz/s Communication rate 2400 to 19200baud Output format Binary high performance protocol Power supply (Default)DC+5V (Customized)DC9~36V Current(Maximum) 40mA Ideal mode 30mA Sleep Mode TBD Operating range -40℃~+85℃ Storage temperature -40℃~+100℃ Resistance shock performance 2500g Electromagnetic compatibility According to EN61000 and GBT17626 MTBF ≥40000 hours/times Insulation resistance ≥100M Shock resistance 100g@11ms,3Times/Axis(half sinusoid) Anti-vibration 10grms,10~1000Hz Weight 40g(not include cable) Detailed Images

---
