Item Description:

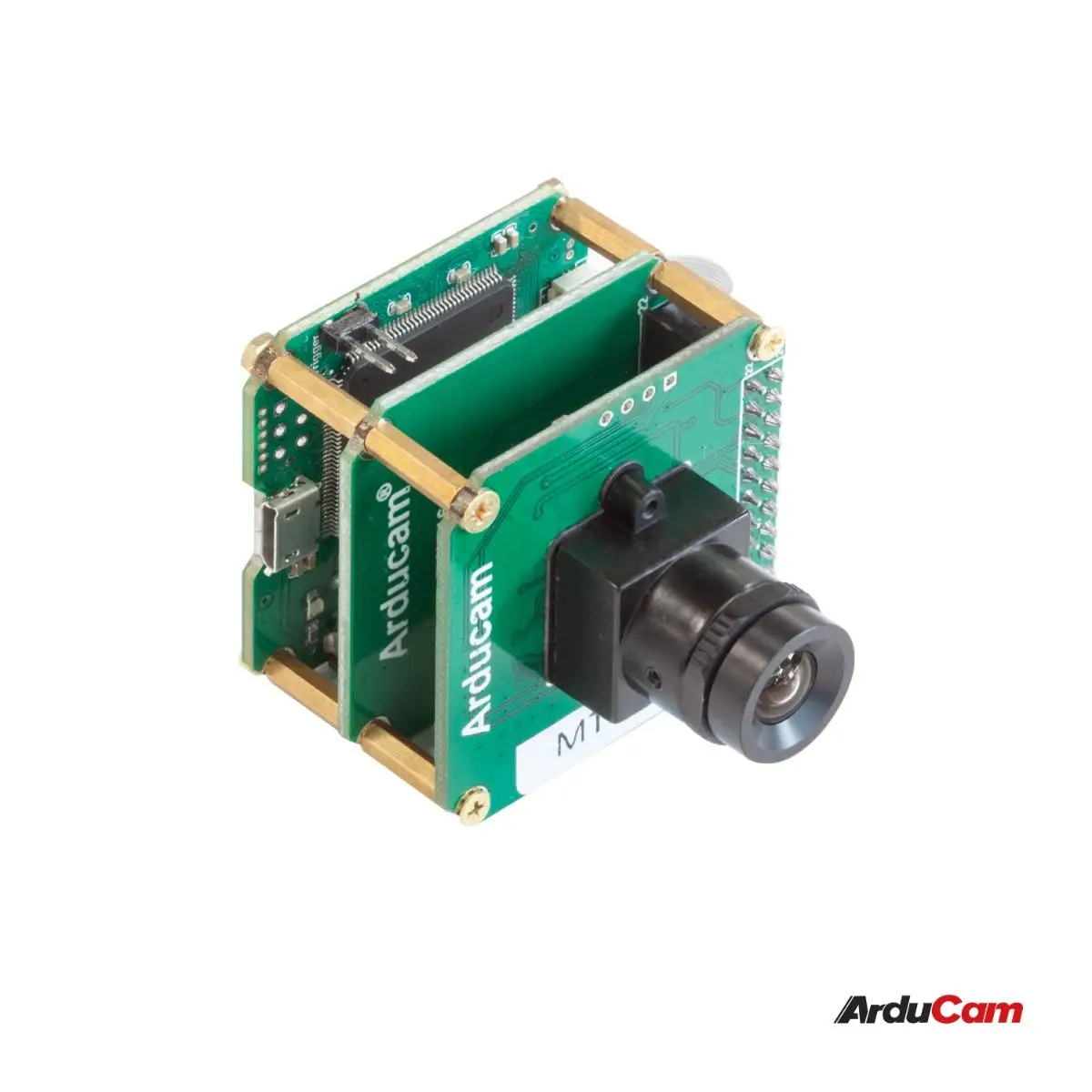

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9V022 is a 1/3-inch monochrome wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real-world environments.
High frame rate, high dynamic range, good sensitivity for machine vision with external trigger.

Feature:

1/3" optical format

0.36MP 752 x 480 MT9V022 global shutter sensor

6.0 x 6.0 um Pixel size

60fps at full resolution

4.8V/lux-sec responsivity

55db linear, 110db HDR dynamic range

single 3.3V power input

Default low distortion M12 mount 2.8mm lens (Part Number: M27280M07S)

Application:

Security

High dynamic range imaging

Unattended surveillance

Stereo vision

Video as input

Machine vision

Automation

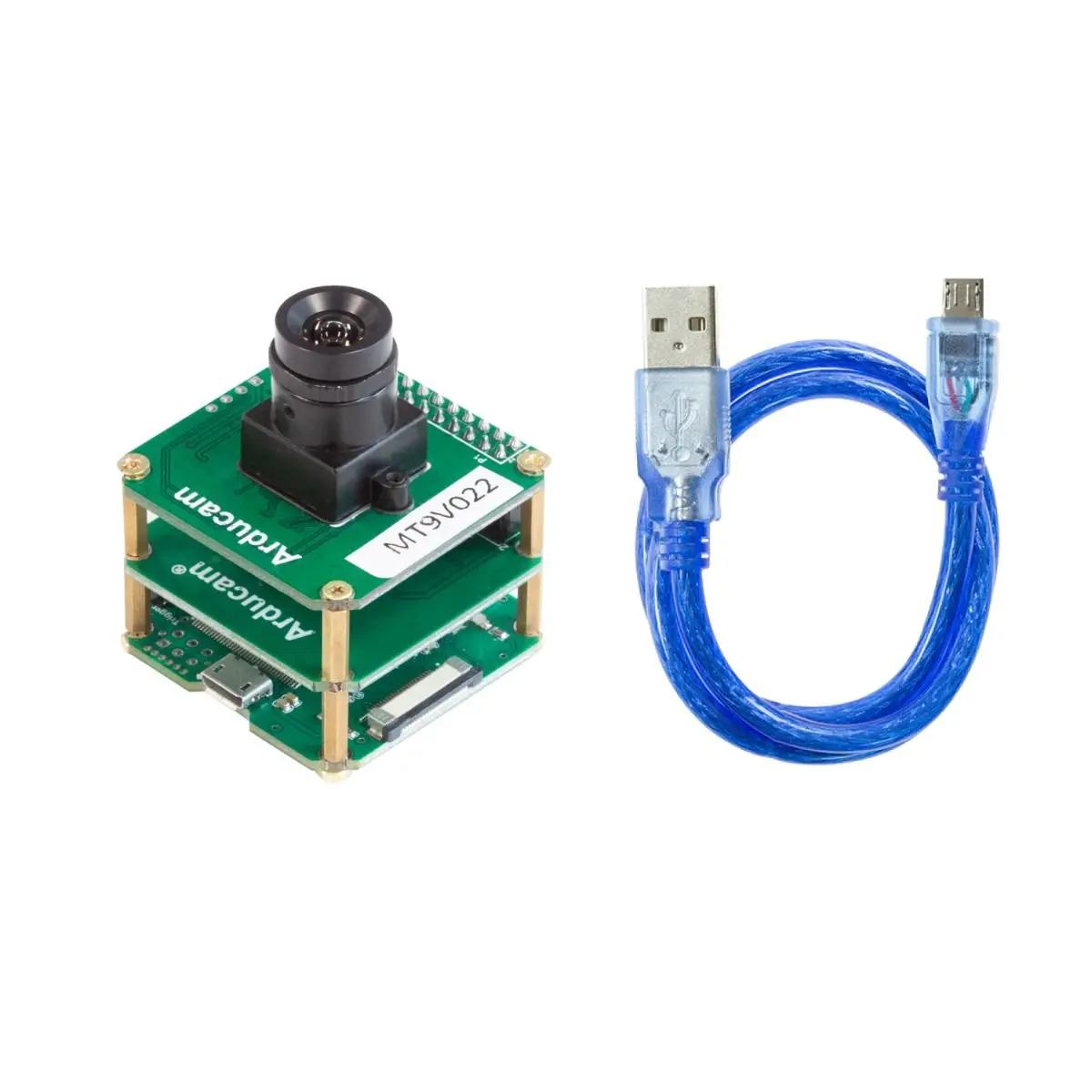

Package Including:

1 pcs Arducam CMOS MT9V022 1/3-Inch 0.36MP Color Camera Module

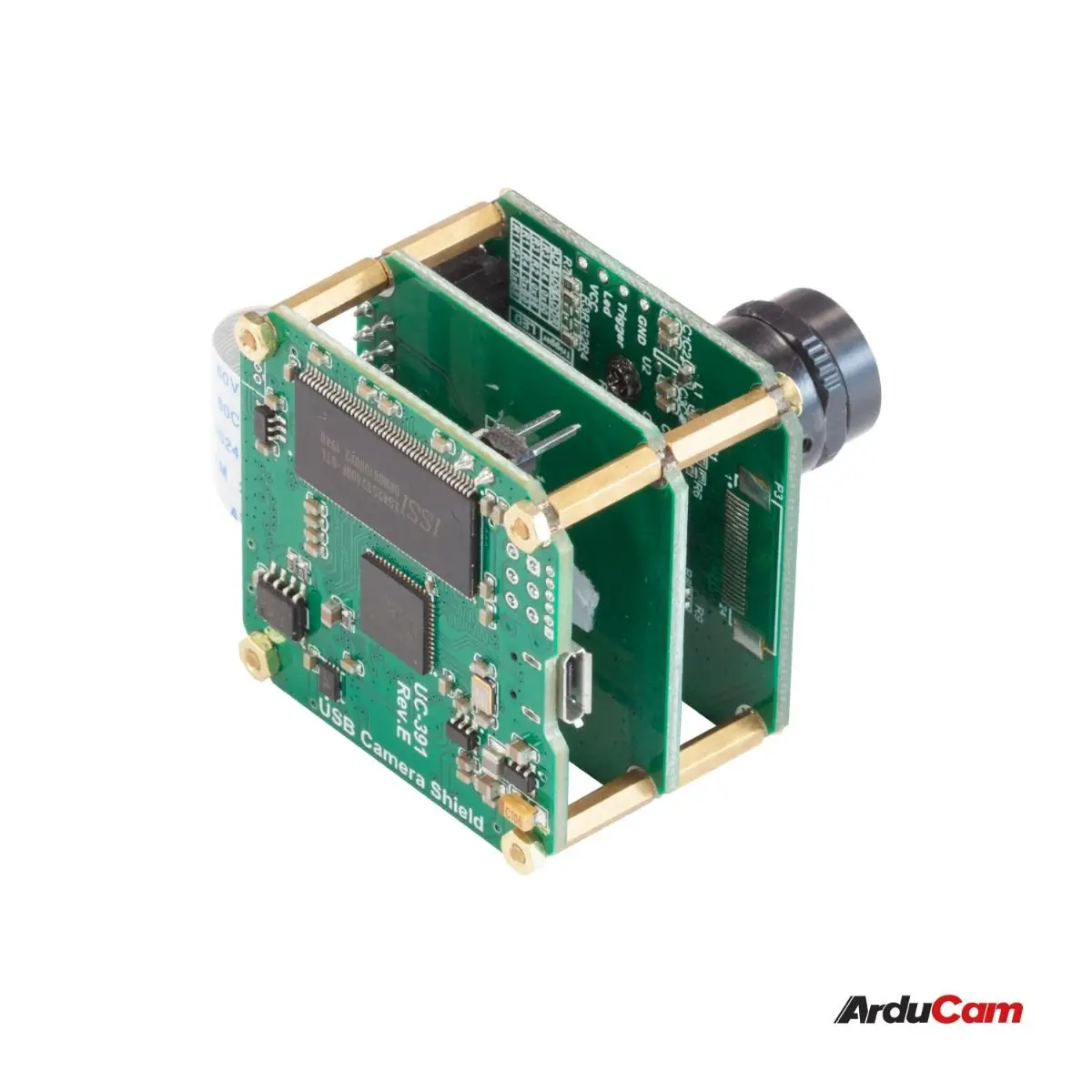

1 pcs Arducam USB2 Camera Shield (Rev.E)

1 pcs Parallel Camera Adapter Board for USB Camera Shield

1 pcs USB Cable

Additional Resources:

Sensor Datasheet – MT9V022

Arducam Documentation – MT9V022 0.36MP Global Shutter Camera Breakout

Arducam Documentation– Arducam USB Cameras

Github– Arducam USB Camera Shield
