Minco Heat Digital Thermostat Socket Temperature Controller With Timer Switch Sensor for Incubator Underfloor Heating Mat Pad |

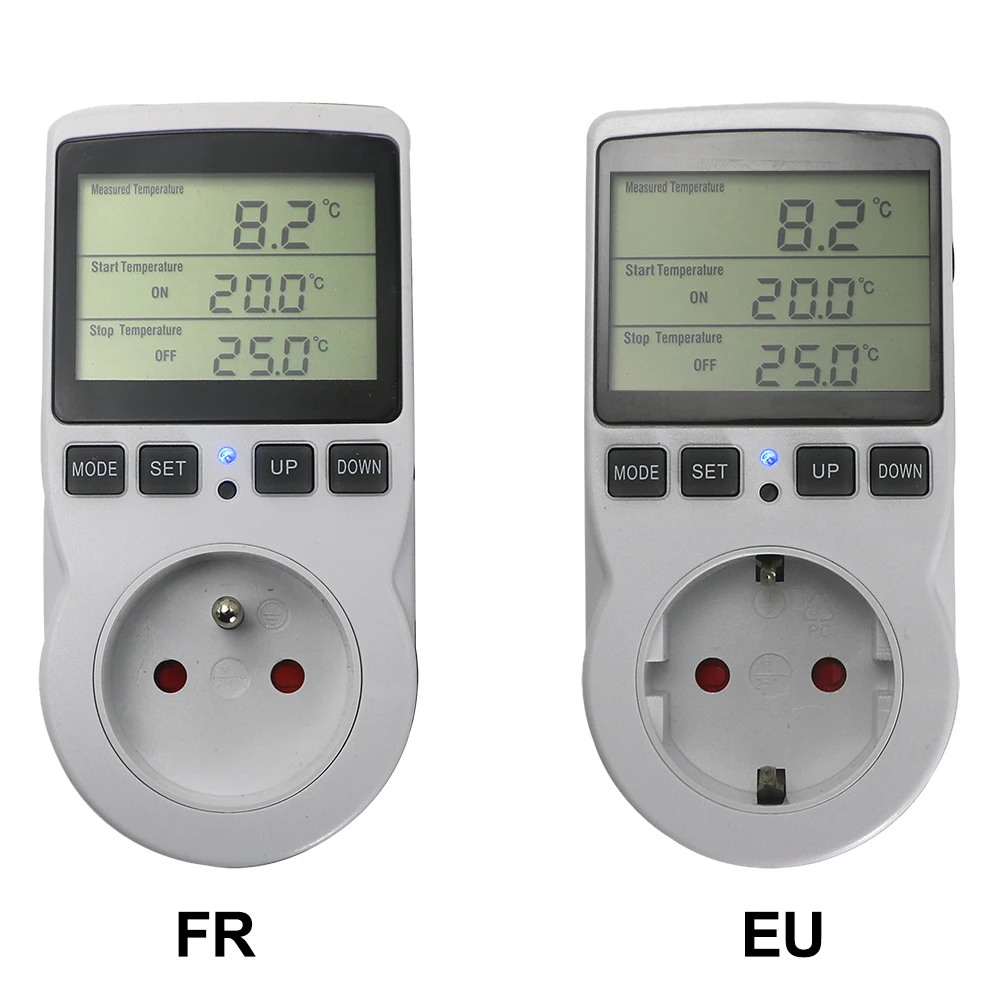

Note: Please check carefully of the picture for the EU type and FR Type, and choose the one fits you.         Description   The external temperature detector can detect the temperature, set the opening and closing temperature, and has the functionsof cycle timing, timing closing and timing switch. It is widely used in intelligent control, such as carbon crystal heating, aquaculture, greenhouse, home life and other places. Memory Function: All current settings will be saved after power off.   Technical parameters: Voltage 100-250V AC 50Hz EU FR Plug:16A 230V, Max. 3680W UK Plug: 13A 230V, Max. 2900W US Plug:

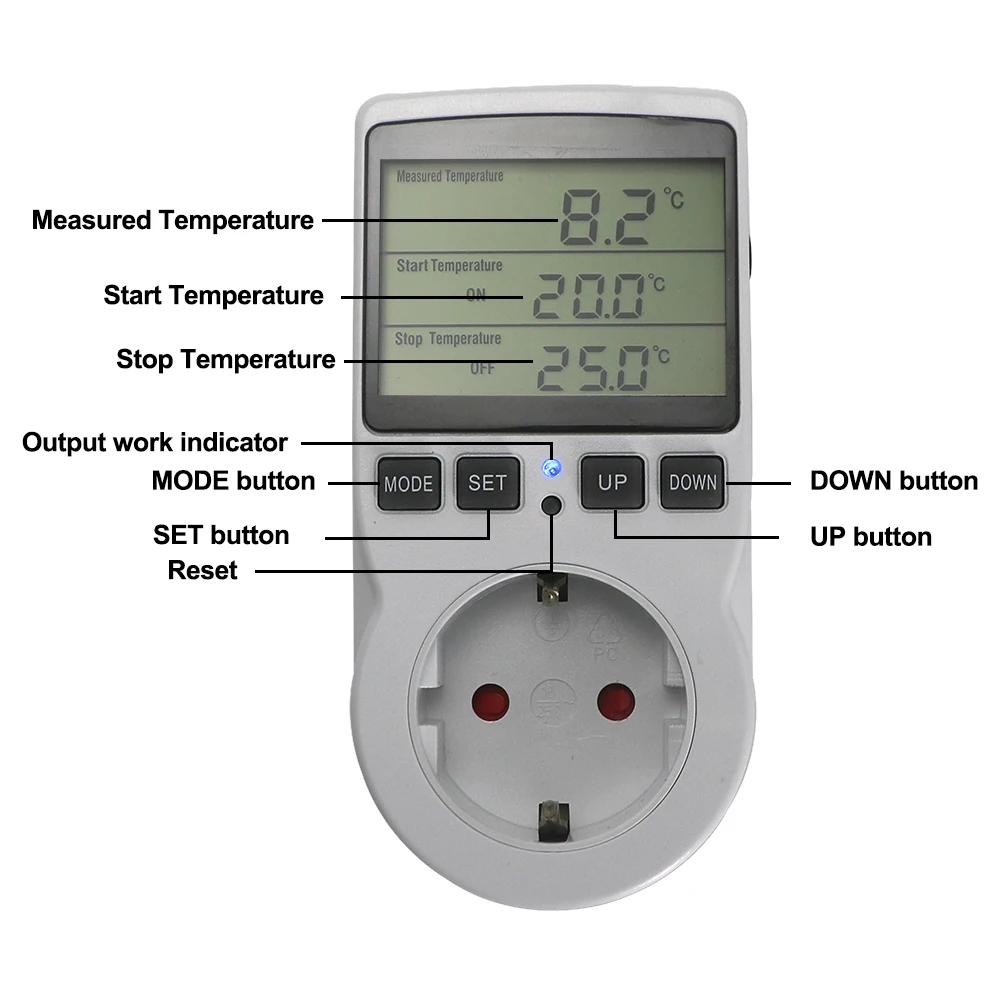

15A, 120V, Max. 1800W Temperature Range: -40~120°C Accuracy: +/- 1℃ Timing Accuracy: MAX 10 minutes   Package Including: 1pc Thermostat Timer Socket with temperature sensor (about 1 meter)     Temperature range: -40~120°C: 1. Open circuit (or less than -40°C), the first row of the screen flashes display "E1", -40~-45°C, display -40°C 2. Short circuit( or more than 120°C ), the first row of the screen flashes displaty "E2", 121-129°C display 120°C 3. Lower than -10°C, or higher than 100°C, it will not display value behind the decimal point 4. Refrigeration mode, start temperature > Stop temperature 5. Heating mode, start temperature < stop temperature     Mode button: Press the MODE button, LCD display: temperature control mode
-Timing mode F01~F04   F01- Cycling timing mode, start time(ON)/stop time(OFF) cycling timing. F02 - Count down ON mode, now Ti.s OFF, delayed(start time) ON F03 - Count down OFF mode, now Ti.s ON, delayed(stop time) OFF, countdown completion, turn off the output and exit the run F04 - Count down ON Count down OFF mode, now Ti.s OFF, delayed(start time) ON, After starting delayed ( Stop time )OFF, Stop the time to finish the countdown, close out the output and exit the operation   Temperature correction function Long press mode button on electricity, real time temperature calibration after 2 seconds Real time temperature correction range: -9.9~9.9°C Long press the SET for 5 seconds to automatically exit, do not save modification Long press MODE button to exit, save the cuttent correction modification   Product Size:   Note: 1. It is recommended to set the difference for start and stop temperature to be greater than 1°C. 2. If the temperature difference is too small, the temperature measurement will fluctuate at the moment of the relay switch. 3. If the temperature fluctuates frequently within and outside the settig range, the output will switch frequently, which will reduce heating equipment life.   Product Photos:
