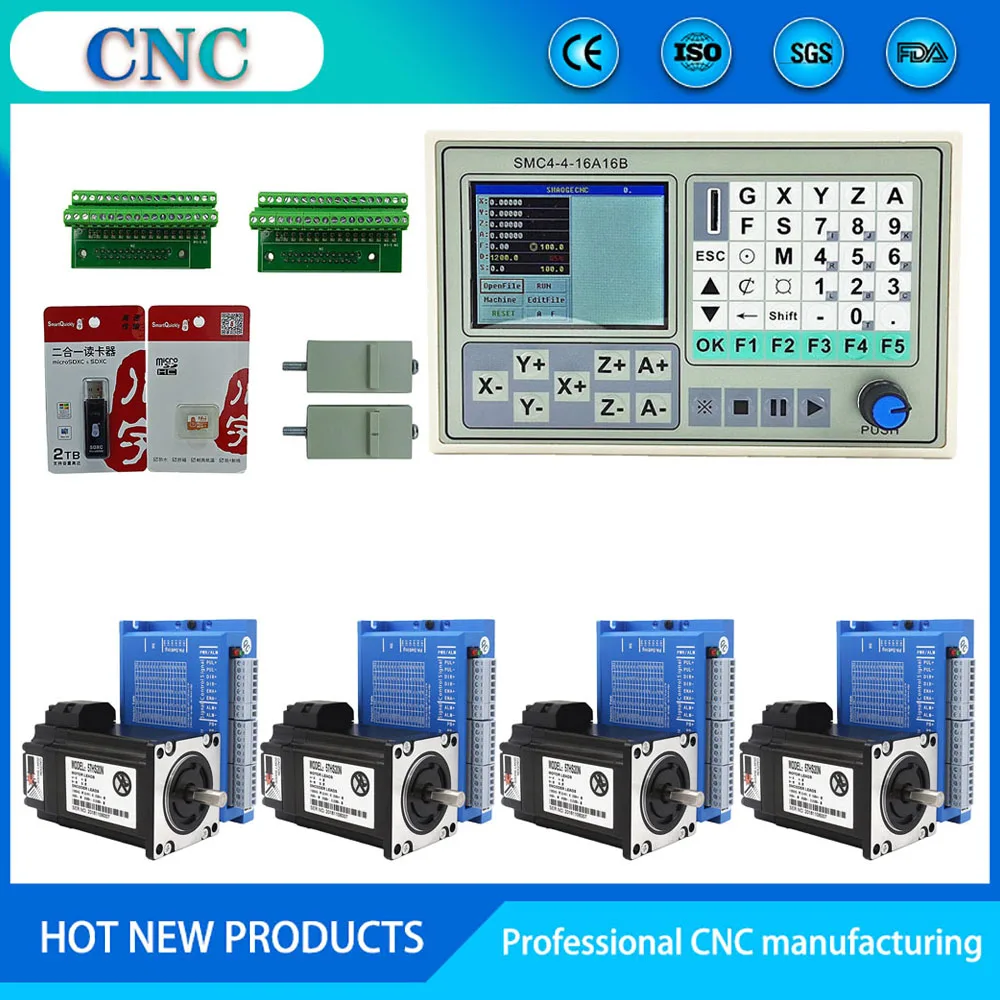

Комплект 4-осевой системы управления движением с ЧПУ гибридным шаговым

Комплект 4-осевой системы управления движением с ЧПУ гибридным шаговым

Introduction:

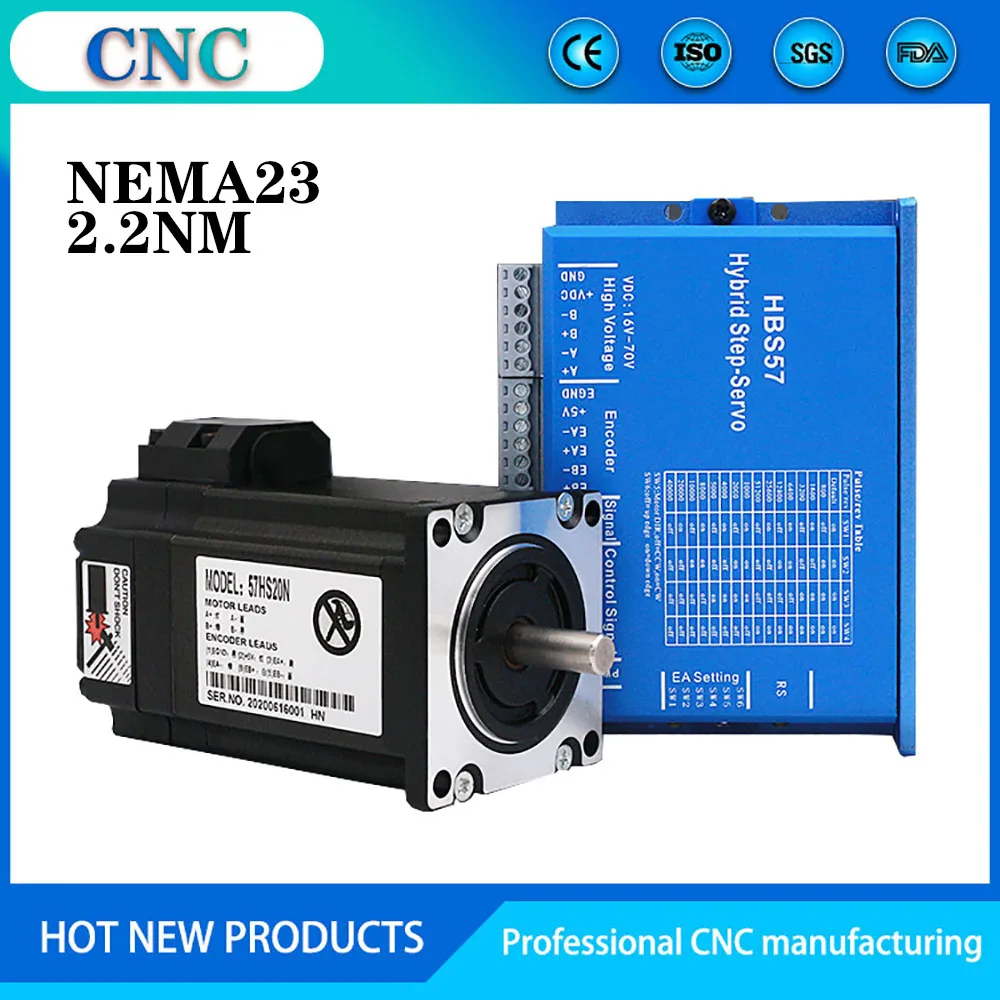

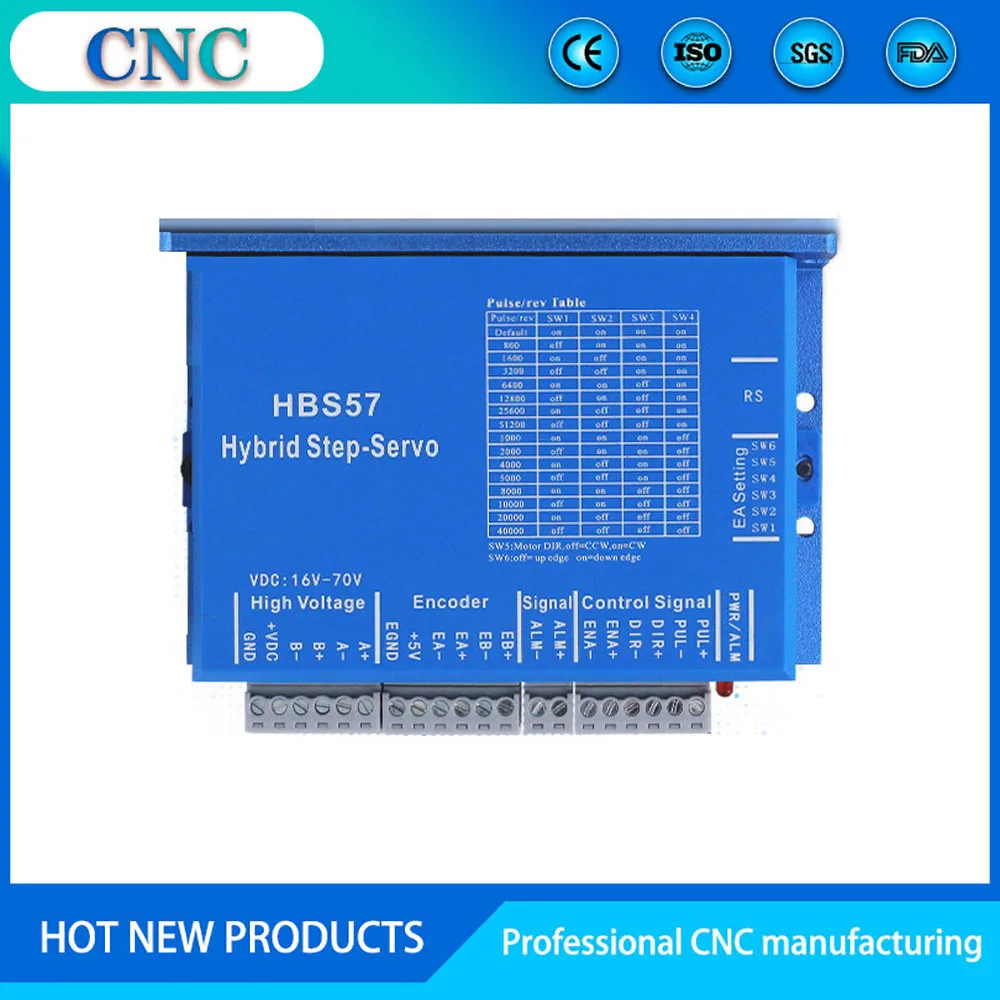

hybrid step servo drive system is a perfect integration of servo control technology in digital stepping drive. The product adopts typical three-loop control method (position loop, speed loop and current loop), which is compatible with both stepping and servo. Drive a two-phase hybrid stepper motor. It is a very cost-effective motion control product.

main feature ：

1: Full-closed control, the motor is equipped with 1000 line encoder, close to 100% torque output, subdivision setting range is 2-256, high speed response, high speed
2: Optical isolation fault alarm output interface ALM, current loop bandwidth (-3dB) 2KHz (typical), speed loop broadband 500Hz (typical)
3: Position loop broadband 200Hz (typical), can be downloaded or changed parameters with RS232 serial communication
4: overcurrent, I2T, overvoltage, undervoltage, overheating, overspeed, out of tolerance protection
