NEW TD8620 Permanent Magnet Gauss Meter Handheld Digital Magnetic Flux Surface Field Test 5% Accurac |

NEW TD8620 Permanent Magnet Gauss Meter Handheld Digital Magnetic Flux Surface Field Test 5% Accurac |

Features:

1.The design of TD8620 hand-held digital meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 meter.

2.TD8620 hand-held digital meter adopts not only the high-sensitivity Hall sensor and high-resolution A/D conversion chip, but also the popular single-chip computer technology and digital filtering technology.

3.It has the advantages of high sensitivity, stable reading, low power consumption , and light weight.

4.The measurement range is 0-2400 Mt, and the basic accuracy is ±1%. It has the characteristics of automatic zero, automatic measurement range, keeping of maximum/minimum values, etc.

5.With backlight adjustment, power display and automatic shutdown function.

Descriptions:

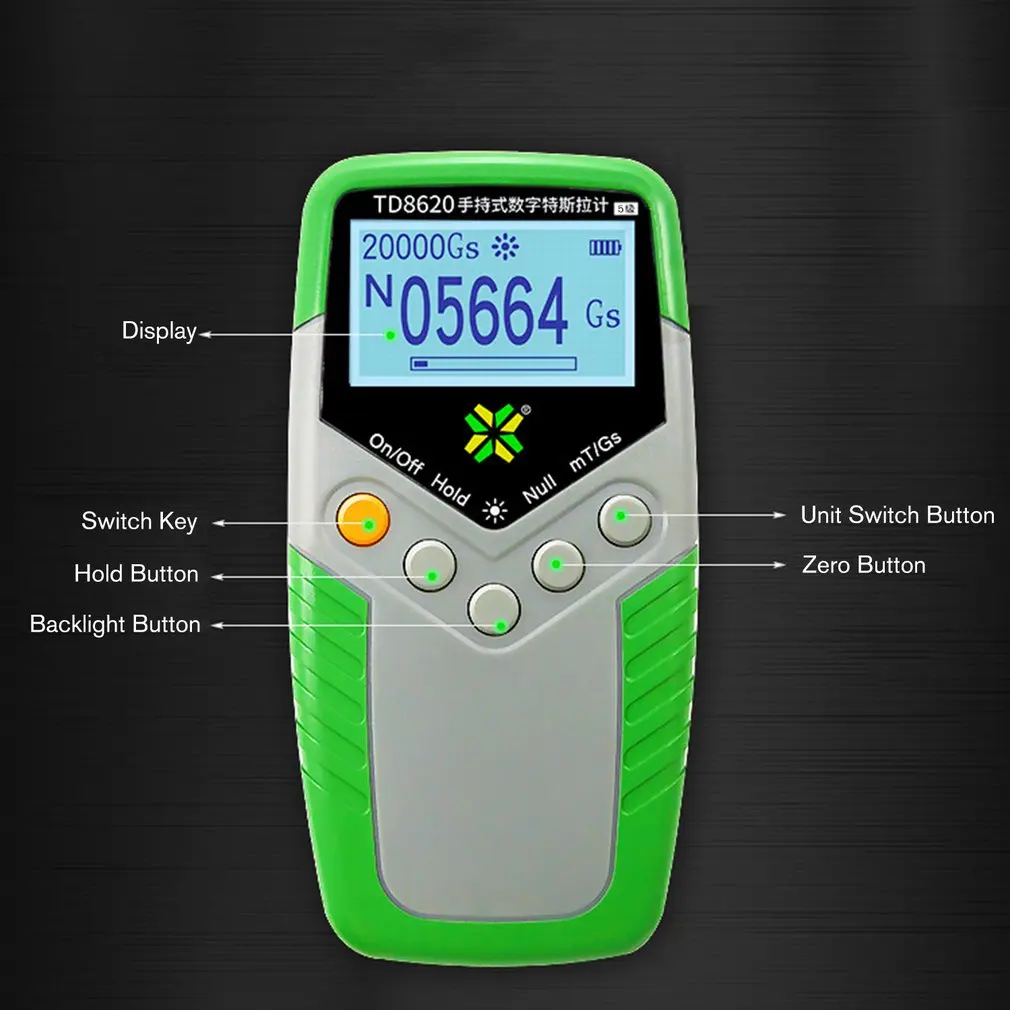

1.The value can be switched by one button.

2.Light weight and low power consumption.

Specifications:

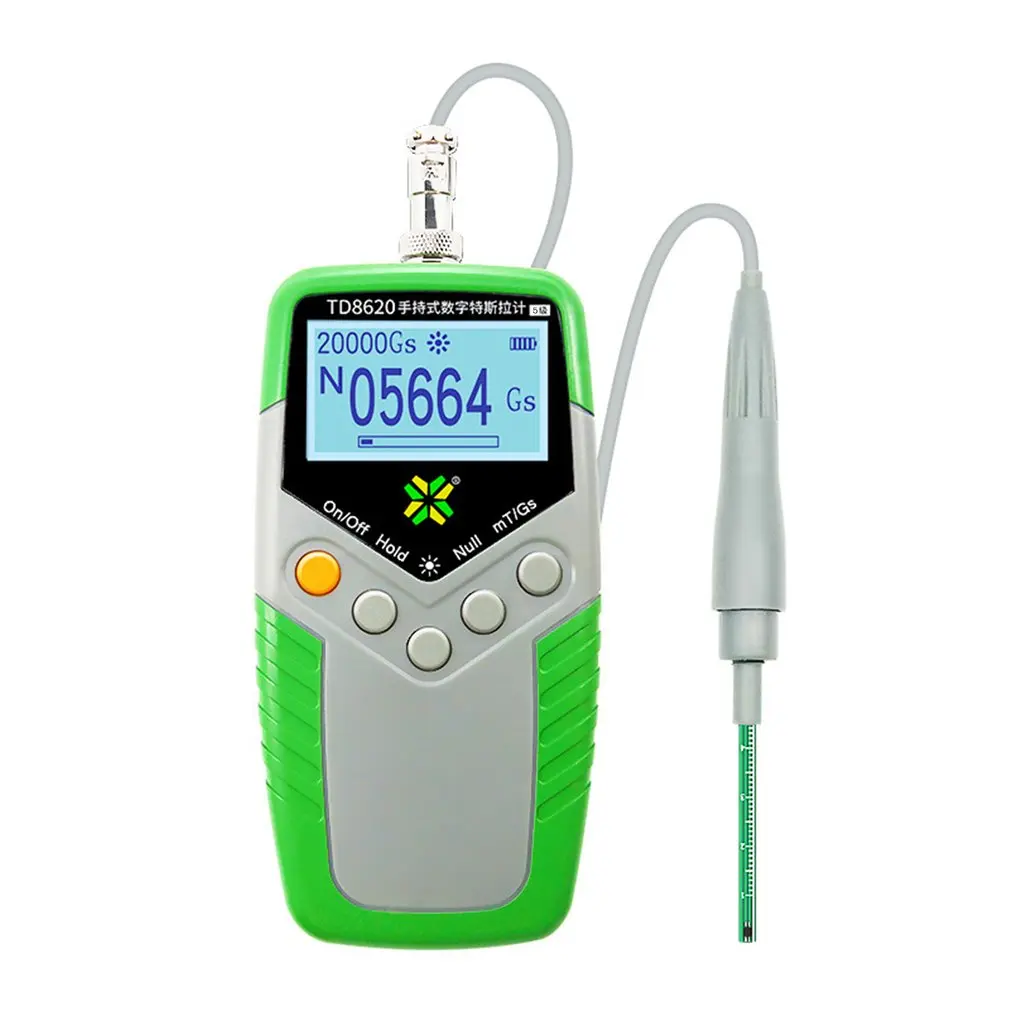

Product Name: Permanent Magnet Gauss Meter

Model Number: TD8620

Material: Plastic

Color: Green&Gray

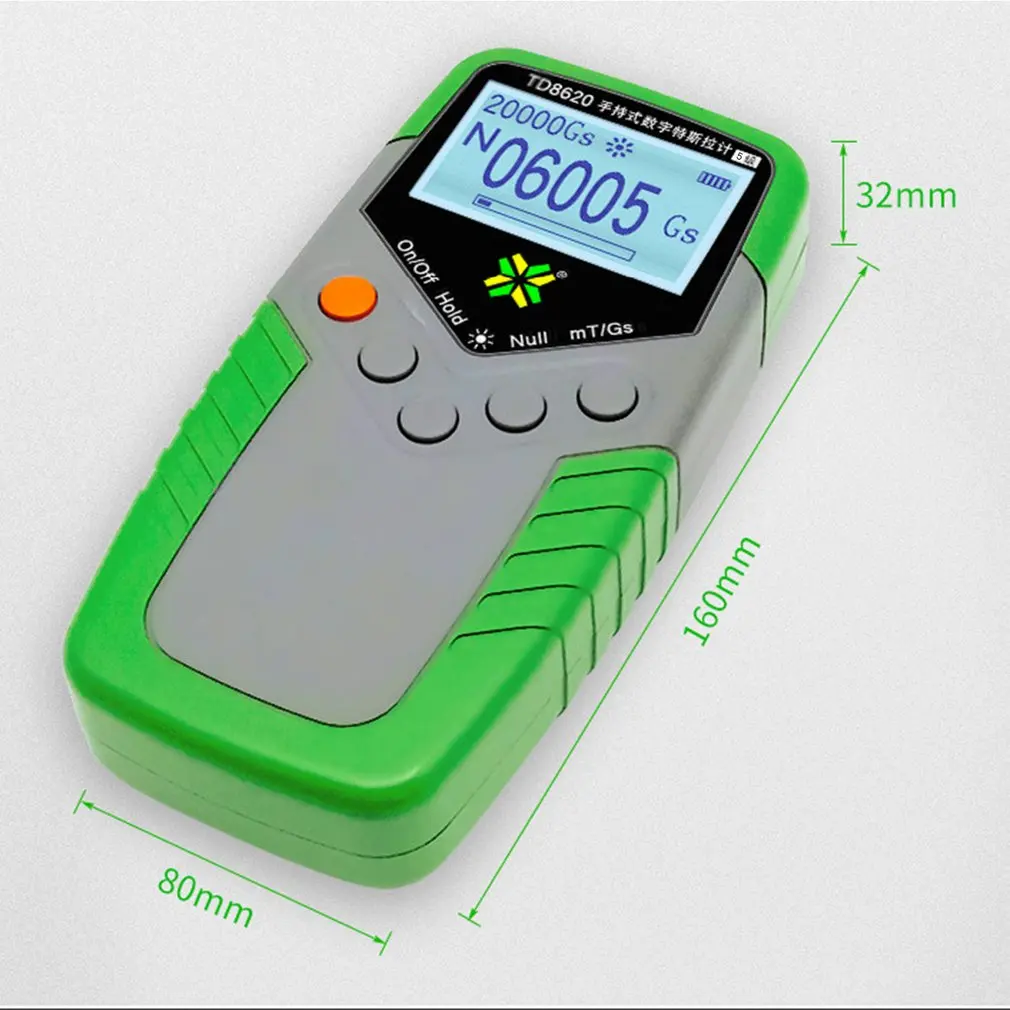

Size: 160x80x32mm/6.30x3.15x1.26in

Weight: 260g/9.17oz

Range: 200mT/2000mT (Range Automatic Switching)

Measuring Range: 0~2400mT/24000Gs

Basic Accuracy: 0~1000mT：±2%, 1000mT~2400mT：±5%

Power Supply: 1*9V Battery (Not Included)

Hall Probe: Longitudinal Hall Probe, the Wire is About One Meters Long

Package Informations:

Package Size: 270x190x80mm/10.63x7.48x3.15in

Package Weight: 480g/16.93oz

General Box Package

Package Included:

1 x Permanent Magnet Gauss Meter

1 x Manual

1 x Set of Accessories

Notes:

1.Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.

2.Please understand that colors may exist chromatic aberration as the different placement of pictures.
