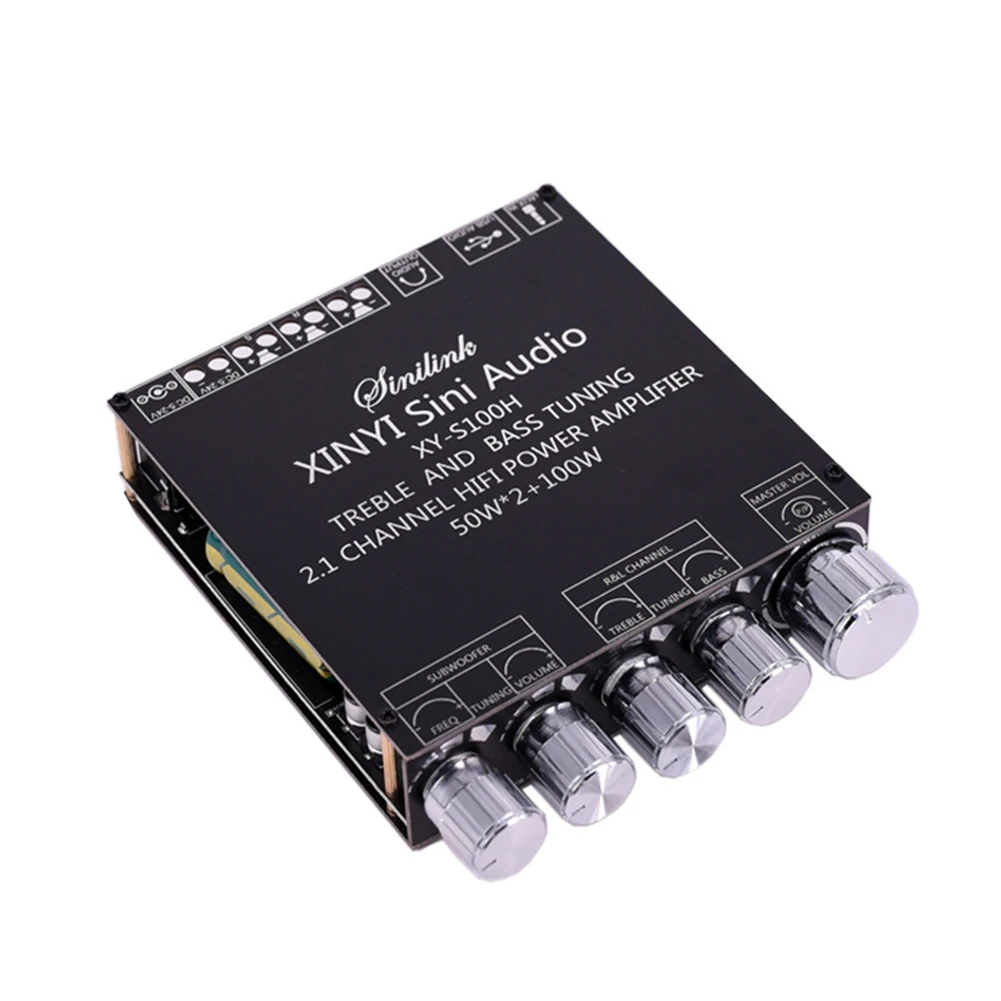

XY-S100H 50Wx2+100W 2.1 Channel Amplifier Board Bluetooth-Compatible Audio Module Stereo APP Control HIFI Speaker Subwoofer Kit
Feature:

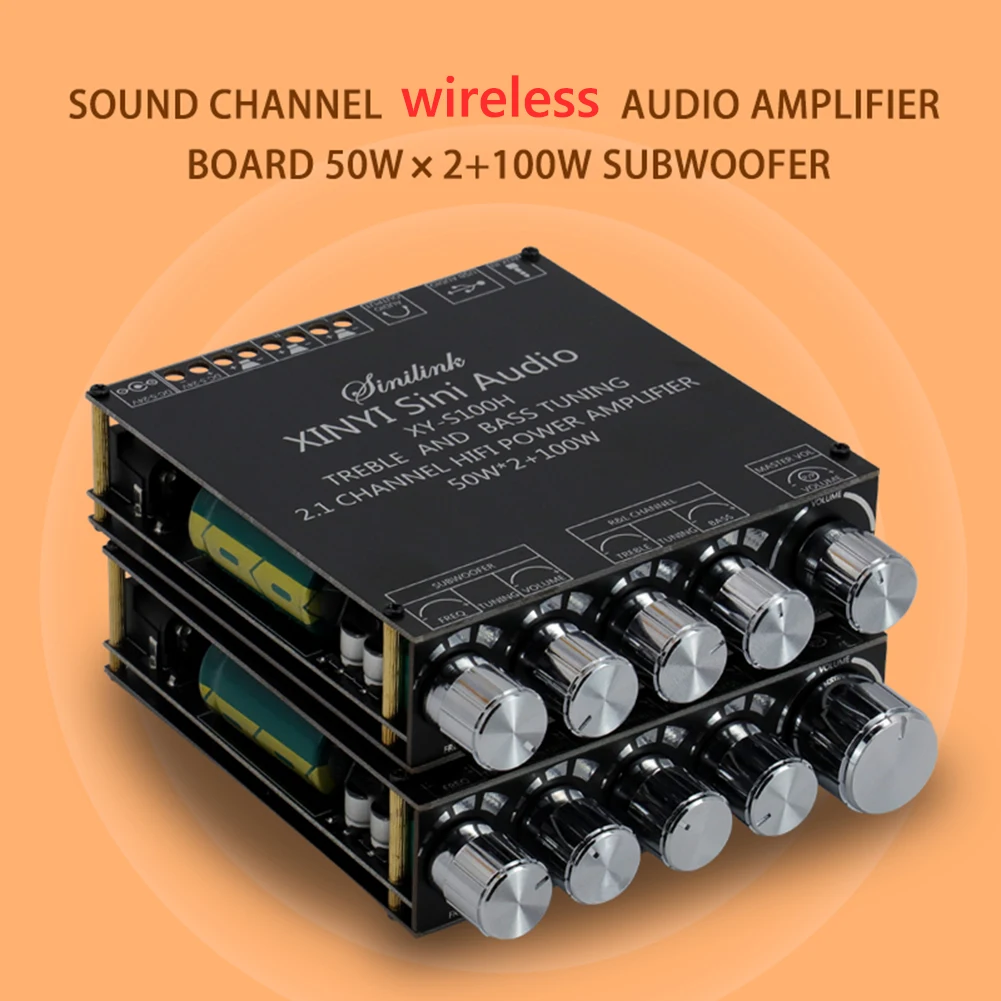

Bluetooth-compatible audio amplifier module 2.0 dual-channel stereo output, maximum output power 50W*2+100W, independent adjustment of high and low

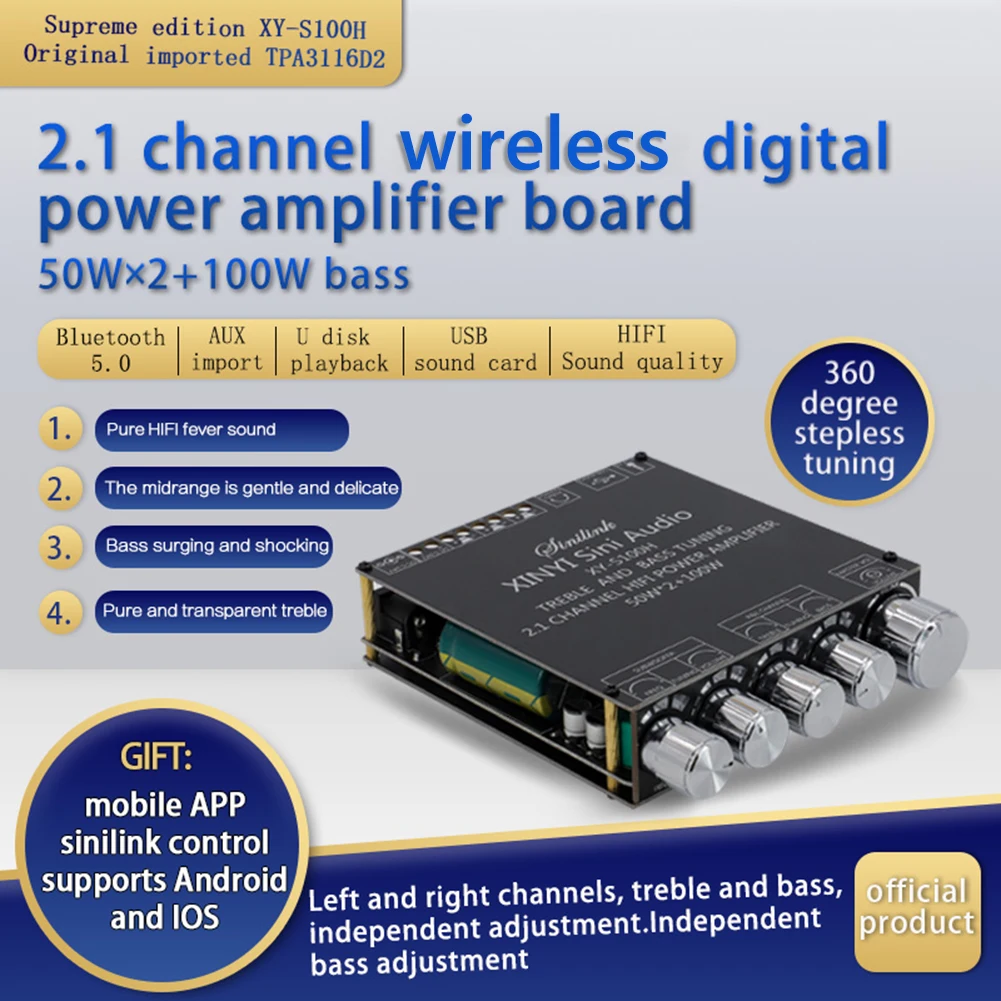

Imported 3116 power amplifier chip, TPA3116D2 with AM interference suppression function; Output filter, HIFI sound quality, low requirements on the speaker

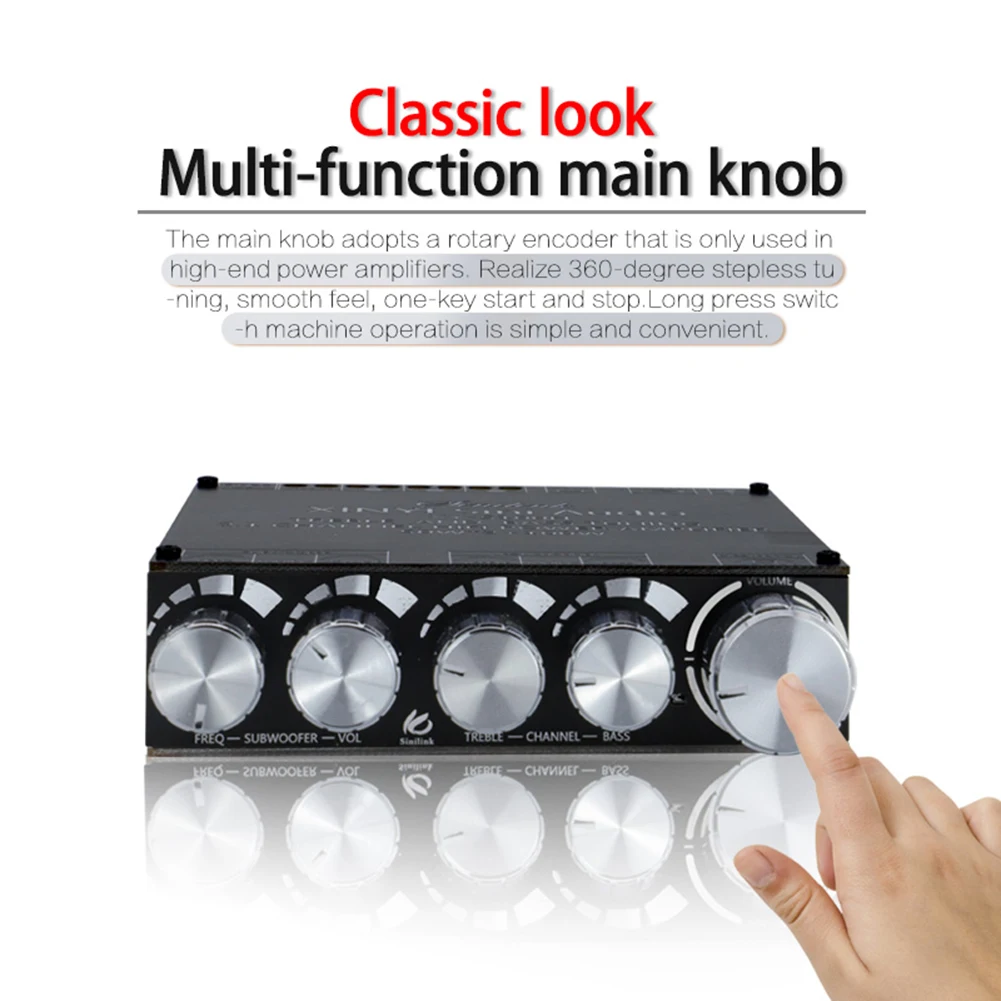

Classic looking multifunctional main knob. The main knob adopts the rotary encoder used by high-end power amplifier to realize the smooth feel of 360 degrees of stepless tuning with one key to start and stop, and long press the switch is simple and convenient to operate.
Pure HIFI fever sound quality. The high pitch is pure and transparent, the middle tone is gentle and delicate, and the bass is surging and shocking.
The left and right channels can be independently adjusted for high and bass, and the heavy bass can be independently adjusted for 360 degrees.
The use of special thermal silica gel paste large area heat sink, close to the shell of copper heat dissipation, heat dissipation area doubled, to ensure full power and high performance operation of the product.

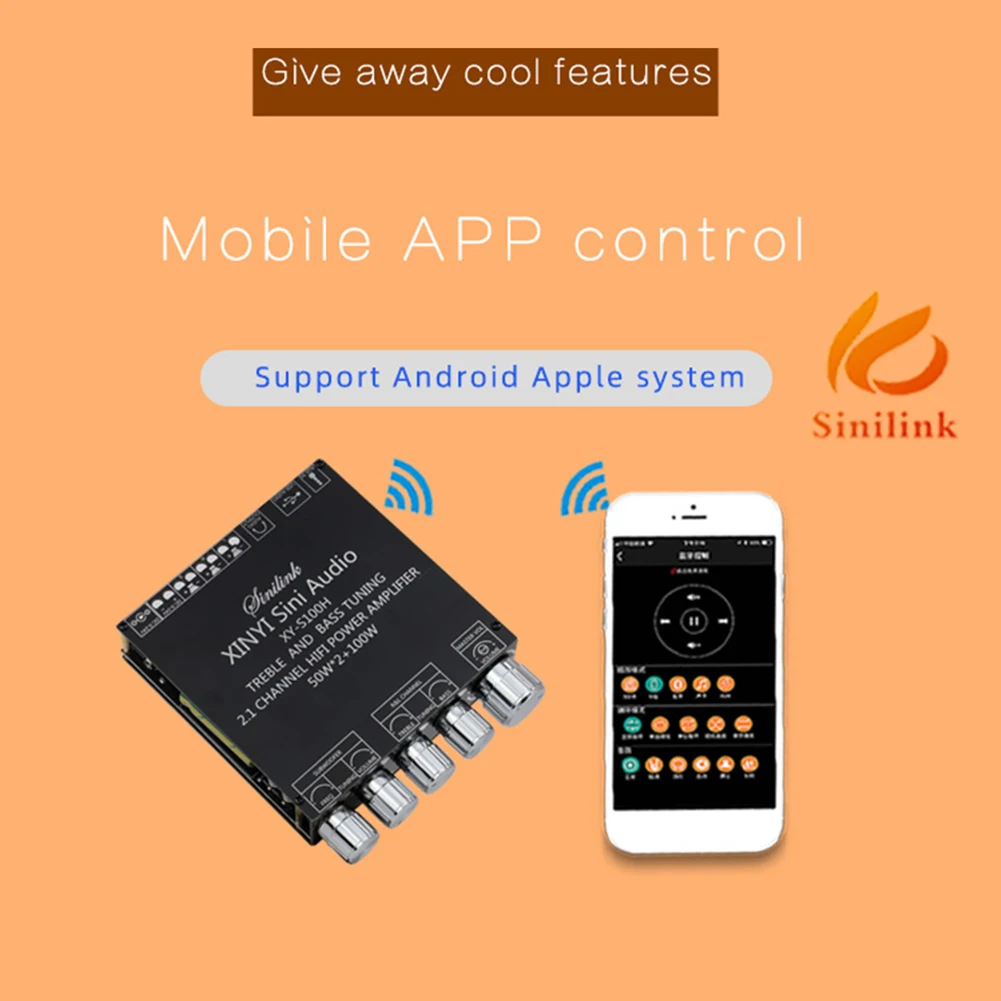

Mobile APP control. APP visual operation playback mode, support for Apple/Android (please download in for Google Market, search 'Sinilink' download).

Specification:
Model: XY-S100H
Chip name: TPA3116D2
Power supply: DC 5-26V/10A or above
Audio channel: 2.1 Audio channel Bluetooth-compatible version: 5.0

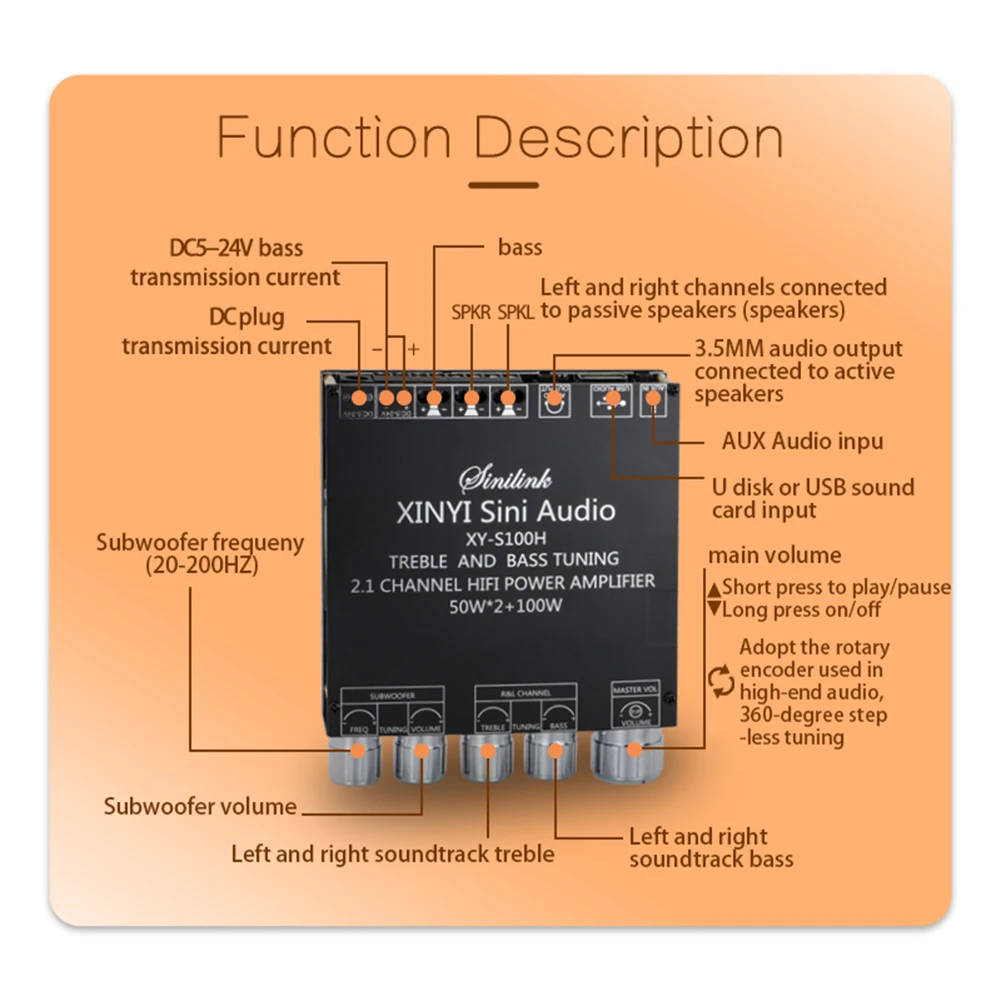

Audio input: Bluetooth-compatible +AUX+ USB disk +USB sound card
Audio output: left and right channels + subwoofer +3.5mm stereo output interface
Volume adjustment: high-end encoder knob adjustment, feel smooth
Frequency range: 20HZ-30khz
SNR: 92dB
Output power: 50W*2(left and right channels)+100W(subwoofer)
Satellite box (left and right sound channel) adapter horn: 10W-100W/4 Euro -8 euro
Subwoofer (bass) adapter horn: 20W-200W/2 ohm -8 ohm
Protection mechanism: static electricity, overvoltage, undervoltage, overheat, DC detection and short circuit protection
Special function: support Sini link-APP control
Size: 113mm*95mm*25mm/4.4X3.7X0.98in
Weight: 189g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 Set x Amplifier Board
