Features:

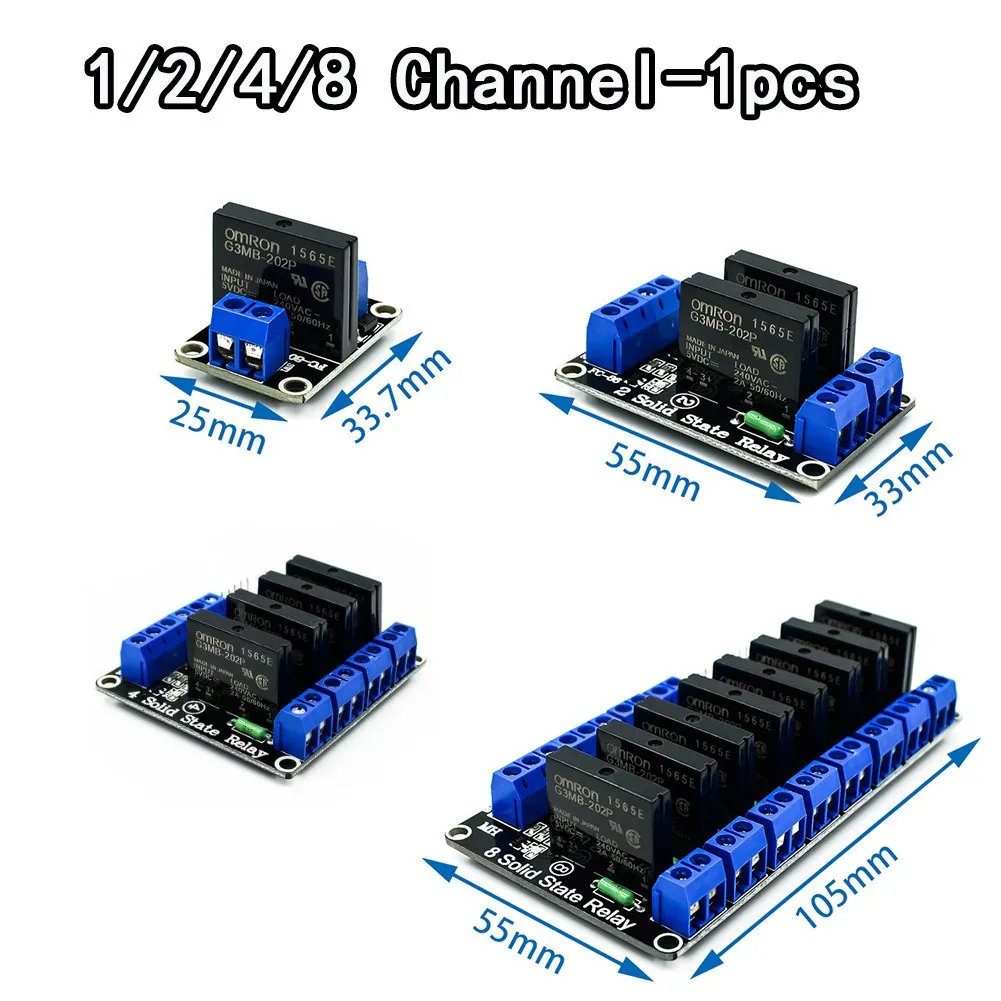

Model: 1 channel, 2 channel, 4 channel, 8 channel (optional)
100% brand new and high quality
Made of high-quality materials, durable

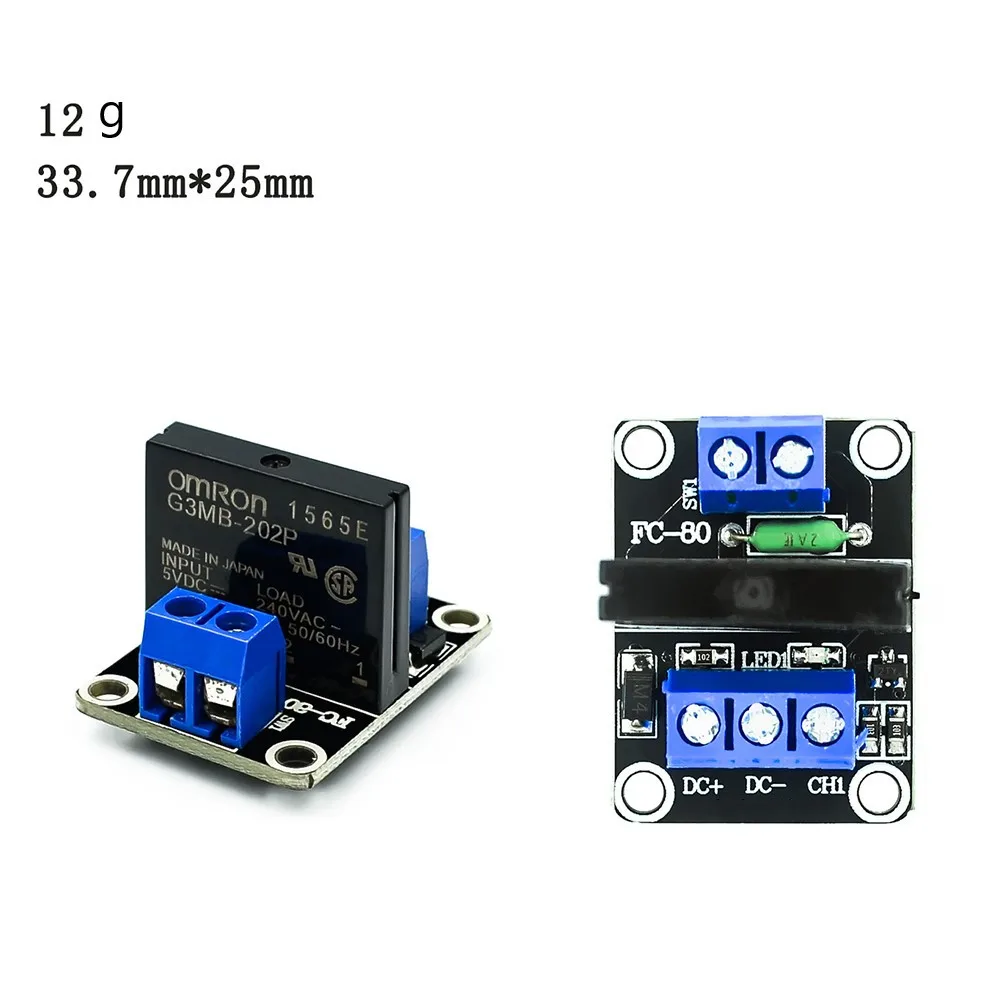

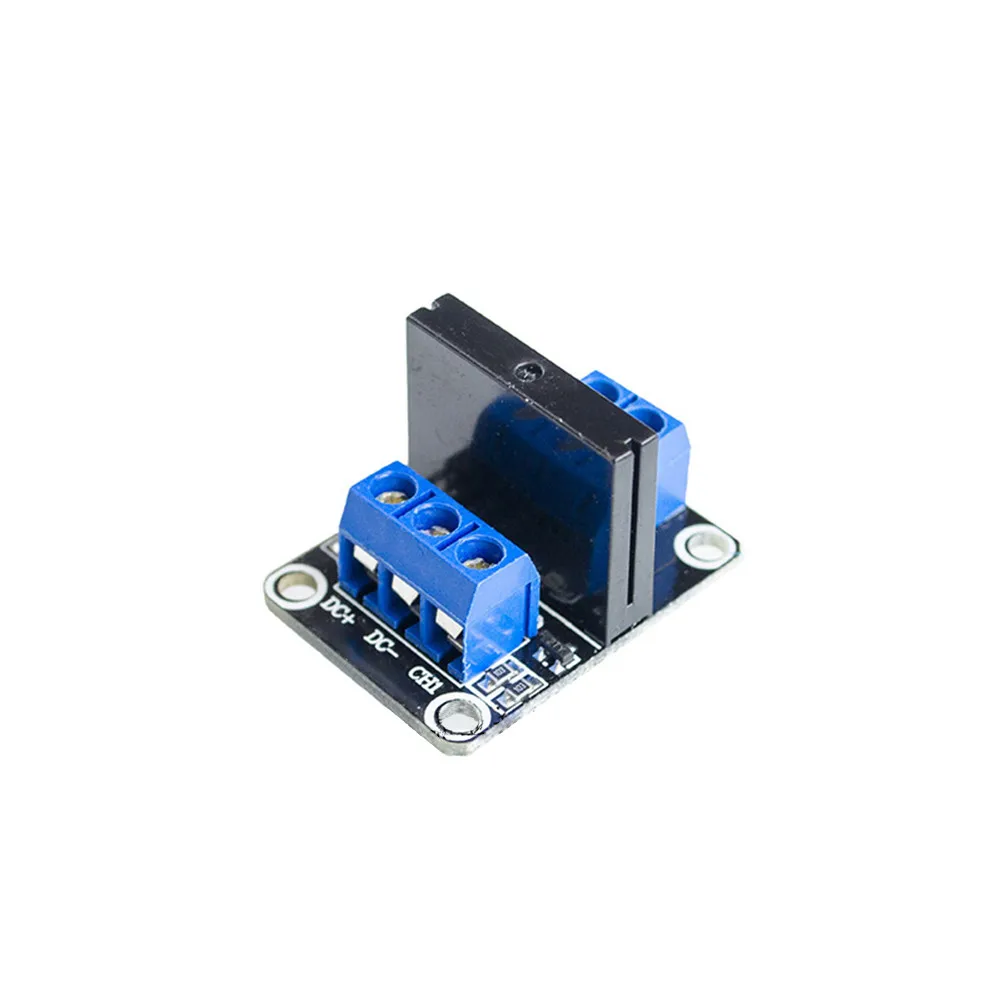

*5v 1 channel solid state relay module:

5V solid state relay 240V 2A, output with resistance fuse 240V 2A.
Size: 25*34*25 (length * width * height) weight: 13g
Input power: 5V DC (160MA)

Input control signal voltage:
0V-0.5V low level (SSR off)
2.5V-20V high level (SSR on)

Module interface:
Input part:
DC+: Positive power supply (powered by the relay voltage)
DC-: Connect to the negative pole of the power supply
CH: The signal trigger of the relay module is over (low level trigger is valid)

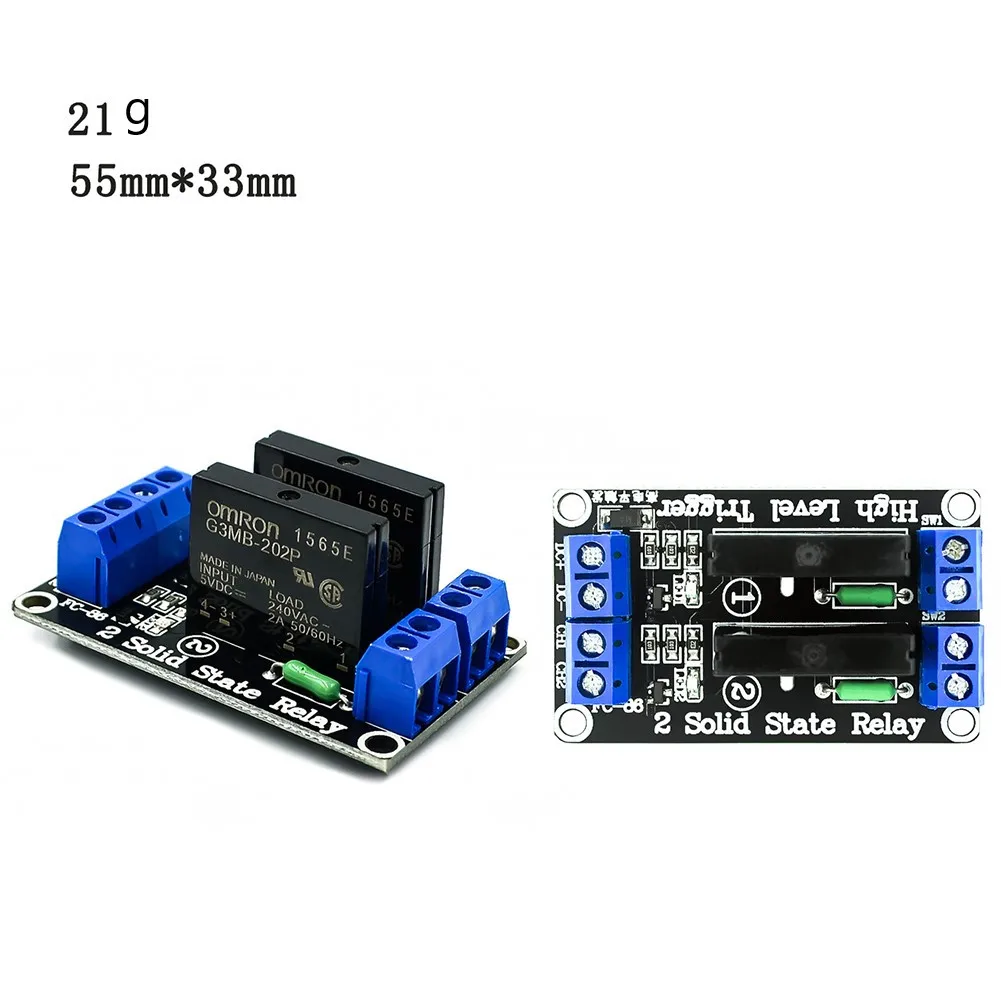

*2 channel solid state relay module:

Size: 55*33*25 (length * width * height) weight: 21.5g
Input power: 5V DC (160MA)
Input control signal voltage:
0V-0.5V low level (SSR off)
2.5V-20V high level (SSR on)

Module interface:
Input part:
DC+: Positive power supply (powered by the relay voltage)
DC-: Connect to the negative pole of the power supply
CH: The signal trigger of the relay module is over (high level trigger is valid)

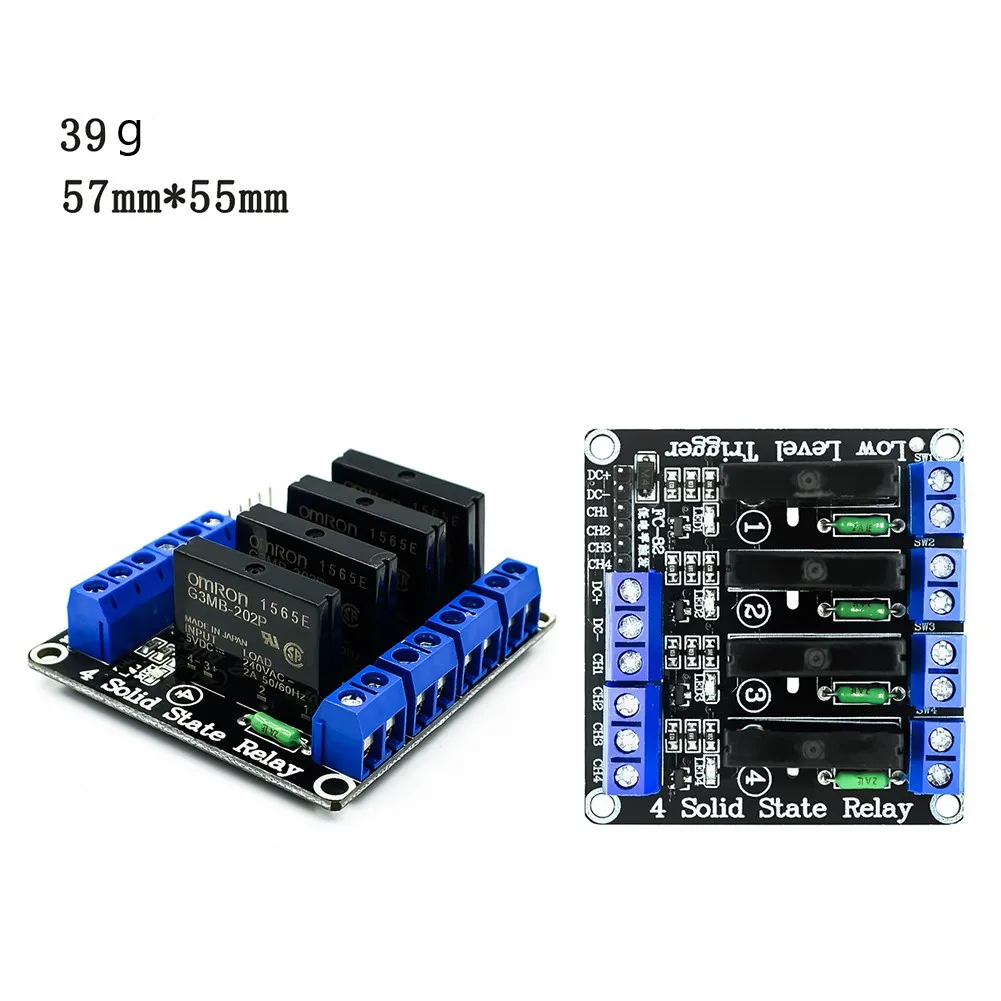

*4 channel solid state relay module

5V solid state relay 240V 2A, output with resistance fuse 240V 2A.
Size: 57*55*25 (length * width * height) weight: 40g
Input power: 5V DC (160MA)
Input control signal voltage:
0V-0.5V low level (SSR off)
2.5V-20V high level (SSR on)

Module interface:
Input part:
DC+: Positive power supply (powered by the relay voltage)
DC-: Connect to the negative pole of the power supply
CH1: 1 relay module signal trigger end (high level trigger is valid)
CH2: 2 relay module signal trigger end (high level trigger is valid)
CH3: 3 relay module signal trigger end (high level trigger is valid)
CH4: 4 channels of relay module signal trigger end (high level trigger is valid)

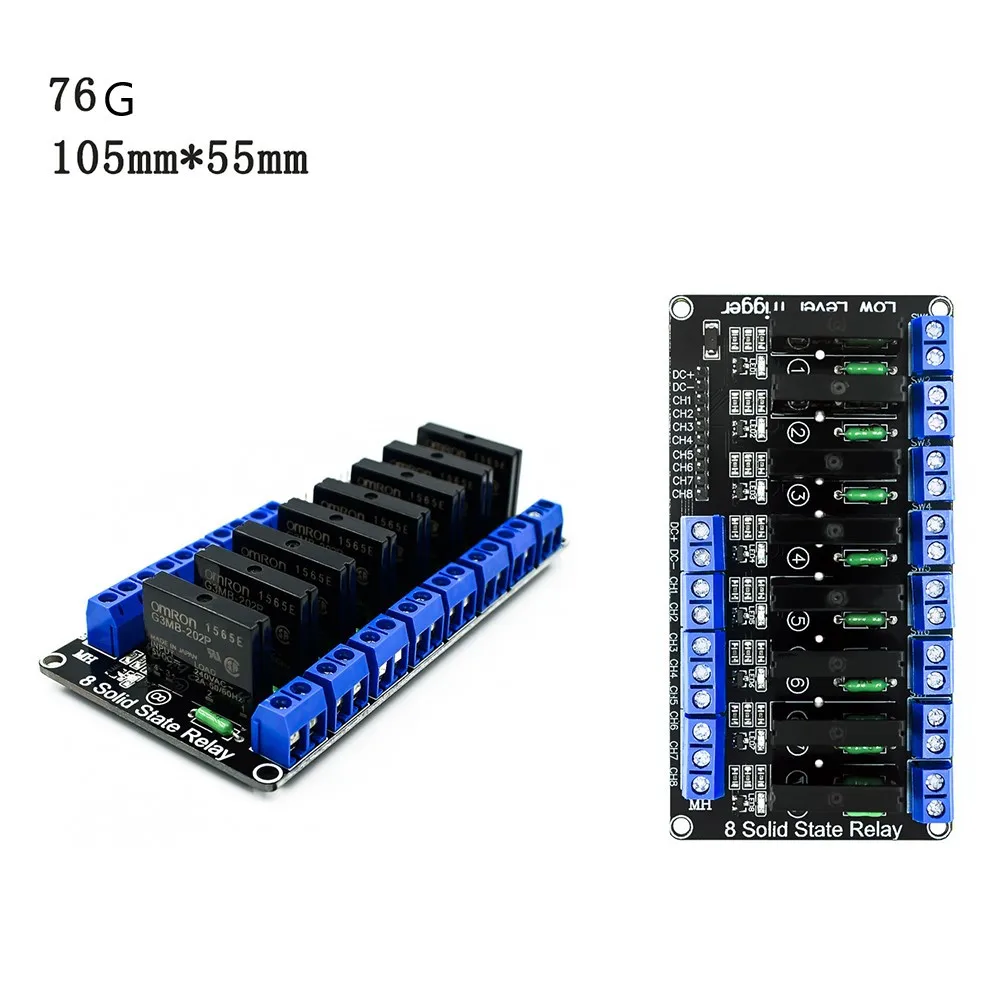

*8 channel solid state relay module

5V Omron solid state relay 240V 2A, output with resistance fuse 240V 2A
Size: 103*53*21mm/4.05*2.08*0.82"
Input power: 5V DC (160mA)
Input control signal voltage:
0V-0.5V low level (SSR off)
2.5V-20V high level (SSR on)
2.54cm pin and blue KF301 terminal are more convenient to connect to the control line

Module interface:
Input part:
DC+: Positive power supply (relay voltage power supply)
DC-: Connect to the negative pole of the power supply
CH1: 1 signal triggers the end of the relay module (low level trigger is valid)
CH2: 2-way relay module signal trigger terminal (low level trigger is valid)
CH3: 3 relay module signal trigger terminal (low level trigger is valid)
CH4: 4-way relay module signal trigger terminal (low level trigger is valid)
CH5: 5-way relay module signal trigger terminal (low level trigger is valid)
CH6: 6-way relay module signal trigger terminal (low level trigger is valid)
CH7: 7-way relay module signal trigger terminal (low level trigger is valid)
CH8: 8-channel relay module signal trigger terminal (low level trigger is valid)


Voltage version Quiescent current Working current Trigger voltage Trigger current：

1 way 5V 0mA 13.8mA 0-2.5V 2mA
2 channels 5V 0mA 26.8mA 0-2.5V 2mA
3 channels 5V 0mA 37mA 0-2.5V 2mA
4 channels 5V 0mA 48mA 0-2.5V 2mA
5 channels 5V 0mA 59mA 0-2.5V 2mA
6 channels 5V 0mA 70mA 0-2.5V 2mA
7 channels 5V 0mA 81mA 0-2.5V 2mA
8 channels 5V 0mA 90mA 0-2.5V 2mA


Package list:

1 *channel solid state relay module (optional)

notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
