Warm floor electric with thermoregulator 1 square. M./Infrared/Film | Floor Heating Systems & Parts

Brand NameotherMeasurement unitpiece/piecesEach pack1Max Power, W220Power supply voltage, V220Commercial typeWarm floorCountry of OriginSouth KoreaKind of warm floorFilmAbstractSets of film floors "manotek" consist of high-quality components produced by South Korea, which is the leader in the production of electric warm floors. Package includes:-heating film set quadrature; kits clips for electrical wires and electric insulation material-electric wire connection thermostat; thermostat RTC 70.26 sensor floor heating. The film warm floor under the wooden floor, laminate or linoleum is a film on which infrared graphite strips are applied, and the edges go to the floor. It is the graphite strips and are a heating element. This infrared film floor quickly heats up and has a low temperature. Even without a thermoregulator, this floor is heated no more than 60 ° C. Feature Sets Film floor from the МАНОТЕК ", they are equipped with thermostats RTC 70.26, when such floors with thermostat floor temperature will not exceed 45 °. Film electric floor has very wide application. It can be used for direct purpose, like a warm floor in an apartment or house. Also, the heating film can be used as a source of basic or additional heating, in this case, warm floors will be a pleasant bonus rather than an appointment. Often such systems are used as a warm mat (for example, under the working table) or an electric dryer for shoes and even vegetables and fruits. Installation of a film warm floor under laminate, linoleum, parquet board or carpet does not require special skills. If necessary, the film floor with its own hands to mount is quite simple, but connecting to the power grid is better to entrust a qualified electrician. When installing warm floors, you should also remember that such floors are afraid of locking furniture and things that have a dense surface (drawers, curbstones, mattresses, etc. Therefore, if you want to use the set of warm floor as the main heating, it is necessary to calculate the arrangement of furniture in advance. In addition, installation of film under furniture does not make sense in terms of electricity consumption, because. From important nuances, we note that the laying of the film floor is made on a prepared flat coating, on top of the heat insulation. As heat insulation usually acts a dense heat reflective substrate 3-5mm thick, which should be laid all over the floor area to avoid falling in the floor. On top of the heating film, waterproofing material is mandatory in order to prevent moisture from entering places of connection of electrical contacts. Waterproofing is better to bed also throughout the floor area. Another important factor when installing, if the heating floor is infrared film installed in several rooms, in each room you need to install a thermoregulator, because. The rooms are air can warm up unevenly and as a consequence of the film also can warm up unevenly. For floor heating installation will also need to buy thick теплоотражающую substrate thickness 3-5mm and waterproofing material for the whole area. If the installation of a warm floor is planned in several rooms, it will be necessary to buy the thermoregulator by the number of rooms.TypeFilm matHeating area, sq. m1.Features:Remote Sensor T ° floorKind of cableHeating tapeNot availableNot availableDescription Warm floor electric with thermoregulator 1 square. M. / Infrared/Film

Sets of film floors "manotek" consist of high-quality components produced by South Korea, which is the leader in the production of electric warm floors.

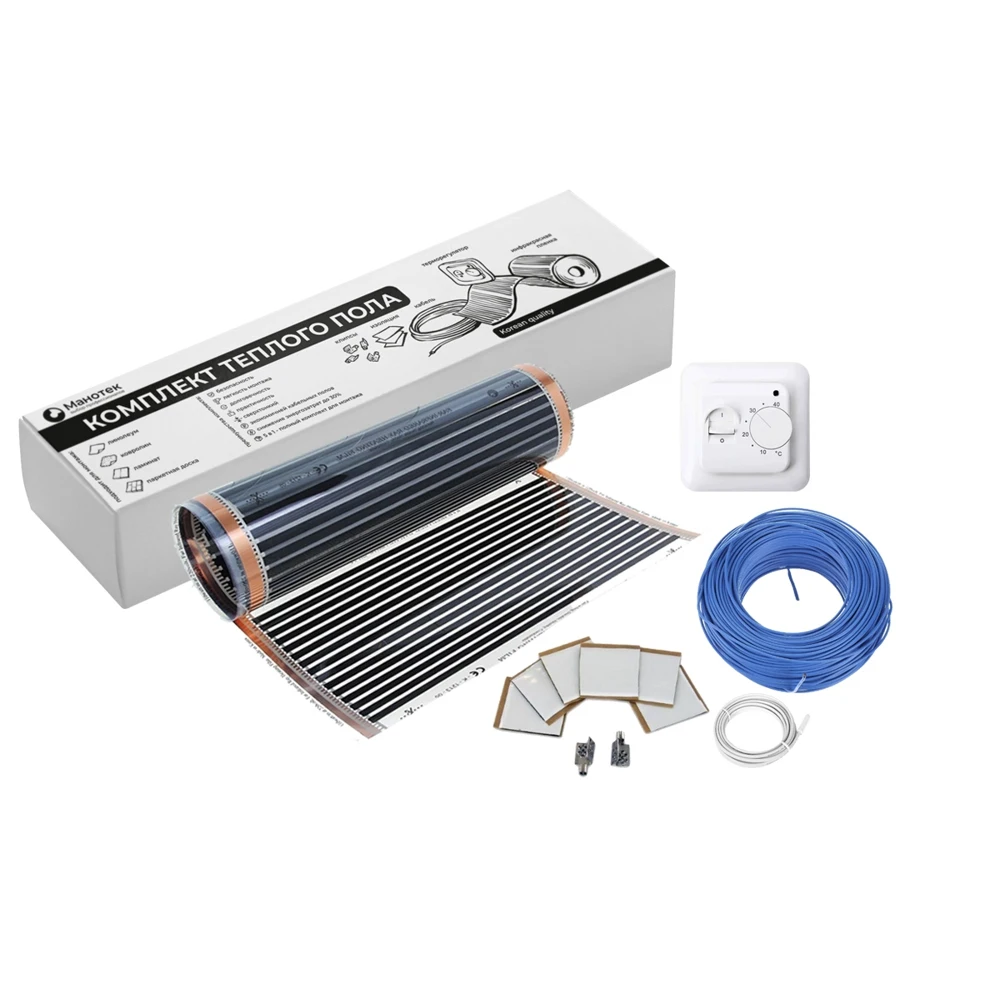

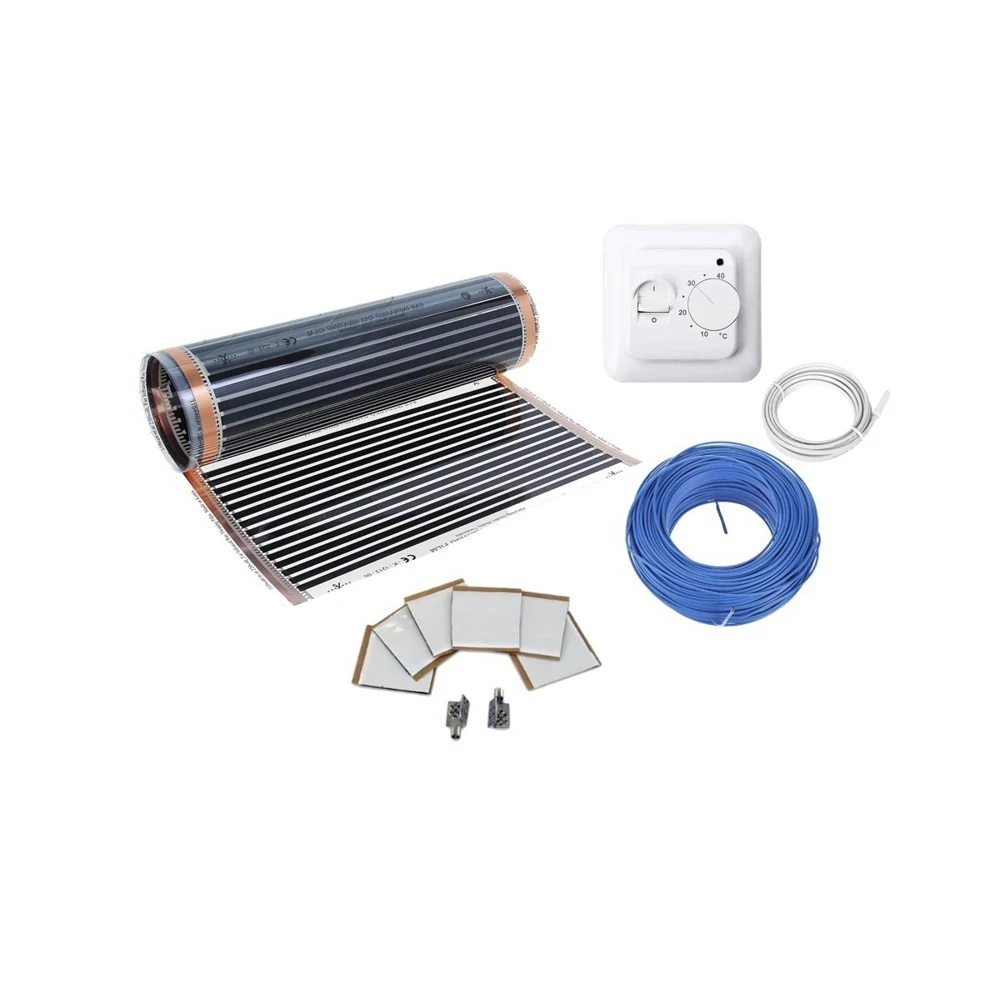

The package includes:

-Heating film of a given square;

-Sets of clips for connecting electrical wires and electrical insulation material;

-Electrical wires for connection to the thermoregulator;

-RTC 70.26 thermoregulator with warm floor sensor.

The film warm floor under the wooden floor, laminate or linoleum is a film on which infrared graphite strips are applied, and the edges go to the floor. It is the graphite strips and are a heating element. This infrared film floor quickly heats up and has a low temperature. Even without a thermoregulator, this floor is heated no more than 60 ° C.

Feature Sets Film floor from the МАНОТЕК ", they are equipped with thermostats RTC 70.26, when such floors with thermostat floor temperature will not exceed 45 °.

Film electric floor has very wide application. It can be used for direct purpose, like a warm floor in an apartment or house. Also, the heating film can be used as a source of basic or additional heating, in this case, warm floors will be a pleasant bonus rather than an appointment. Often such systems are used as a warm mat (for example, under the working table) or an electric dryer for shoes and even vegetables and fruits.

Installation of a film warm floor under laminate, linoleum, parquet board or carpet does not require special skills. If necessary, the film floor with its own hands to mount is quite simple, but connecting to the power grid is better to entrust a qualified electrician. When installing warm floors, you should also remember that such floors are afraid of locking furniture and things that have a dense surface (drawers, curbstones, mattresses, etc. Therefore, if you want to use the set of warm floor as the main heating, it is necessary to calculate the arrangement of furniture in advance. In addition, installation of film under furniture does not make sense in terms of electricity consumption, because. Warm cabinets and sofas just no sense.

From important nuances, we note that the laying of the film floor is made on a prepared smooth coating, over thermal insulation. As heat insulation usually acts a dense heat reflective substrate 3-5mm thick, which should be laid all over the floor area to avoid falling in the floor. On top of the heating film, waterproofing material is mandatory in order to prevent moisture from entering places of connection of electrical contacts. Waterproofing is better to bed also throughout the floor area.

Another important factor when installing, if the heating floor is infrared film installed in several rooms, in each room you need to install a thermoregulator, because. In rooms, the air can be warmed unevenly and as a result, the film can also be warmed unevenly.

For installation of a warm floor will also need to purchase a dense heat-reflecting substrate 3-5mm thick and waterproofing material for the entire area of the room.

If the installation of a warm floor is planned in several rooms, it will be necessary to buy the thermoregulator by the number of rooms.

Specifications

Max Power, W 220 Power supply voltage, V 220 Commercial type Warm floor Country of Origin South Korea Kind of warm floor Film Abstract Sets of film floors "manotek" consist of high-quality components produced by South Korea, which is the leader in the production of electric warm floors.

The package includes:

-Heating film of a given square;

-Sets of clips for connecting electrical wires and electrical insulation material;

-Electrical wires for connection to the thermoregulator;

-RTC 70.26 thermoregulator with warm floor sensor.

The film warm floor under the wooden floor, laminate or linoleum is a film on which infrared graphite strips are applied, and the edges go to the floor. It is the graphite strips and are a heating element. This infrared film floor quickly heats up and has a low temperature. Even without a thermoregulator, this floor is heated no more than 60 ° C.

Feature Sets Film floor from the МАНОТЕК ", they are equipped with thermostats RTC 70.26, when such floors with thermostat floor temperature will not exceed 45 °.

Film electric floor has very wide application. It can be used for direct purpose, like a warm floor in an apartment or house. Also, the heating film can be used as a source of basic or additional heating, in this case, warm floors will be a pleasant bonus rather than an appointment. Often such systems are used as a warm mat (for example, under the working table) or an electric dryer for shoes and even vegetables and fruits.

Installation of a film warm floor under laminate, linoleum, parquet board or carpet does not require special skills. If necessary, the film floor with its own hands to mount is quite simple, but connecting to the power grid is better to entrust a qualified electrician. When installing warm floors, you should also remember that such floors are afraid of locking furniture and things that have a dense surface (drawers, curbstones, mattresses, etc. Therefore, if you want to use the set of warm floor as the main heating, it is necessary to calculate the arrangement of furniture in advance. In addition, installation of film under furniture does not make sense in terms of electricity consumption, because. Warm cabinets and sofas just no sense.

From important nuances, we note that the laying of the film floor is made on a prepared smooth coating, over thermal insulation. As heat insulation usually acts a dense heat reflective substrate 3-5mm thick, which should be laid all over the floor area to avoid falling in the floor. On top of the heating film, waterproofing material is mandatory in order to prevent moisture from entering places of connection of electrical contacts. Waterproofing is better to bed also throughout the floor area.

Another important factor when installing, if the heating floor is infrared film installed in several rooms, in each room you need to install a thermoregulator, because. In rooms, the air can be warmed unevenly and as a result, the film can also be warmed unevenly.

For installation of a warm floor will also need to purchase a dense heat-reflecting substrate 3-5mm thick and waterproofing material for the entire area of the room.

If the installation of a warm floor is planned in several rooms, it will be necessary to buy the thermoregulator by the number of rooms. Type Film mat Type Film heater Type Warm floor Heating area, sq. m 1. Features: Remote Sensor T ° floor Kind of cable Heating tape Kind of heating Infrared Model Name Electric floor heating with thermoregulator/infrared/film Max operating temperature, °c 45 Package Contents Infrared captive-2 TD. M. thermoregulator rtc70.26-1 pc., remote temperature sensor warm pola-1 PC., screws for mounting the thermoregulator in the mounting box 2 pcs., instructions for thermoregulation-1 pc., instruction for a set of warm pola-1 PCs., pug-in-1 wire * 2,5 - 4 M., clips mounting-2 pcs., Butyl rubber tape-6 PCs Hazard class code Not dangerous Warranty 15 years Brand Манотек Combine on one card 12345 Thickness mm 0.338 Name Warm floor electric with thermoregulator 1 square. M. / Infrared/Film Item No. Infra_pol_1 Kind of thermostat Mechanical

---
