The newly M5Stamp C3U featuring ESPRESSIF ESP32-C3 RISC-V MCU, with Wi-Fi 5 (LE) connectivity, applicable for home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption. The compact size and powerful functions, make it applicable for multiple IoT scenarios.

The M5Stamp C3U is based on 32-bit RISC-V microcontroller, and operates at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash, it can facilitate many different use cases, involving connected devices. The M5Stamp C3U provides, Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.

MULTIPLE STYLE:

Three types soldering options are available (SMT, DIP, flywire);

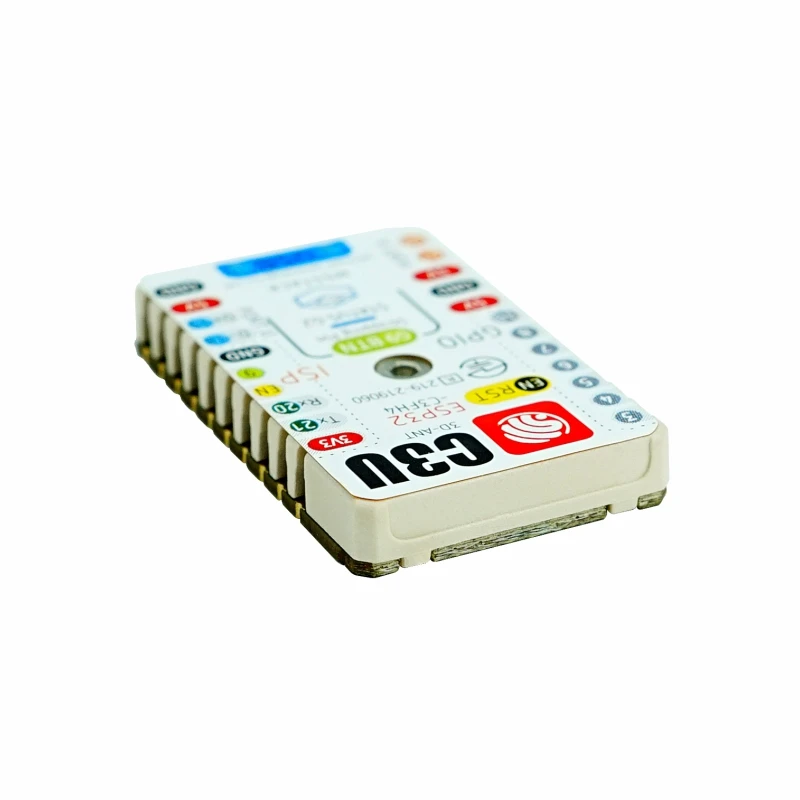

High-temperature resistant plastic enclosure, Peak temperature = 230℃;

HIGH INTEGRATION:

M5Stamp C3 contains 5V->3.3V DC/DC design, GPIOx14;

USB Type C port;

Programmable RGB LED x1, Reset button x1, button x1;

3D antenna, providing stable and reliable wireless communication.

DEVELOPMENT PLATFORM:

Arduino, ESP32-IDF (UIFlow support coming soon)

Purchase link

5 x M5Stamp C3U

5 x Heat Resistant Sticker

Purchase link

1 x M5Stamp C3U

1 x Heat Resistant Sticker

2 x 2.54-12P header

2 x 2.54-10P header

2 x 90° Grove Connector

1 x M2 Hex Key

DIY, Prototyping

Industrial Automation

Smart Home

Wearable Devices

Medical Devices

Consumer Electronics

Note: The newly updated C3U shares the same features as C3, but the difference is that M5Stamp C3U without the USB download chip and the program download method is different（(The C3U uses the ESP32-C3's built-in USB Serial for program download)）. If you are looking for a more affordable project, you can add this to your shopping list!

Enter the program download mode operation:
1. Long press the center button (G9) of STAMP C3U under power failure condition.
2. Connect to the computer, after the port is successfully identified, program burning.
USB CDC enabled:
By default, USB CDC is not enabled, the serial port output started by C3U will be output through UART0, if you need to output through USB, please use IDE to make it USB CDC before downloading the program option enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled, IDF users please refer to ESP IDF official documentation.)

Model

Master

IO quantity

Button IO

USB chip

USB interface function

STAMP-C3

ESP32-C3

13

G3

CH9102

Download / Serial

STAMP-C3U

ESP32-C3

14

G9

/

Download / JTAG / CDC Serial

Specifications

Parameters

ESP32-C3

32bit RISC-V single-core processor, clocked at 160 MHz

Storage

384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH

Wi-Fi

2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps

Input voltage

5V @ 500mA

HMI

Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1

USB interface

TypeC x1

Antenna Type

2.4G 3D Antenna

Module peripheral interface resources

ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI

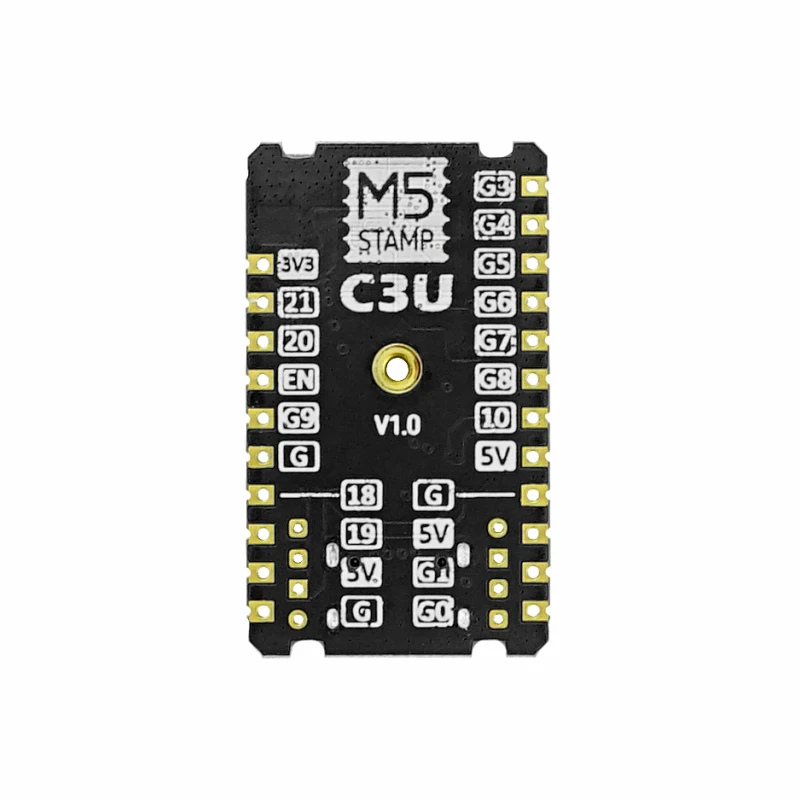

IO interface x14

G0, G1, G3, G4, G5, G6, G7, G8, G9, G10, G18, G19, G21, G22

IO interface spacing

2.54mm

Net weight

3.8g

Product size

34 * 20 * 4.6mm

Packing size

85*55mm sealing bag (translucent)
