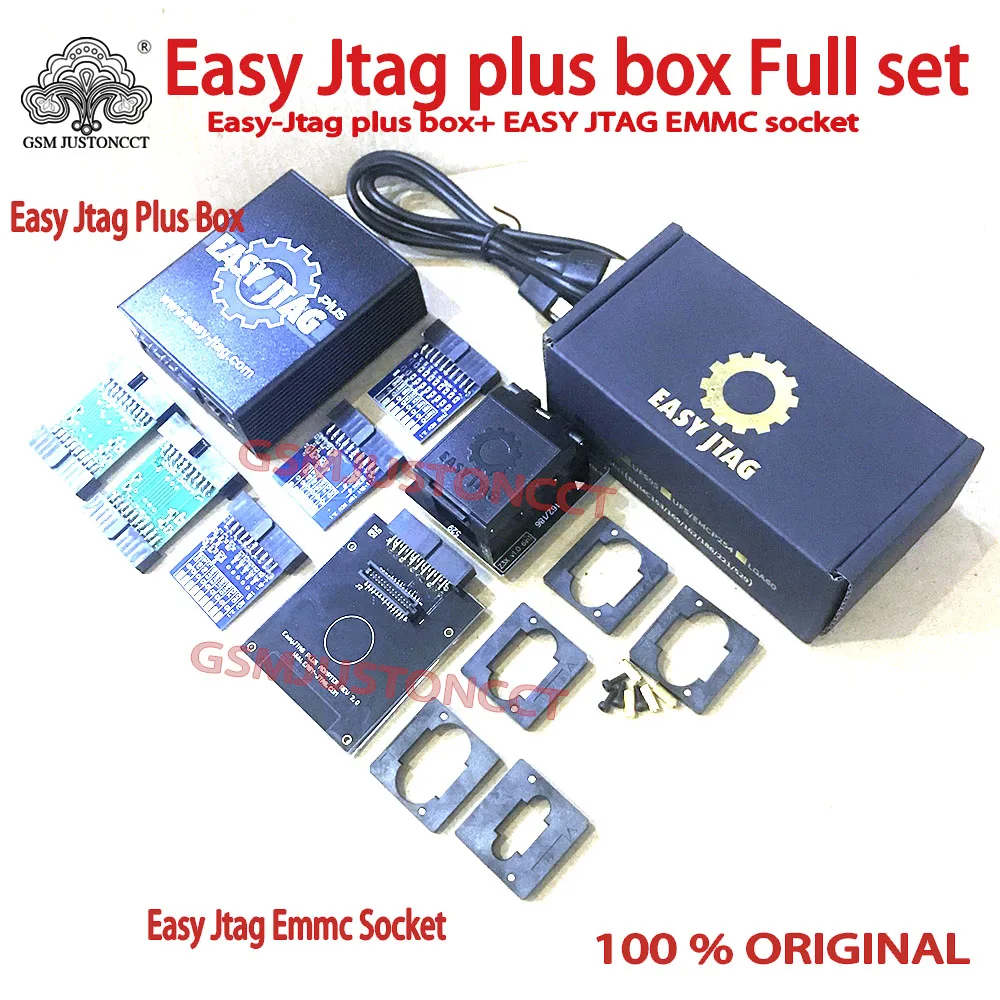

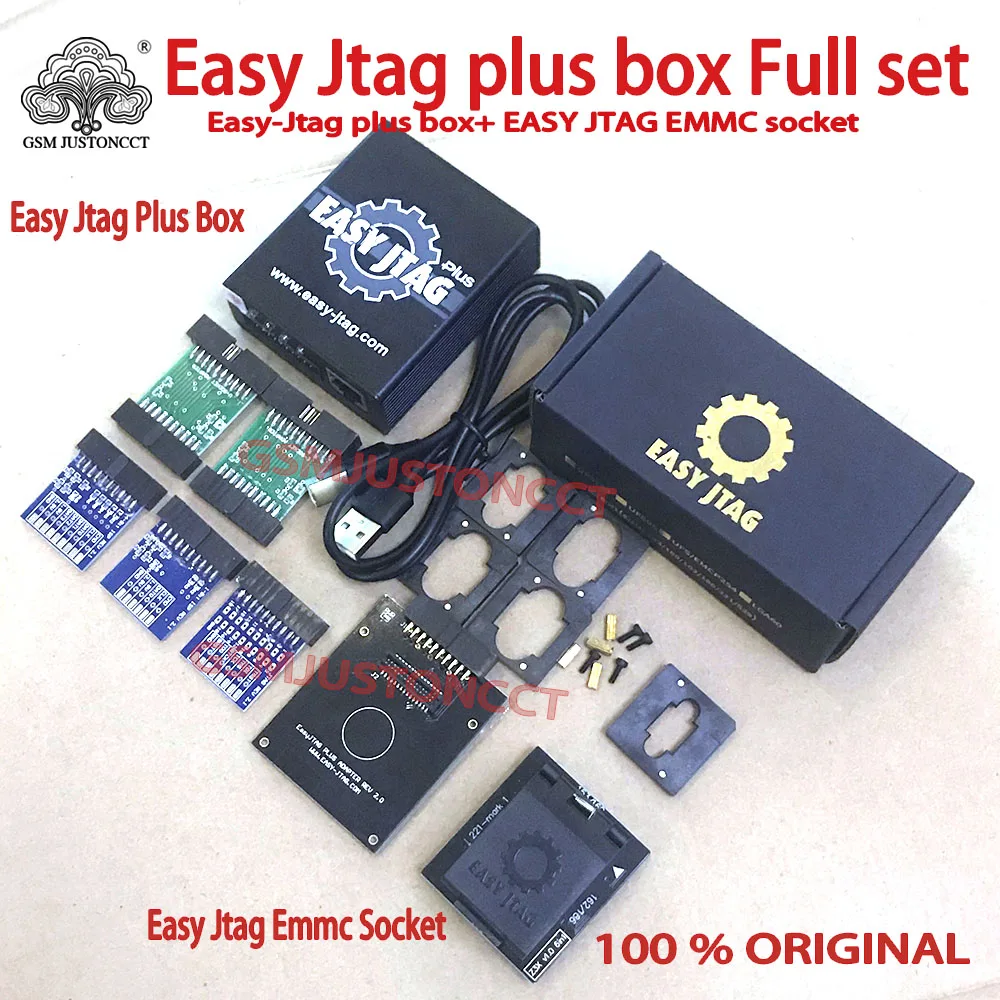

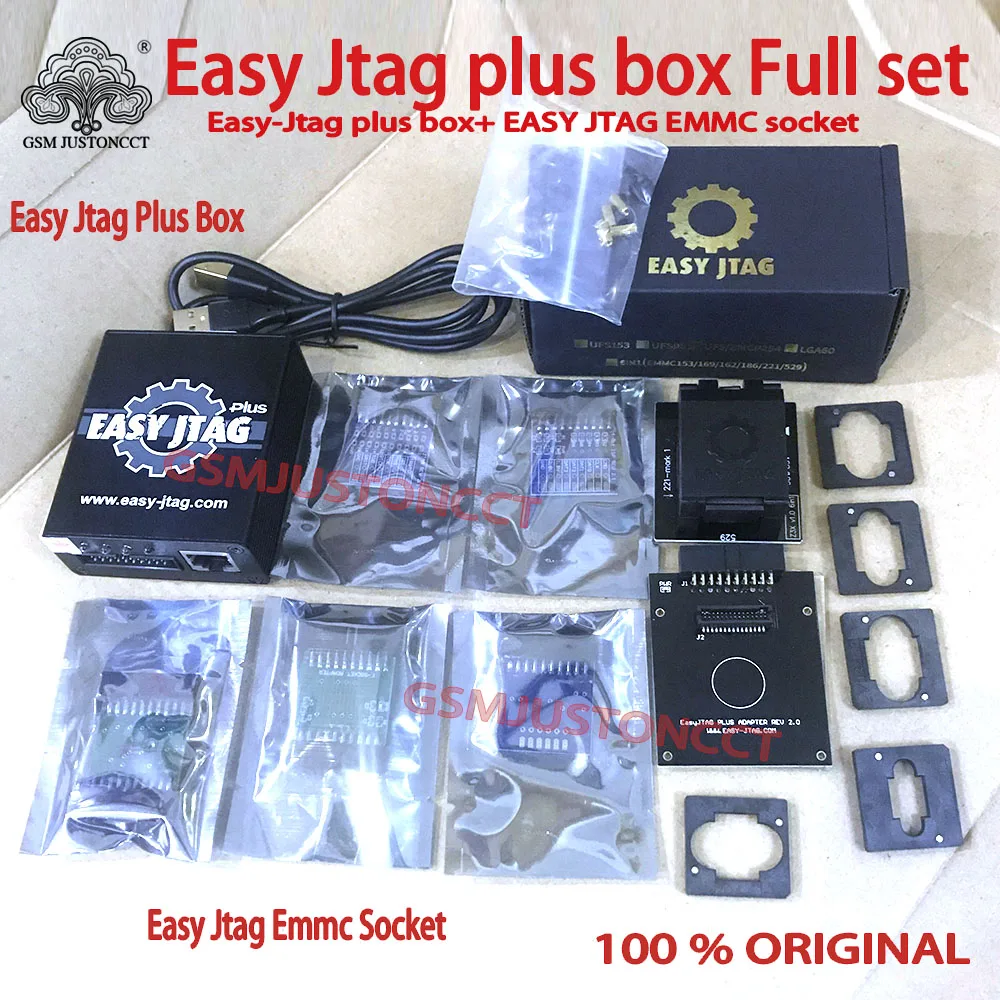

2022 New version Full set Easy Jtag plus box Easy-Jtag box+ EASY JTAG EMMC socket |

2022 New version Full set Easy Jtag plus box Easy-Jtag plus box+ EASY JTAG EMMC socket

Easy-Jtag Plus is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and much more protocols.Easy-Jtag Plus - Outstanding features:One click device repairBoot repairData recoveryeMMC firmware repairPartition managementeMMC service operationsSPI memory programmingEasy-Jtag Plus - Hardware features:Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)Updated power management subsystem – full digital PWM with ADC controlAdded Micro-USB connector (if additional power required)Added VCC and VCCQ switch with overcurrent protectionUpdated USB device interface: USB 2.0 480 Mbps (high speed)Integrated ISP engine: Z3X high power pro engine (4 MB/s)ISP support 1 and 4 bit* connectionAdded eMMC 8-bit high-speed interface up to 42 MHzIntegrated NAND* engine: NFC with 4 KB RAM buffer and ECCIntegrated M-PHY* interfaceIntegrated SPI engine: up to 21 MHz clock for popular SPI memory flash ICIntegrated self-test core that excludes 90% faults in productionIntegrated CCID card reader for Z3X Software UseEasy-Jtag Plus - Hardware benefits:Box to Host PC speed increased up to 40 MB/secJTAG Interface speed increased by 20%eMMC 1 Bit ISP Speed increased up to 4 MB/seceMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **eMMC 4 Bit Speed up to 18 MB/seceMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)Compatible with 99% host PC systems and OSCompatibility with old Easy JTAG 1st generation ISP adapters (1 bit)Compatibility with most of the popular eMMC sockets (with supplied adapters)Plug and Play for Windows OS 8/ 8.1/10Full support for Windows XPeMMC Socket - Features:Made from high quality materialsOver 10K cycles of lifetime performanceSupport for a wide range of eMMC ICsHigh-speed up to 40 MB/sec through 8-bit busEMI resistant design, low noise componentsIntegrated power logic (no need for additional power source)Surge protection - smart fuse driven (0.5A threshold)Easy-Jtag Plus  Set - Package Content:Easy-JTAG Plus Box HardwareEasy JTAG PLUS box smart card + ActivationEMMC socket (BGA153/169, BGA162/186, BGA221, BGA529)USB A-B cableAdapter set - 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET)1 year guaranteed free support access
