Designed for various theater studio TV station lighting

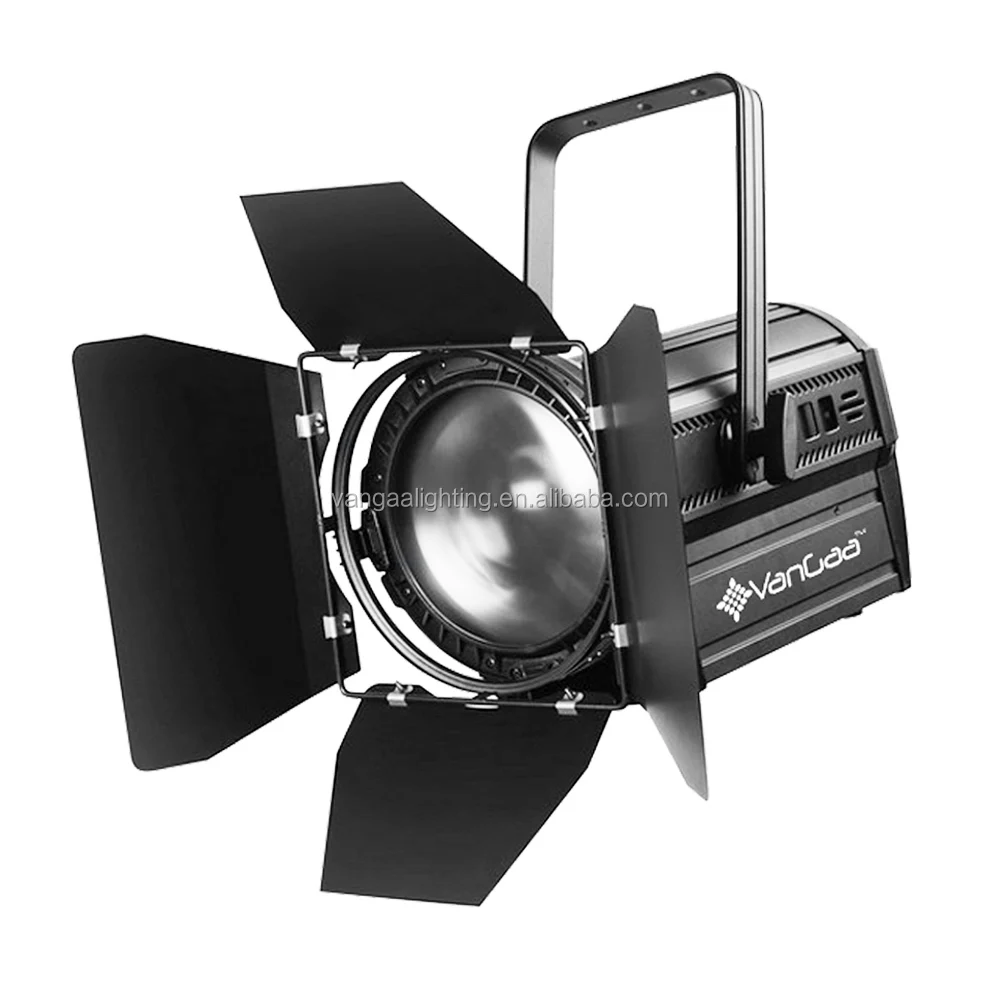

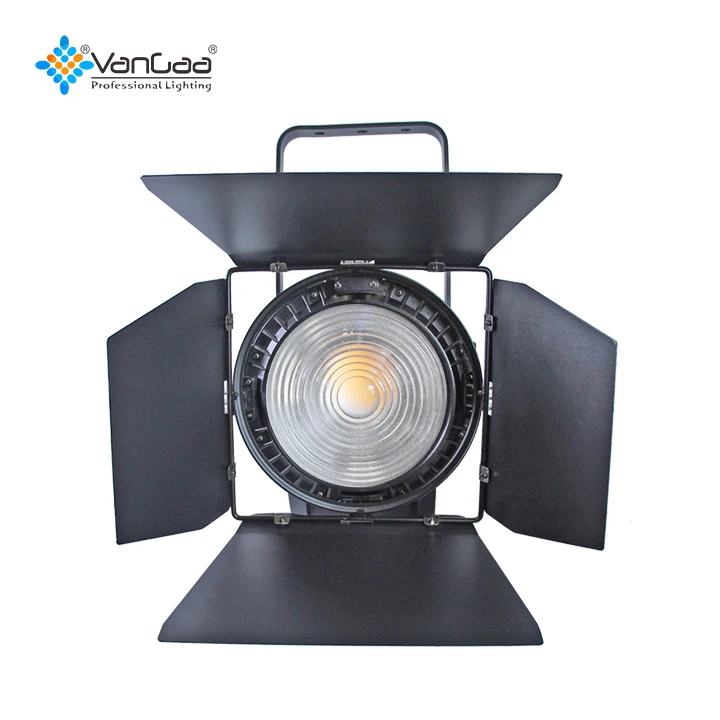

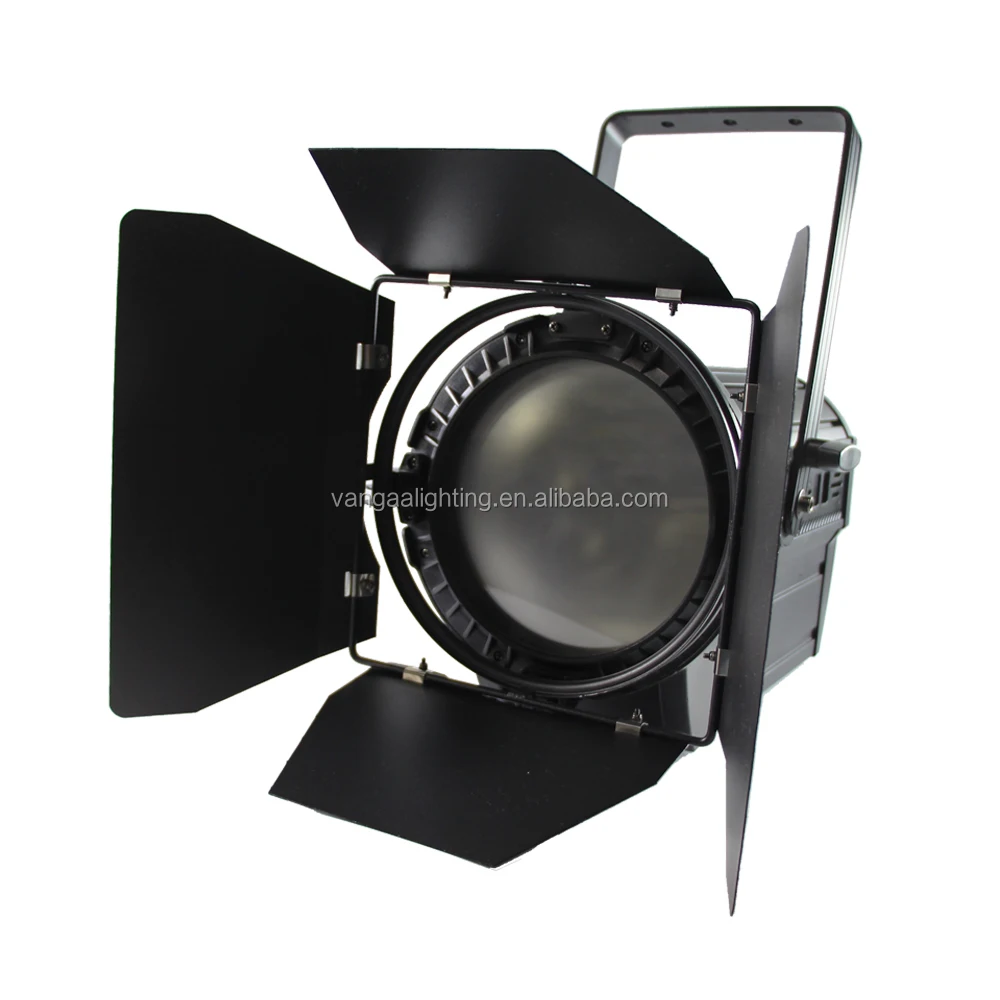

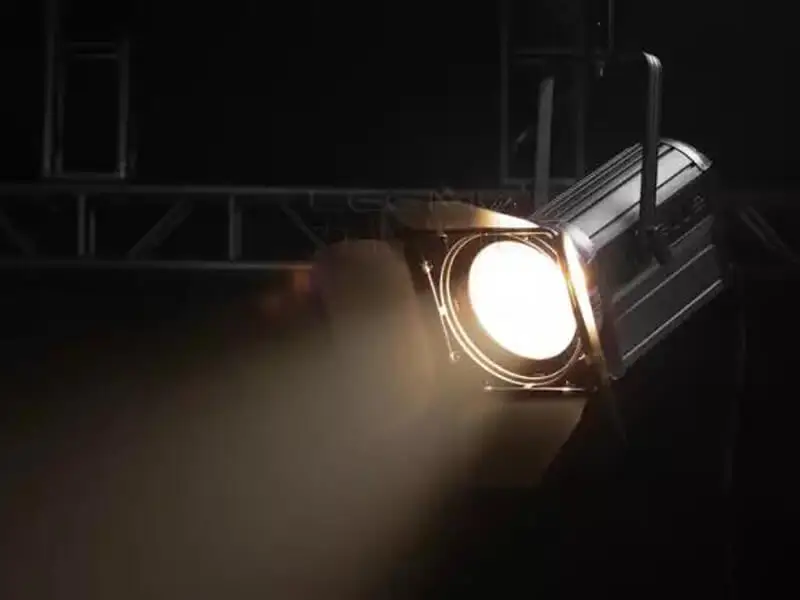

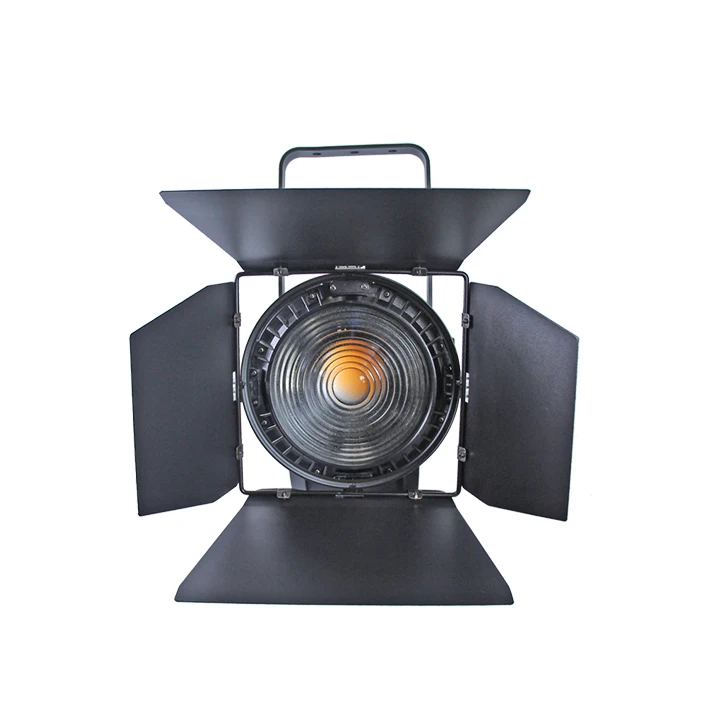

Combining the benefits of modern LED light-sources with the features of a traditional stage lighting Fresnel fixture, the VanGaa PB200W offers the best of both worlds. Low power consumption, minimal excess heat and long lamp life are combined with a wide zoom range and barn doors to create a pair of truly versatile fixtures. Create soft-edged beams for highlighting or illuminating the stage.. A Professional Lighting Kit for TV Station Control * 3-pin+5-pin DMX In/Out and powerCON In/Out * 4-Button LCD Operational Menu Color temperature White Wide, Soft-Edged Beam for Stage and Theatre Use at 3200k/5600K Beam Angle Change the Beam Angle from 15 to 60 Degrees VanGaa LED Studio Fresnel Light Series Product Description Main feature ●The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps; ●Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable; ●Use the LED video projector scheme, the light energy saving 80%; ●Because of almost no infrared radiation, it has greatly improve work environment. Technical Specifications Light Sources
* LED: 1pc 200W COB LED Lamps
* Lifespan: 500,000h
* Color: CW, WW optional

Optics
* Beam angle: 15-60degree
* Dimmer: 0-100% linear dimmer

Light Output
* Luminous flux: 5190lm
* Illuminance: 2700 Lux (6m 15°)
* Optimal projection distance: 3-10m
* Light output: flicker free(20khz)

Control
* Control mode: DMX-512; Auto run
* DMX channel: 1CH, 2CH
* Display of control panel: LCD display + 4 buttons Power Supply
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 250W

Construction
* Body dimension: D455*W265*H292mm
* Net weight: 7.5kg
* Shell color: black
* Shell material: aluminium die casting

Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator and Fan
* Protection rating: IP20

Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual

Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage "Accessaries series")
* Safety rope: different size safety ropes optional (choose from VanGaa homepage "Accessaries series") Production Images Product package:   Flight case(customized and optional) Thick woodboard Long hinge Quality aluminum alloy Best rubber wheels Panel Light Series   Company Profile About us Guangzhou VanGaa lighting Co,Ltd , Founded in 2014,Located in Huadu district of Guangzhou City. Well trained staff, strict quality control, and professional sales team, provide excellent before sale and after sale service. * Manufacturer / Factory * Accept OEM & ODM * Qualified with CE, ROHS, FCC certificates * One store service from product to your door * Our goal : keep growing and expanding with clients Certificate ISO certified factory, products strictly in compliance with CE, RoHS standards. Packing&Shipping FAQ Q. Can i order light with my own design and Logo? A:Definitely yes,we offer custom services according to your specific requirements Q.what format do you need for logo? A:PDF,AI,JPG,CDR,PSD etc. Q. Are there any other related products? A:Yes,we can purchase Filght case,Lamp hang,Constant force hinge,Slide way,Tripod,Safety rope Q. Can I have a sample order for led stage light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q. How to proceed an order for led light?
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.

Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: Do you offer guarantee for the products?
A: Yes, we usual offer 1 years warranty to our products( Of course you can opt for a lifetime warranty).After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
