10 12 15 19 inch J1800 Intel Ip65 waterproof Frame industrial Capacitive touch all in one pc computer for Windows 7 Wifi Com | Компьютеры

10 12 15 19 inch J1800 Intel Ip65 waterproof Frame industrial Capacitive touch all in one pc computer for Windows 7 Wifi Com | Компьютеры

Information Of CPU:

Intel Celeron-J1800 processor (Dual cores, 4m high-speed cache, main frequency 2.40 GHz, up to 2.58 GHz, TDP power consumption:10w)

10.4/12.1/15 inch TFT LCD, aspect ratio 4:3, Resolution 1024*768.

19 inch TFT LCD, aspect ratio 5:4, Resolution 1280*1024.

Products number

M-ACF

Display

Panel Type

Industrial LCD panel A grade

Max. Colors

16.7M(8-bit)

Contrast

800:1

Luminance(cd/m2)

300nits, custom up to 1000nits

Backlight lifetime

50,000 hrs

Touch Screen

10-point capacitive touch

PC Configuration

CPU

Onboard Intel celeron j1800 J1900 processor(quad-core, 2M Cache, 2.41GHz) Customized: i3/i5/i7

Graphic Card

Integrated Intel HD Graphics

Memory(RAM)

2GB/4GB/8GB/16GB DDR3L SODIMM(Socketed)

Storage

64GB SSD (32GB/128gb/256gb SSD, 500gb HDD customized)

Expansion Slot

2 x Mini-PCIE slot, support SSD, WIFI, 3G module

Internet

1 x RTL811E Gigabit network card

Operating System

Windows 7/8/10 pro, Linux, Windows 10 IoT ENT LTSB

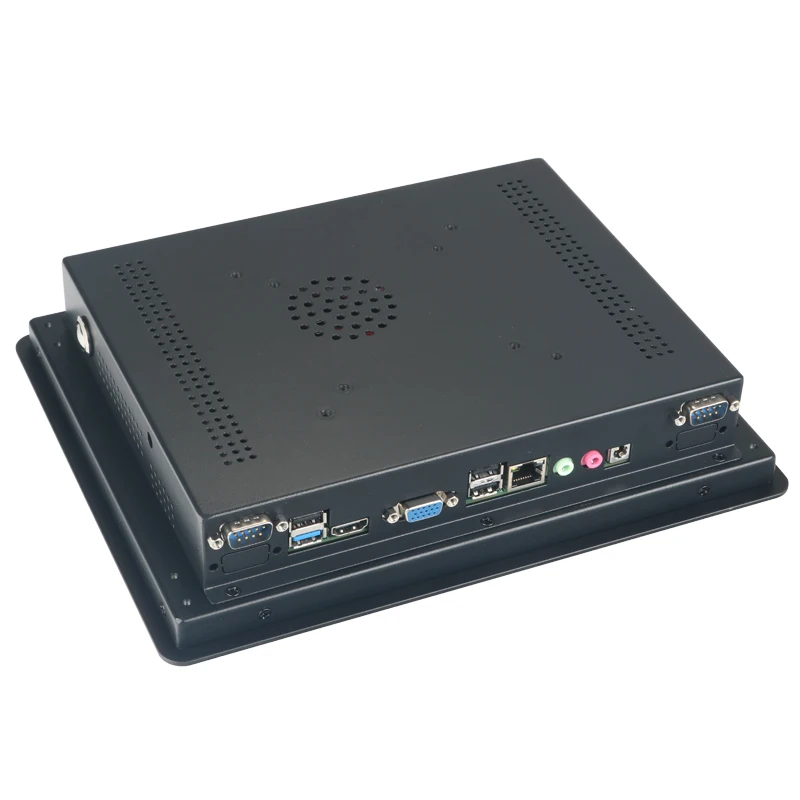

l/O Ports

USB

2 x USB 2.0 Type A

Serial/ Parallel

1 x RS-232/422/485 DB-9, default RS-232(COM1)

1 x RS-232 DB-9(COM2)

LAN

1 x GbE LAN RJ-45 (2*LAN optional)

Audio

1 x Realtek HD Line Ͳ Out

Power

1 x 3-pin DC Power input terminal

1 x 2-pin connector for power on/off button

Power Input

12V DC-IN (24V optional)

Mechanical

Construction

Flat frame (Aluminum alloy optional)

Mounting

Panel Mount, VESA mount 75 x 75

Net Weight

4-13 kg

Operating/StorageTemperature

-10°C-60°C / -30°C-60°C

Operating/Storage Humidity

10%-80%/ 10%-90%

Faismars is professional manufacturer in Touch All in one PC, Industrial Computer, LCD display, MINI PC and so on. We have many years industry experience and own professional R&D, experienced sales team, with well-equipped testing facilities and strong technical force. It has won the praise and support of many customers with excellent quality and perfect after-sales service. Providing high quality,produscts, reasonable price and best service to all partners is our promise. Faismars is committed to building the world's leading industrial intelligent touch control equipment brand.

Visiting our factory is warmly welcomed at any time. We look forward to cooperating with you and supporting your growth in your market.

Free Operating System: Default installed our trial OEM windows 10/8/7 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install.  Other systems we can install free are like Linux Ubuntu etc if you need. Seller is not responsible for trial OEM system.

Accessories as RAM, SSD, we use famous brand:  samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison, Longsys etc, What brand we use depends on our test and our stock.
