Handheld Network Cable Tester LCD Large Screen Display Digital Wire Trackers Continuity Voltage Polarity Checking POE Test | Инструменты

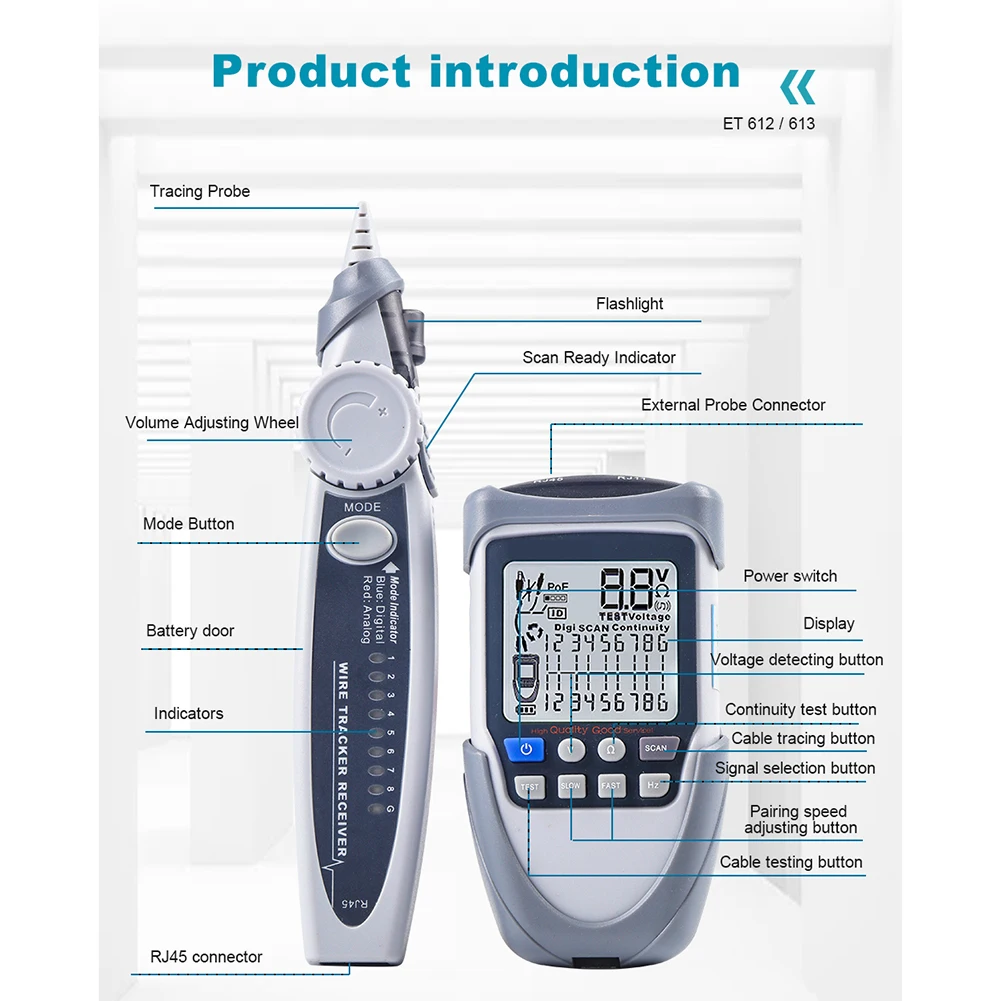

ET612 / ET613 Handheld LCD Digital Display Network Cable Tester Tracker Continuity Voltage Polarity POE Wire Wiremap Checker Scan Tools
Feature:

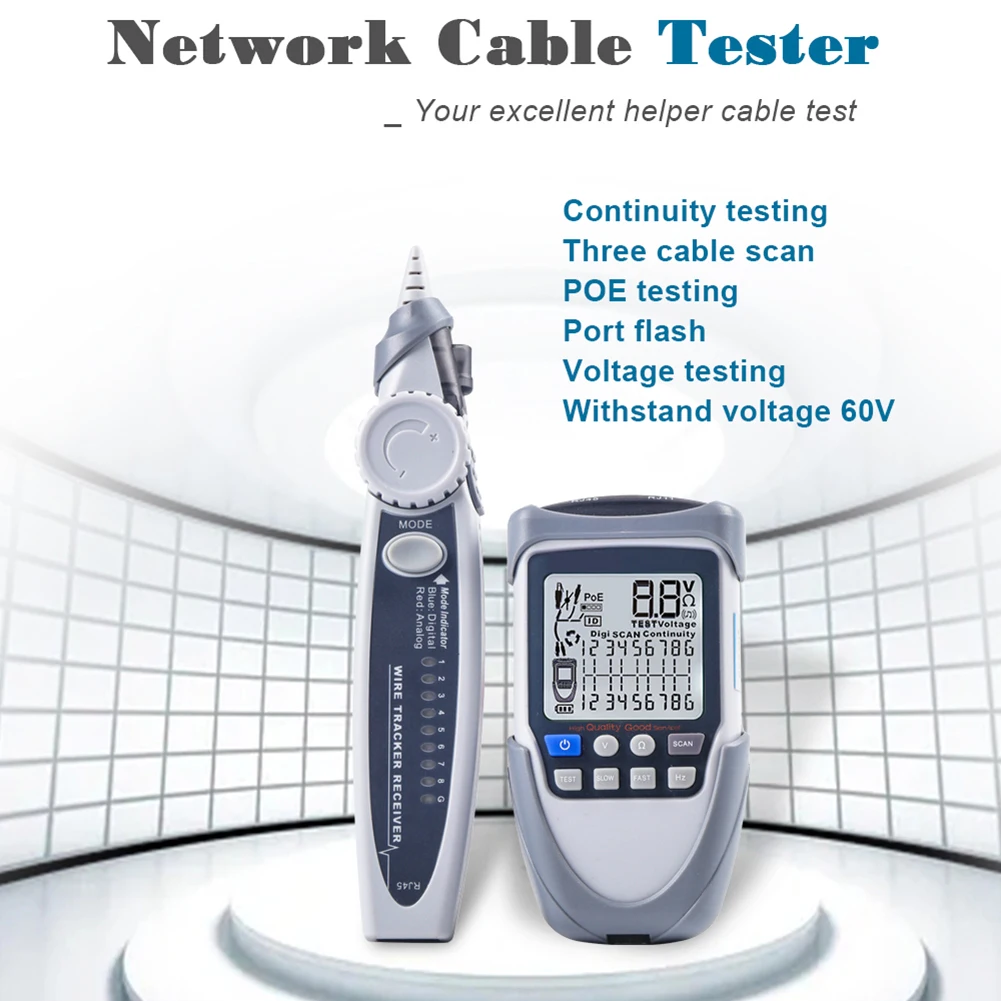

Adopt LCD intuitive display screen for you to see the data more clearly, and with three modes for you to switch freely: POE mode, digital mode and analogs mode.
POE testing function: This tool can be used for testing standard and non-standard POE device, it can also test POE voltage, power supply polarity and power supply mode.
Voltage test function: You can click "V" to enter the voltage test function, which can measure the battery voltage and voltage polarity and you can press "V" again to enter the POE test mode. You can measure the POE power supply line and voltage.
Adjustable sensitivity: when receiving signal is strong, turn down the sound gear;when receiving signal is weak, raise the sound gear, which can give you a more accurate testing data.
With LED flashlight function, you can turn on the flashlight in time when the light is weak or when you use it at night, so that you can use it normally in a dark environment.

Specification:
Material: ABS
Type: ET612/ET613 (optional)
Difference: ET612 has no vibration function, ET613 has vibration function
Power supply:
Transmitter: 3 X AA batteries (not included)
Receiver: 9V (not included)
Analog cable tracking: Yes
Digital cable tracking: Yes
Tracking cable supporting POE: Yes
Identify wire pairs and wiring quality: Yes
Battery voltage polarity check: Yes
Battery voltage measurement (for reference only): Yes
POE voltage polarity check: Yes
POE voltage measurement (for reference only): Yes
Split pair: Yes
Breakpoint check: Yes
Continuity test: Yes
Tracking signal transmission distance: 3Km
Output signal level: -15Vp-p
Vibration indicator: ET613 only
Flashlight: Yes
Adjustable loudness: Yes
Low battery indicator: Yes
Packing size: 220*148*50mm/8.7*5.8*2.0in
Package weight: 389 grams/13.7 ounces

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

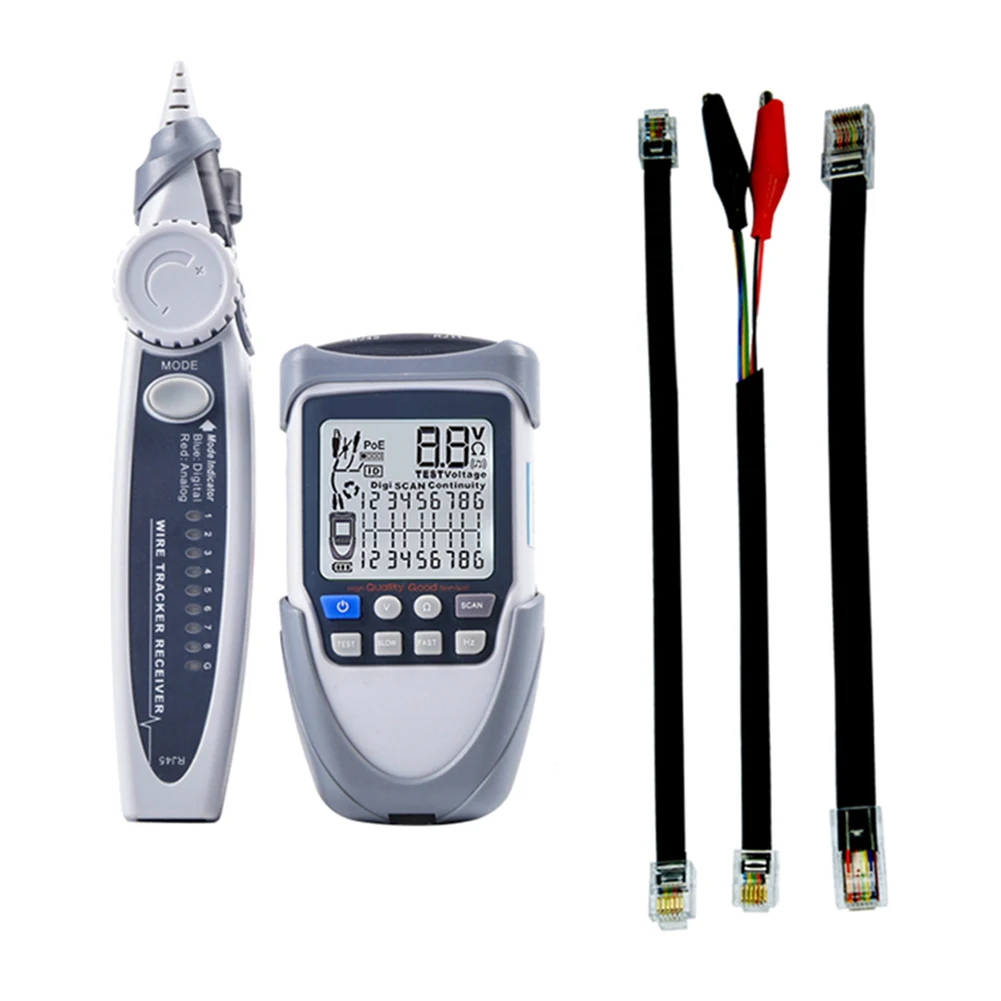

1 X Transmitter
1 X Receiver

3 X Cables
