The following is a detailed description of the product

(1) Product name: DC 12V 24V Speed controller for small DC motor

(2) The function of the controller: adjust the speed of the motor or device; control the motor to rotate clockwise or counterclockwise;

(3) The voltage supported by the controller: DC 12V To DC 36V

(4) The device current supported by the controller must be within 10; if the device is used for a long time, we recommend that your device current be controlled at about 5A. Continuous maximum current 5A, overload protection current 10A, short circuit time does not exceed 30 seconds.

(5) Speed regulation range 0 to 100%

(6) The supported device power must be within 120W

(7) Potentiometer: resistance value B10K; opening 7mm

(8) Using imported chips, the circuit is stable and reliable; this control has a fuse, which is safer to use.

(9) Warm reminder, the input voltage of this controller is DC, so the controller cannot be connected to AC power. The positive and negative poles of the DC power supply are forbidden to be connected incorrectly, otherwise the controller will be damaged.

Introduction of the switch button

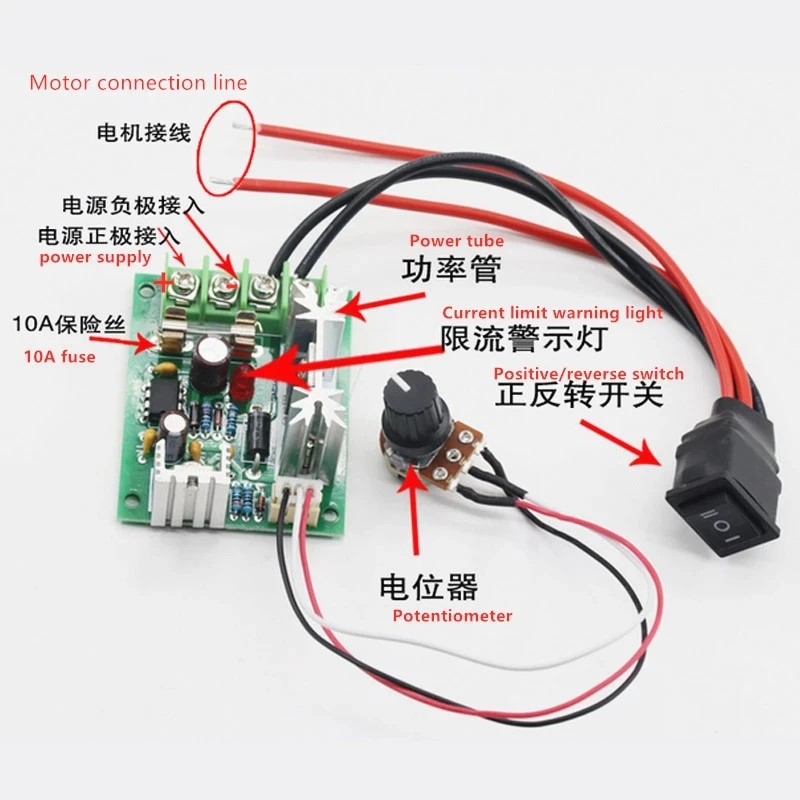

① Control the clockwise or counterclockwise rotation of the motor; control the start and stop of the motor

② Adjust the speed of the motor

The following is the connection method of the controller

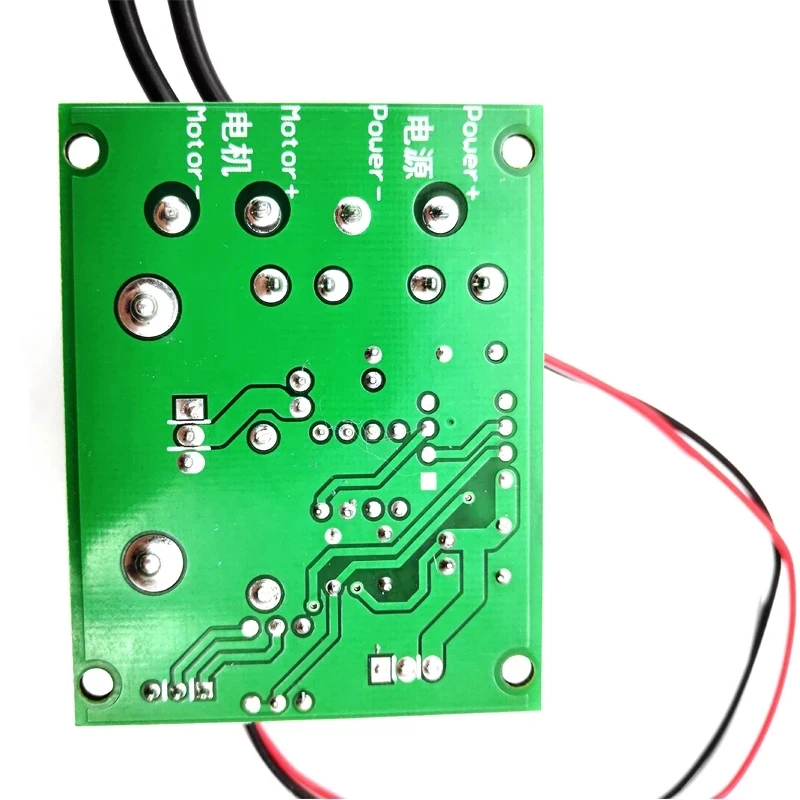

① Negative input of DC power supply

② Positive input of DC power supply

③ Connect the positive pole of the motor

④ Connect the negative pole of the motor

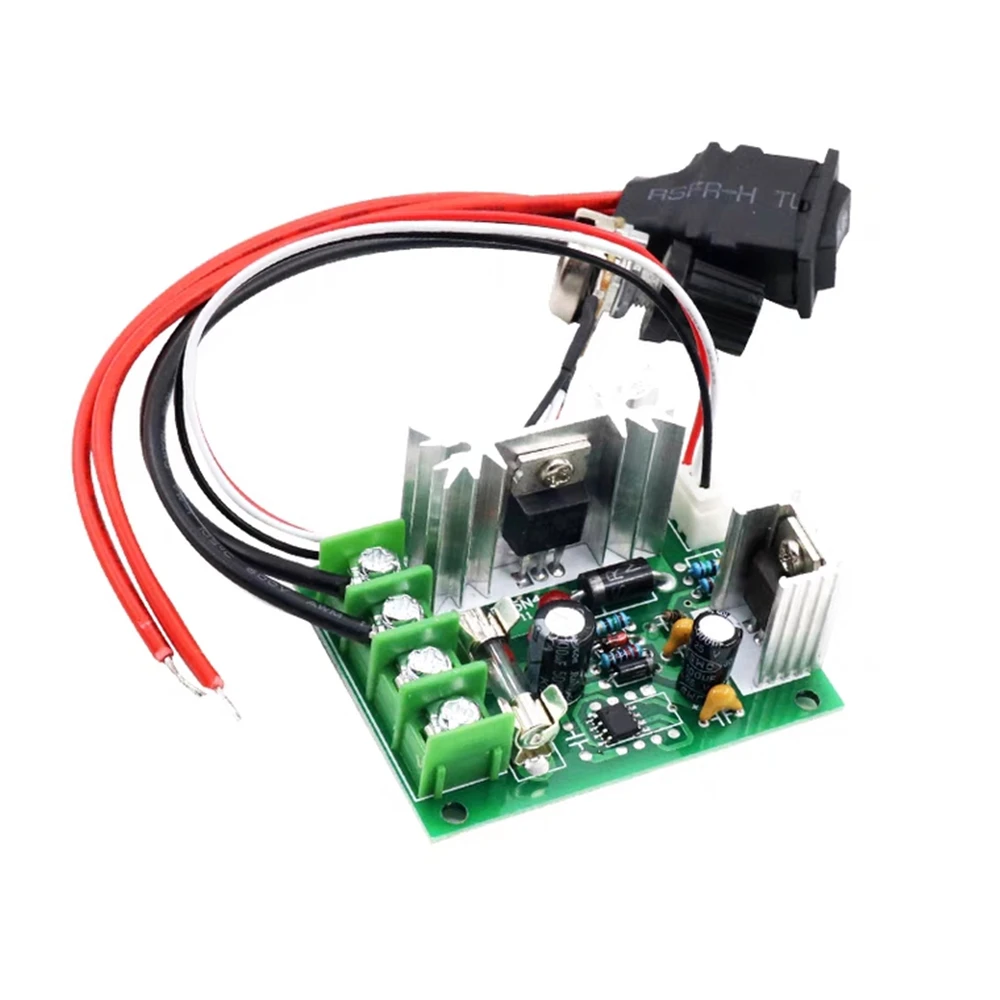

The following is the picture of the controller
