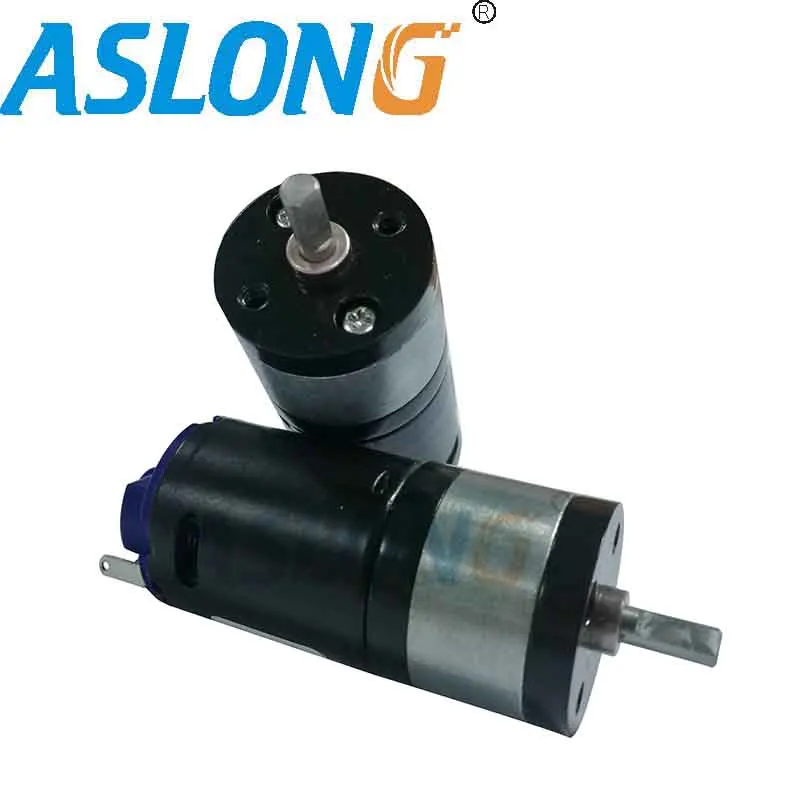

JGA25-370DG Double-Gear Link Planetary Gear Reductor With High Magent Higher Torque 370 PMDC Long Life Motor Reducation motor |

JGA25-370DG Double-Gear Link Planetary Gear Reductor With High Magent Higher Torque 370 PMDC Long Life Motor Reducation motor |

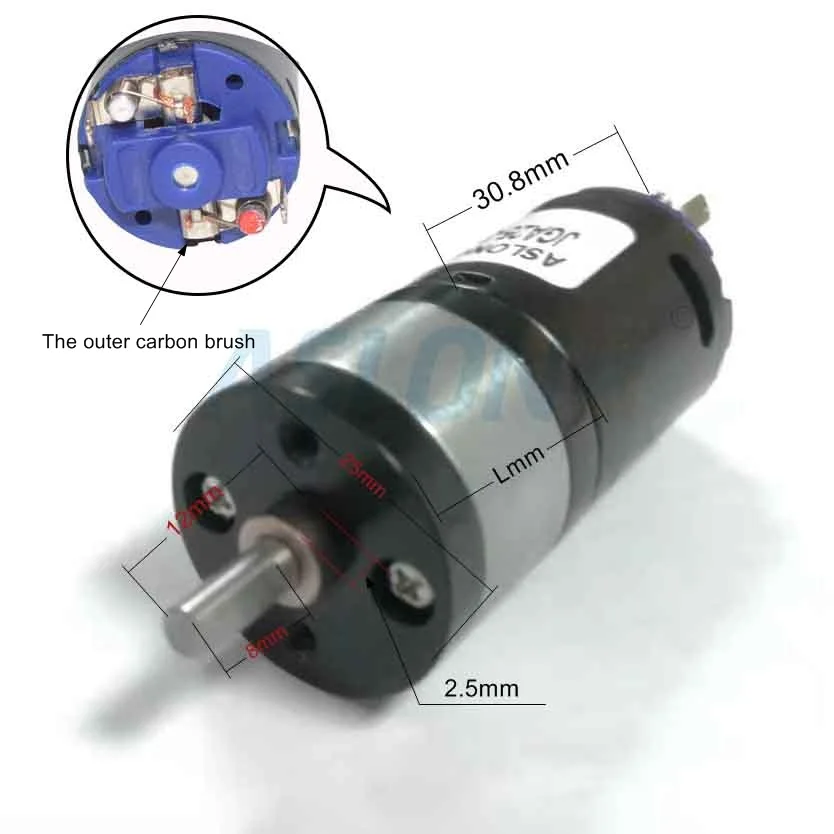

JGA25-370DG Brushed gear motor

1 Standard Operating Conditions:

1-13Rated Voltage: 6v.

1-14Direction of Rotation:CW when viewed from output shaft side

1-15Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.

1-16Storage Temperature:Temperature range of -20C~+60C

5.Measuring Conditions:

2-1 Motor Position:To be place t horizontally when measuring

2-2 Power Supply: Regulated DC power supply

--No load speed:  rpm.

--Robotics, Small Appliance, Fanner, Electric Curtain;

--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device

--Electric motor,low noise,low current and no spark.

-- Ratio: 4.4 9.6  21.3 35.3  46.8  78   103 171 226 378 500

2-3  Micro motor : 6V 20000RPM 12V 20000RPM

Remark: Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding. If you want to need other speed , please contact us , we will make it for you

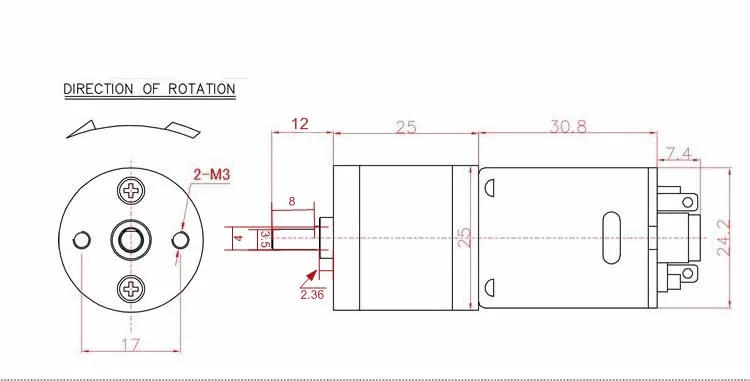

Brushless motor drawing

Technical sheet :

motor engine 6v 20000rpm 12v 20000rpm with 25mm different gearbox

shaft can make into 12mm which is same with normal shaft

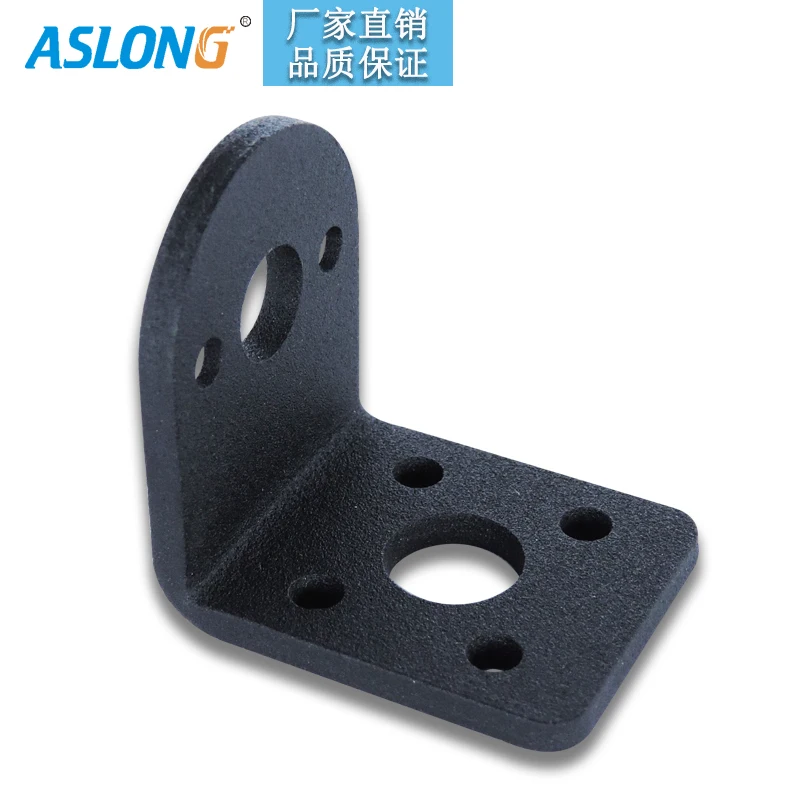

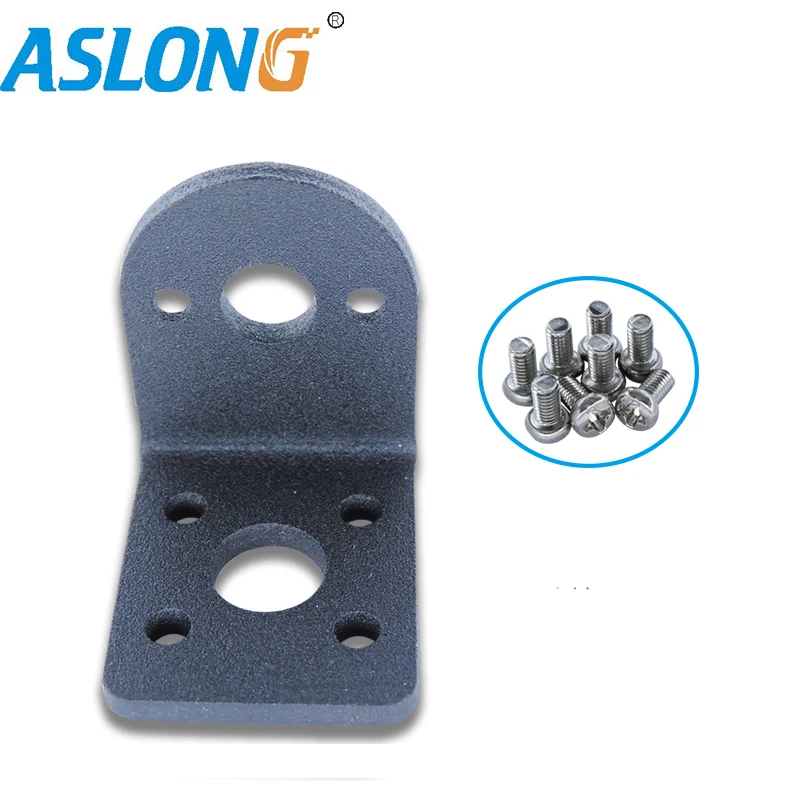

Related Product

double -link gear team for long time working

Factory Character:
