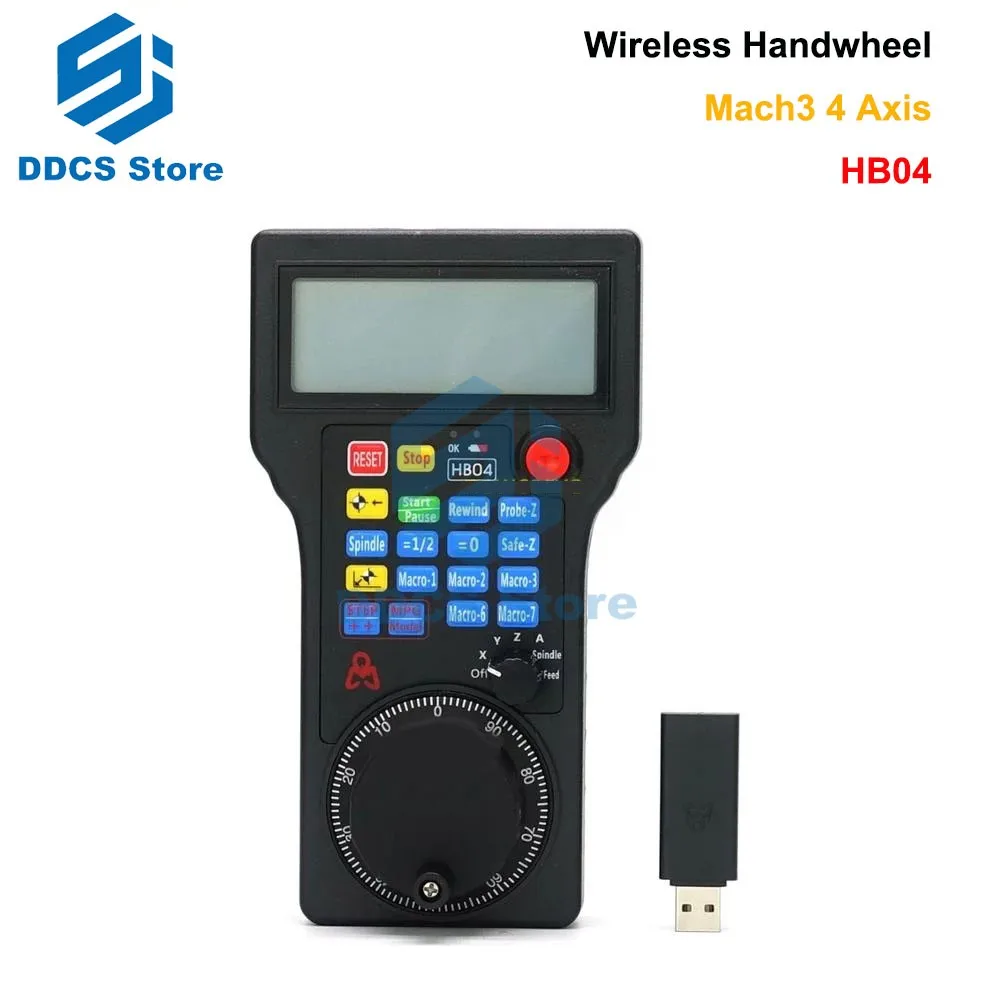

HB04 CNC Mach3 4 Axis MPG Беспроводной пульт управления ручкой с генератором оптического энкодера Pulse 50PPR для роутера.

HB04 CNC Mach3 4 Axis MPG Беспроводной пульт управления ручкой с генератором оптического энкодера Pulse 50PPR для роутера.

Unavailable in

Features :

- Works for Mach3

- Supports 4 axis. the 4th axis- A-axis, no A=0 function ( A-axis functions are not as much as the other 3 axis)

- All the buttons can be programmable

- About the handwheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.

- Rich real-time display of large-screen LCD:

- Display machine status,run,pause,idle,step value

- Display X y Z-axis workplace coordinate and x y z axis machine coordinate

- Show the feed rate, spindle speed

Band switch for easy operation:

- switching X-axis coordinate regulation

- switching y-axis coordinate regulation

- switching z-axis coordinate regulation

- switch hand wheel guide

- feed adjustment switch

- speed control switch

ShuttlePro Installation

When Mach3 is installed, there will be a folder created named “PlugIns” in the Mach3 folder. This folder is the location to put and Plugin files that you want Mach3 to know about. Place“ShuttlePro.dll” in the \Mach3\PlugIns folder. Check and make sure it is there.

Setup diver for automatically set the knife height function M930.m1s copy the installation directory to the Mach3\macros\Mach3Mill

 Now that the ShuttlePro.dll file is in \Mach3\PlugIns, the next step is to connect the shuttle pro. If you are certain that your ShuttlePro is working and your hardware is working, then you can simply plug in the shuttle to one of the USB ports.

Once the shuttle is connected, start Mach3 and go to the “Config” menu choice and select “ConfigPlugins”. You should see the ShuttlePro choice with a green checkmark in front of it. If it is not checked, you can check it. The checkmark means that Mach3 found the ShuttlePro on startup. Click the “CONFIG” in yellow and set the buttons as you wish.

Once you have the proper button selected in the Mach3 ShuttlePro Plugin CONFIG menu, your Shuttle device should be working properly.
