2 Pcs LED Bulb Load Resistor Turn Signal Flash Controller & 1 Repeater Relay 12V 30A 5 Pin 40A for Auto Car |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 2 Pcs LED Bulb Load Resistor Turn Signal Flash Controller & 1 Pcs Repeater Relay 12V 30A 5 Pin 40A for Auto Car

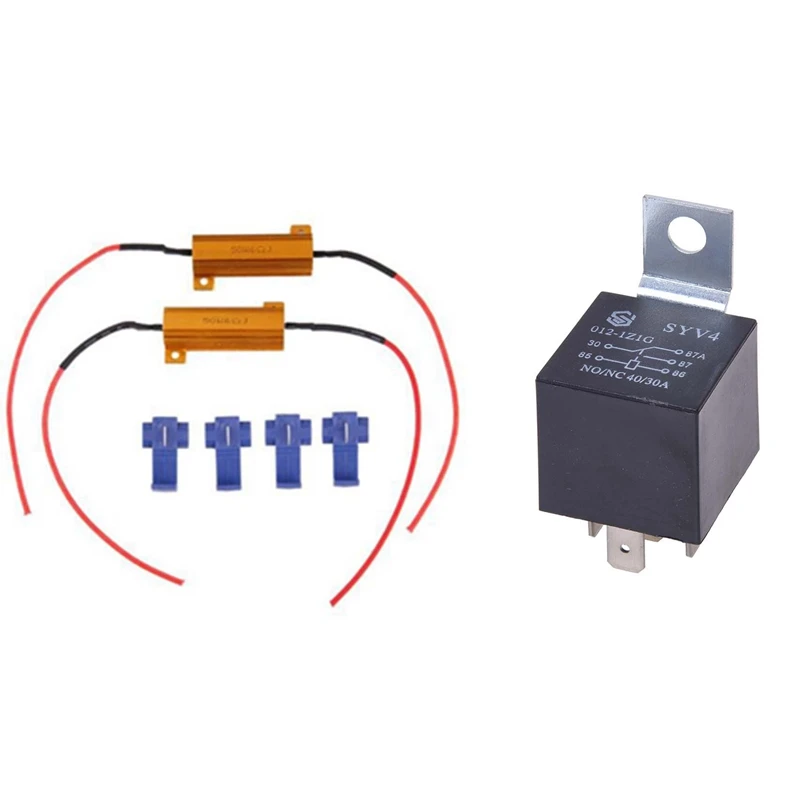

2 pcs LED Bulb Load Resistor & 1 pcs Repeater Relay 12V 30A 5 Pin 40A
Brand new and high quality
5 pin relay and a single pole
Main contacts are valued at a maximum of 30 amperes to 12 V DC
Relay is switched with 9-15 volts DC and a about 150mA current consumption

color:Picture color

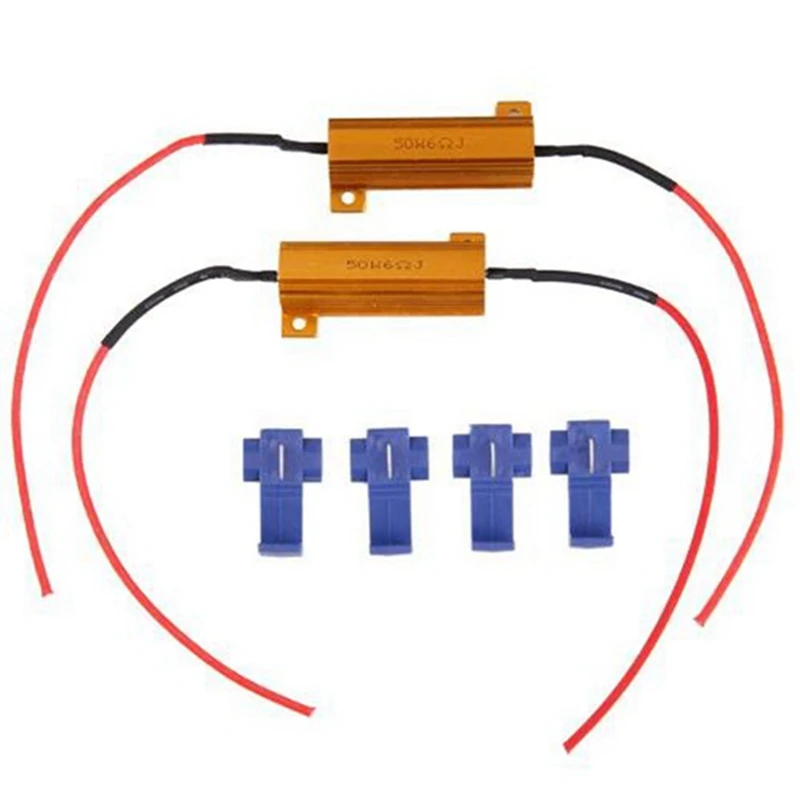

Resistance + Clamp:
Resistance to avoid cases: blinking too fast or not flicker.
Each has flashing LED requires a resistance.
Power: 50W 6 Ohm
Voltage: 12V DC
2 resistors, 2 pairs of son without caliper
Dimension: 5x2.2x1.5cm
Installation: connect the two sides of resistance to positive and negative terminals of the flashing power LED cable has respectively;
material: aluminum, plastic

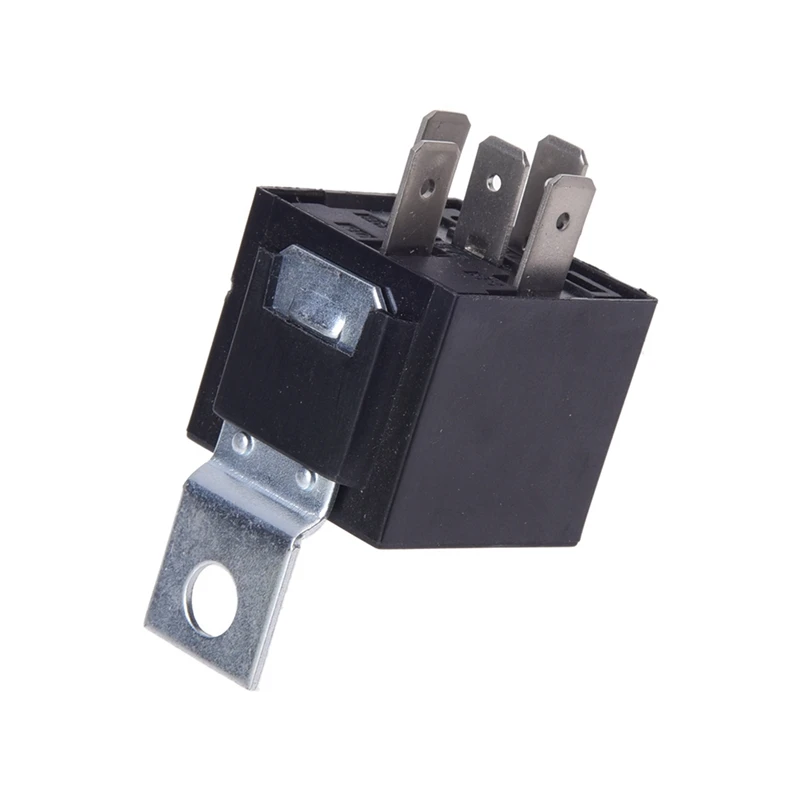

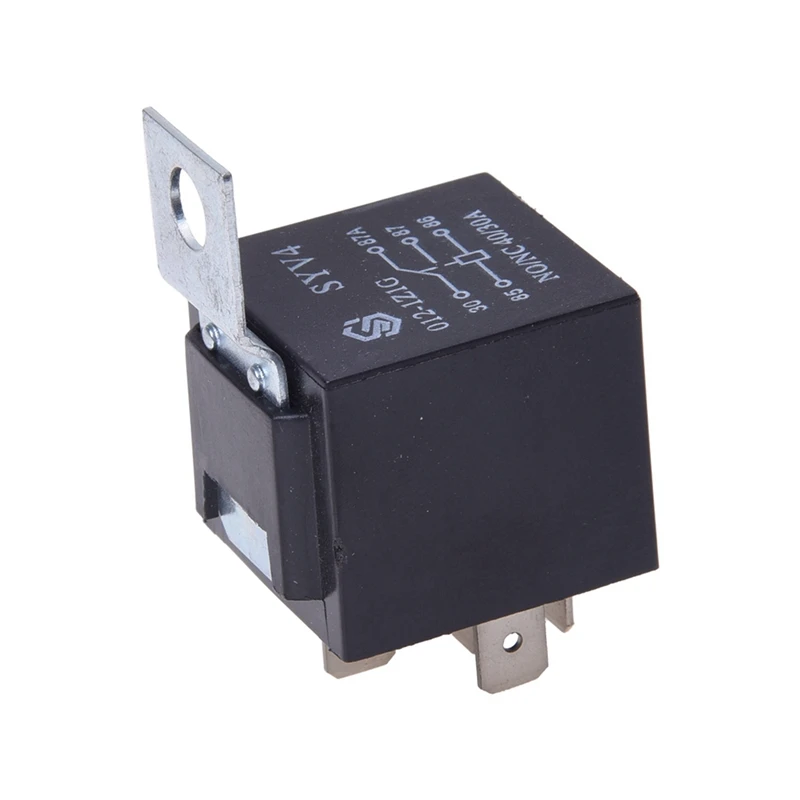

relay has 5-pin:
Contact rating: 40A / 30A
Nominal coil voltage: 12V
Coil resistance: 80 ohm /-10%
Nominal current: 150mA
Maximum pick-up voltage: 7.8V
Fall minimum voltage: 1.2V
Contact material: Silver-cadmium oxide as standard
Operation time: 10ms maximum
Trip time: 10ms maximum
Temperature range:-40 degree to 85 degree
Suitable for car alarm fitter, audio Installer, electrician automotive and DIY use.

Package Contents:
2 x Resistance
4 x Clamp
1 x relay has 5-pin
1 x user manual in English

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
