    CNC Linear Guide Actuator Stage Rail Motion Slide Table & SFU1605 Ball screw 200mm / 400mm Travel | Обустройство дома

    Описание товара

    Package include:

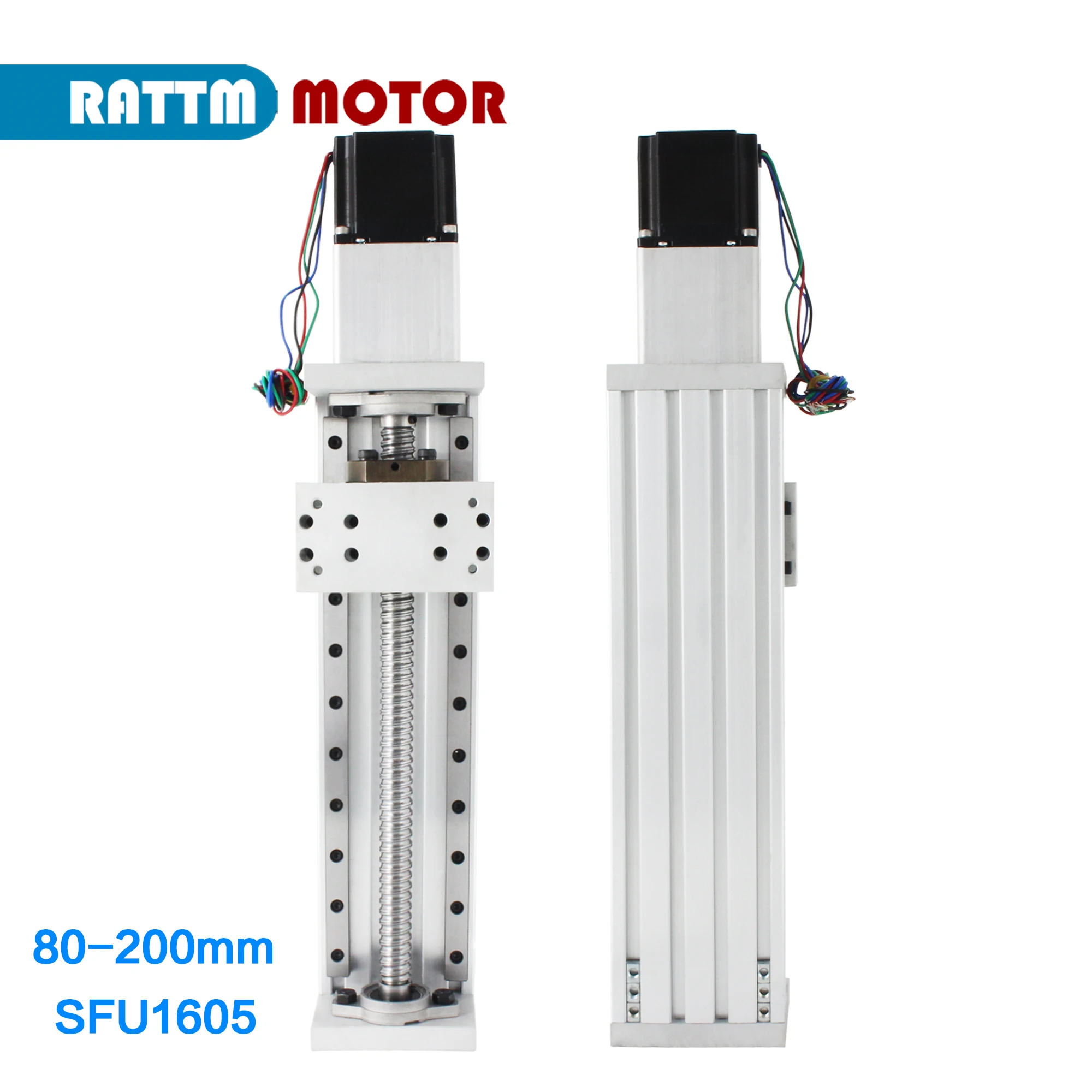

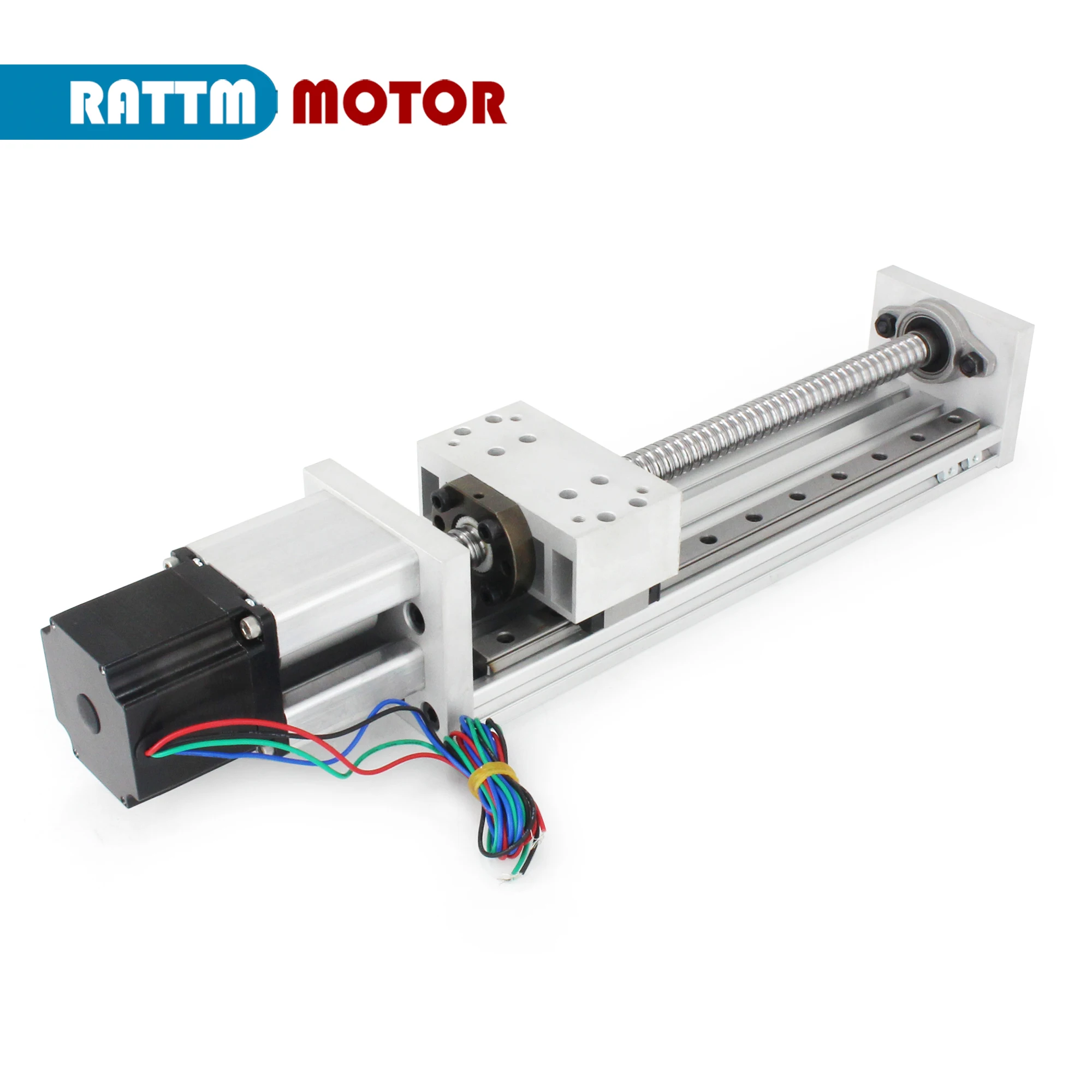

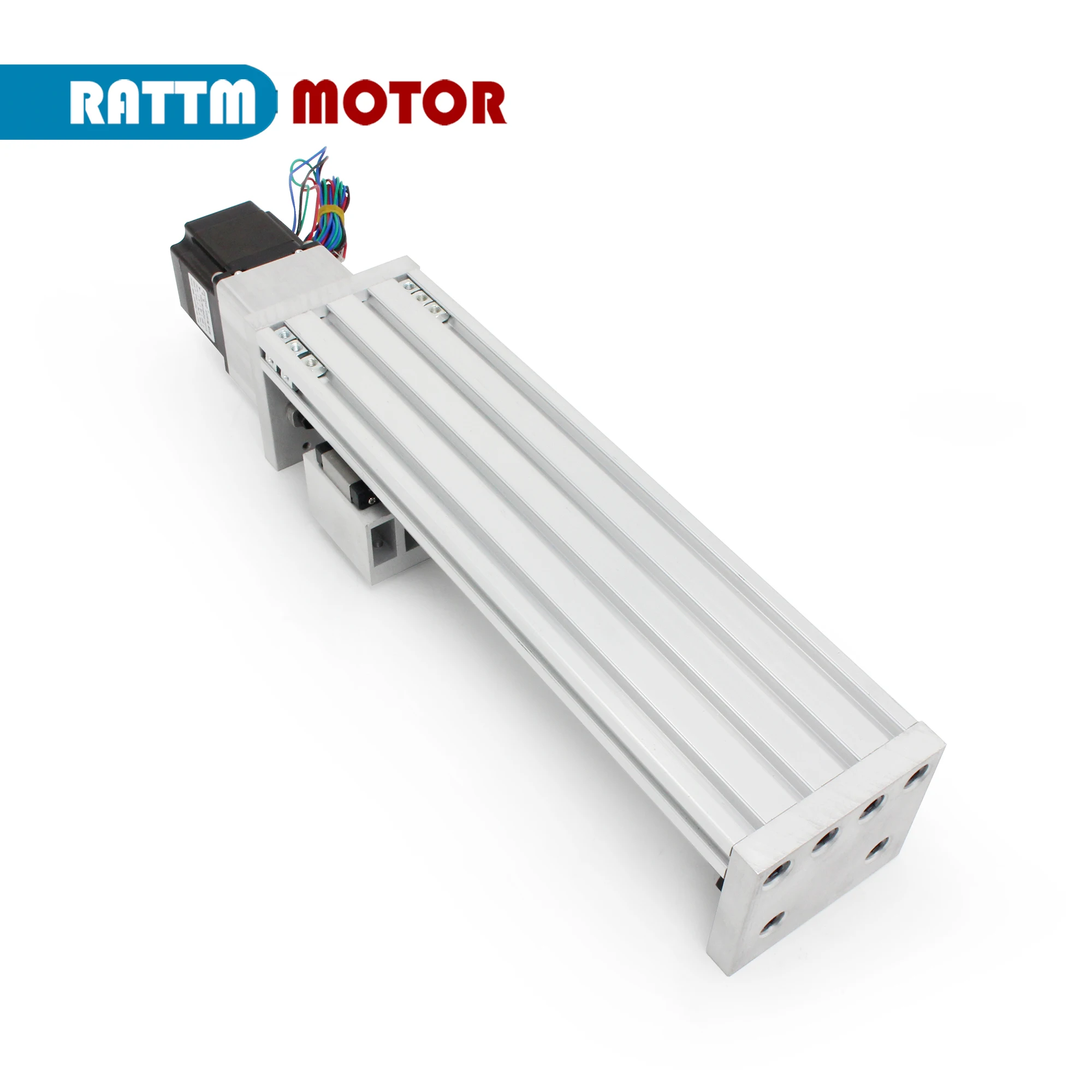

    1 x 80mm width Linear Guide Actuator 200mm / 400mm effective stroke Travel


    (with motor,but no limit switch)


    (Pls note: we also have 100-600mm effective stroke type, if u need pls contact us.thank u.)

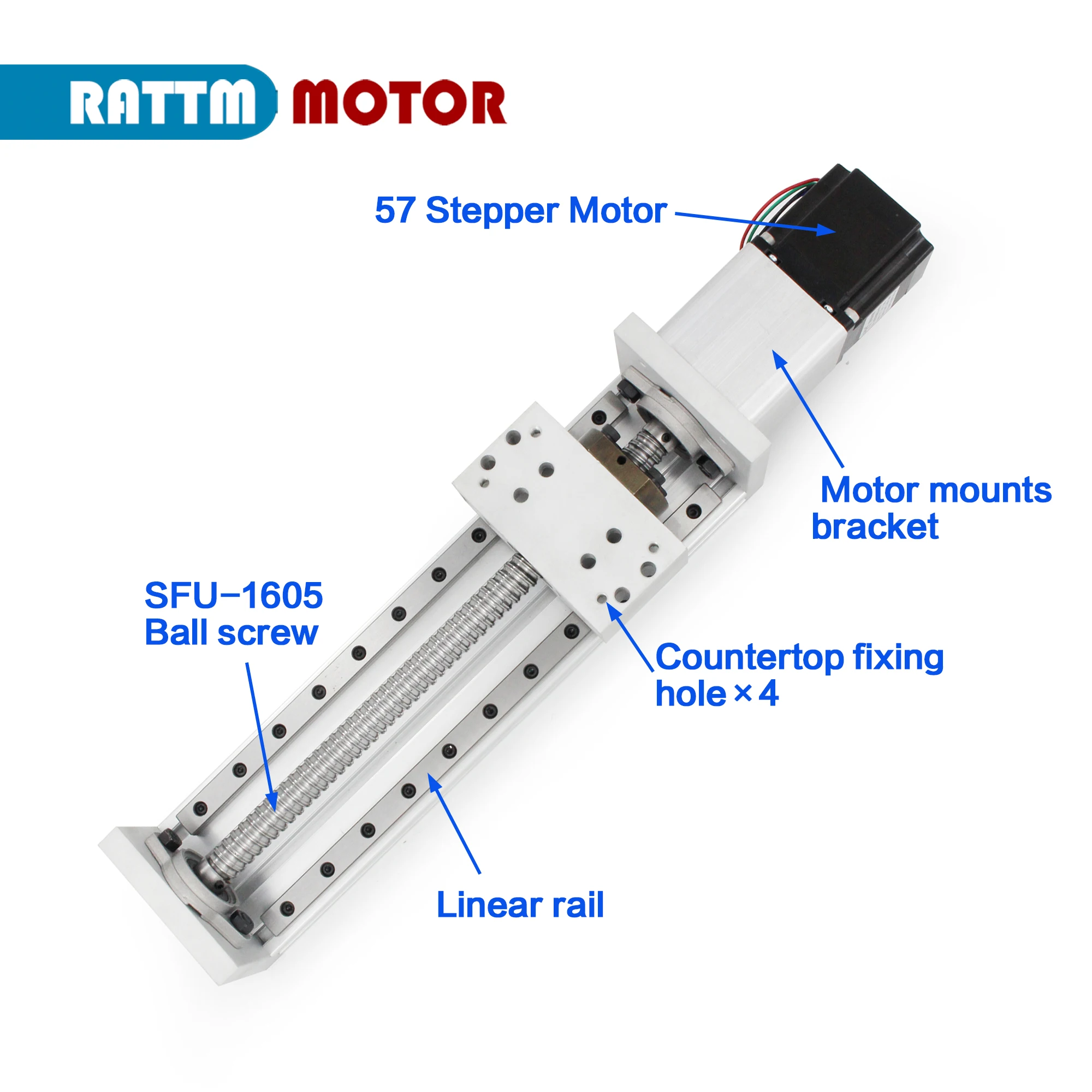

    Specification:


    Material: Aluminum Alloy

    Effective Stroke: 200mm

    Horizontally loadable: 80kg

    Vertical carrying: 20kg

    Width:80mm

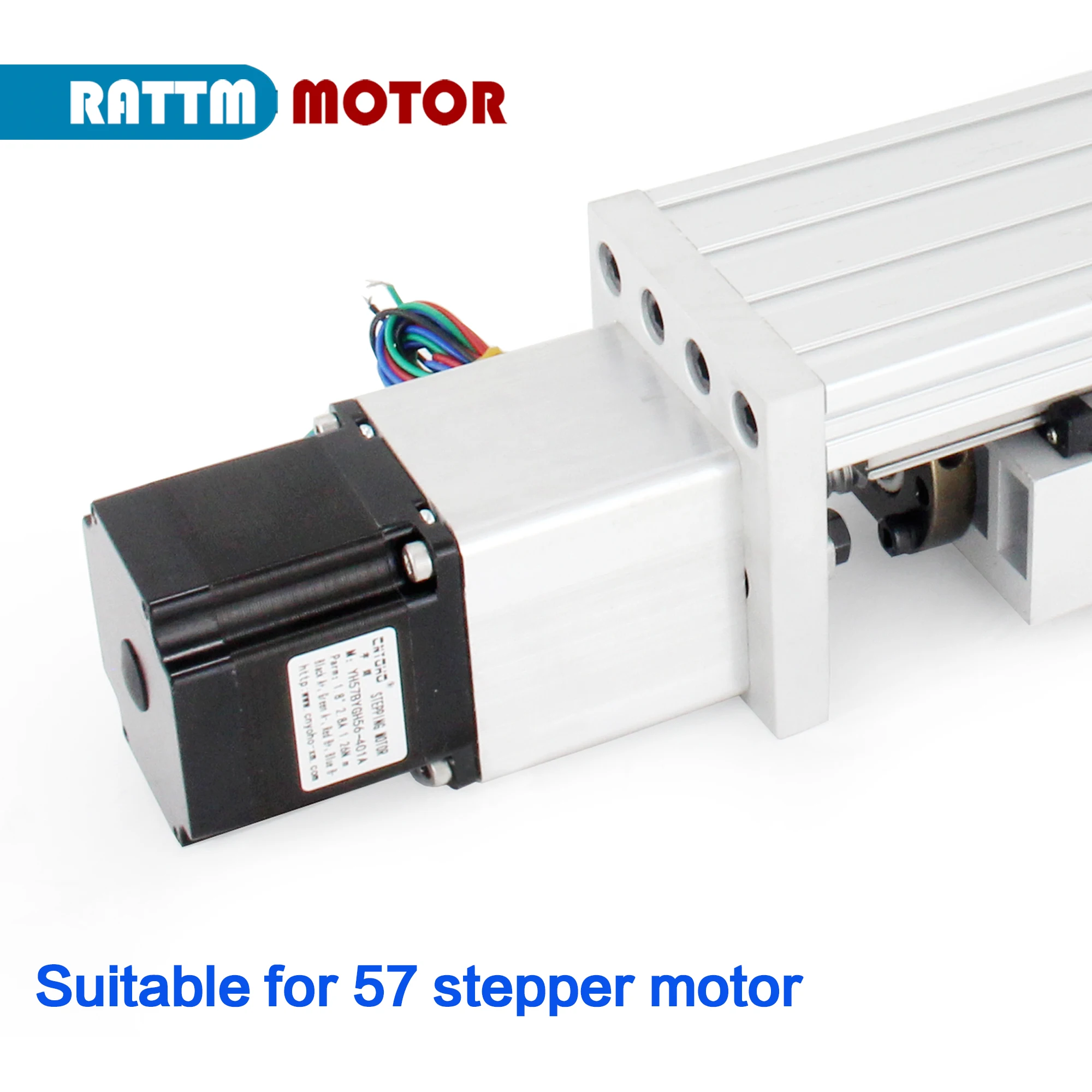

    Standard motor: Nema 23 stepper motor 1.2 N.m

    Screw: Ball screw drive 1605-diameter 16 pitch 5mm

    Total length of the 200-stroke motor model:430mm

    Total length of the base plate with 200-stroke: 319mm

    200-stroke effective stroke:200mm

    Standard M6 mounting hole


    Features:


    ★ High-quality aluminum alloy, high strength, light weight, corrosion resistance.


    ★ SFU-1605 ball screw,Accuracy up to 0.03.


    ★ High-speed silent, smooth running.


    ★ M6 movable nuts are used on the sides and bottom to make the installation of the sliding table more flexible and changeable.




    400mm travel size:
