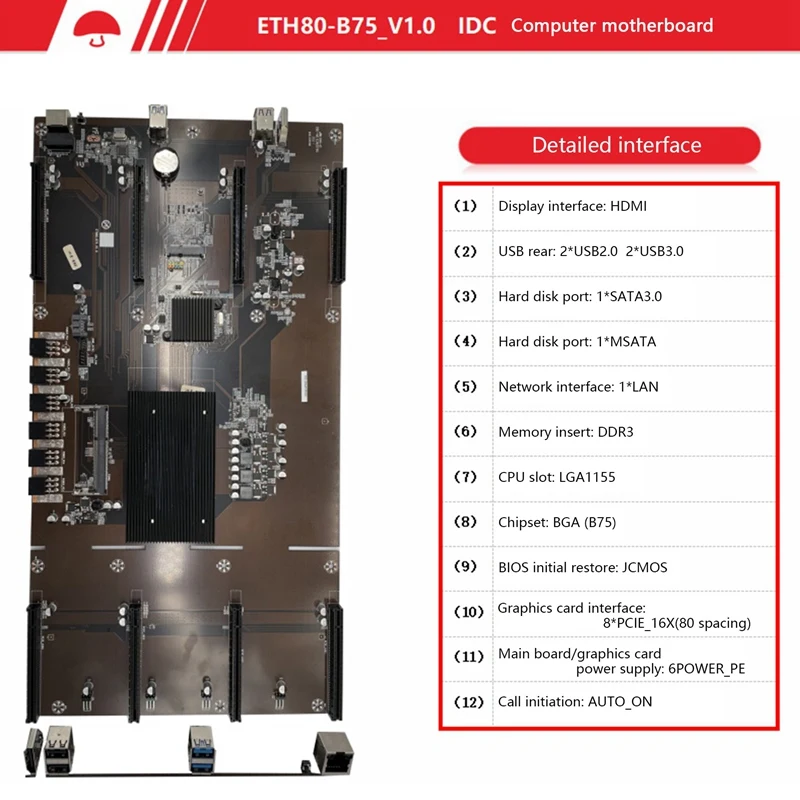

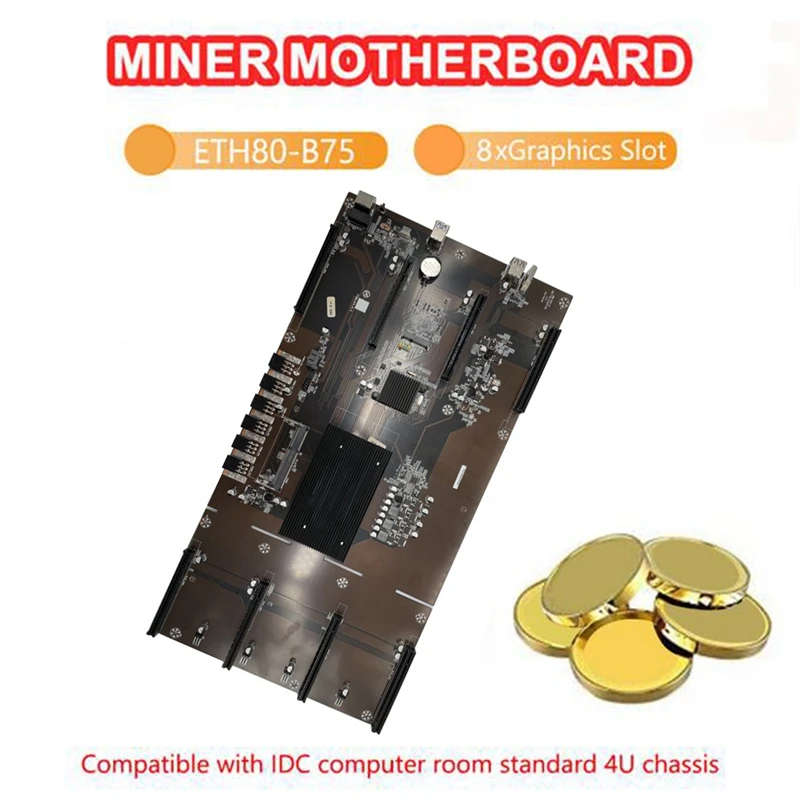

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } ETH80-B75 IDC computer room motherboard uses a combination of B75 chip and LGA1155-pin CPU; 8 graphics card interfaces are designed with a card slot spacing of 80mm, which can support large graphics card mining, and the motherboard is compatible with IDC computer room standard 4U chassis. The motherboard is suitable for the mining industry with its rich expansion interfaces and other features.
Network card chip: 1xREALIEK 8105E/8106E 100M network card
Support maximum memory capacity: 8G
Memory description: Support 1066/1333/1600MHz frequency

Display interface: HDMI-compatible
USB rear: 2xUSB2.0 2xUSB3.0
Hard disk interface: 1xSATA3.0
Hard disk interface: 1xMSATA
Network card interface: 1xLAN
Memory slot: DDR3
CPU socket: LGA1155
Chipset: BGA (B75)
BIOS initial restoration: JCMOS
Graphics card interface: 8xPCIE_16X (80mm pitch)
Mainboard/graphics card power supply: 6xPOWER_PE
Self-initiated call: AUTO_ON
Chipset: For B75
Supported graphics cards: Except 3060 graphics cards are not supported, other graphics cards can be used, such as 1660 2070 3090 RX580!(Support dual fans and the length of the graphics card cannot exceed 26cm, thank you)
Please note: the appearance of different batches of products may be different, which will not affect the use
Colour:black
Material:PCB
Size:480mm x 250mm

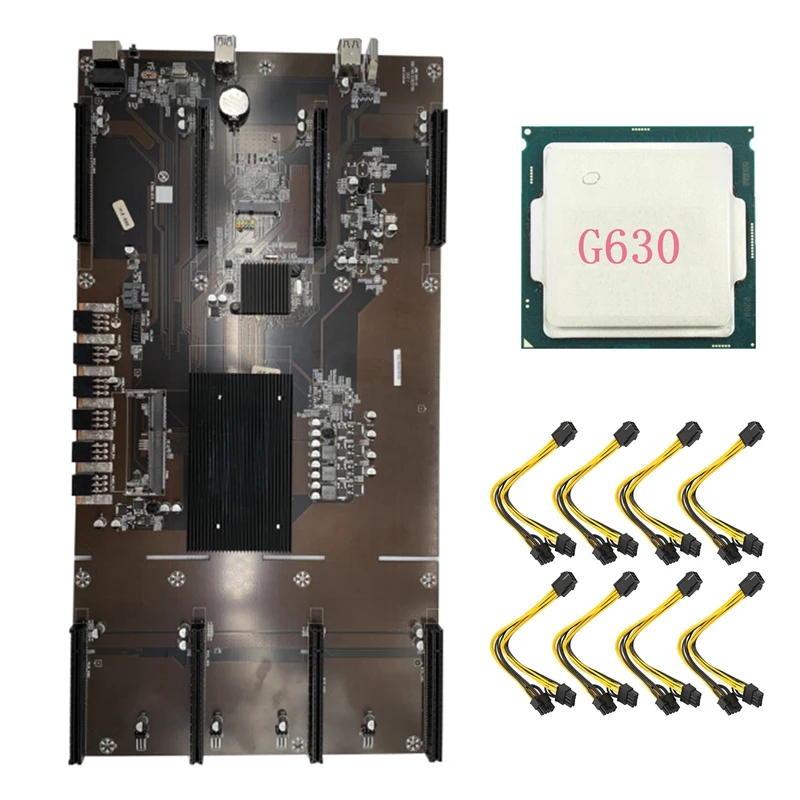

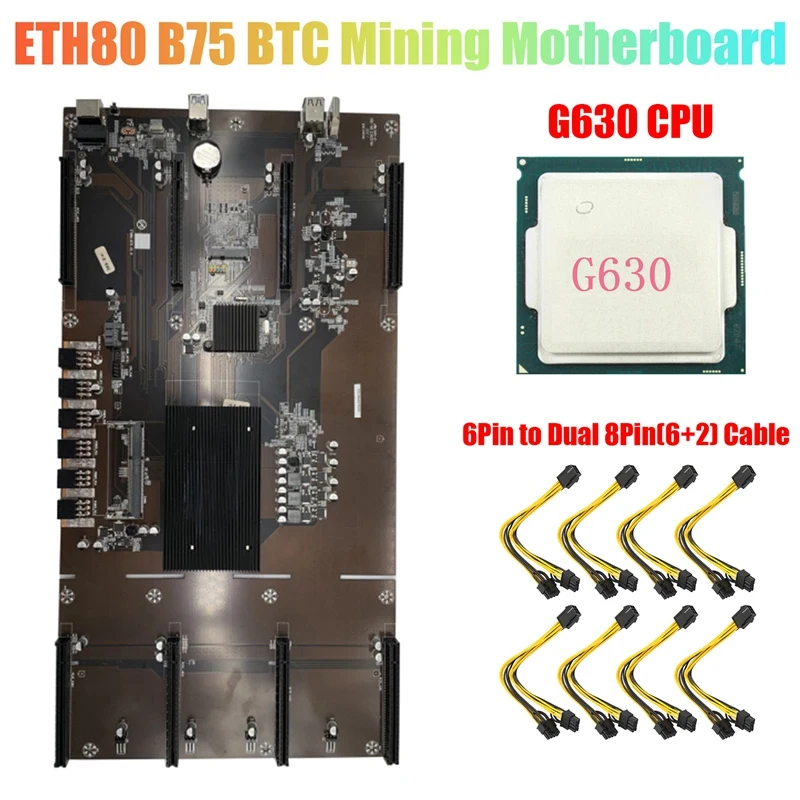

Package Contents:
1 x Motherboard
8 x 6PIN to Dual 8Pin Cable
1 x G630 CPU

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
