Description

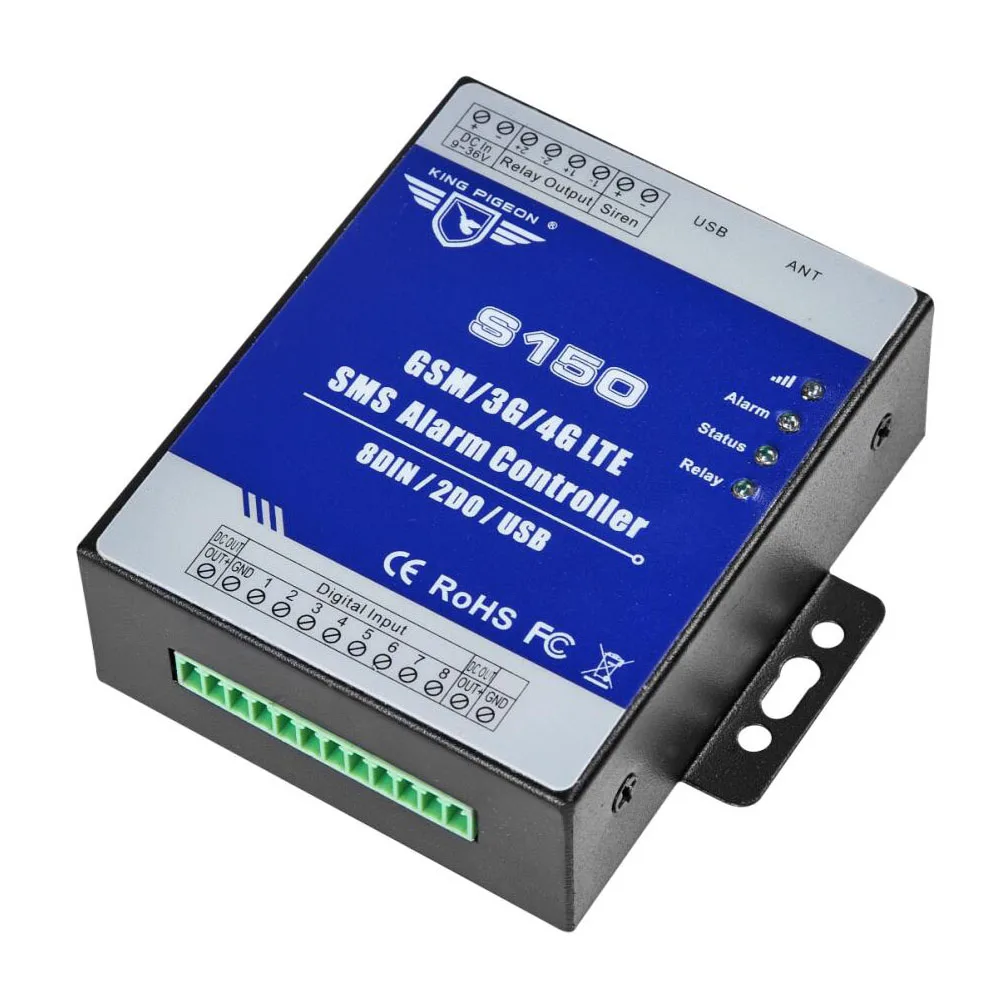

Digital input 3G 4G GSM alarm module with 2 output relay for home automation and M2M, USB programmable, 2G 3G 4G gsm

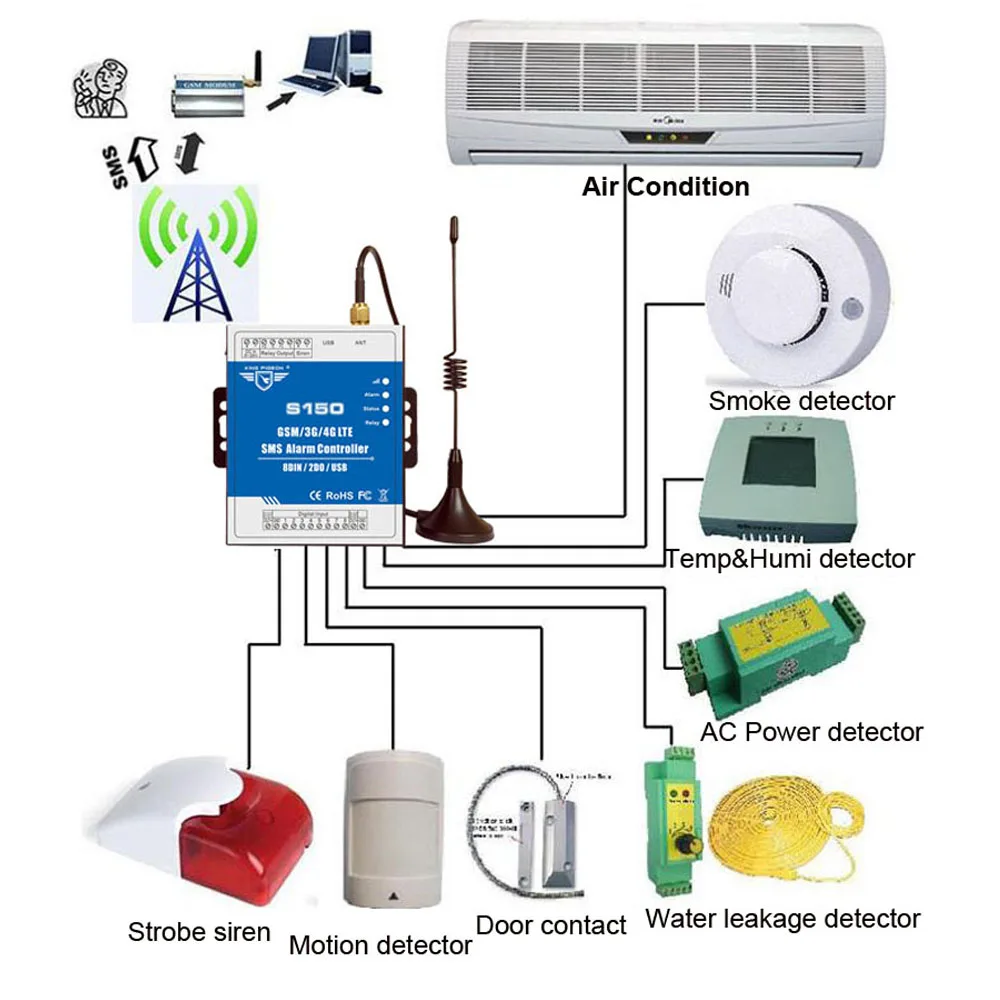

sms alarm module Automatic controller are special for remote switch on/off machine, equipments, and also it supports digital inputs for different detectors like water level detectors, PIR motion detectors and so on.
One of the advantages of them is when the inputs recovery can alert by SMS, and with one interlock Relay output, one SMS Command switch on/off relay output.
When alarm occurrence, will send definition SMS text and dial the user mobile phones.

Features

1. Support 2 relay outputs,7A@125VAC,5A@125VAC, 20A@14VDC;
2. Alarm-Link Output Relay can be switch on 0-120minutes if controller unit triggered;
3. 8 Alarm logic digital inputs, NC or NO and EOL is optional;
4. Compatible with the Wet Contact , Reverse protection, to avoid the wrong connection damage;
5. 1 Siren output, can connect to the siren directly, once alarm occurred, will trigger the siren;
6. 3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message;
7. Supports armed, disarmed, inquiry status, switch on or off Independent Output Relay by SMS Commands;
8. Password protected, prevents unauthorized user;
9. Can be set up and programmed from PC Configurator by USB cable;
10. In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;
11. Support Android/IOS APP, easily & friendly for use/configuration.
12. Support USB configure parameters, load profiles, and upgrade the firmware via PC;
13. Wall mount or 35mm standard DIN rail Design, convenient installation,
