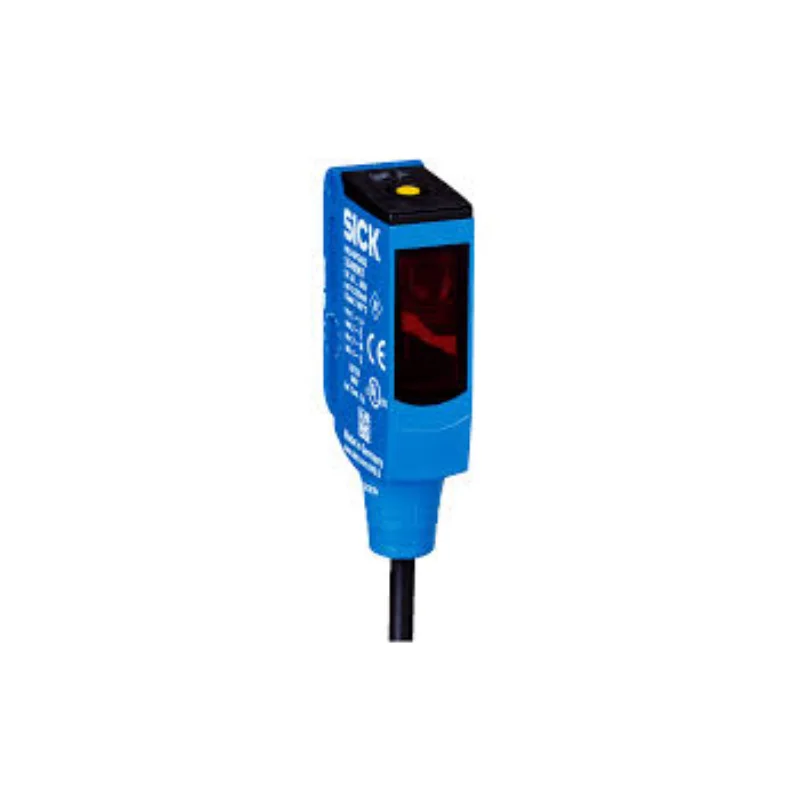

WL9-3P1132 New DC 10V-30V 5m PNP Mini Photoelectric Retro-reflective Long Range Distance Sensor Proximity Price | Обустройство дома

WL9-3P1132 New DC 10V-30V 5m PNP Mini Photoelectric Retro-reflective Long Range Distance Sensor Proximity Price | Обустройство дома

Sensor/ detection principle:

Photoelectric retro-reflective sensor, autocollimation

Dimensions (W x H x D): 12.2 mm x 50 mm x 23.6 mm

Housing design (light emission): Rectangular

Mounting hole:                             M3

Sensing range max.:                0 m ... 5 m

Type of light:                             Visible red light

Light source:                             LED

Light spot size (distance):        Ø 45 mm (1.5 m)

Wavelength:                              650 nm

Adjustment:                              Single teach-in button

Supply voltage: 10 V DC ... 30 V DC

Ripple: < 5 Vpp

Power consumption:30 mA

Switching output: PNP

Switching mode: Light/dark switching

Output current max.: ≤ 100 mA

Response time: < 0.5 ms

Switching frequency: 1,000 Hz

Connection type: Cable, 4-wire, 2 m

Protection class:                                          III

Weight:                                                        80 g

Housing material:                                        Plastic, VISTAL

Optics material:                                            Plastic,PMMA

Enclosure rating:                                   IP66 IP67 IP69K

Ambient operating temperature:        –40 °C ... +55 °C

Ambient storage temperature:           –40 °C ... +75 °C

UL File No.:                                              NRKH.E181493
