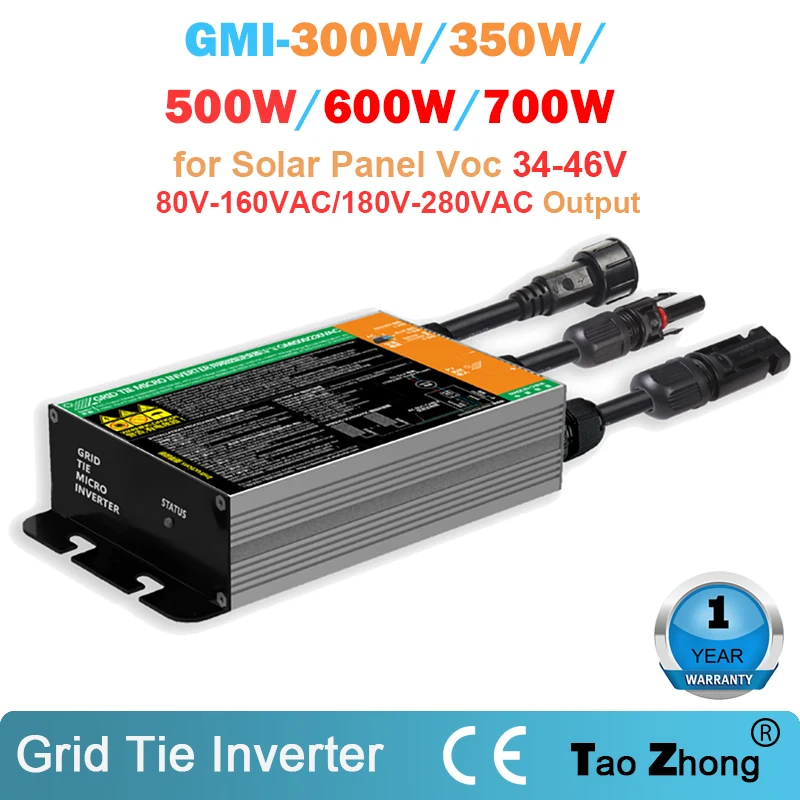

MPPT Solar Grid Tie Micro Inverter 300W 350W 500W 600W 700W DC18V-50V to AC110V-230V 50HZ/60HZ Solar PV Waterproof Inverter

Description:

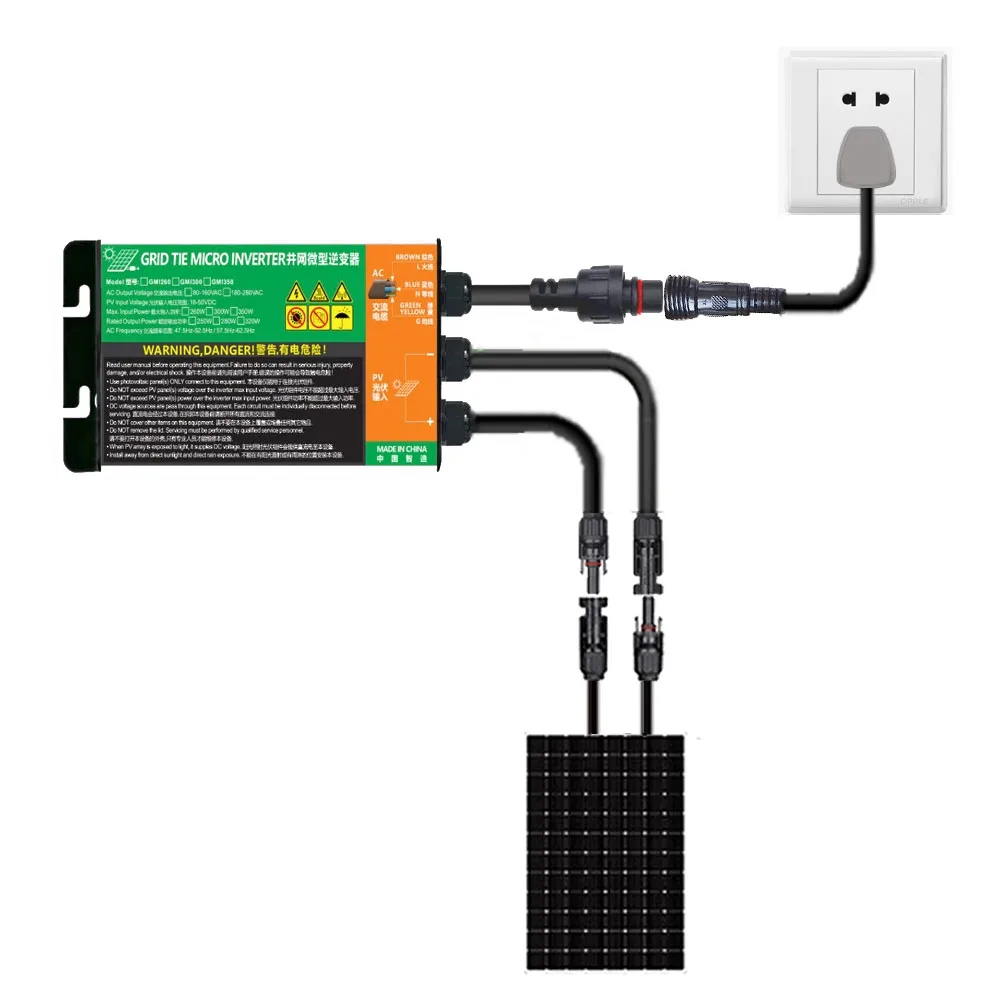

300W/350W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

Specifications:

On Grid Tie Inversor
Rated Output Power:280W/320W

DC Input: 18V-50V

AC Output Voltage: 120V/240V

Frequency Range: 50/60HZ Auto

MPPT range: 24V - 40V.

Solar Panel Voltage: Vmp30-39V; Voc38-46V

Solar Panel Power: maximum 300W/350W

On Grid inverter Certification:CE

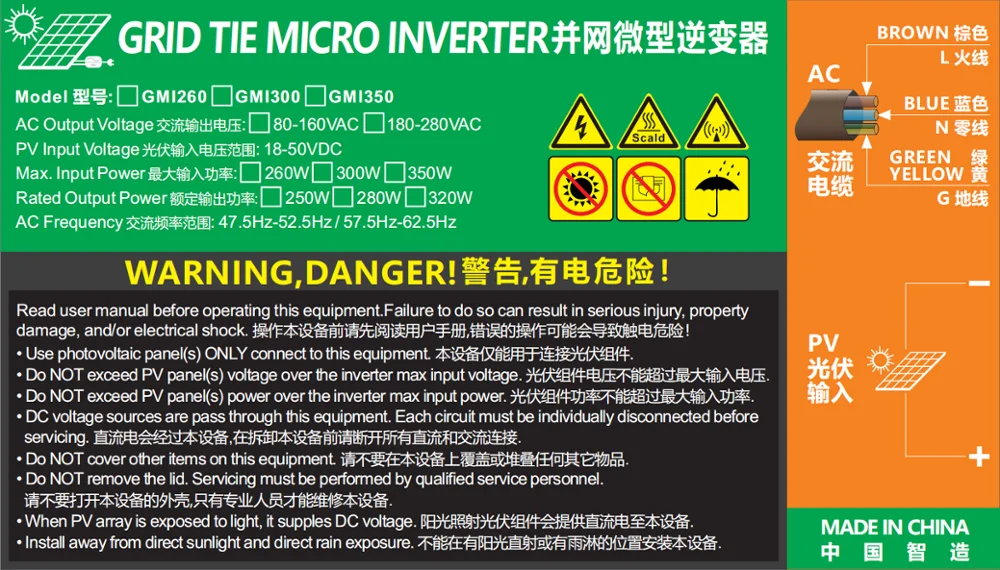

User notice：

• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.（Voc＜50V）
• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.（300W/350W）
• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)

Regarding the heating problem of the inverter:

this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.

About inverter repair：（This is a common problem of micro-inverters）

After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.

If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.

About voltage：

The 18-50V grid tie micro inverter will start up at 24V, after starting, the Solar Microinverters can work in 18V-39V (Vmp).Solar Panel Voc cannot be higher than 50V.

Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.So don’t think that 50V is the working voltage (Vmp)

Why not use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.

the 12V panel is just a starting voltage. If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make the Solar micro-inverters work unstable, and the inverter will start repeatedly. It is easy to damage the Smart Microinverter.

Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V

LED DISPLAY:

1.Green light steady=Microinverter in generating.

2.Red flash=Microinverter in waiting.

3.Red light steady

a.Island protection.

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

Package Include:

1XGrid Tie Inverter
1 x AC Cable 30CM
