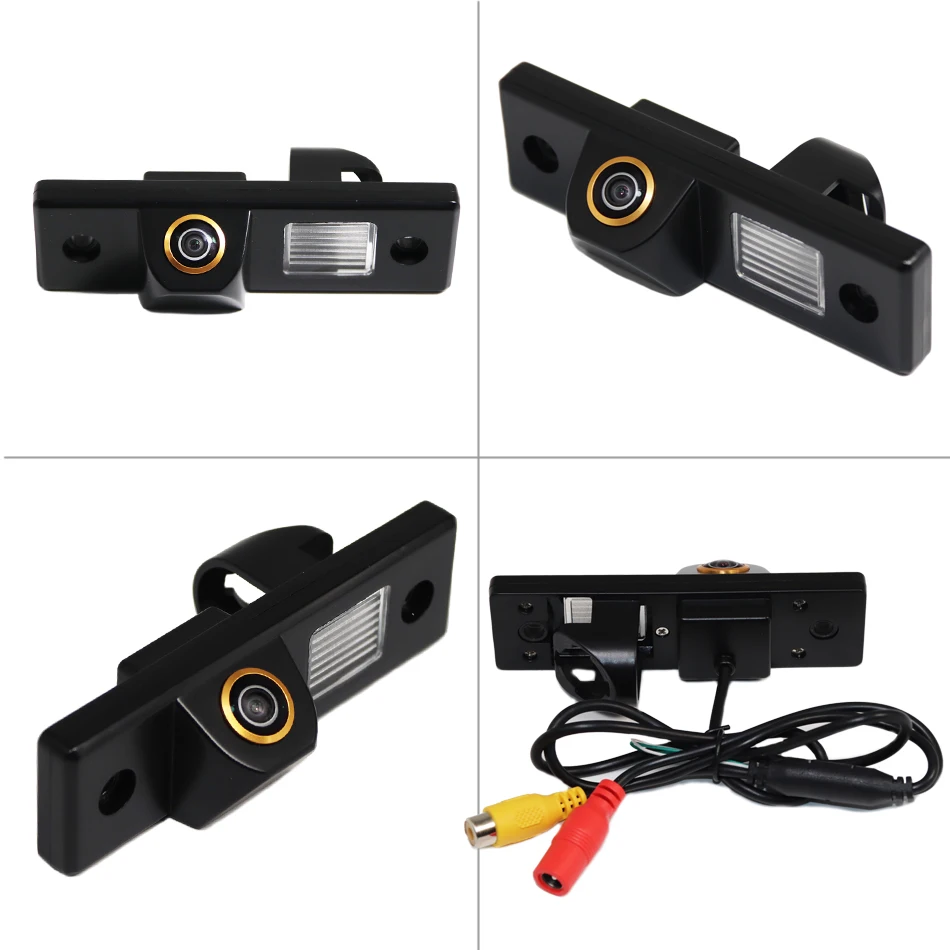

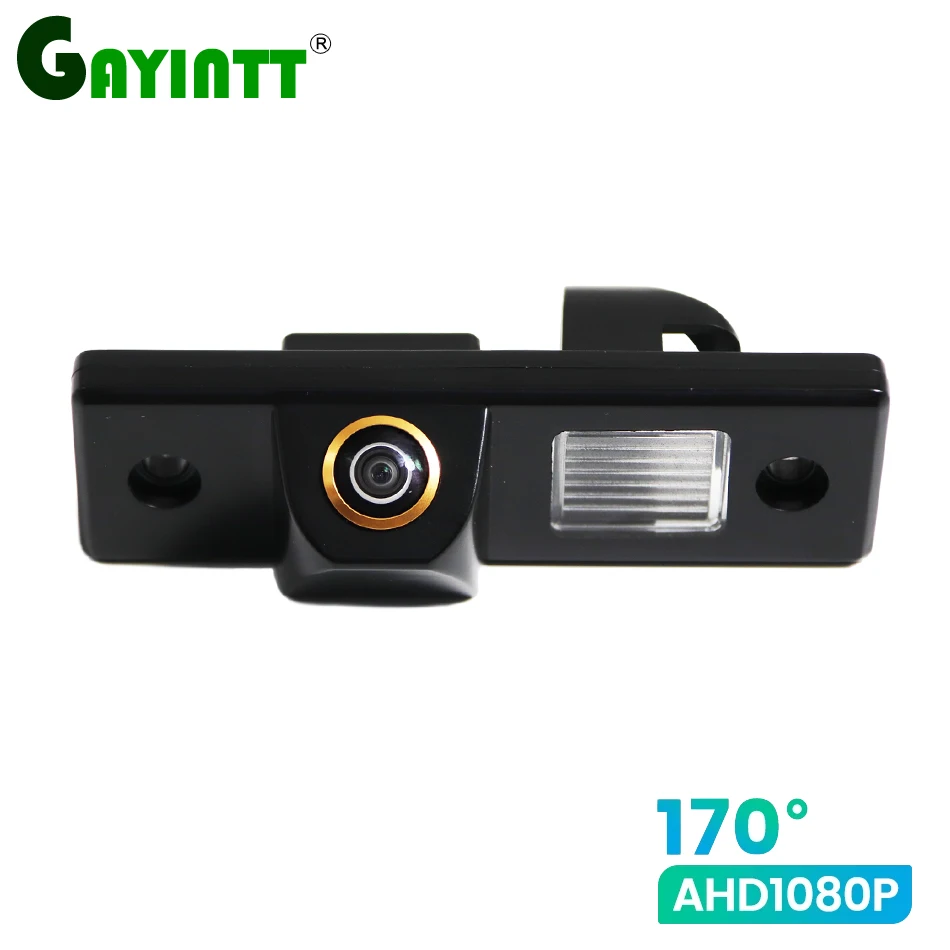

1080P 170 Degree HD AHD Car Rear View Camera For Chevrolet Epica Lova Aveo Captiva Cruze Lacetti Night Vision parking | Автомобили и

1080P 170 Degree HD AHD Car Rear View Camera For Chevrolet Epica Lova Aveo Captiva Cruze Lacetti Night Vision parking | Автомобили и

Tips, About AHD 1080P options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:

Option B and C  : Support Video Signal Control and Parking Line Switch

Option A : Support Intelligent Dynamic Trajectory

FAQ：

How to choose a rear view camera that can be suitable for my car model?

A) According to the main car model, search in the shop, there will be several type of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.

After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
B) Please check your signal format, choose right signal to run the camera.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV.

After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?

A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

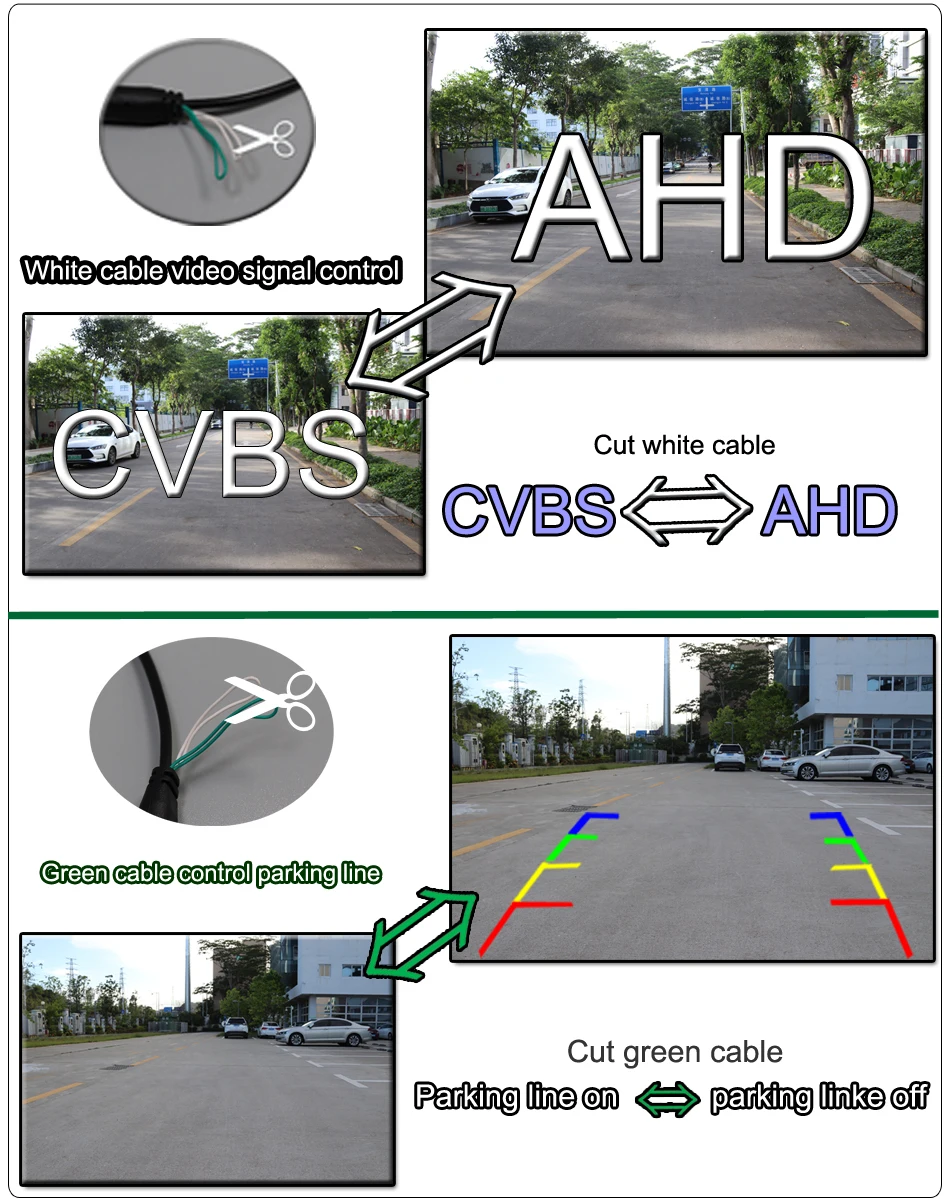

What functions do the white and green cables of the rear view camera control?

A) White cable: video signal control
• Option B camera:
( CVBS )+( 1280x720 )+( 170° )
Cut the white cable(reconnect the camera power)→( AHD )+( 1280x720 )+( 170° )
• Option C camera:
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable(reconnect the camera power)→( CVBS )+( 1280x720 )+( 135° )
B) Green cable: parking line control
Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power supply, that can change the parking line.

Warranty

• All our products are tested to ensure they work properly before shipping and come with a 12-month Manufacture Warranty.
• If the product has any problem when arriving, please feel free to contact us to solve your problem.
