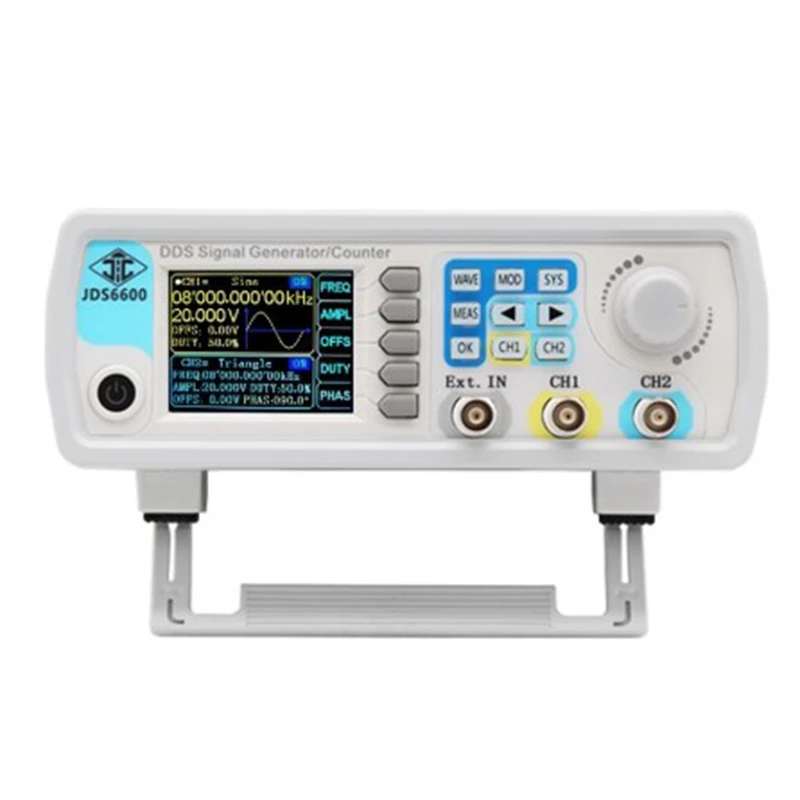

JDS6600-40M Dual Channel Function Arbitrary Waveform Signal Generator Pulse Signal Source Frequency Meter UK Plug

1.JDS6600 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc.
2.The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals.
3.With output short-circuit protection: all signal output can work 60s under load short-circuit condition.
4.Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.
5.It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.
Sine frequency range: 0~40MHz
Square frequency range: 0~25 MHz
Triple-cornered frequency range: 0~25 MHz
Pulse frequency range: 0~6 MHz
TTL digital frequency range: 0~6 MHz
Arbitrary wave frequency range: 0~6 MHz
Square rise time: less than equal 10nS
Pulse width adjustment range: 40nS - 4000S
Frequency accuracy: ±20 ppm
Frequency stability: ±1 ppm/3h
Waveform specifications:
Waveform: Sine, square, Triple-cornered, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.
Waveform vertical resolution: 14 bits
Waveform sampling rate: 266 MSa/s
Waveform length: 2048 points
Sine - Harmonic suppression: greater than equal 45dBc(Less than 1 MHz); greater than equal 40dBc(1 MHz~20 MHz)
Sine - Total harmonic distortion: Less than 0.8%(20 Hz~20 kHz,0dBm)
Square and Pulse - Overshoot (Square): less than equal 5%
Square and Pulse - Duty-cycle range(Pulse): 0.1 - 99.9%
Ramp wave - Linearity: greater than equal 98%(0.01 Hz~10 kHz)
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on / Plug Type:UK plug,it applies to Malaysia, the United Kingdom and so on.
Material:Plastic + Metal
colour:white

Package Contents:
1 x DDS signal generator
1 x CD
1 x Power adapter
1 x USB cable
1 x BNC-BNC cable
2 x BNC-Clip cable

Only the above package content, other products are not included.
