1.54 Inch 240*240 Full Color Screen LCD Digital Display Module SPI Serial Port TFT St7789 Drive | Инструменты

1.54 Inch 240*240 Full Color Screen LCD Digital Display Module SPI Serial Port TFT St7789 Drive | Инструменты

Features:

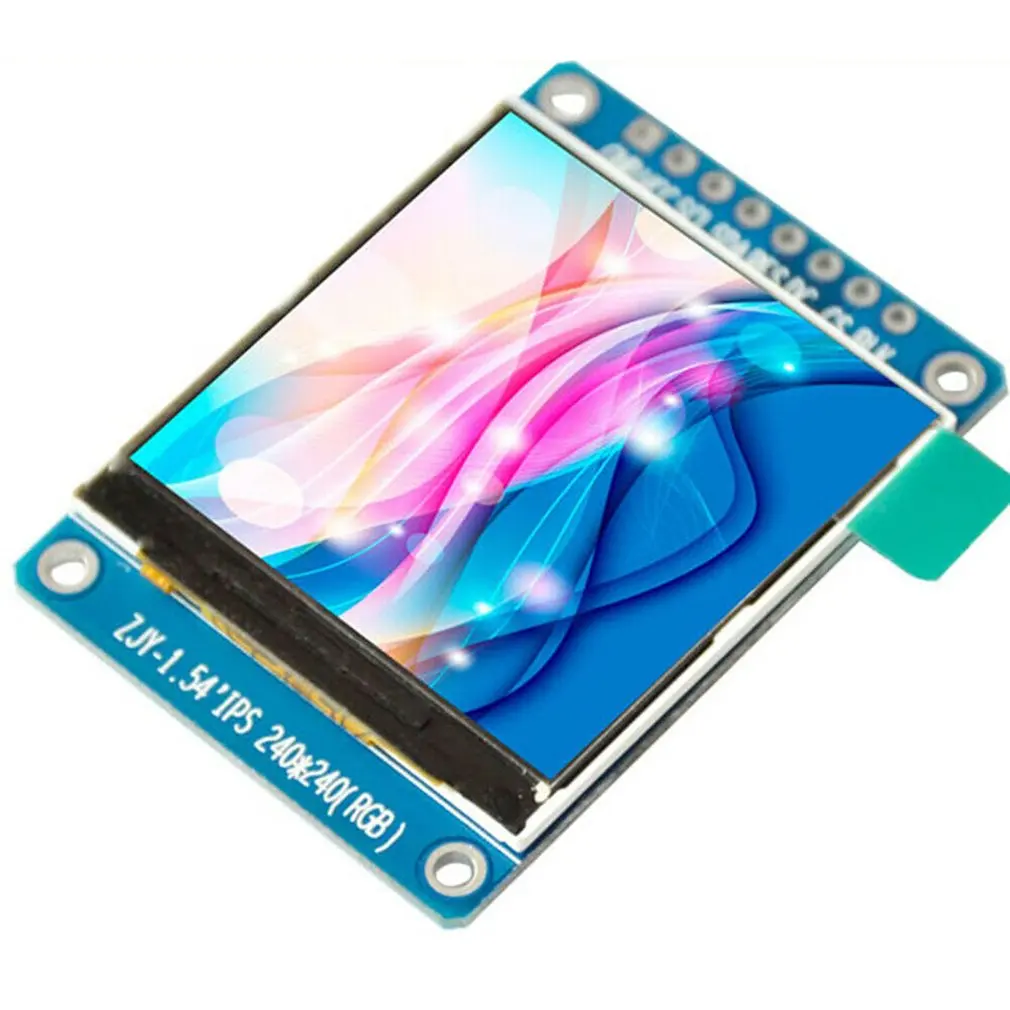

1. The display module has a 1.54inch IPS LCD liquid crystal display screen, which can show you clear content.

2. The driver chip of the serial port module is ST7789, and the interface type is SPI output.

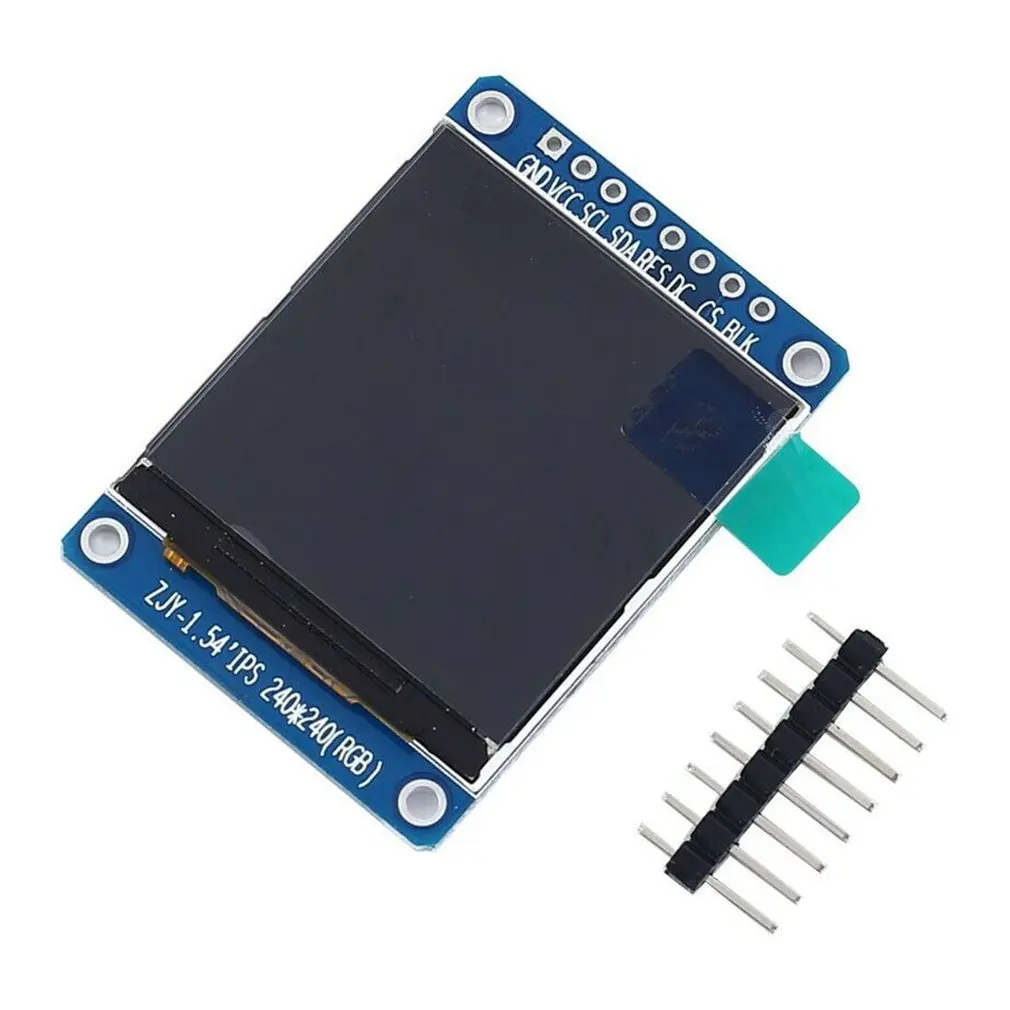

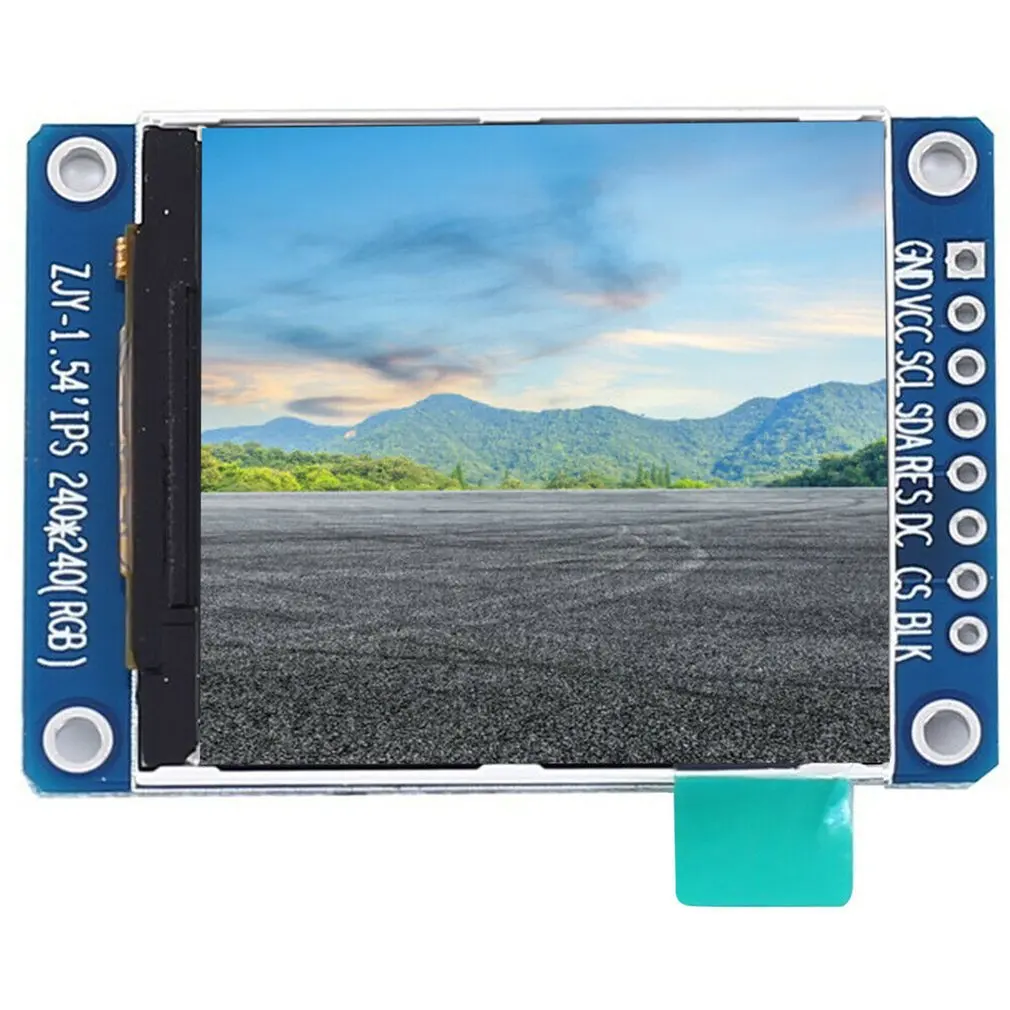

3. The module has eight common pins, which are GND, VCC, SCL, SDA, RES, DC, CS, BLK.

4. The module with a working voltage of 3.3v has precision machining, moderate weight and high mechanical strength.

5. The appearance is small and exquisite, the size of this module is 44 * 32 * 4mm, very small and easy to operate.

Description:

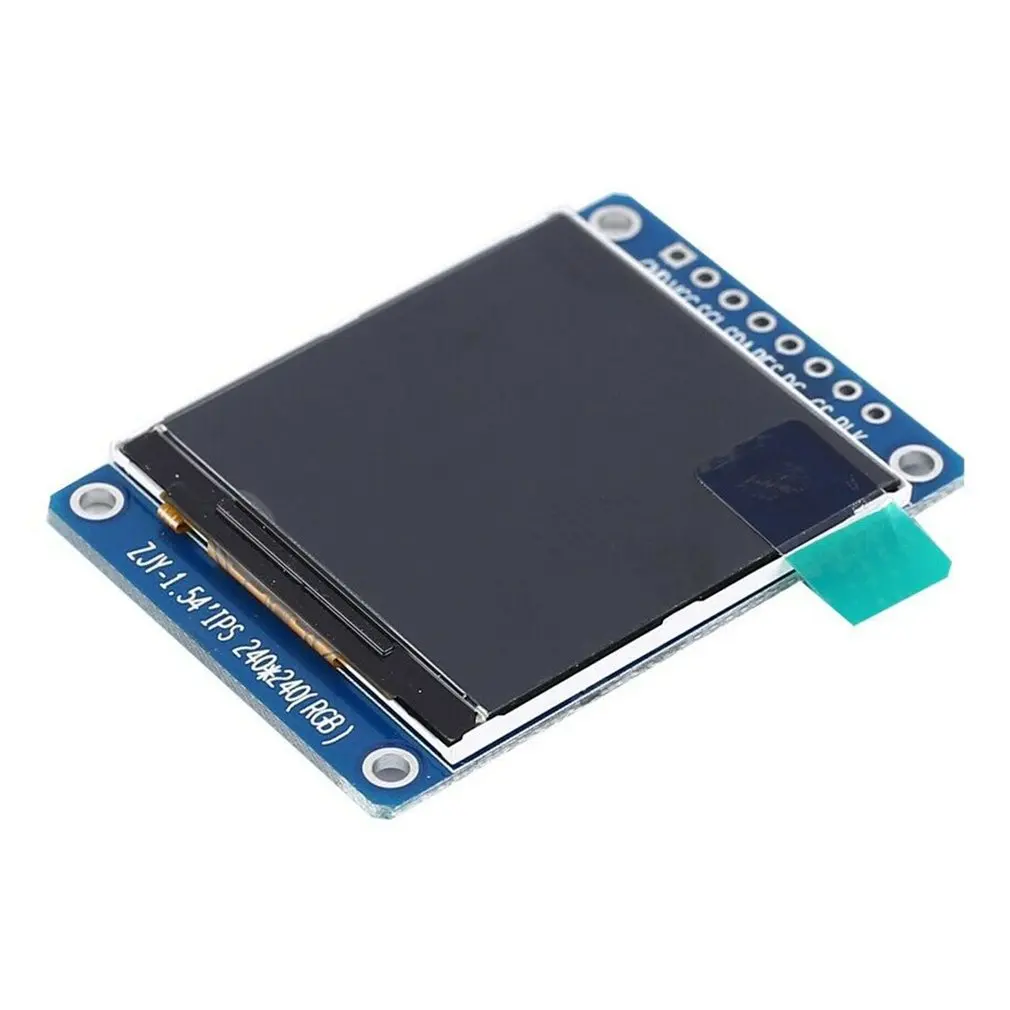

It is a high-definition 1.54-inch IPS LCD liquid crystal display module, and driver chip is ST7789 and SPI output.

Specifications:

Display size: 1.54inch

Display: IPS LCD liquid crystal display

Working voltage: 3.3V

Resolution: 240 * 240

Interface type: SPI output

Driver chip: ST7789

Number of needles: 8

Working temperature: -20℃~70℃

Working humidity: 5%~95%RH

Size: 44 * 32 * 4mm

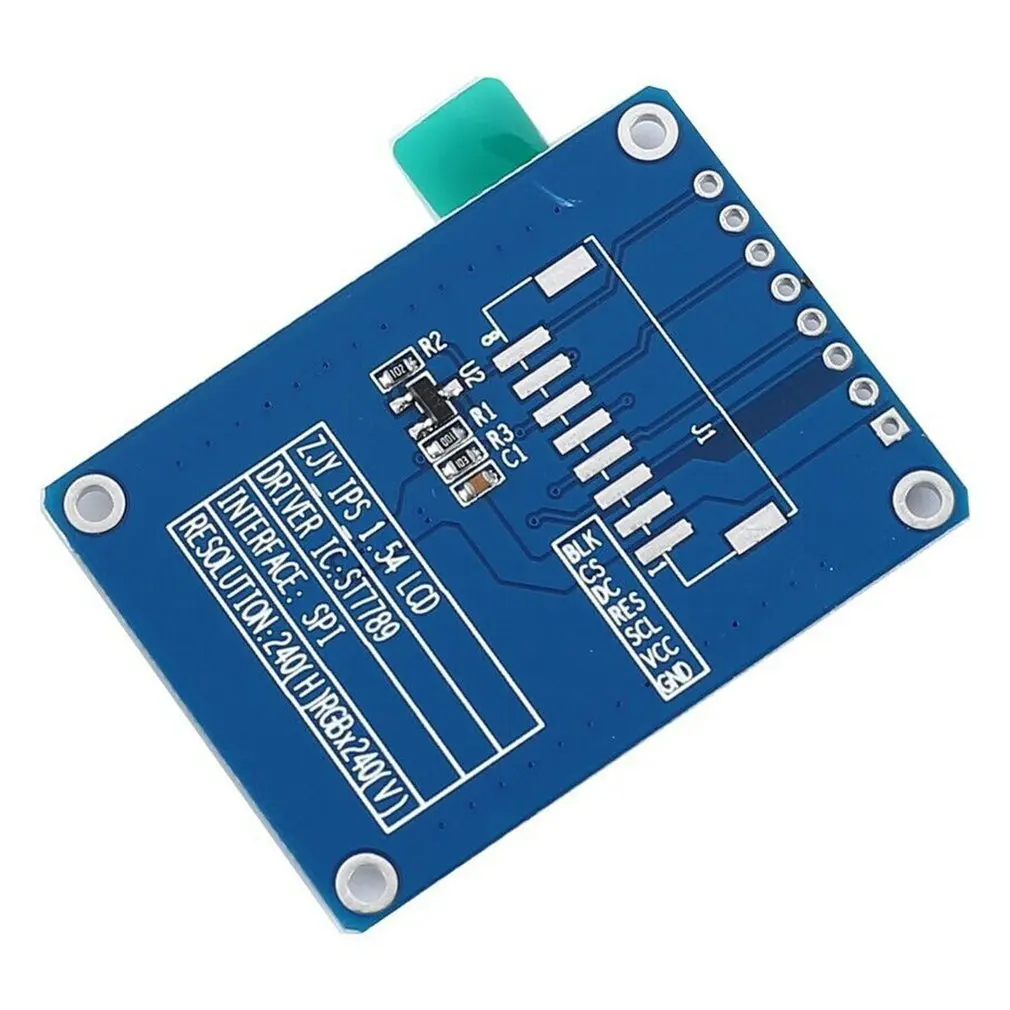

Common pin:

GND: Power negative

VCC: 3.3V positive input power supply

SCL: SPI terminal for clock

SDA: SPI data terminal

RES: OLED screen reset terminal (need to reset after power on)

DC: command / data selection terminal

CS: Trigger signal (low level available)

BLK: Black light control (low level available)

Package Included:

1 * IPS LCD liquid crystal display module

Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
