23.5‑6000M RF Signal Generator Source Industrial Products For Electronic Product Testing And Equipment Time | Инструменты

1. The chip features of this RF signal source are 23.5MHz to 6000MHz base frequency VCO, output binary buffer or driver, used to extend the frequency range, reference clock frequency up to 200MHz, compatible with 1.8V control logic.

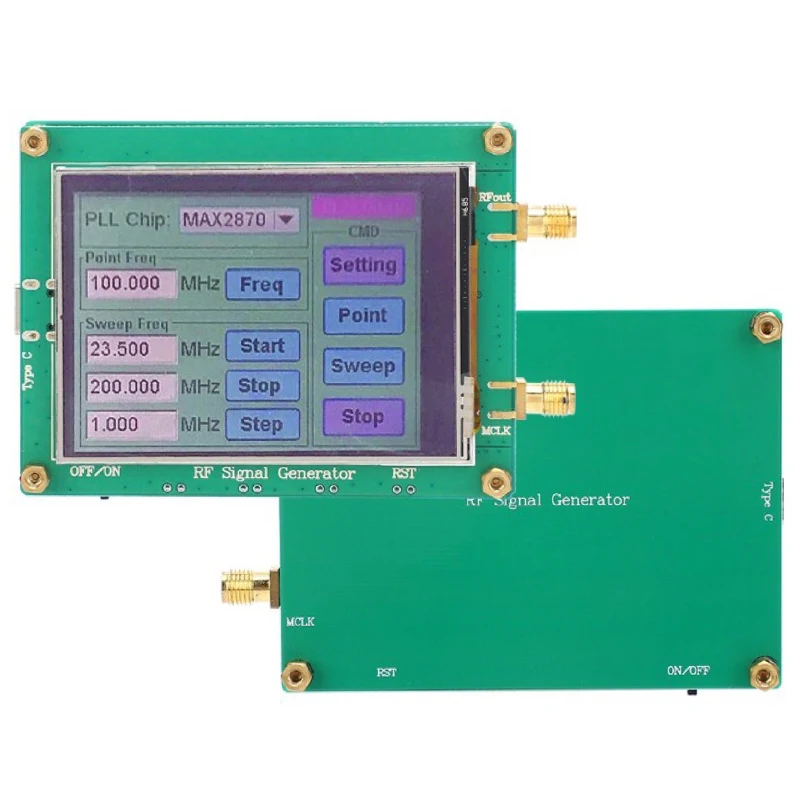

2. The module feature of the RF signal source is that the onboard default high‑exactness 25MHz 0.5ppm TCXO and the output frequency range of the internal VCO fundamental frequency is 3‑6GHz, below 3GHz is the fundamental frequency division.

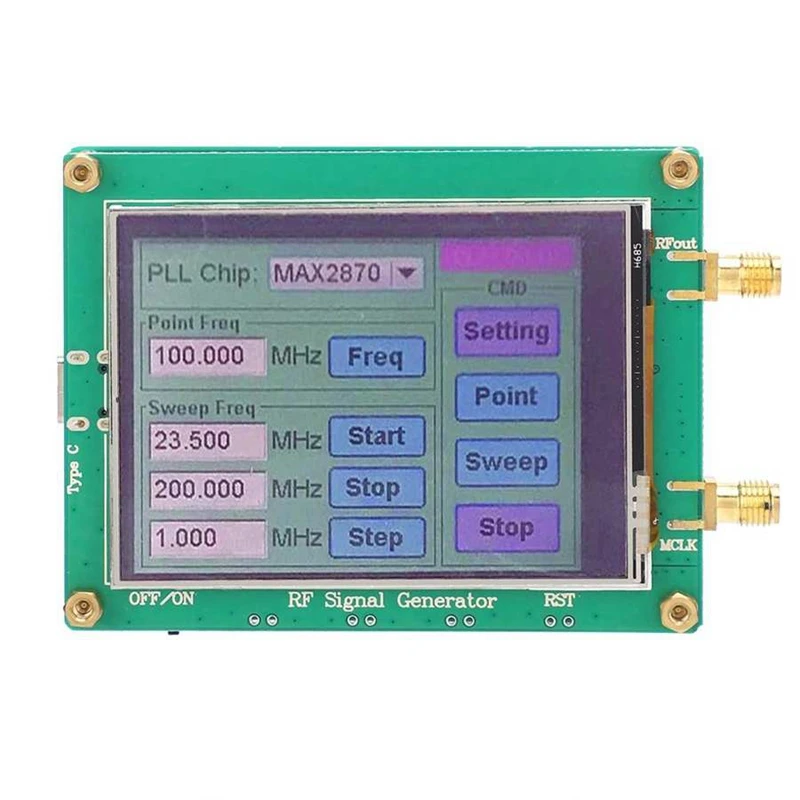

3. This module of this radio frequency signal source is full Contact screen frequency input, output frequency mode is dot frequency.
4. The RF signal source adopts a lead‑free, RoHS‑compliant 5mm x 5mm, 32‑pin TQFN package, and works in an extended temperature range of ‑40°C to 85°C.

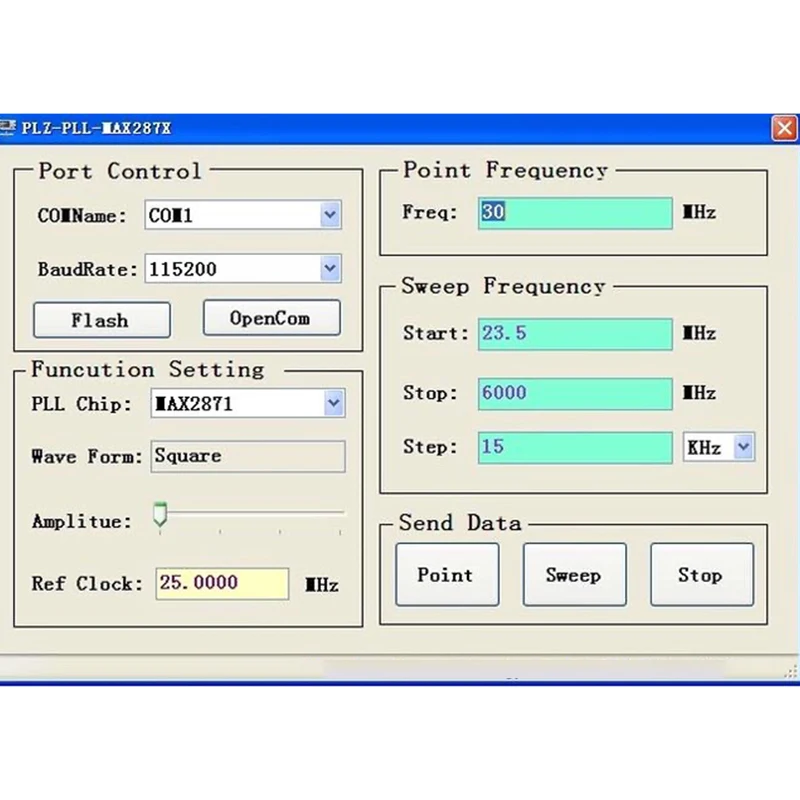

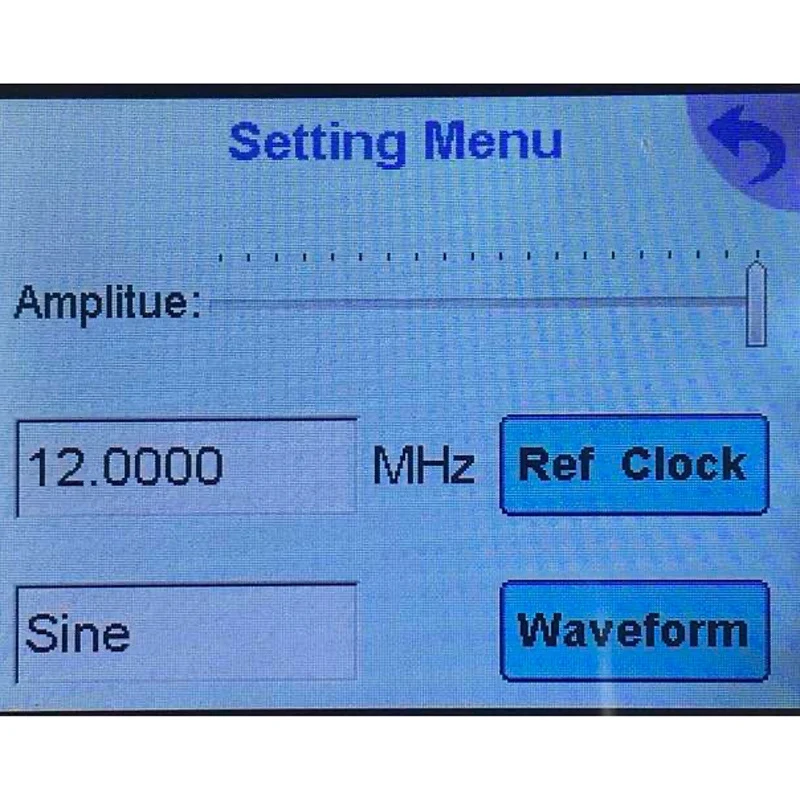

5. This radio frequency signal source provides PC host computer control program, output amplitude: ‑4~5dBm, 4 levels of Contact screen control.

Item Type:RF Signal Source
Application:
1. Wireless Infrastructure
2. Test And Measurement
3. Satellite Communications
4. Wireless LAN/CATV
5. Aviation/Aerospace
6. PMAR/LMAR/Public Safety Radio
7. Clock Generator
Overview:
MAX2870 is an ultra-wideband phase-locked loop (PLL), integrated voltage-controlled oscillator (VCO), and can work in integer and fractional-N modes.
MAX2870 is controlled by a 3-wire serial port and is compatible with 1.8V control logic.
Colour: green
Material: ABS

package contents：

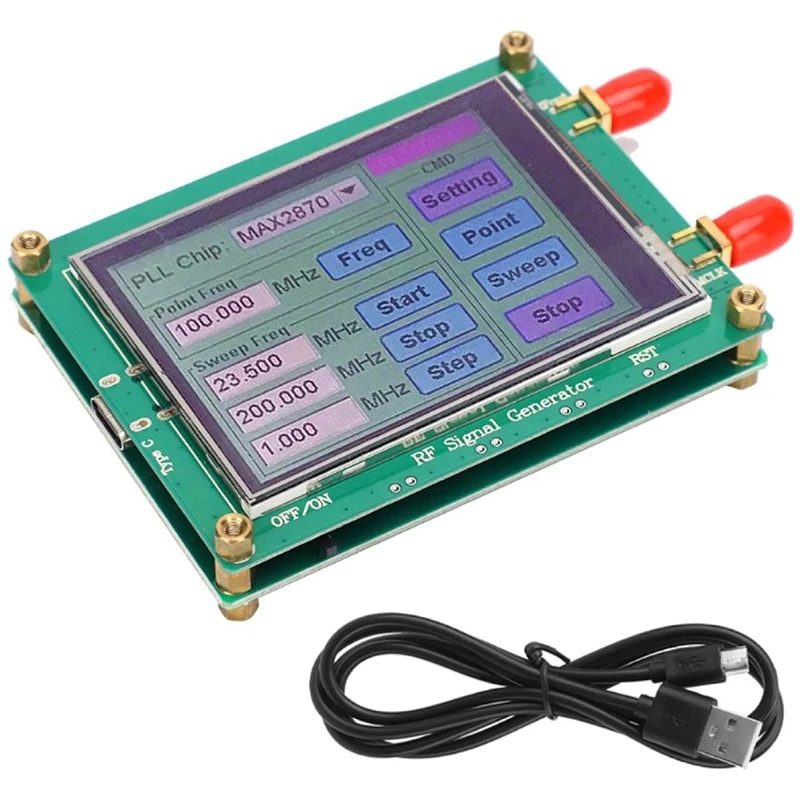

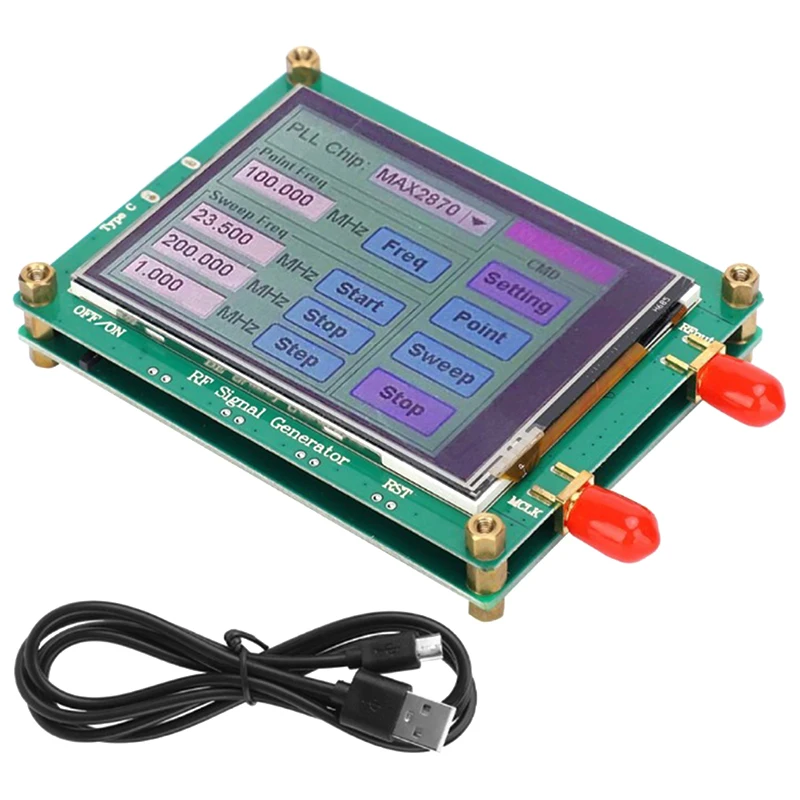

1 x RF Signal Source
1 x Data Line

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
