AC 110V 220V 4Bit Digital LED Tachometer RPM Speed Meter with Hall Proximity Switch Sensor

Description:
It is a high-precision digital speed meter and a proximity sensor.The proximity sensor switch and the motor need to be fixed with a bracket.The more stable the fixing,the month is helpful for stable detection.

Features:
1>.The proximity sensor is accurate and the speed measurement is reliable
2>.High speed measurement range
3>.It is an AC controller
4>.It is simple and convenient to install
5>.It has a long service life
6>.LED digital screen display

Parameters:

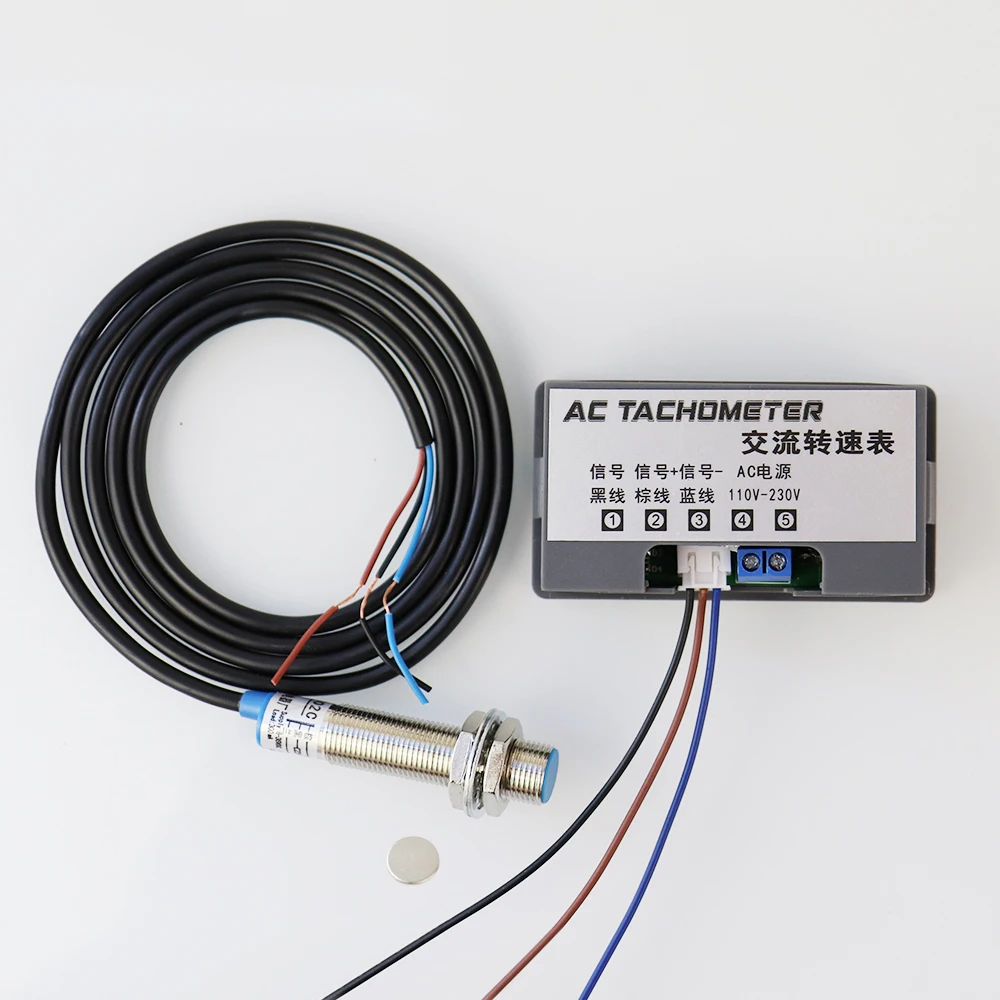

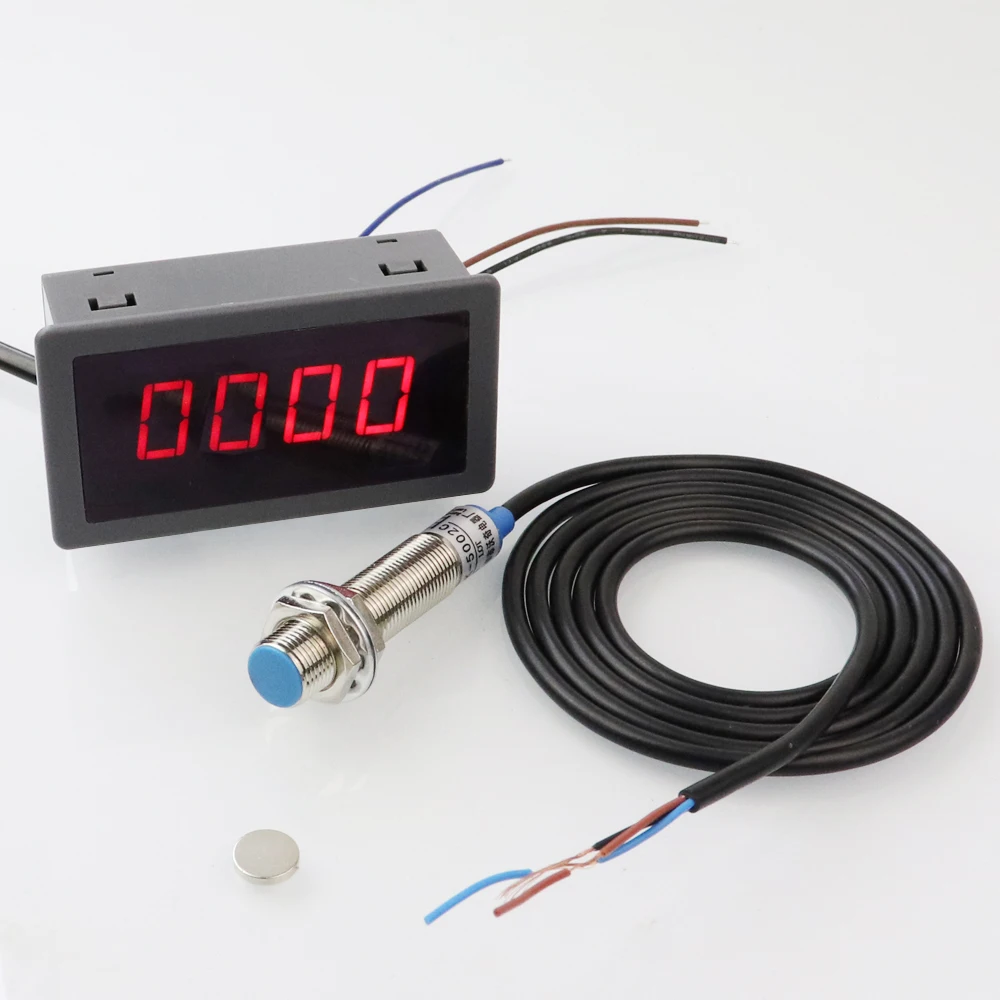

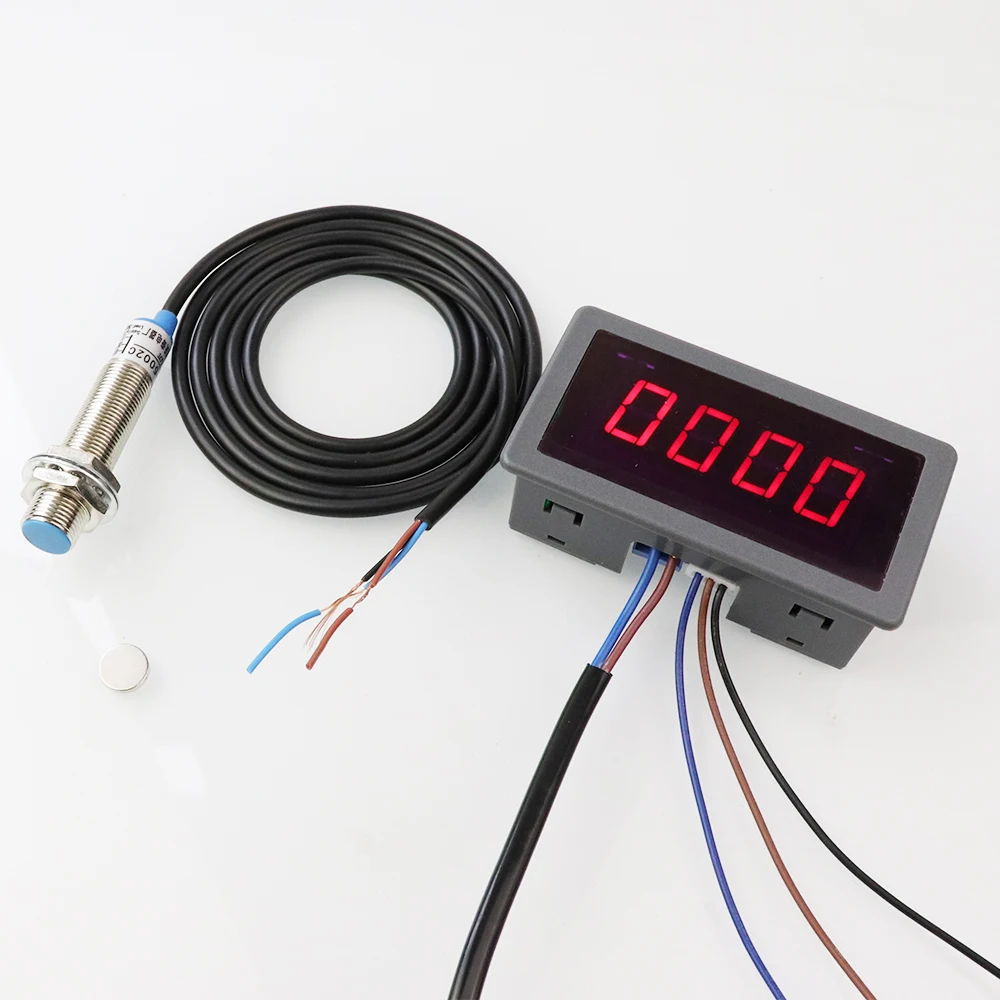

1>.Product name: AC 110V 220V 4Bit Digital LED Tachometer
2>.Work Voltage:AC 110V-230V
3>.Measuring Range:10-9999
4>.Measurement Accuracy:+/- 0.1%
5>.Display Refresh Rate:3 times/sec
6>.Over-range Display:display "----"
7>.Display screen:4Bit 0.56in Red
8>.Work Temperature:-20℃~85℃
9>.Work Humidity:10%~85%RH

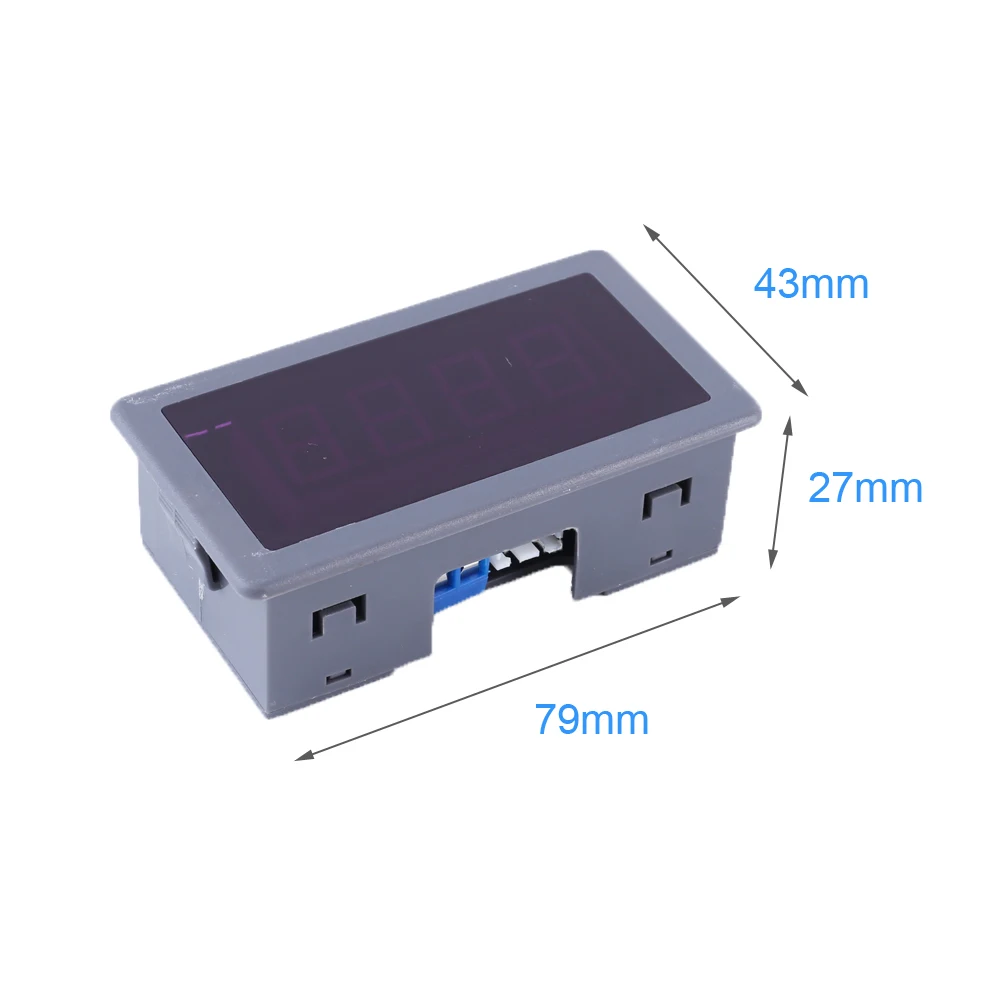

10>.Display Size:80*70*28mm

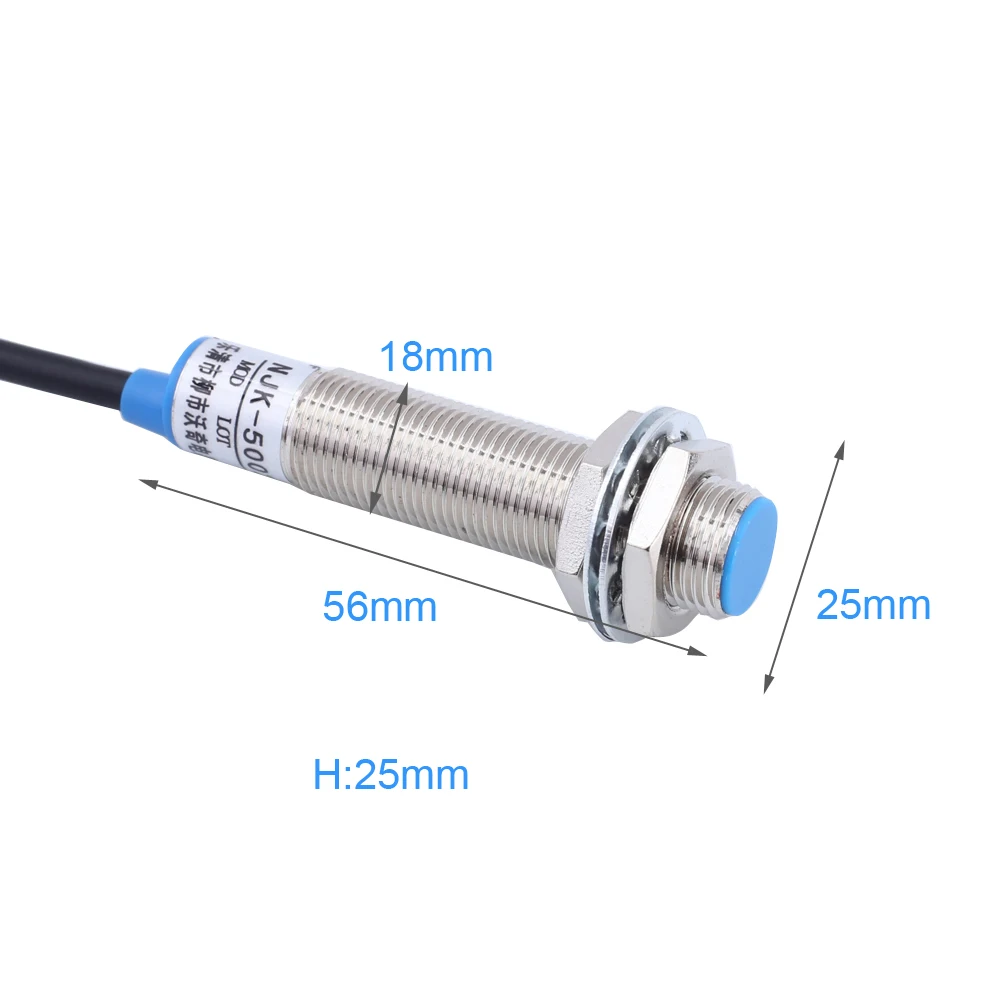

11>.Sensor Size:56*25*25mm

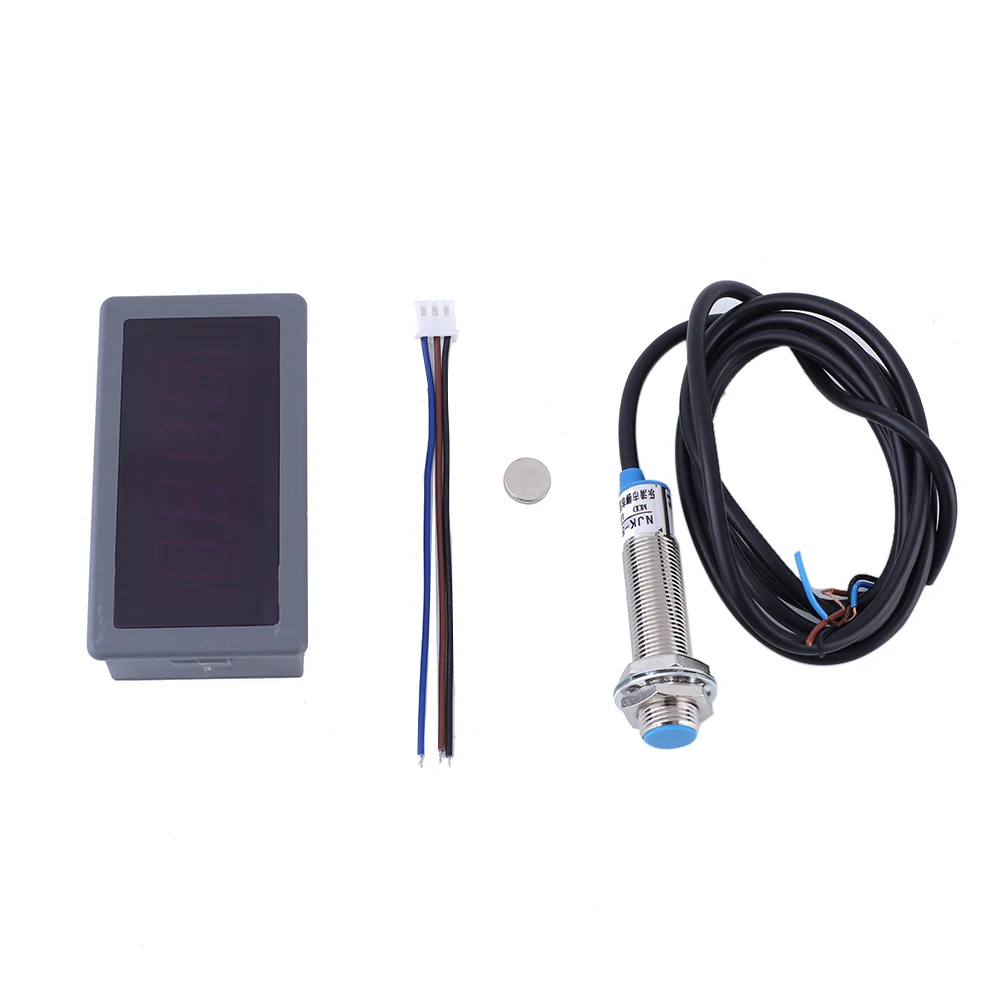

Package:
1>.1pc * AC 110V 220V 4Bit Digital LED Tachometer
2>.1pc * NJK-5002C Proximity Sensor
3>.1pc * 10cm XH2.54-3P Cable

DC 8-24V 4 Bit Digital LED Tachometer Motor RPM Speed Meter Hall Sensor Switch Motor Speedometer Counter Tachometer

Description:

The Hall-type rotational speed sensor belongs to the Hall-type sensor and is made by the principle of Hall effect. The Hall effect is used to make the displacement of the Hall element move in the magnetic field to generate the Hall potential, that is, the displacement signal is converted into the potential change signal.
The display will be based on the signal received by the Hall sensor and calculate the rotational speed of the measured device.Also displayed on the display.

2.Features:
1>.With a filter display;
2>.Include hall sensor;
3>.Wide measurement range 10-9999RPM;
4>.High precision;

3.Parameters:
1>.Input voltage: AC/DC 8-24V;
2>.Working current: 40mA;
3>.Measuring range: 10-9999RPM;
4>.Measurement accuracy: 1%;
5>.Display refresh time: 0.3second;
6>.Over range display: The first bit displays "1" or "-1", but last three bits don’t display;
7>.Size(Display): 79*43*26mm;
8>.Display size:51*24*19mm;
9>.Sensor type:SJA12-10N1;
10>.Length of Sensor cable :about 130mm.

4.Use steps:

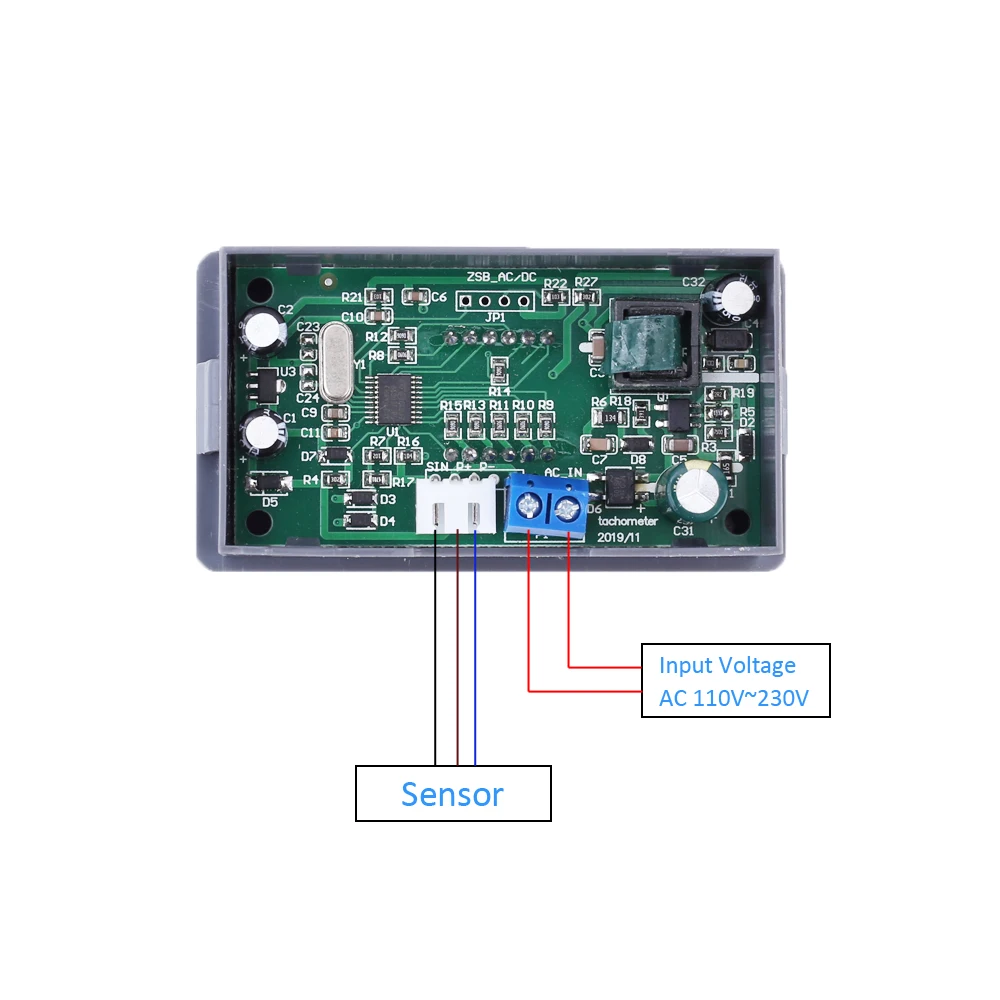

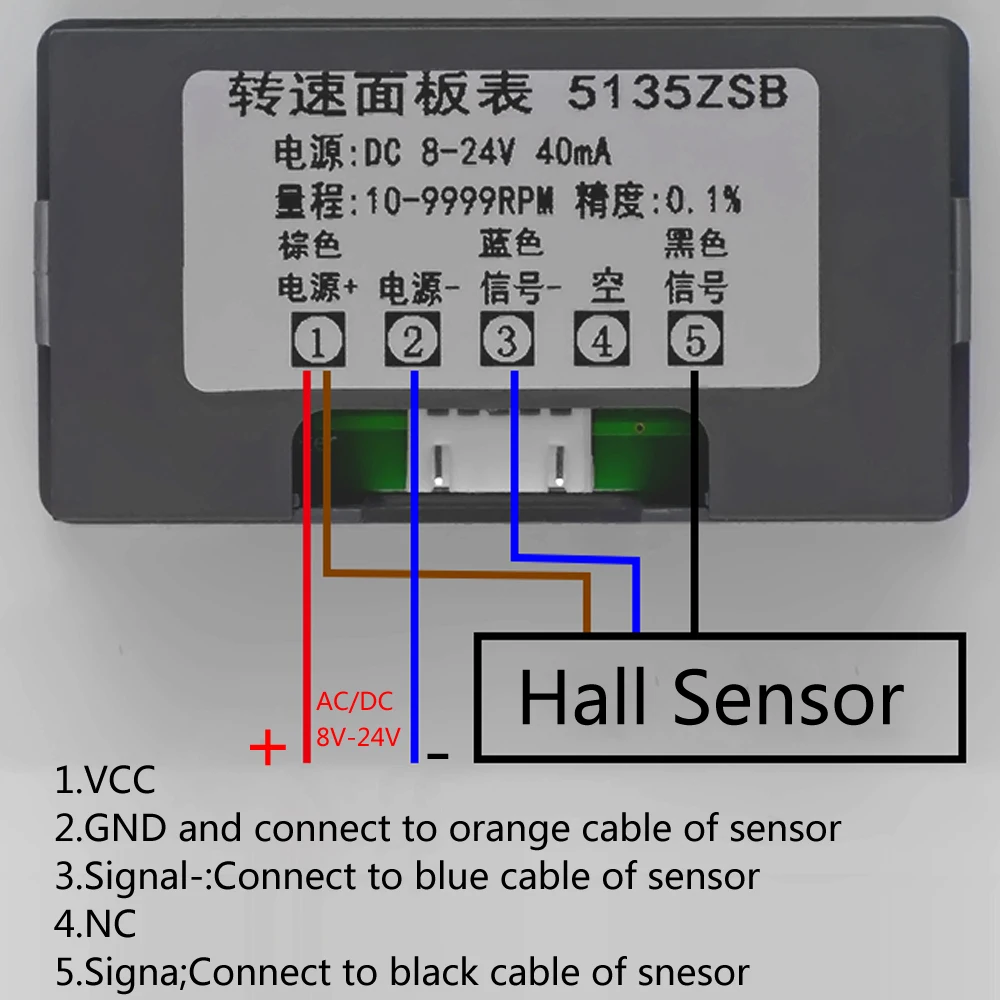

1>.Connect hall sensor to display as wiring diagram;
2>.Fix the magnet to the surface of the measured device;
3>.Adjust the shortest distance between the magnet and the sensor, and control it within 4mm;
4>.Rotate the device being measured;
5>.Connect power supply to display.

5.Application:
1>.Intelligent robot speed test;
2>.Aircraft speed control;
3>.Product quality test;
4>.Factory;
5>.Production workshop;
6>.Store.

6.Note:

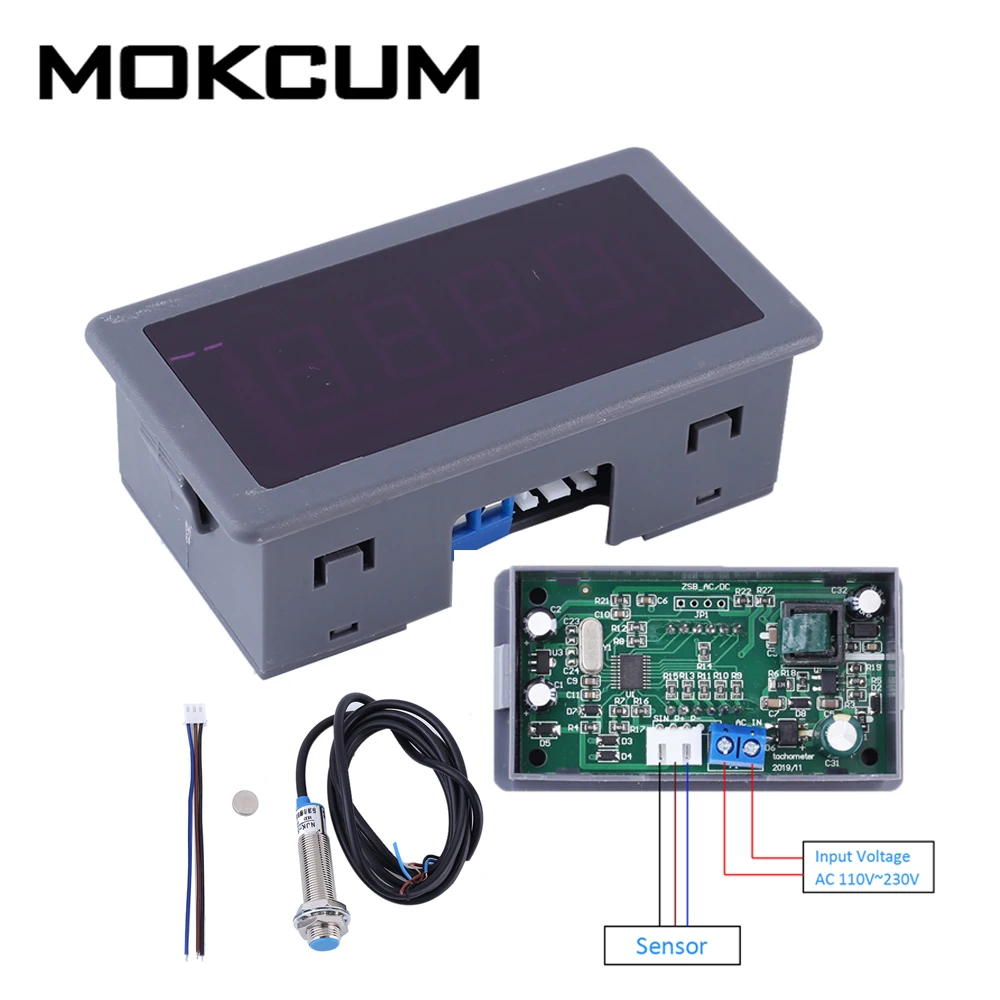

1>.Connect correctly according to the wiring diagram.
2>.It is recommended to use shielded wires or twisted pairs for measuring wires to avoid strong electromagnetic interference.
3>.It is recommended to use short wires to avoid excessive length of the wires, resulting in unpredictable interference.
4>.Mechanical switches or micros witches are not recommended.
5>.Please check if the test object is rotating at a constant speed and the installation is stable if the display data changes frequently.

7.Package:
1>.1piece Tachometer;
2>.1piece Hall proximity switch sensor;
3>.1piece XH2.54-5P 15cm Male Cable;
4>.1piece D10*H2mm Round magnet.
