Product Description:

1: Widely used

2: High safety performance

3: Easy to use

4: Onboard WiFi module RST reset button and a programmable button

5: 5V/12/24V optional

Product parameters:

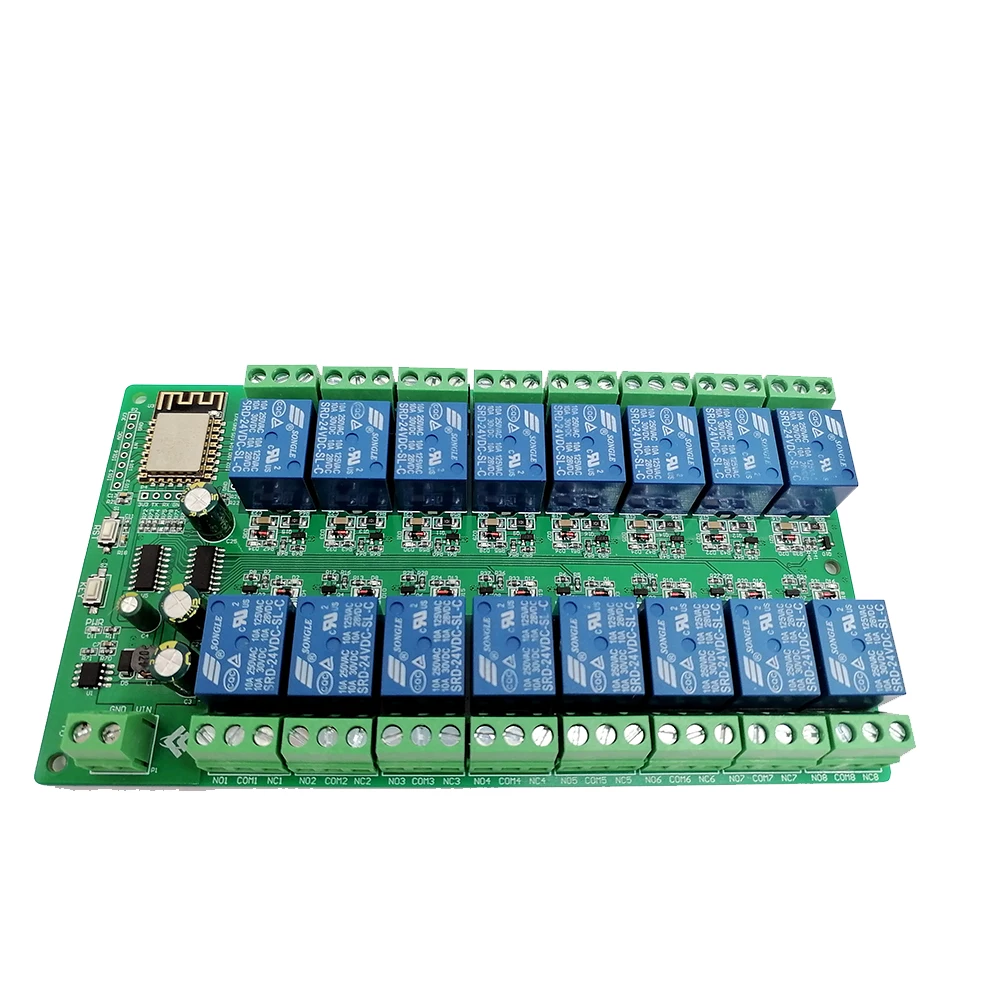

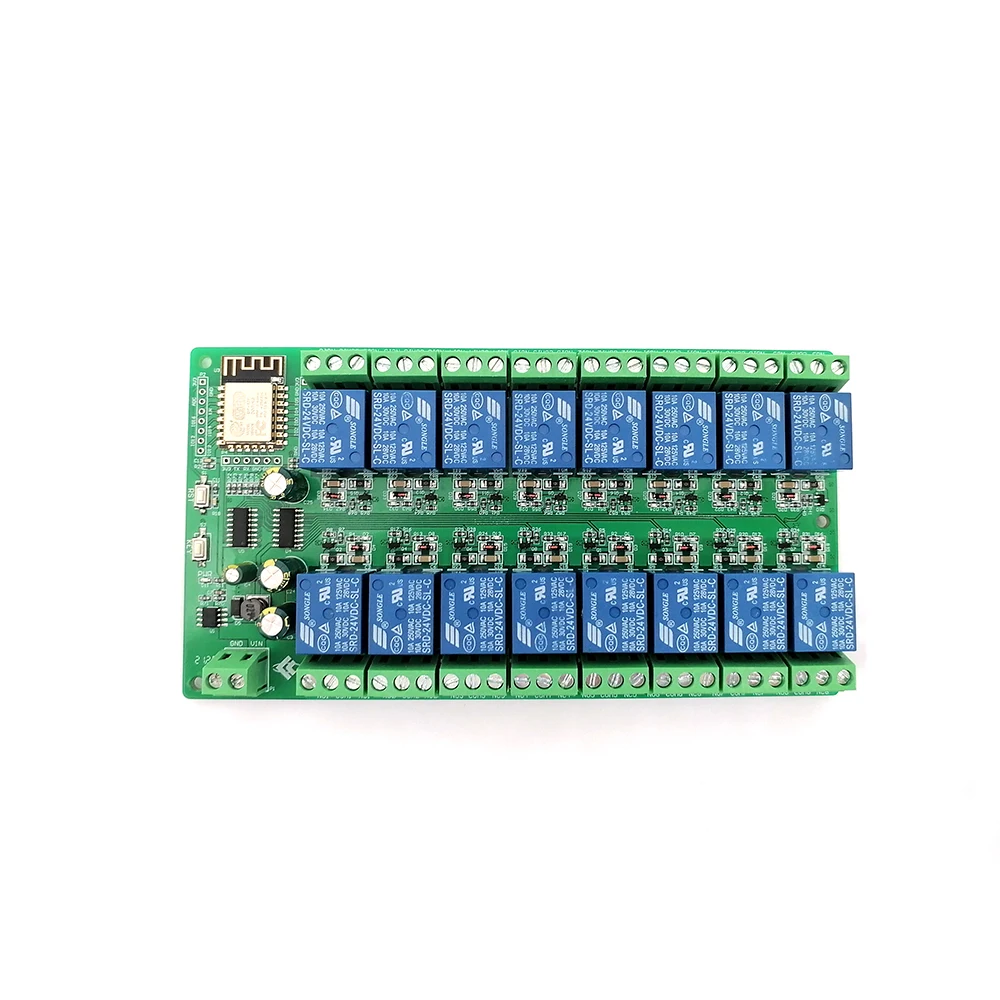

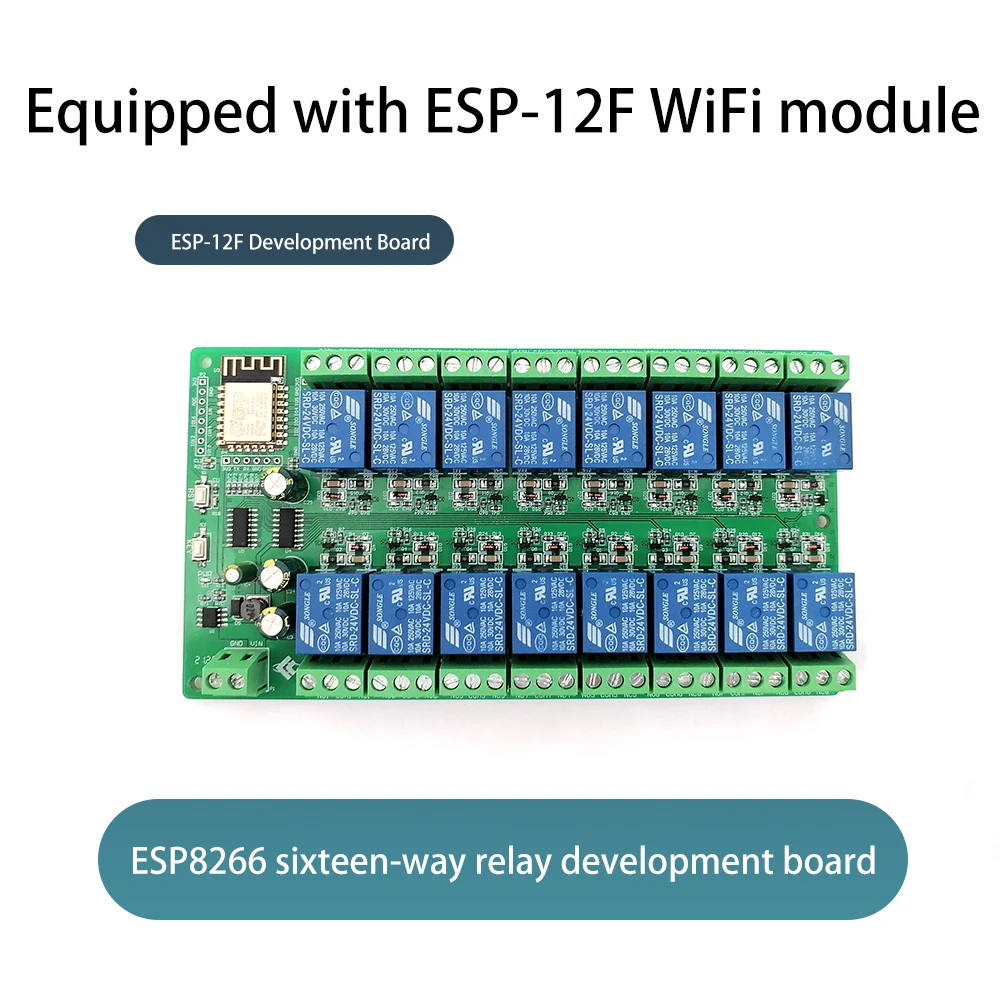

1. Onboard mature and stable ESP-12F WiFi module, large capacity 4MByte Flash;

2. The I/O port and UART program download port of the WiFi module are all led out, which is convenient for secondary development;

3. The power supply mode supports DC24V;

4. Onboard WiFi module RST reset button and a programmable button;

5. Onboard 16 24V/10A relays, output switch signals, suitable for controlling loads within AC 250V/DC30V;

6. Onboard power indicator light, relay indicator light and 1 module comes with LED.

7, onboard two shift registers 74HC595 control relay switch

8. There are 5V/12V/24V optional

Packing list:

1*relay module
