1 Pcs Goouuu-Esp32 Development Board 2-In-1 Dual-Core CPU Core & Usb Programming Cable For Kenwood 2 Pin Radio Walki | Электроника

1 Pcs Goouuu-Esp32 Development Board And 1 Pcs USB Programming Cable
The ESP-WROOM-32 Is A Versatile Wi-Fi + BT + BLE MCU Module That Is Powerful, Versatile And Can Be Used For Low Power Sensor Networks And Demanding Tasks Such As Voice Coding, Audio Streaming And MP3 Decoding And So On.
The Core Of This Module Is ESP32-D0WDQ6 Chip, With Scalable, Adaptive Features.Two CPU Cores Can Be Individually Controlled Or Powered On. The Clock Frequency Is Adjustable From 80 MHz To 240 MHz.
The User Can Cut Off The Power Of The CPU And Use The Low-Power Coprocessor To Continuously Monitor The Status Of The Peripherals Or Whether Some Of The Analog Values ​​Exceed The Threshold.
ESP32 Also Integrates A Wealth Of Peripherals, Including Capacitive Press Sensors, Hall Sensors, Low Noise Sensor, SD Card Interface, Ethernet Interface, High-Speed SDIO / SPI, UART, I2S And I2C.
Color: Black+yellow
Material: ABS
Size: 5.5x2.8x0.3CM

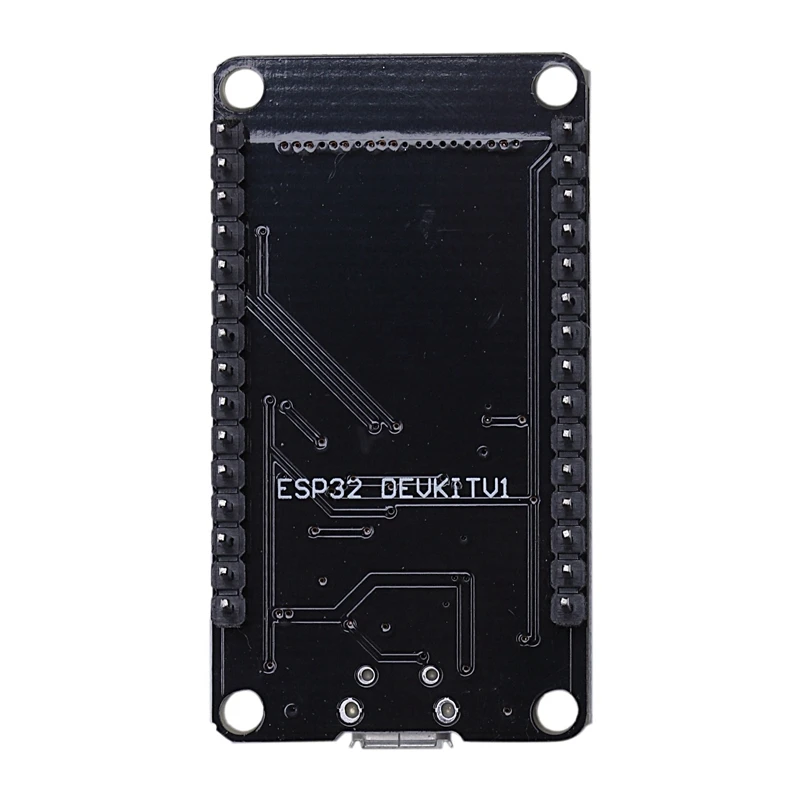

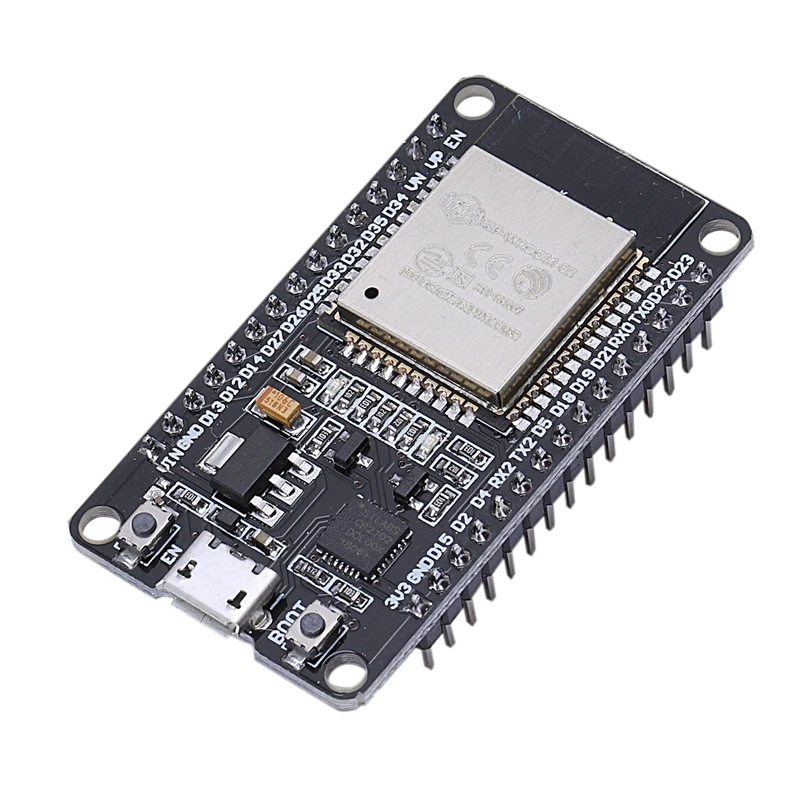

Goouuu-ESP32 development board:
1. Onboard CP2102 stable USB to TTL chip to ensure the normal communication of the serial port.
2. Support automatic download, no need to manually switch the download and run mode.
3. Shenjin process
4. Support Windows system (cygwin and msys32 simulation environment) and Linux system development
5. Support ESP32-Arduino
CPU and memory:
The ESP32-D0WDQ6 has two low-power Xtensa® 32-bit LX6 MCUs.
On-chip storage includes:
448 KB ROM for program startup and kernel function calls.
520 KB on-chip SRAM for data and instruction storage.
8-KB SRAM in RTC, or RTC Slow Memory, can be accessed by the coprocessor in Deep-sleep mode.
USB Programming Cable:
Material:ABS+metal
USB Type:Standard
Cable Length:Approx.100cm
Model Number:Talkie programming cable
Certified:CE
Use:Talkie programming cable
Color:Black
Available Brands and Models:
BAOFENG handheld Radio:UV-5R,UV-3R+,UV-3R Plus,UV-89
Wanhua handheld Radio:Suitable for most of Wanhua handheld Radio with two-pin RIBLESS design.
KPG-22 compatible Kenwood handheld radios:Suitable for most of Kenwood handheld Radio with two-pin.

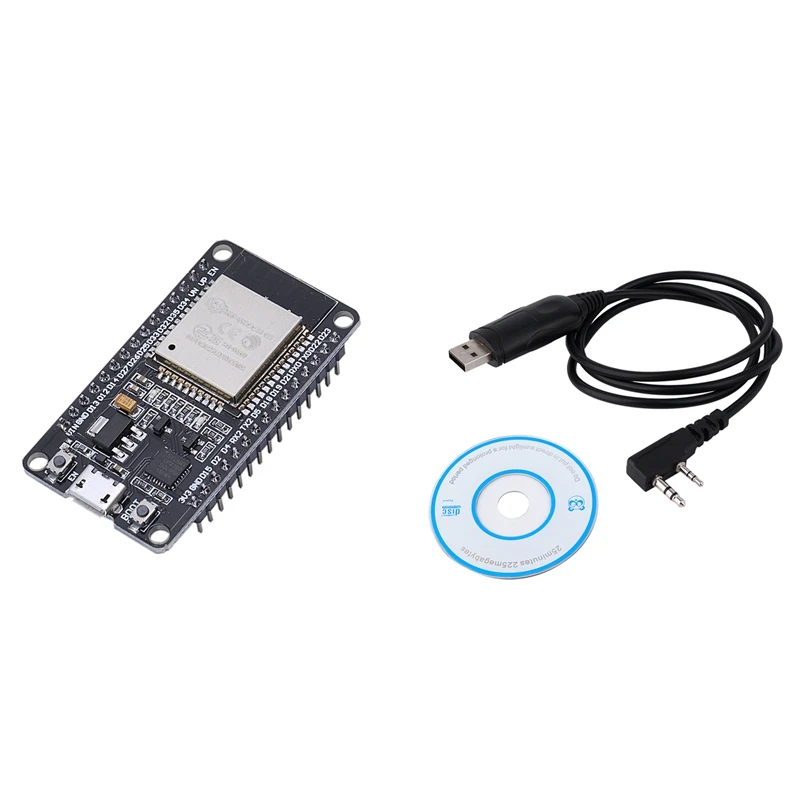

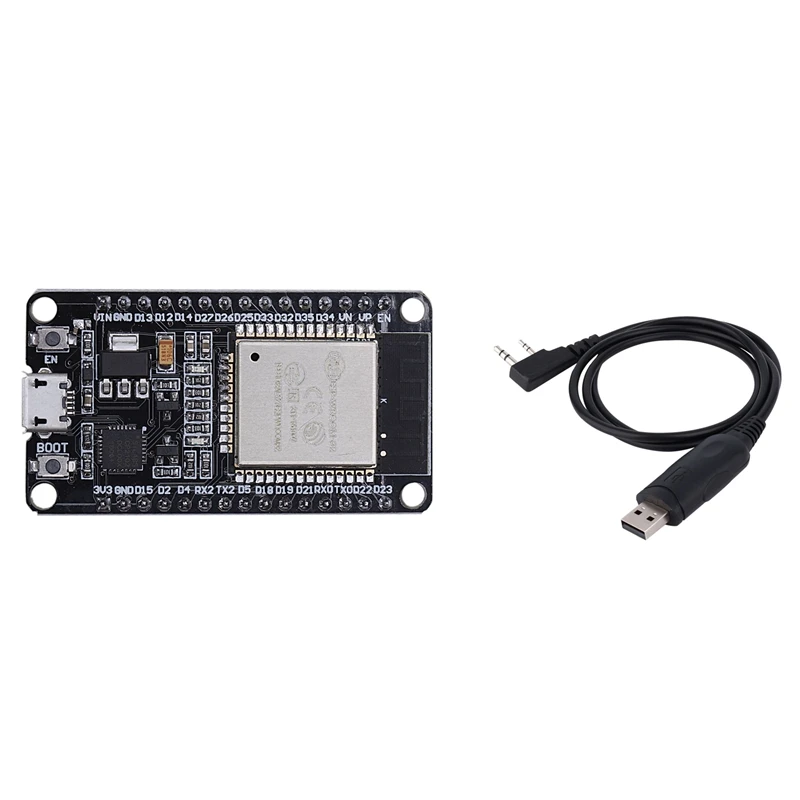

Package Includes:
1* USB Programming Cable
1* CD driver
1* Goouuu-esp32 Development Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
