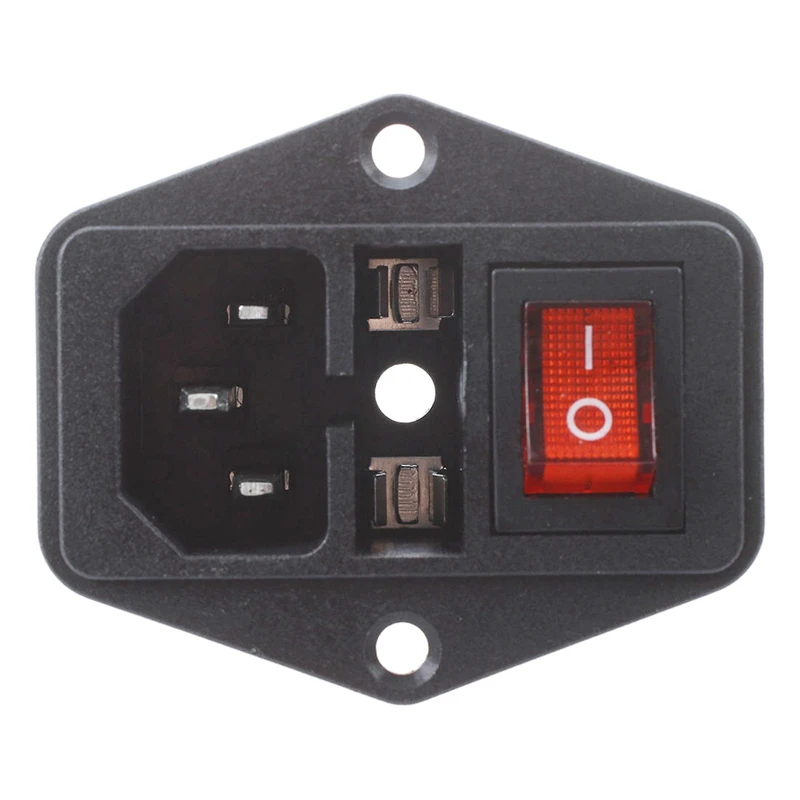

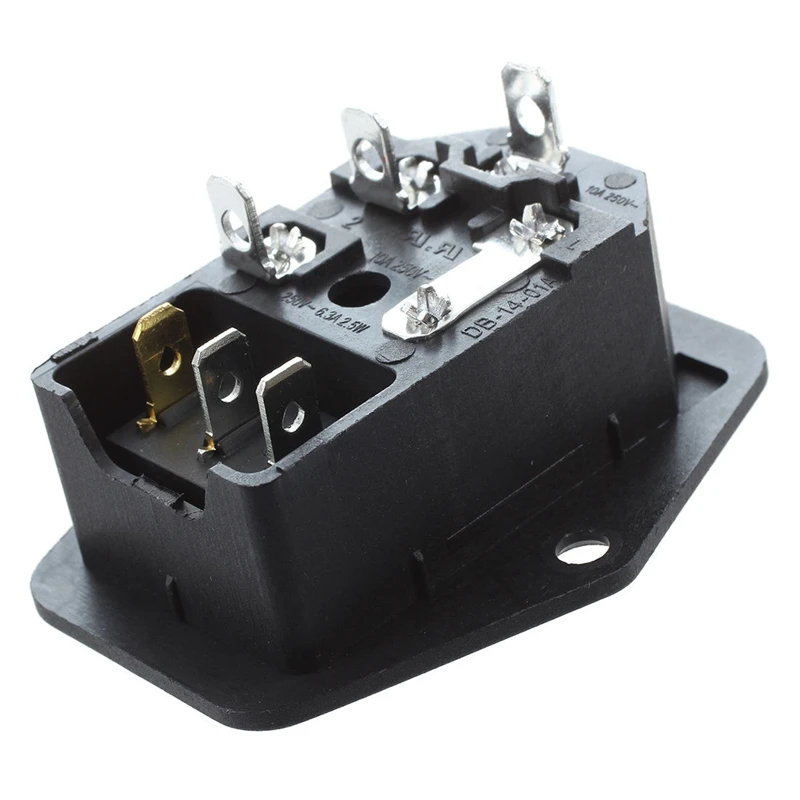

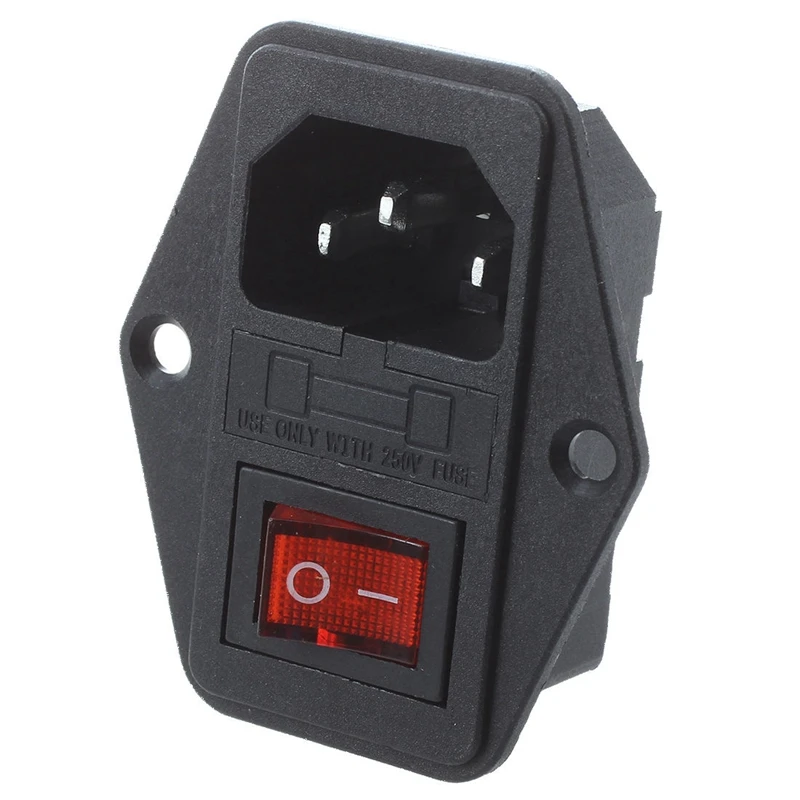

Black Plastic Housing AC 250V 15A 3 P C14 Power Socket With Rocker Switch & Red 0-30V 2MA-3A Continuously Adjustable DC Regulate |

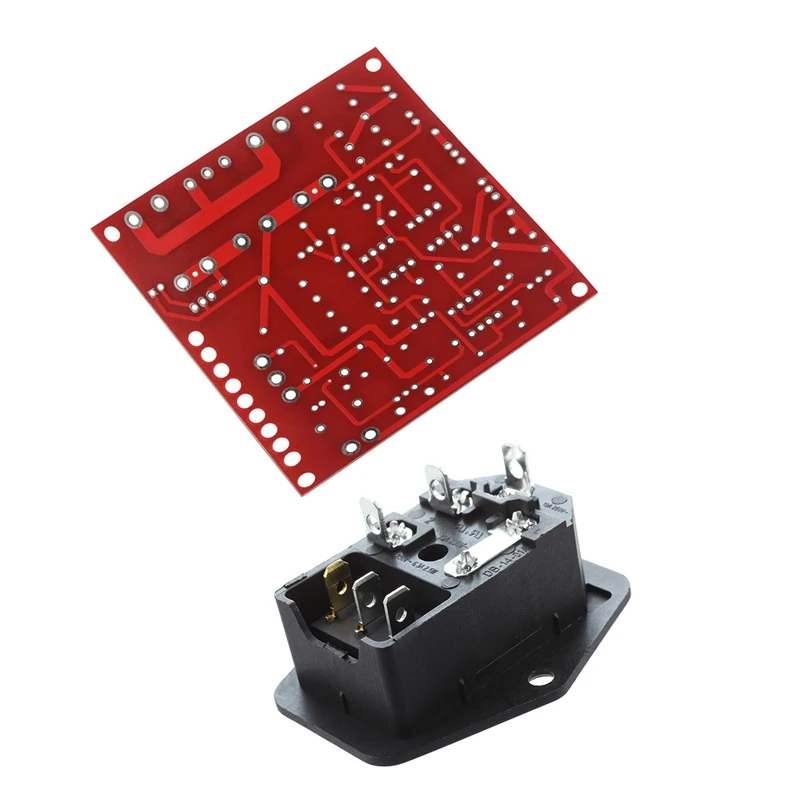

set2: 1 set DC Regulated Power Supply + 1 x Power Socket
Useful and high quality DC regulated power supply DIY kit for experimental use. Easy to install and maintain.
High quality DC regulated power supply whose output voltage is continuously adjustable from 0 to 30V.
Including a circuit to limit output current which enables output current to be continuously adjustable from 2mA to 3A.
Provide current limiting, LED display, over load and short circuit protection.
Easy to install and maintain.
Power Supply: AC 250V 15A
Plug Type: C14
Note:

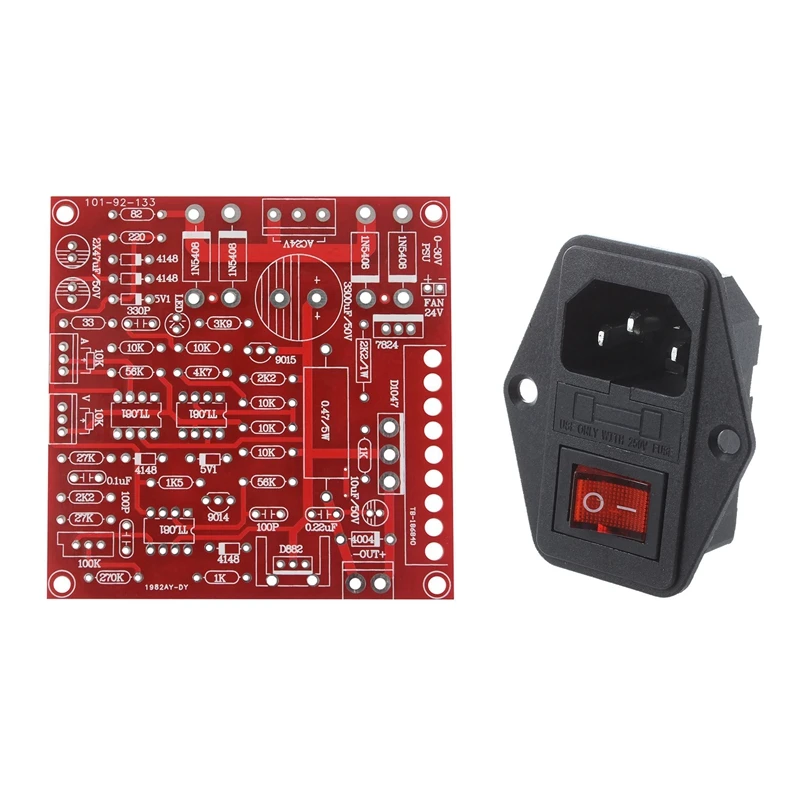

Please install the resistances and diodes according to PCB diagram. Make sure resistance values, diode models and installation direction are correct.
Please install other components from small to large, low to high.
The picture of testing process is just for reference, pls in kind prevail!
Material: plastic/Plastic + electronic parts
Color: black & Red
Input Voltage: 24V AC
Input Current: Max 3A
Output Voltage: 0-30V (continuously adjustable)
Output Current: 2mA-3A (continuously adjustable)
Output Voltage Ripple: Max 0.01%
Assembled Item Size: 9 * 8.5 * 3.5cm / 3.5 * 3.4 * 1.4in

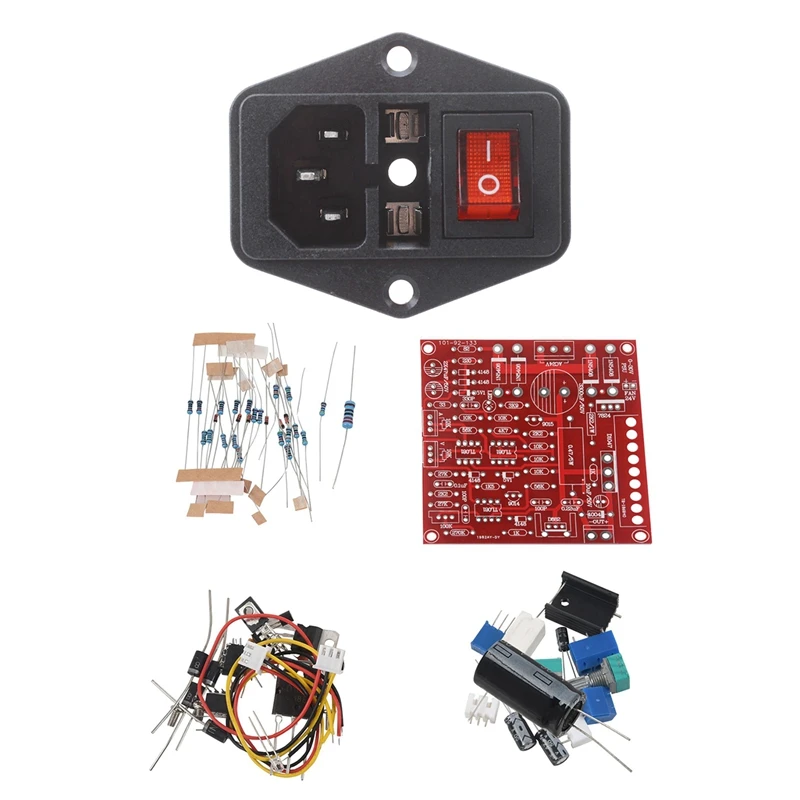

Package Included:
1 set DC Regulated Power Supply
1 x Power Socket
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
