HT116 Auto Range 1000V 10A True RMS Digital Smart Multimeter AC DC Tester Volt Voltmeter Ammeter Ohm Voltage Current Meter | Инструменты

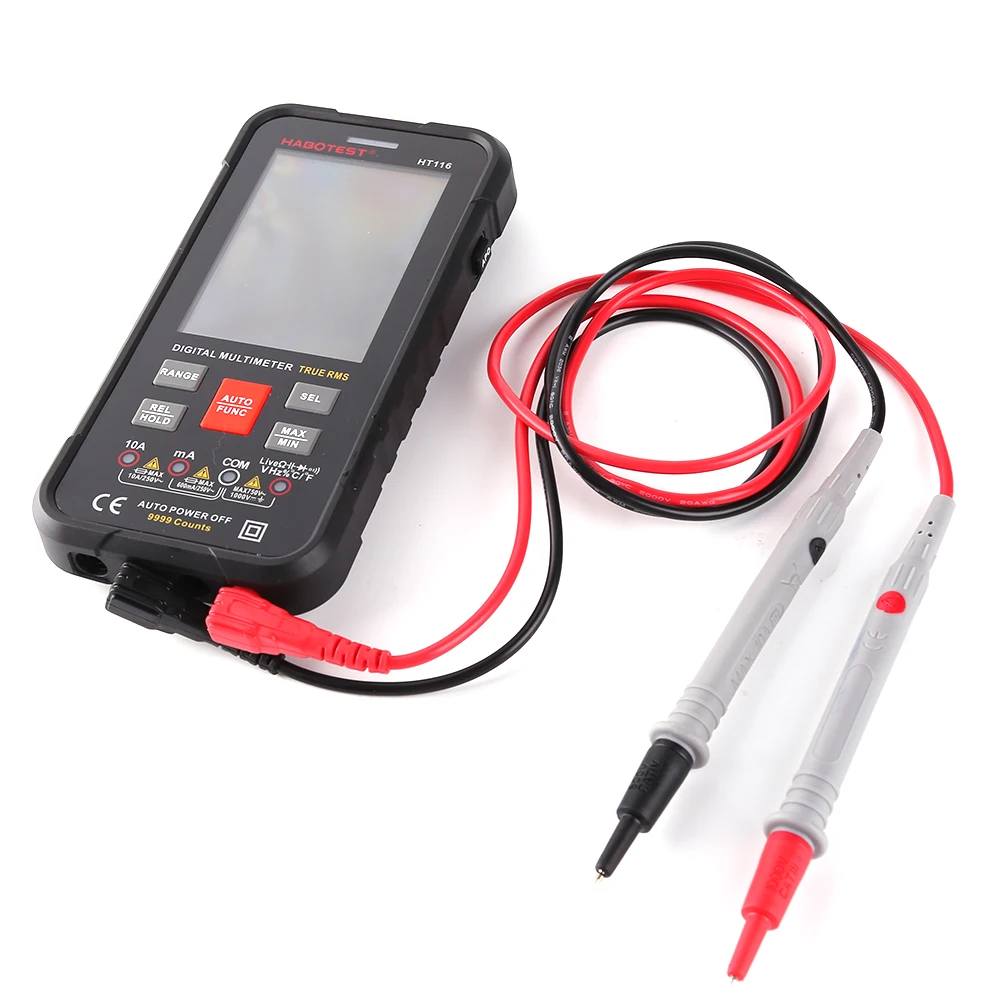

HT116 Auto Range 1000V 10A True RMS Digital Smart Multimeter Portable AC DC Tester Volt Voltmeter Ammeter Ohm Voltage Current Resistance Capacitance Frequency Meter
Feature:
Full-function multimeter: professional multimeter has various practical functions, can measure DC/AC voltage, DC/AC current, resistance, capacitance, frequency/duty cycle, temperature and diode test, continuity test, non-contact AC voltage test , With wire detection.
Temperature measurement: -40 - 1000℃/-40 - 1832℉ wide test range, use the attached K-type thermocouple probe to measure the temperature of the target object, the unit of ℃/℉ can be switched.
Smart (automatic) measurement: This measurement mode is defaulted when power is on. In this mode, DC/AC voltage, resistance, and continuity can be measured, and the meter can automatically identify the measurement signal.
Maximum/minimum value and relative value measurement: In the manual range mode, the maximum and minimum values (capacitance, frequency/duty cycle, temperature, NCV/active gear invalid) and relative values (continuity, frequency/duty) can be measured Air ratio, temperature, NCV/real time).
Flashlight and data retention: to assist in lighting up the work area under low light conditions, you can press the data retention button to keep the measured value unchanged so that it can be recorded.
Low power consumption and automatic shutdown: powered by 3 X 1.5V AAA batteries (not included), if there is no operation within about 15 minutes, the tester will automatically shut down to save battery.

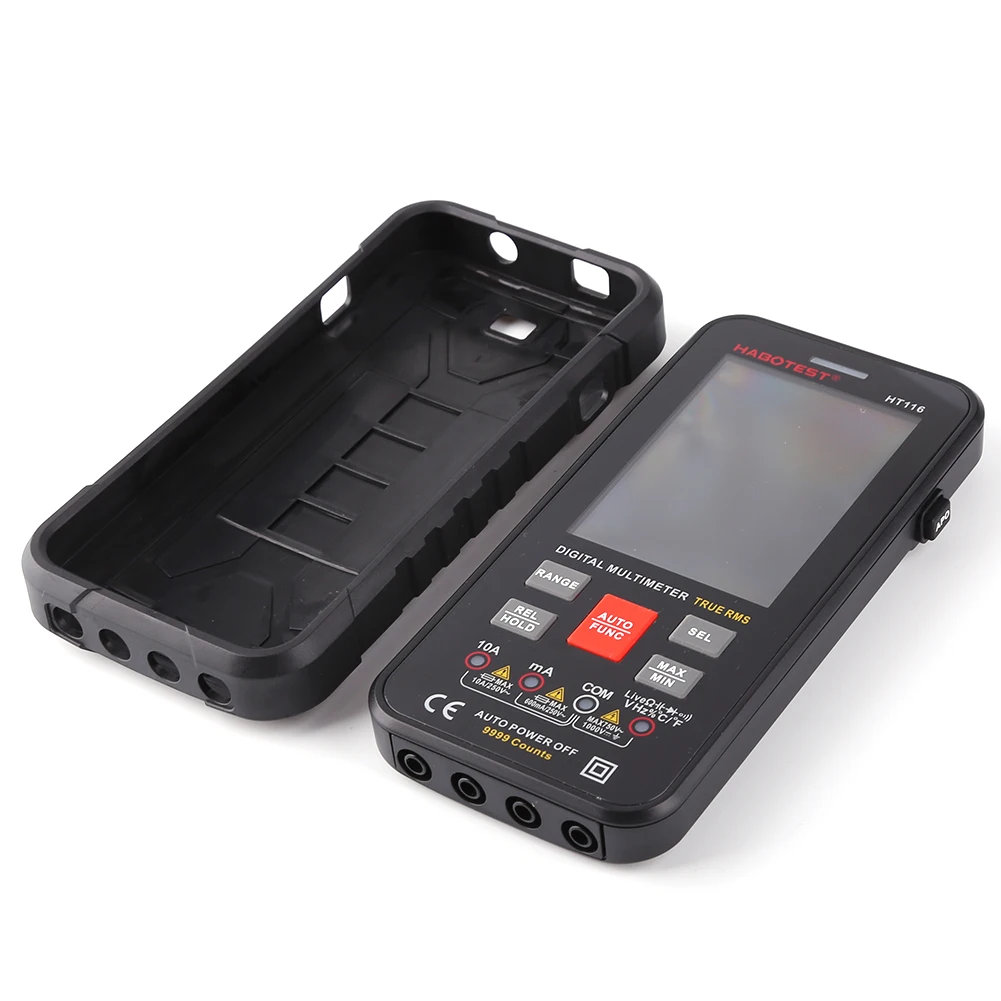

Portable pocket size: compact design, easy to carry, wrapped in a rubber sleeve, the multimeter can be protected even when it is dropped from a height.

Specification:
DC voltage: 99.99mV/999.9mV/9.999V/99.99V/999.9V
AC voltage: 99.99mV/999.9mV/9.999V/99.99V/750V
AC/DC current: 9.999mA/99.9099mA/9999mA/6mA
Resistance: 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance: 9.999nF / 99.99nF / 999.9nF /9.999μF/99.99μF/999.9μF/ 9.999mF / 99.99mF
Frequency/operating frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Temperature: -40 - 1000℃/-40 - 1832℉
Material: ABS
Display: 9999 count
Sampling rate: about 3 times/sec
Over-range indication: "OL"
Use environment: CAT.IV 600V, CAT.III 1000V, pollution degree 2, altitude <2000m
Working temperature and humidity: 0 - 40℃ (<80%RH, <10 ℃ non-condensing)
Storage temperature and humidity: -10 - 60℃ (<70%RH, take out the battery)
Power supply: 3 X 1.5V AAA batteries (not included)
Item size: 165 * 83 * 23mm / 6.49 * 3.27 * 0.91in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

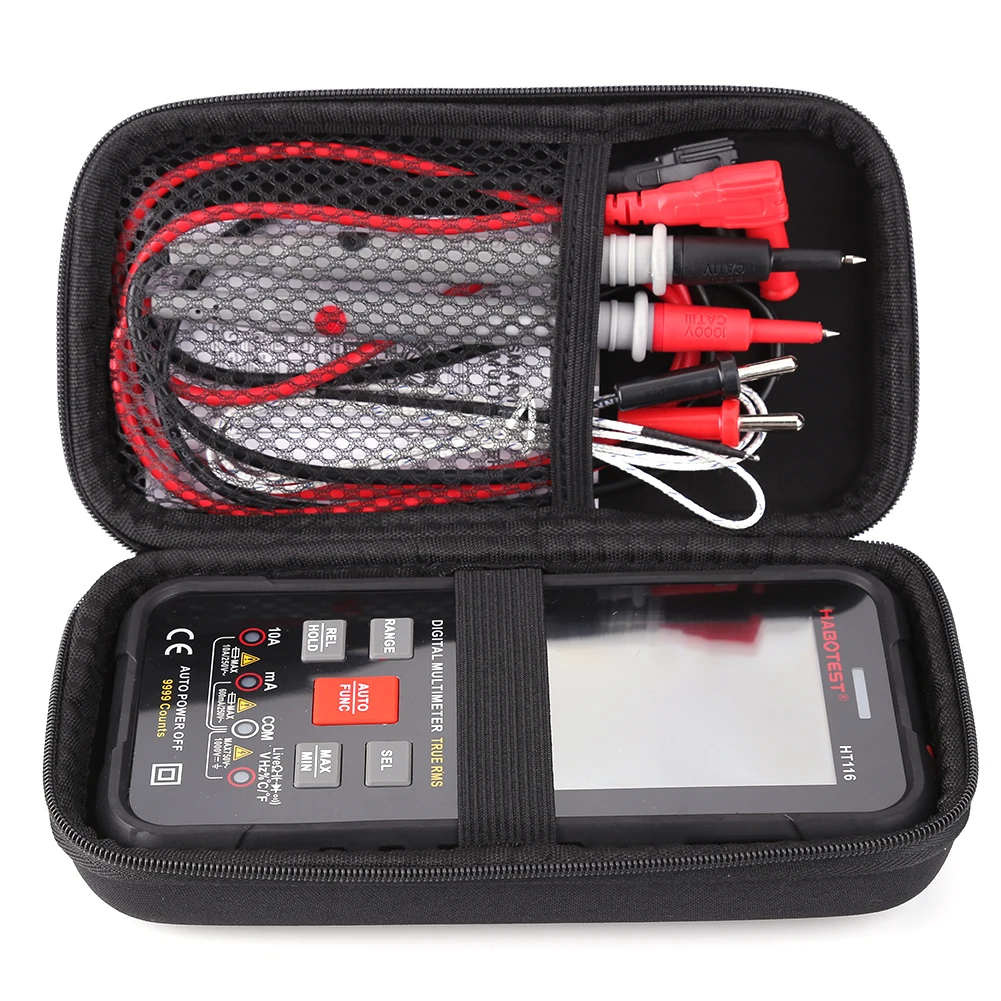

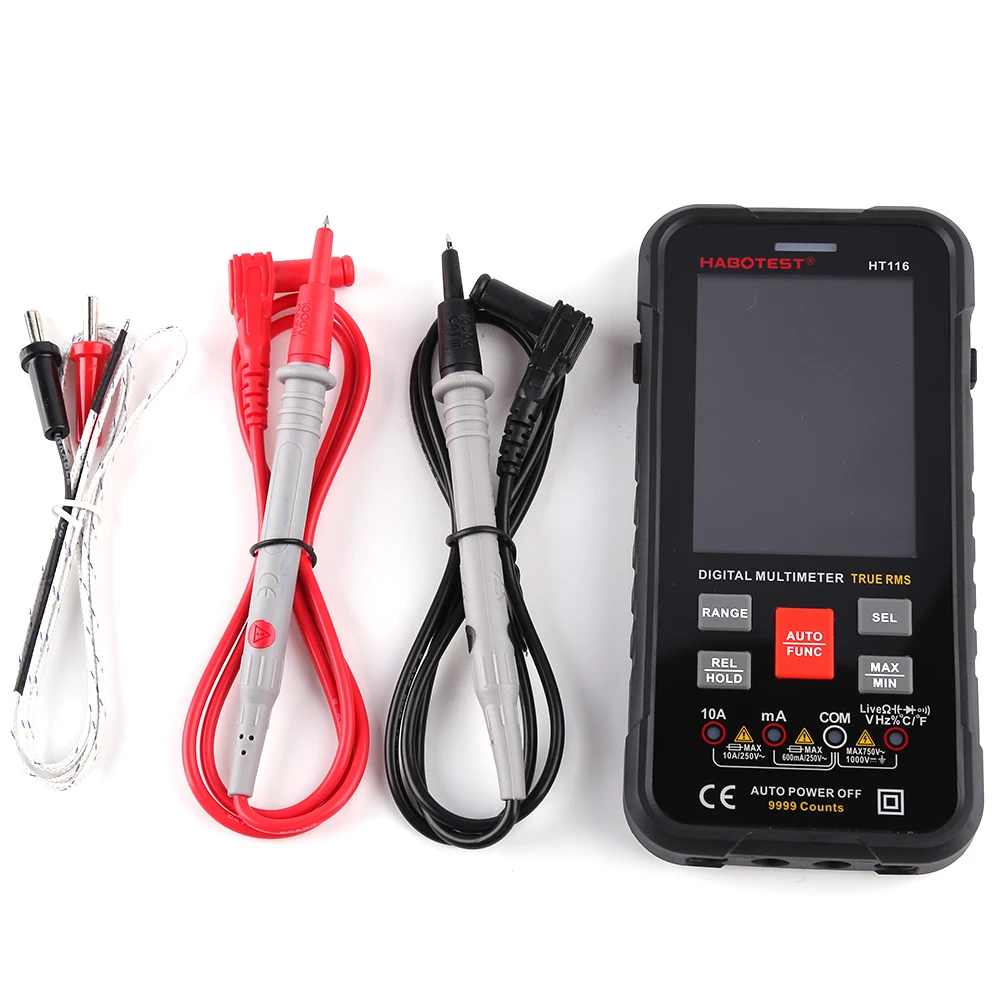

1 X Multimeter
1pair X Probes
1 X Thermocouple
1 X Manual(English)
