Cooling System Vacuum Purge & Refill Kit,Universal Car Radiator Coolant Change Filler Tool Set

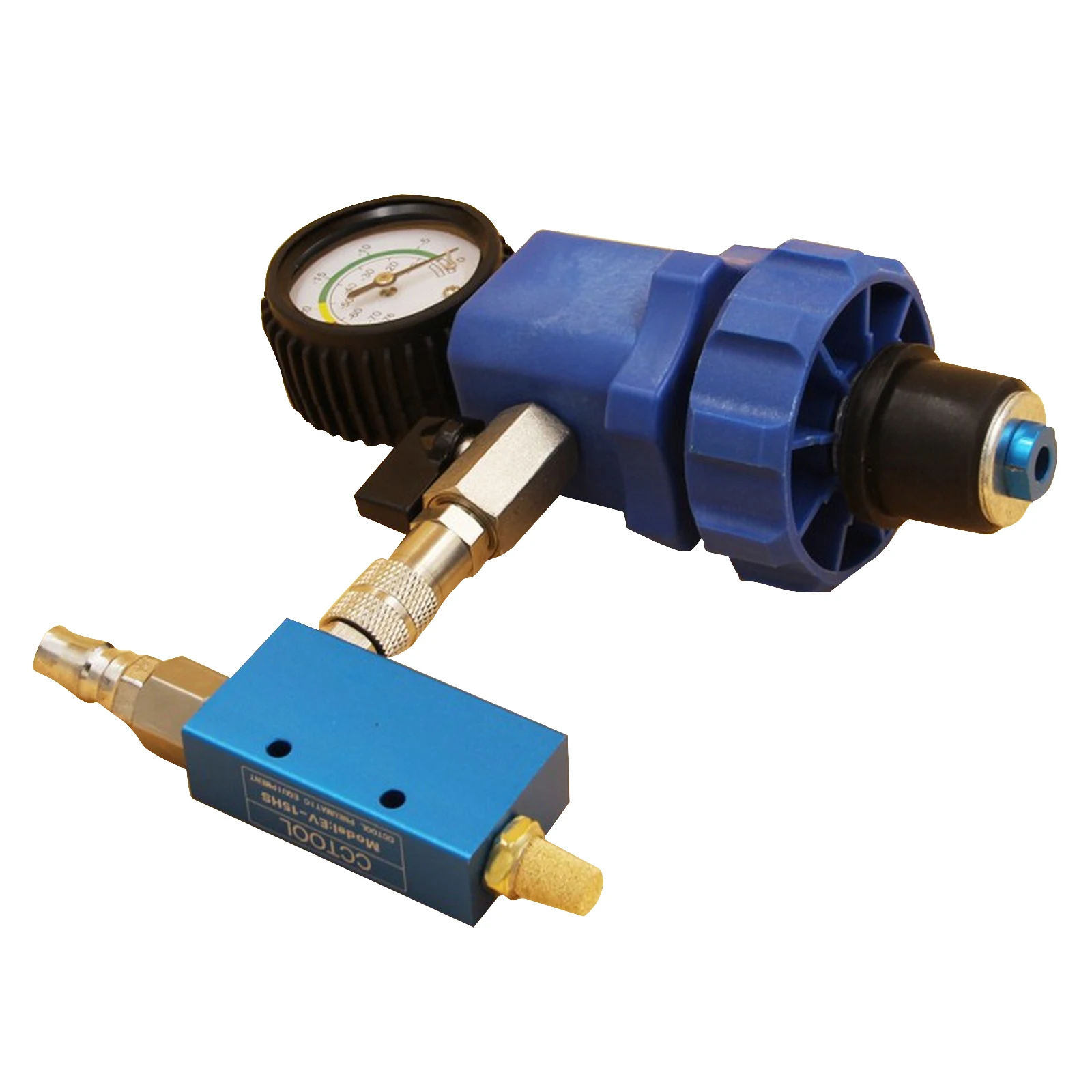

Features:

Shockproof pressure gauge: -30-0inhg-76-0cmhg.

Use EV15 vacuum generator,large negative pressure value saves time and better effect.

Self-locking circlip joint,pure copper material, easy to connect, good sealing.

Use PVC transparent hose,won't deflate.

The sealing rubber ring is complete, and the sealing gasket is designed on the rubber ring, which has a good sealing effect and does not leak.

Copper quick connector,durable and anti-rust.

Specifications:

Product name: new antifreeze replacement tool

Package size:38.5*31*8.5CM

Package weight:1.93kg

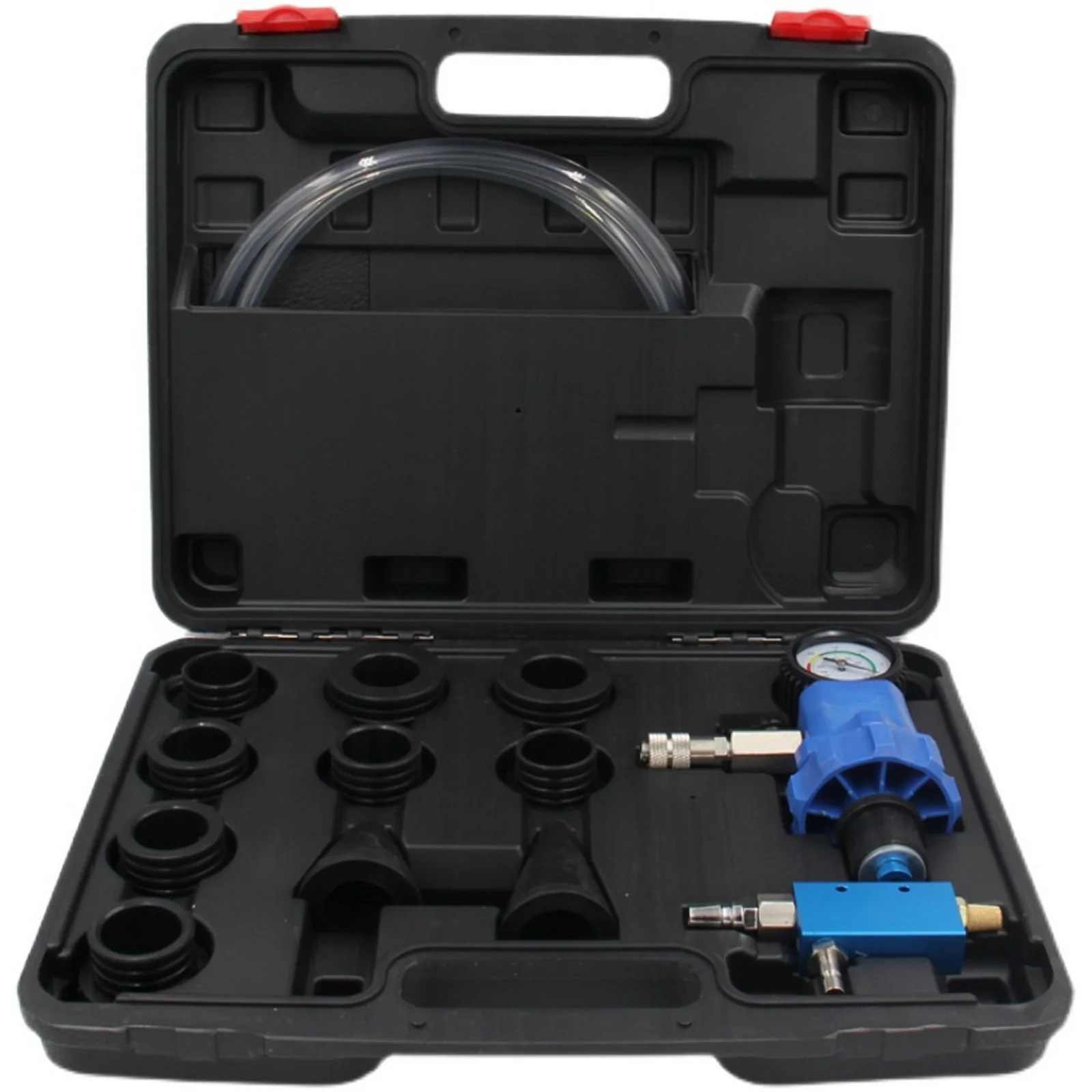

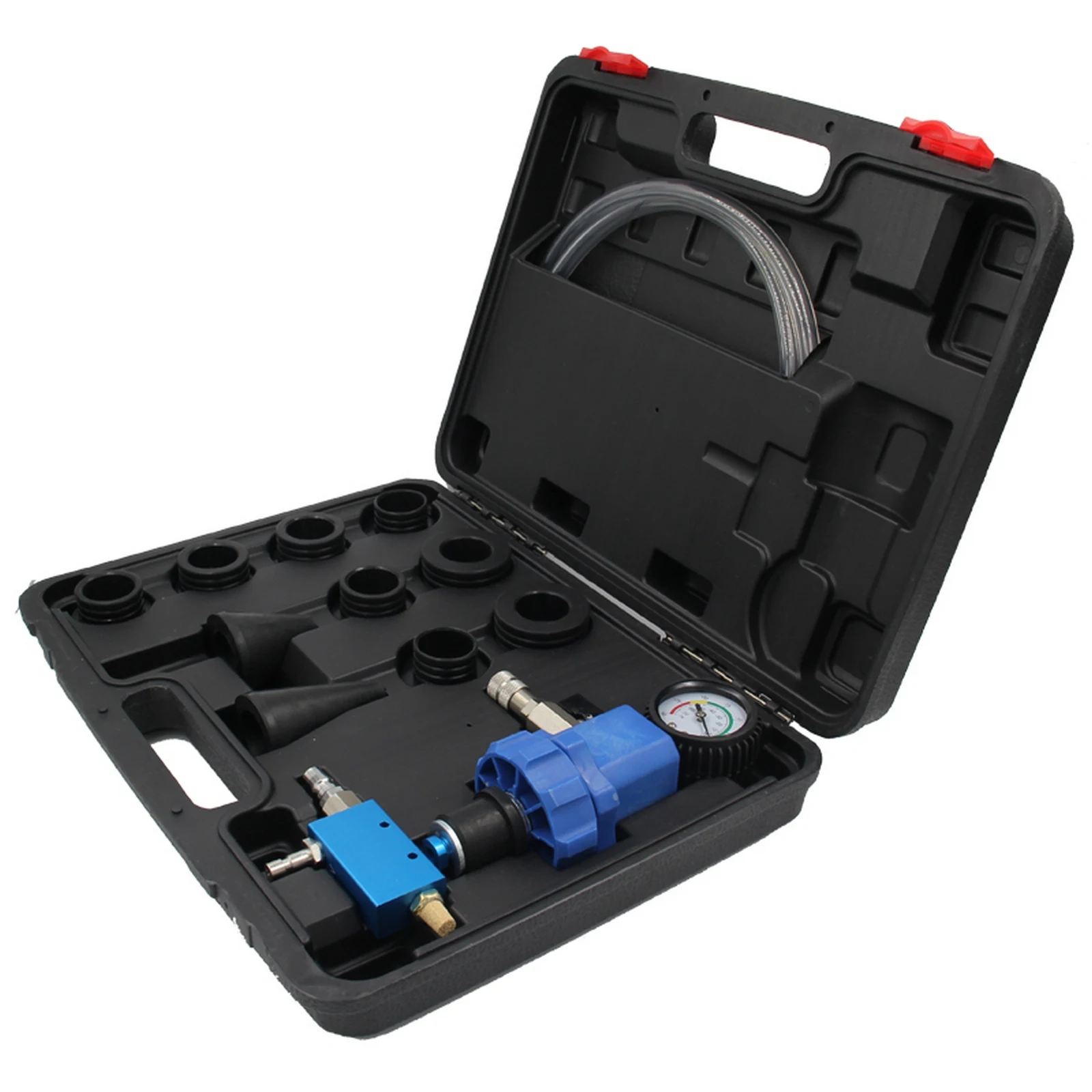

Package Include:

1*Shockproof pressure gauge

1*Self-locking circlip connector

1*EV15 vacuum generator

1*PVC transparent hose

1*Coolant hose connector

2*Universal cone

8*Sealing rubber ring

1*plastic packing box

Instructions:

1. Manually drain the antifreeze in the water tank.

2. Choose a suitable sealing ring or taper head to connect the water tank mouth.

3. Ensure that the water tank is in a sealed state, connect the vacuum generator, connect the intake pipe, open the valve to extract vacuum, and close the valve when the pressure reaches greater than -50.

4. Connect the antifreeze hose to the equipment, put the other end into the new antifreeze container, open the valve and fill it until the pointer of the pressure gauge returns to zero. (Ensure that the other end of the tube is always below the liquid level during the entire filling process, so ensure enough antifreeze)

5. If there is a small amount of antifreeze in the vertical direction of the water tank pipe, just fill it manually, and there will be no air in the vertical direction. If there is too much difference, repeat the above steps.

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.

Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
