TV LED Bars For Samsung UE48J5070SS UE48J5200AK UE48J5200AU Backlight Strips 2015 SVS50 FHD FCOM L5 R5 REV2.2 160925 LM41-00361A |

TV LED Bars For Samsung UE48J5070SS UE48J5200AK UE48J5200AU Backlight Strips 2015 SVS50 FHD FCOM L5 R5 REV2.2 160925 LM41-00361A |

Kind Reminder

The TV model can only be used as a reference, it is not necessarily accurate, because sometimes different batches of TV will use different light bars, we always recommend that you open the TV casing to confirm whether the backlight light bar is consistent with our products. We will not be responsible for this if you do not confirm the model of the backlight strip only depending on the model of the TV.

TV LED Bars For Samsung UE48J5070SS UE48J5200AK UE48J5200AU Backlight Strips 2015 SVS50 FHD FCOM L5 R5 REV2.2 160925 LM41-00361A

Bran New LED backlight strip
Consistent with the original shape, easy to install

Applicable TV model

If you have not opened the TV, we recommend that you compare the TV model. The model number of the TV is on the nameplate on the back of the TV. As shown below
For Samsung UE48J5070SS
UE48J5070SSXTK
UE48J5200AK
UE48J5200AKXXU
UE48J5200AKXZT
UE48J5200AU
UE48J5200AUXKZ
UE48J5200AUXRU
UE48J5200AUXUA

Light strip information

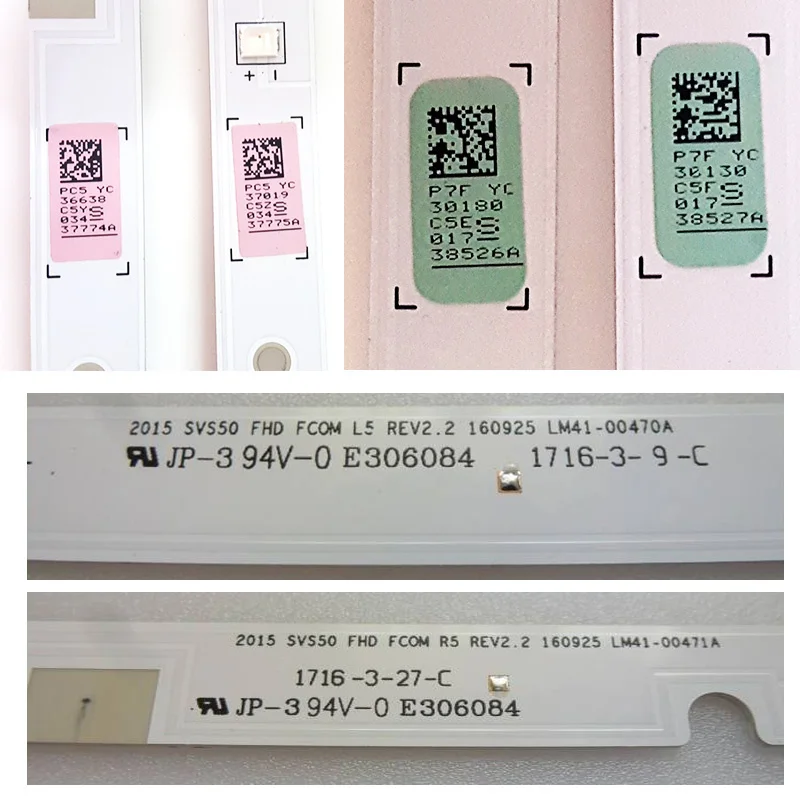

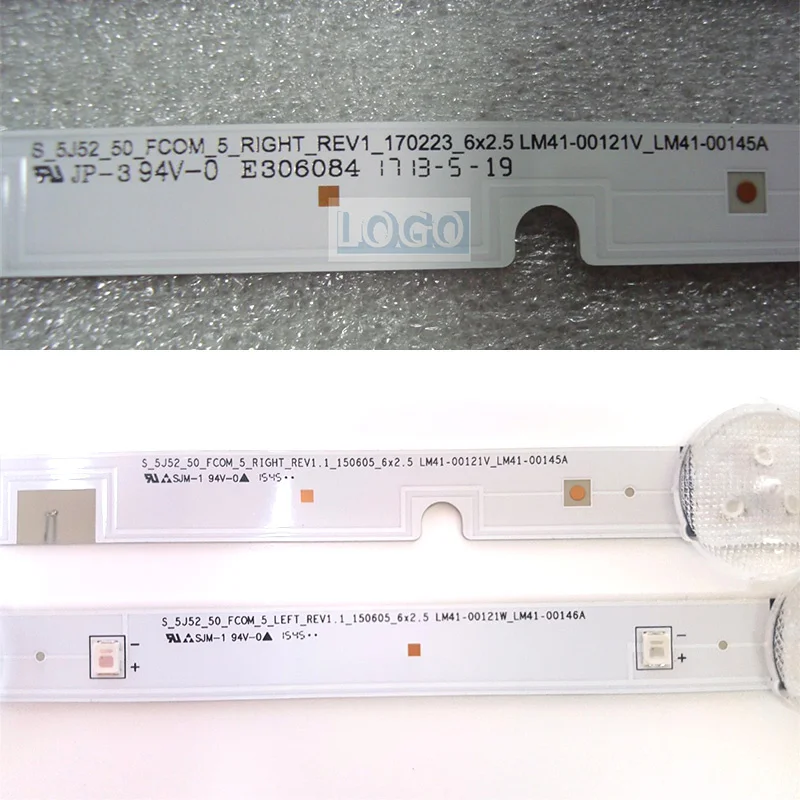

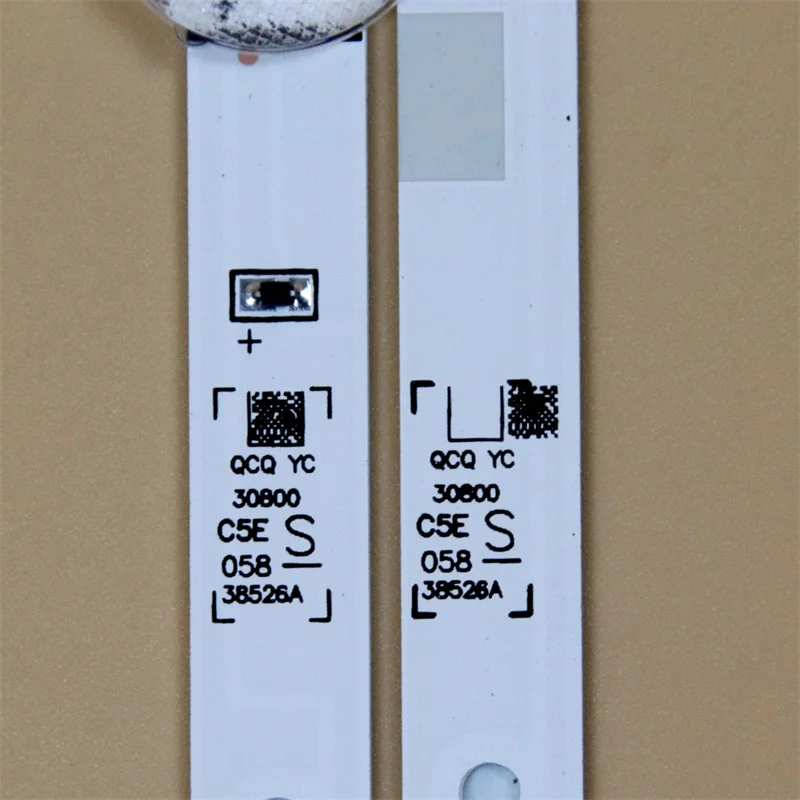

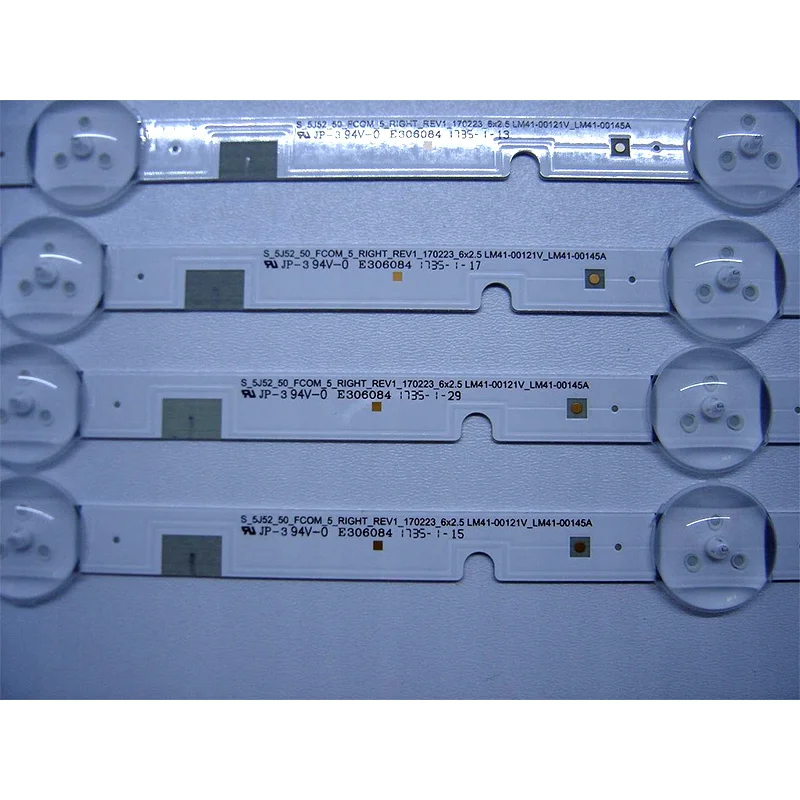

If you have already opened the TV, we recommend comparing the light bar code or screen code. You could find these numbers in the light bar or screen panel. As shown below, Or you can refer to the data we provide.

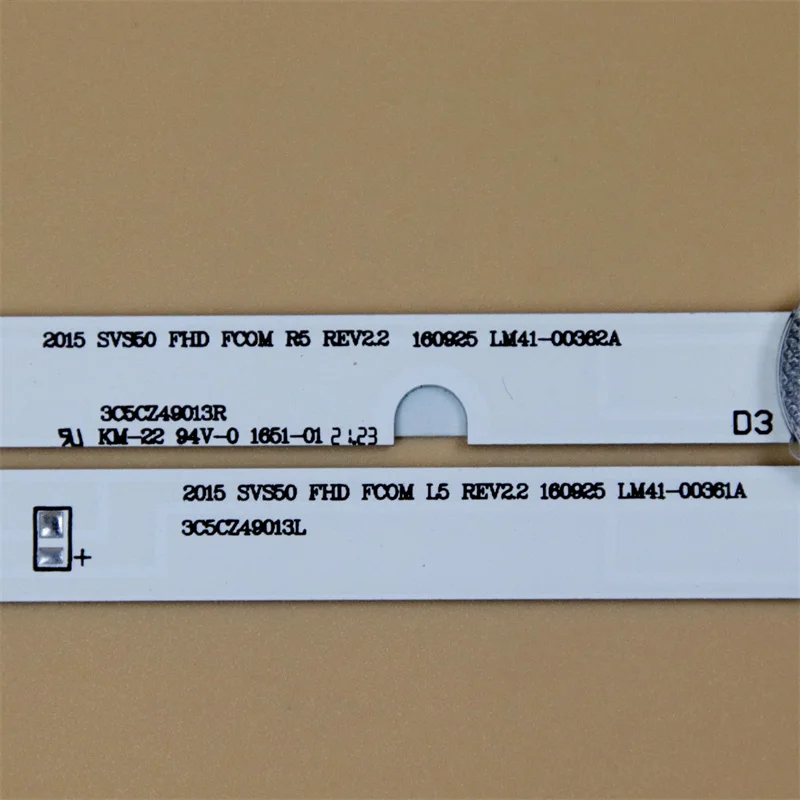

2015 SVS50 FHD FCOM L5 REV2.2 160925 LM41-00361A
2015 SVS50 FHD FCOM R5 REV2.2 160925 LM41-00362A
2015 SVS50 FHD FCOM L5 REV2.2 160925 LM41-00470A
2015 SVS50 FHD FCOM R5 REV2.2 160925 LM41-00471A
S_5J52_50_FCOM_5_LEFT_REV1.1_150605_6X2.5 LM41-00121V_LM-00145A
S_5J52_50_FCOM_5_RIGHT_REV1.1_150605_6X2.5 LM41-00121W_LM-00146A

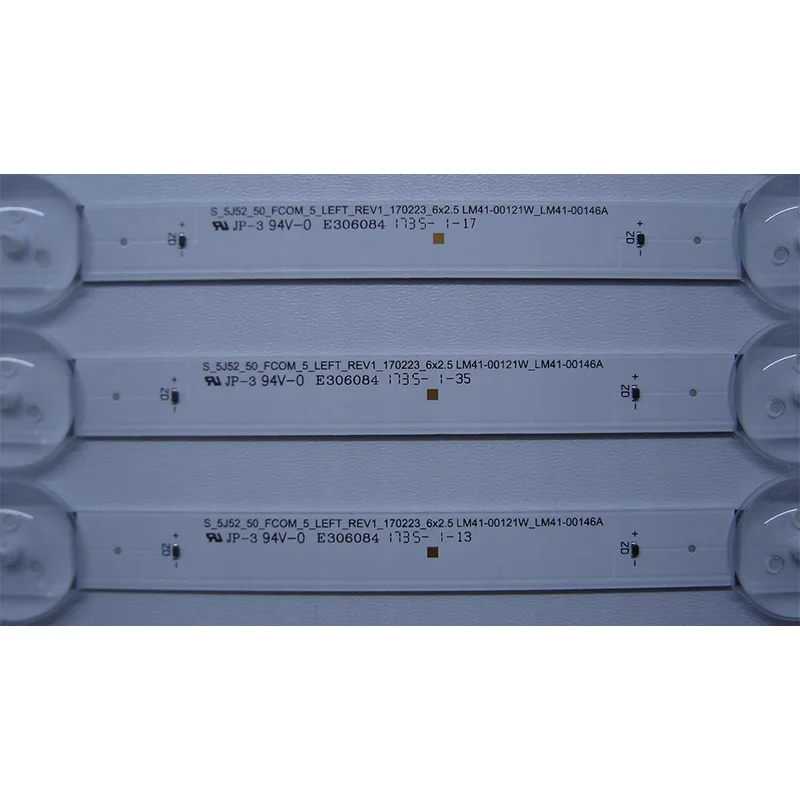

S_5J52_50_FCOM_5_LEFT_REV1_170223_6X2.5 LM41-00121V_LM-00145A
S_5J52_50_FCOM_5_RIGHT_REV_170223_6X2.5 LM41-00121W_LM-00146A

The LED Backlight Lamp Strip Features:

1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original

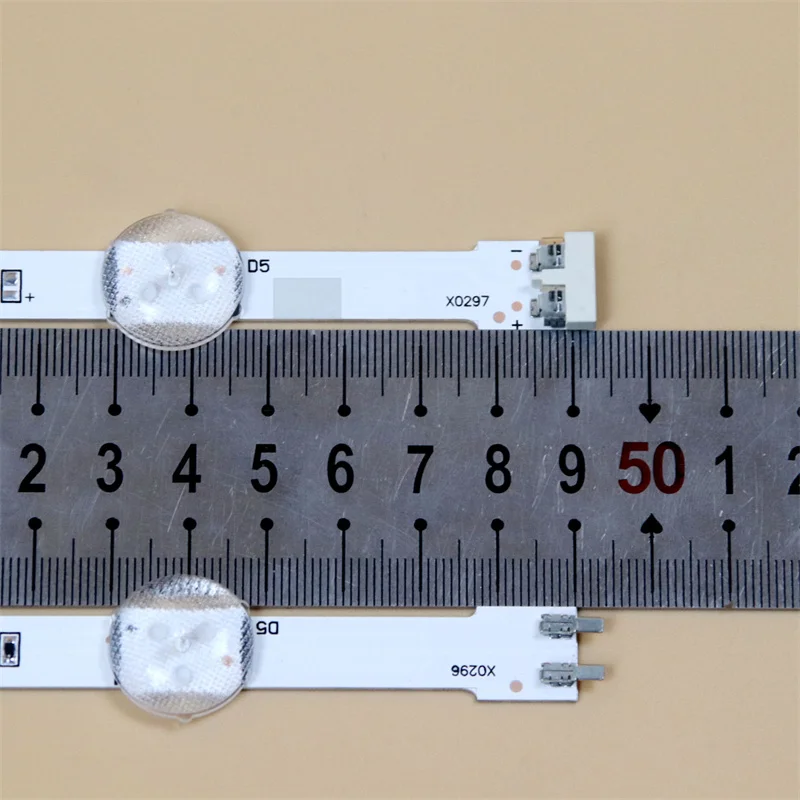

4.Product length:
L:493mm*10mm*1mm( length) 5LED Lamps
R:499mm*10mm*1mm( length) 5LED Lamps

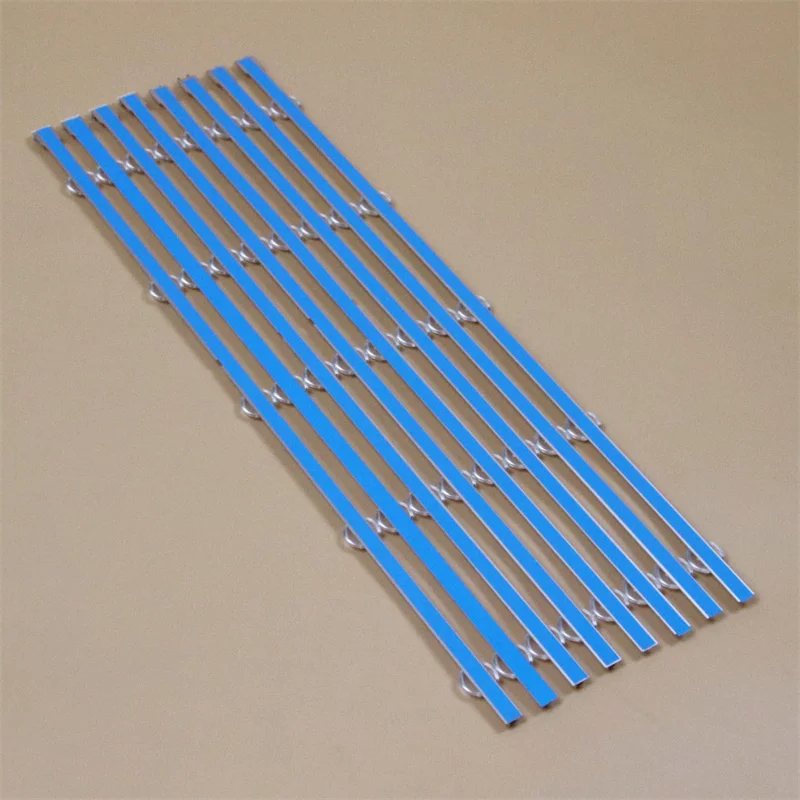

5.Aluminum material, thermally conductive double-sided tape on the back
6.Voltage: 0-94V, Single lamp bead is 3V, brightness up to 700 nits

Packaging Information

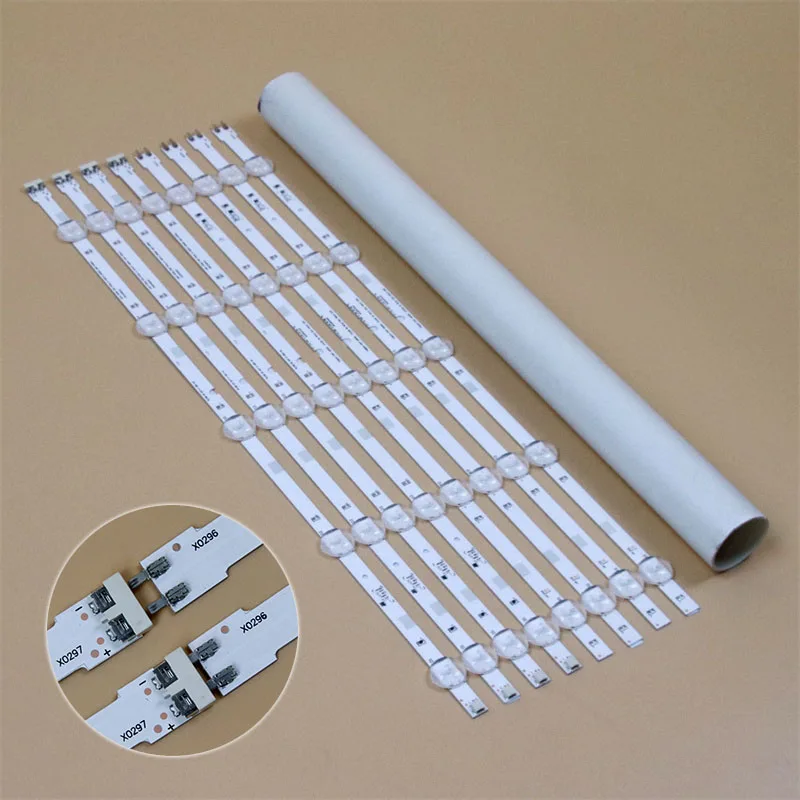

1. Package: PVC Plastic pipe (it will be safer during transportation)
2. Product contains: 8 piece backlight Strips , 8 piece / Set , 1 Set for 1 TV
3. Logistics information could be tracked

Precautions for buyers before buying

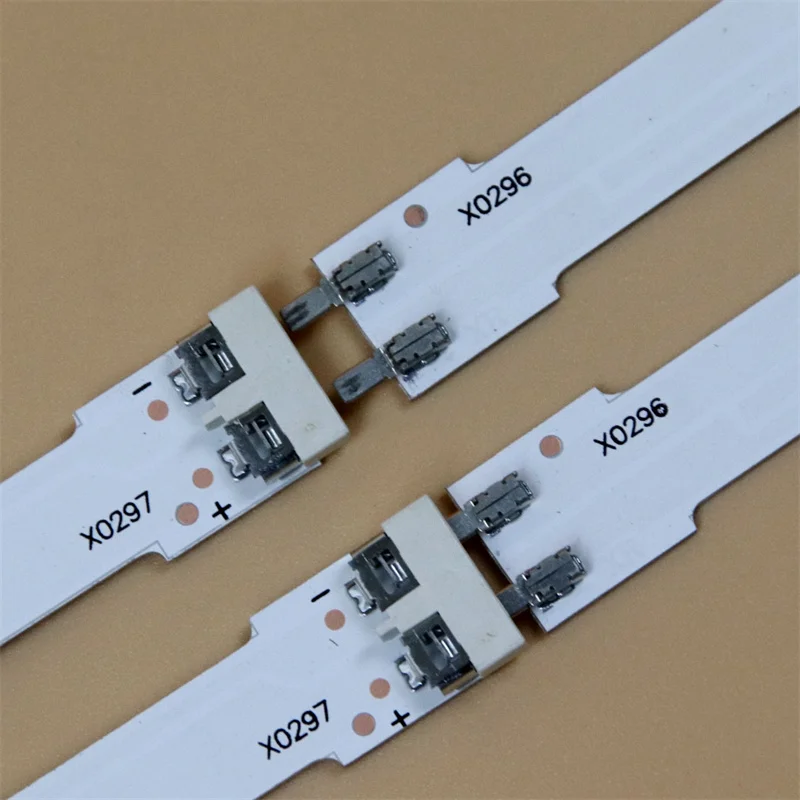

1.The connector, the length (spacing) and the LED quantity all in our description, please sure our LED Strip suitable for your TV befor buying. If not , contact us first, thanks!

2.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.

3.Please contact us if you have any questions.

4.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.

5.You could always contact us if you have any uncertainty or you want to get more offers.

6. Warranty: 90-Days Warranty

7.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.

Precautions & FAQ:

Q1: What are the common symptoms of LED Backlight failure?

A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.

It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!

Q2: How do I test my LED Bars?

A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use


Q3: What should I do if my product is not suitable for my monitor / TV?

A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost

Q4: Do you offer trade discount?

A4: Yes, please contact us about trade benifits
