Product parameters:

1: The radio is constructed based on the DSR principle-the function is determined by the loaded software

2: 50 kHz to 250 MH and 400 MHz to 2 GHz (registered upgrade version)

3: All types of analog modulation: AM /SSB/NFM/WFM

4: Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker (AGC_Equalizer

5: Multifunctional chip msi001

6: Application of stm32h743 with powerful clock frequency of 480Mhz

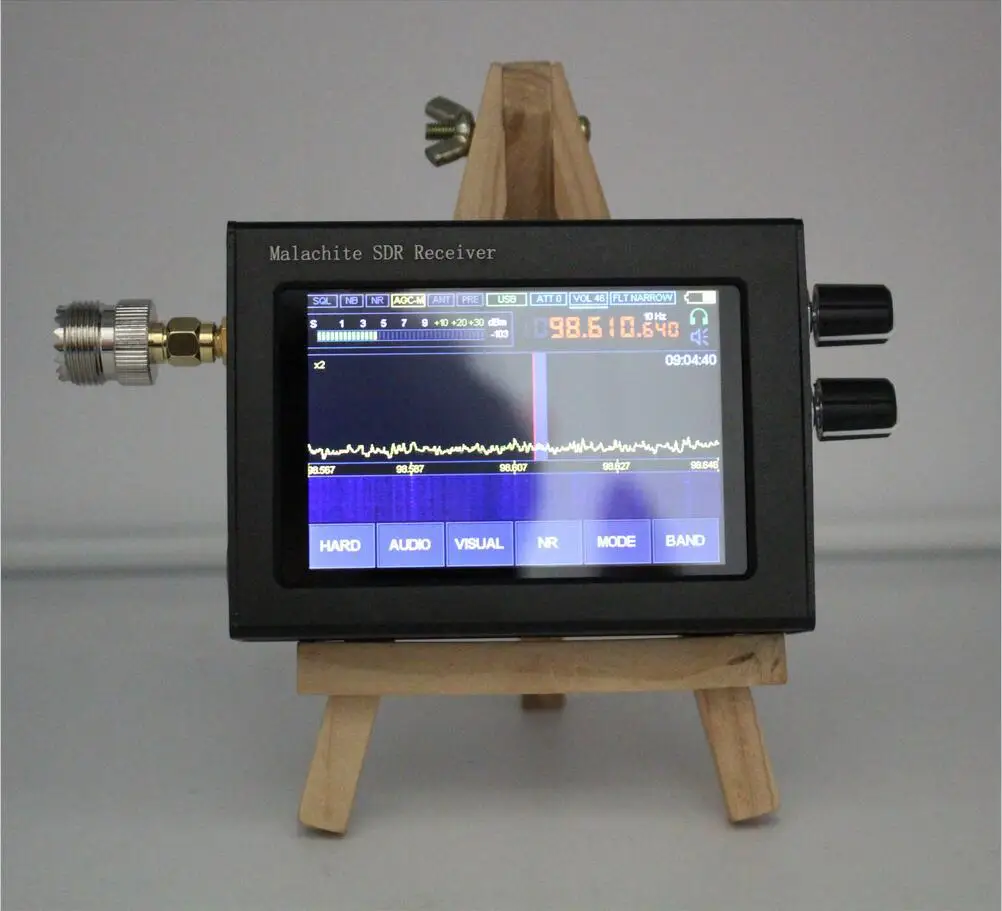

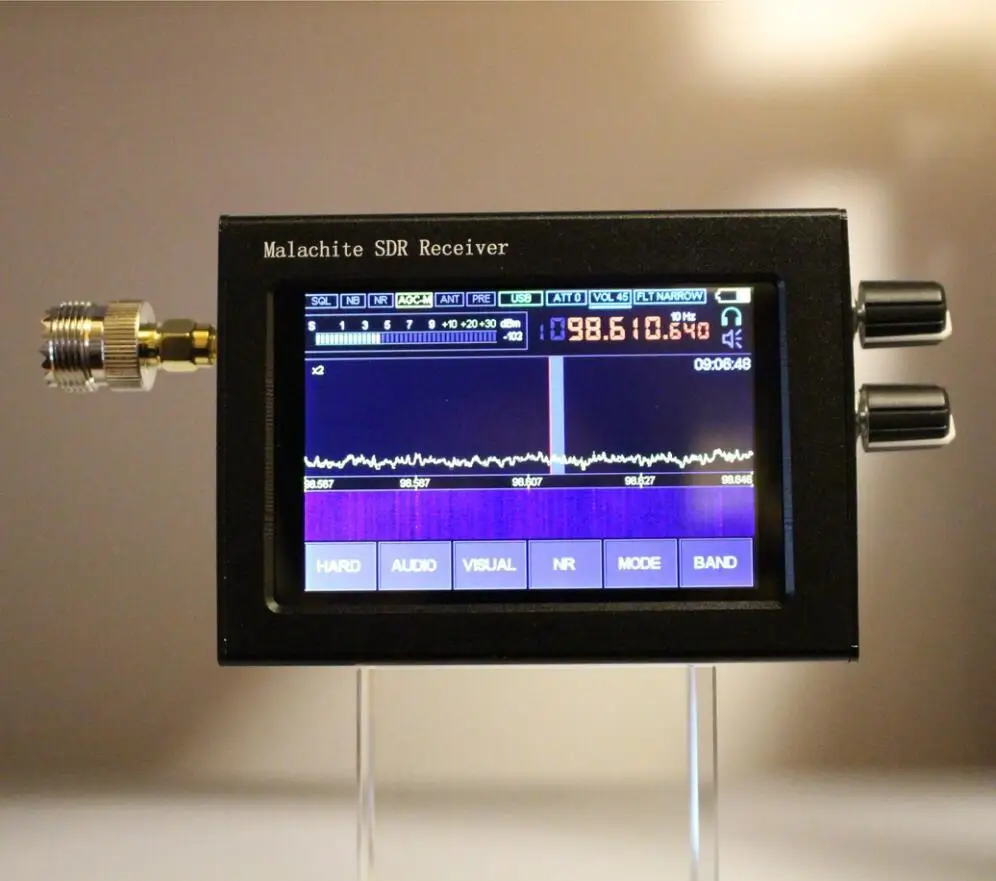

7: 3.5-inch large display screen with IPS touch function

8: Built-in UHF memory

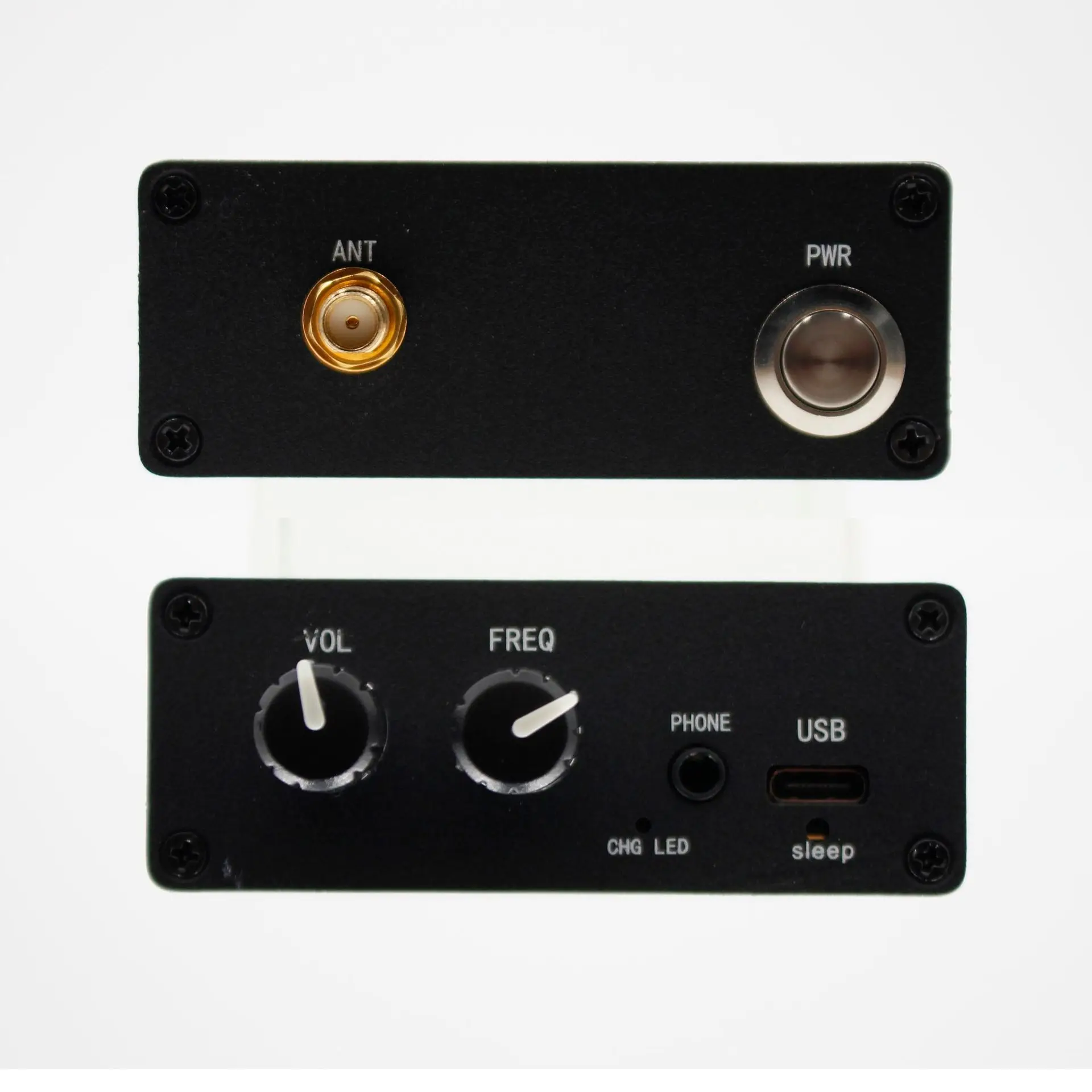

9: Controls-2 encoders with buttons and touch screen

10: Power supply is supplied/charged by external TYPE-C interface, built-in 2500MA lithium battery

12: Connect to the computer via USB, can transmit CAT, IQ and audio

13:160Khz span, with scalability

14: Sensitivity is up to 200Mhz, 0.3uv=10dB at S/W

15: Due to the characteristics of the msi001 chip, the dynamic resistance range is about 85dB

16: With backlight control

17: SMA antenna female socket

Register the upgraded version to broaden the frequency and add CW decoding and other functions

Specifications:

Name: SDR Receiver

Material: plastics

Color: black

Recharge: Type-C cable (not included)

Battery: 1 * built-in battery, 4.2V, 2020mAh (included)

Item size: 200 * 115 * 50mm

Item weight: 350g
