FY2300 12MHz Arbitrary Waveform Dual Channel DDS Signal Generator Sine wave 200MSa/s Sampling rate 100MHz Frequency meter | Инструменты





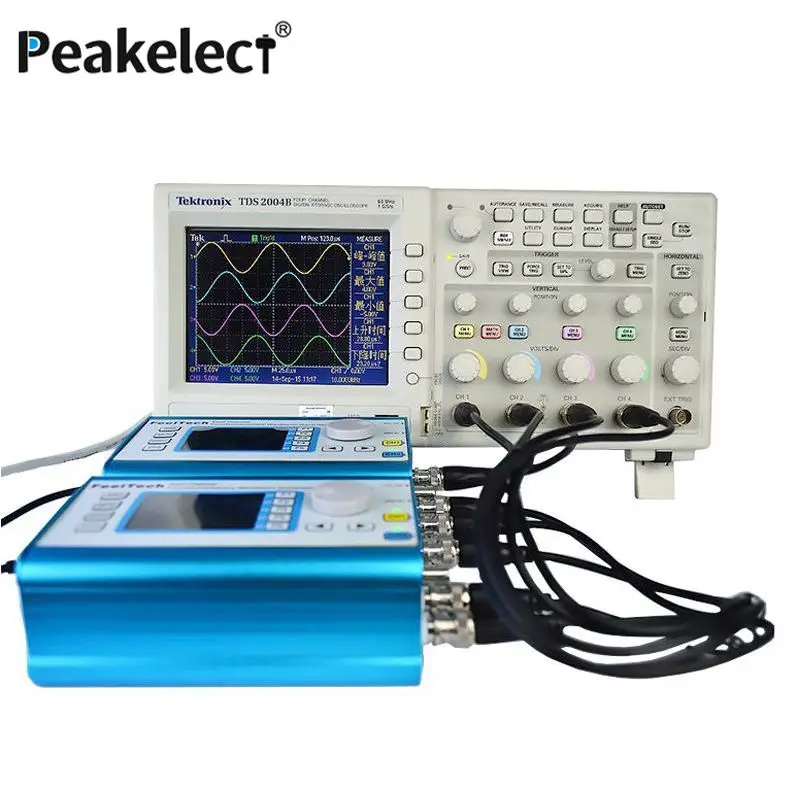

FY2300 series Dual Channel Function/Arbitrary Waveform Generator is a multifunctional signal generator product integrating Function Signal Generator, Arbitrary Waveform Generator, Pulse Signal Generator, Noise Signal Generator, Counter and Frequency Meter with excellent cost performance. This instrument adopts large scale CMOS integrated circuit and high speed MCU microprocessor. The internal circuit uses SPXO as the basic standard to guarantee the stability of signals. Surface mounting technology improves interference immunity and operational life span.      This instrument has double channels can output 31 preseted DDS signals including Sine, Square, Triangle(Ramp), Rise Sawtooth, Fall Sawtooth, Lorenz Pulse, Multitone, Noise, Cardiogram, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step and user-defined waveform. It can also output TTL electric level. Both channels are completely independent      It has friendly human-machine mutual interface. 2.4 inch TFT Color LCD with 320×240 resolution can display all the parameters of both channels and current functions of all buttons . Shortcut keys simplify all complicated operations and save time. Users can be proficient after several minutes practice.      The advantages of this instrument in signal generating, waveform sweeping, parameter measurement and other fields, make it to be the ideal equipment for electronic engineers, laboratories, industry producing line, university, R&D institutes and so on.

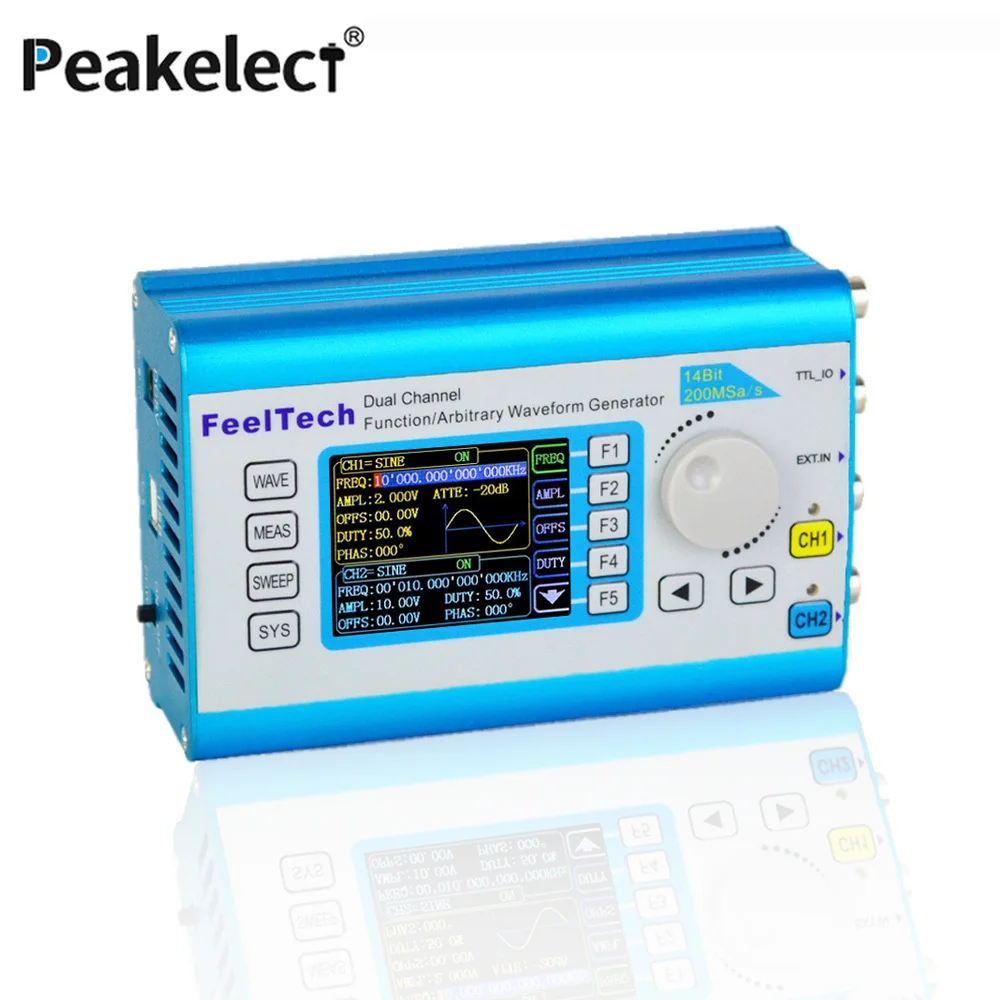

FY2300-12M Signal Generator

Frequency Parameters

Sine wave

0~12MHz

Square wave

0~6MHz

Triangle wave

0~6MHz

Sawtooth wave

0~6MHz

Pulse wave

0~6MHz

TTL/CMOS Wave

0~6MHz

Arbitrary Waveform

0~6MHz

Resolution

1μHz (0.000001Hz)

Accuracy

± 5×10-6

Stability

±1×10-6/ 3 Hours

Impedance

50Ω±10%(Typical)

Phase Range

0~359°

Phase Resolution

1°

Waveform Characteristics

Waveform Types

Sine, Square, Triangle, Sawtooth, Pulse, Ramp, TTL, CMOS, Multitone, Noise, Cardiogram,, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step. Arbitrary Waveform, etc.

Waveform Length

2048 Points

Sampling Rate

200MSa/s

Vertical Resolution

12 Bits

Sine wave

Harmonic Suppression

≥45dBc(<1MHz);≥40dBc(1MHz~20MHz)

Total Harmonic Distortion

<0.8% (20Hz~20kHz,0dBm)

Square wave

Rise/Fall Time

≤20ns

Overshoot

≤7.5%

Duty Cycle

0.1%~99.9%

Sawtooth wave

Linearity

≥98% (0.01Hz~10kHz)

Output characteristics

Amplitude (50Ω)

10mVpp~20Vpp(Freq.<=15MHz);10mVpp~15Vpp(Freq.>15MHz)

Amplitude Resolution

1mV (Attenuate 20dB)

Amplitude Stability

±0.5%/ 5 Hours

Amplitude flatness

±5%(<10MHz);±10%(>10MHz)

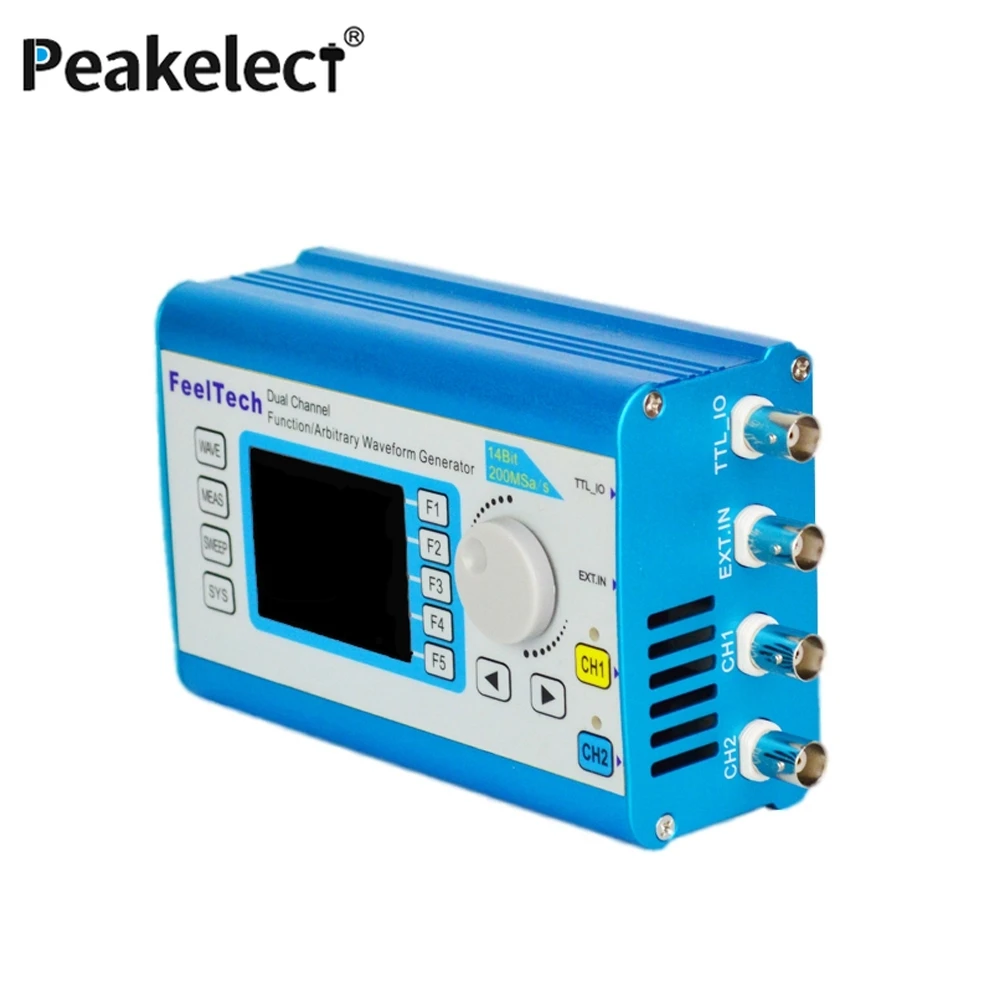

Waveform Output

Impedance

50Ω±10%(Typical)

Protection

All channels can work more than 60 seconds when the load is short-circuited

DC Offset

Offset Range

±10V

Offset Resolution

0.01V (0.001V With Attenuation)

TTL Output

Electrical Level Amplitude

>3Vpp

Fan-out

>20 TTL

Load Rise/Fall Time

≤20ns

CMOS Output

Low Electric Level

<0.3V

High Electric Level

1V~10V

Rise/Fall Time

≤20ns

External Measurement

Frequency Meter

Range

0.01Hz~100MHz

Sensitivity

Gate Time 3 grades adjustable(1S,10S,100S)

Counter

Range

0-4294967295

Coupling Mode

DC , AC

Counting Mode

Manual

Input Voltage Range

0.7Vpp~20Vpp



Period Measurement

Resolution 5nS,Max. Limit 10S

Pulse Width measurement

Resolution 5nS,Max. Limit 10S

Sweep

Sweep Type

Linear Sweep or :Logarithm Sweep

Sweep Objects

Frequency, Amplitude, Offset and Duty Cycle

Sweep Time

0.01S~999.99S/Step

Setting Range

Starting position and Finishing position can be set arbitrarily

Sweep Range

It is determined by the sweep parameter settings

General Specifications

Display Display Type

2.4 inch TFT Color Display

Save & Load

Amount

20

Position

01 to 20 (01 for default value)

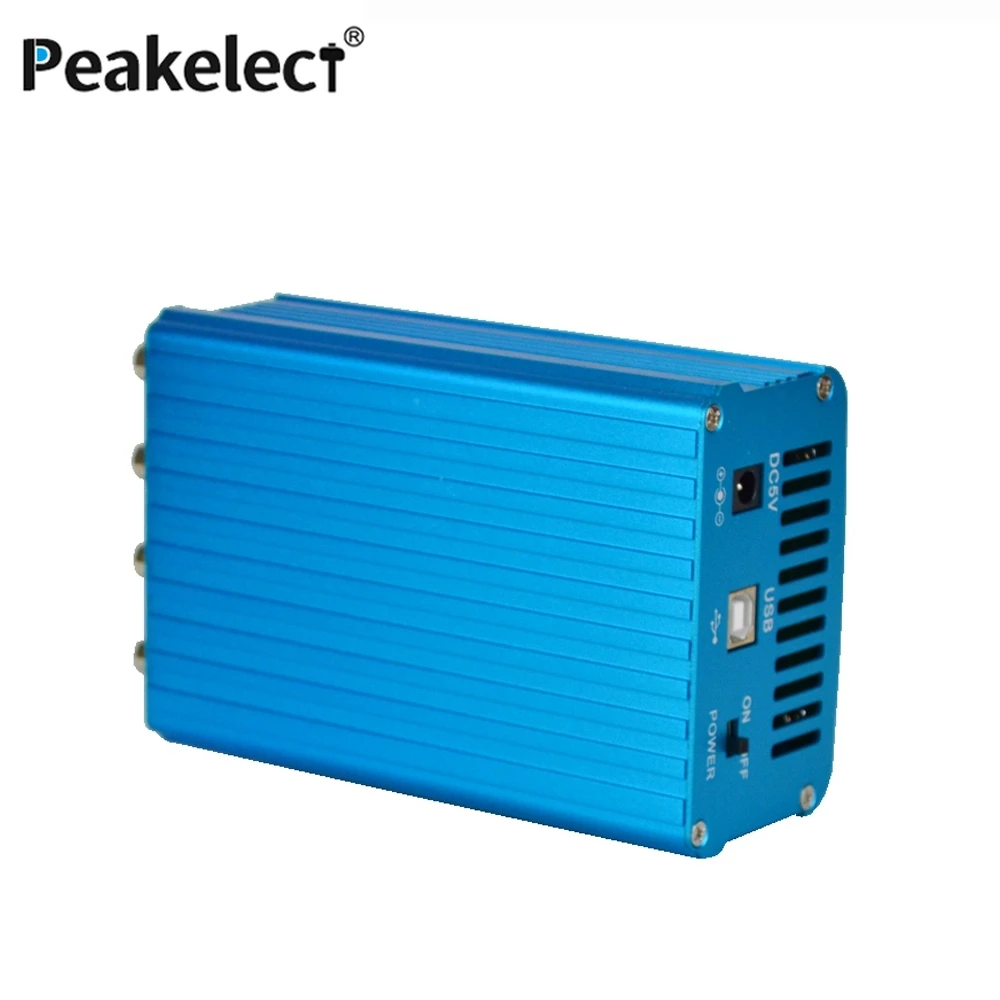

Interface

Type

USB to Serial interface

Communicating Speed

9600bps

Protocol

Command line mode, protocol complete open.

Power Supply

Voltage Range

DC5V±0.5V

Buzzer

Can be turned on/off by setting

Environment

Temp.:0~40℃  Humidity:﹤80%

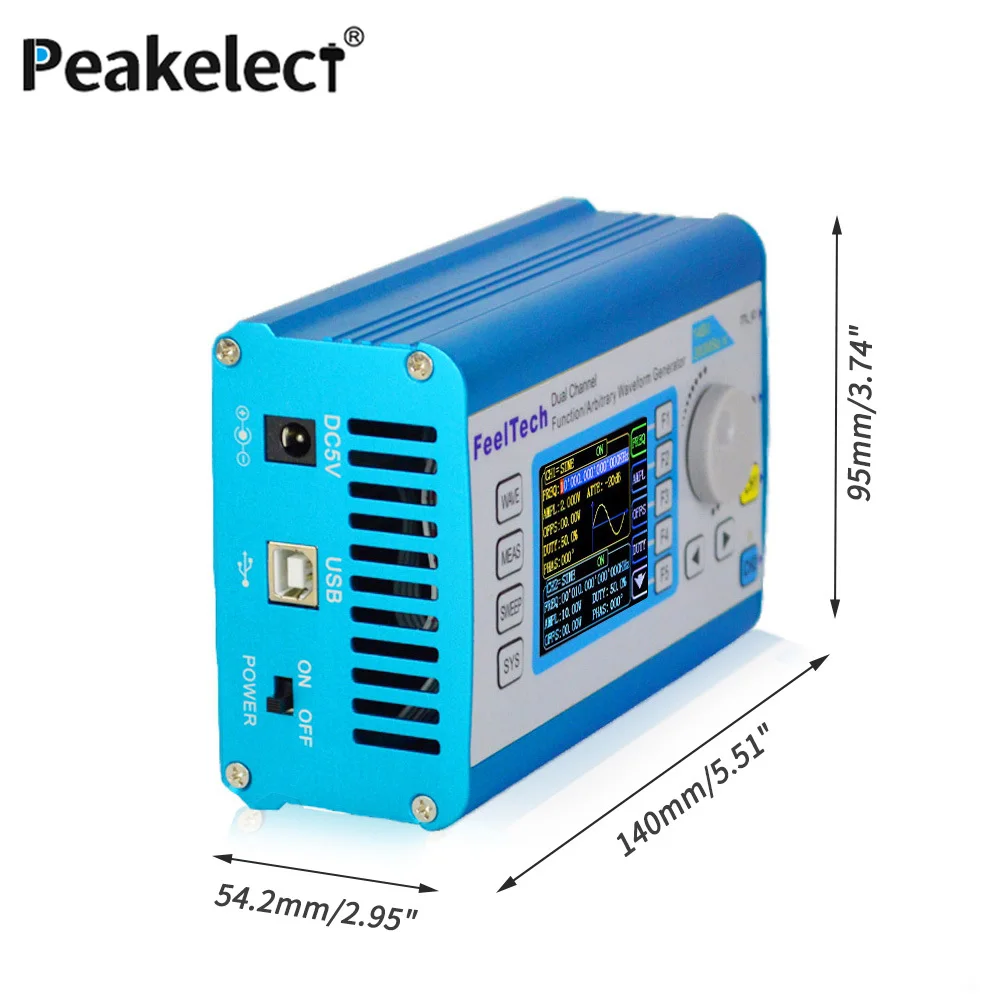

Size

140 * 95 * 54.2mm / 5.51 * 3.74 * 2.13in (L * W * H)

Weight

419g / 14.8oz
