Welcome to our store.

Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

1. 1kHz-2000 MHz Continuous Coverage. 14-bit ADC Silicon Technology. Up to 10MhZ Visible Bandwidth

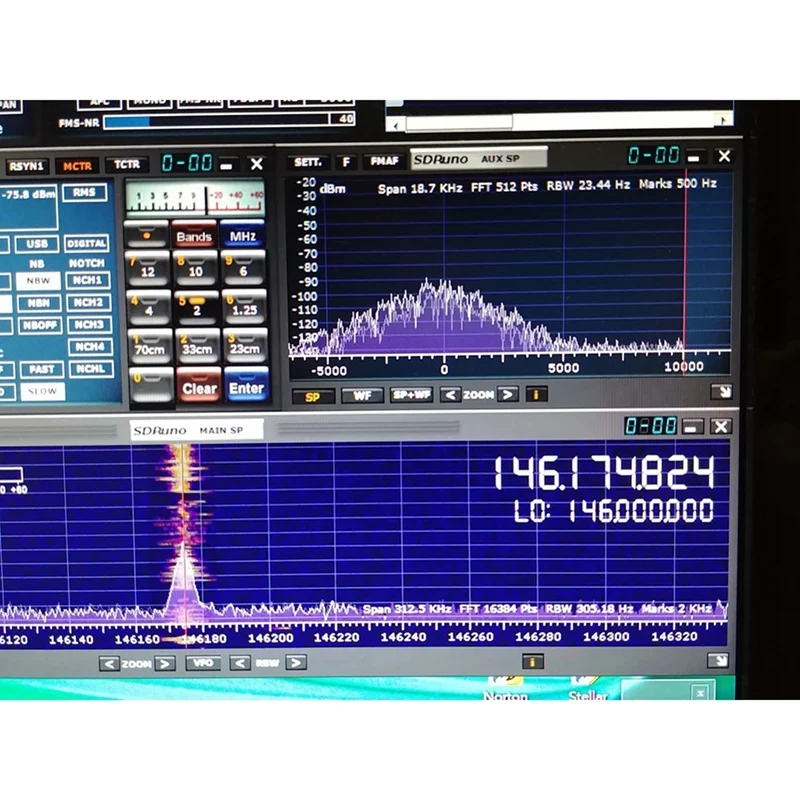

2. 11 High-Selectivity Built-in Front End Preselection Filters. Windows Linux Android & Raspberry Pi 3. Free SDRuno Software
3. ADC resolution increased to 14-bit native for sample rates below 6 MHz, increasing to 16 bits with decimation. Enhanced RF pre-selection for reduced levels of spurious responses
4. Improved LNA architecture with variable gain - the RSP1 had just a single gain step. Improved intermodulation performance. Performance extended to cover 1kHz to 2 GHz with a single antenna port.Bias-T facility
5. Improved frequency stability incorporating a 0.5ppm TCXO (software trimmable to 0.01ppm). RF shielding within the robust plastic casiF3

Low Current: 185mA (excl Bias T)
Connectivity: Single 50ohm RF Connector (SMA), USB 2.0 (high speed) type B socket
Frequency Range: Continuous Coverage 1kHz-2GHz
Frequency Tolerance: 0.5ppm (Max)
ADC Characteristics:
Sample frequency: 2-10.66MSPS
14-bit native ADC (2-6..48MSPS)
12-bit (6.048-8.064MSPS)
10-bit (8.064-9.216MSPS)
8-bit (greater than 9.216MSPS)
Bias T
Software selectable 4.7V @ 100mA
Reference:
High stability 0.5PPM TCXO
In-field trimmable to 0.01PPM
Maximum recommended input power
0dBm continuous, 10dBm for short periods
Typical Noise Figures:
18dB @ 2MHz
15dB @ 12MHz
15dB @ 25MHz
15dB @ 40MHz
3.3dB @ 100MHz
3.3dB @ 200MHz
7.7dB @ 386MHz
3.6dB @ 660MHz
5.0dB @ 1500MHz
6.3dB @ 1800MHz
IF Modes: Zero IF, All IF bandwidths; Low IF, IF bandwidths less than equal 1.536MHz
Front End Filtering:Automatically configured
Low Pass:2MHz
Band Pass:2-12MHz, 12-30MHz, 30-60MHz, 60-120MHz, 120-150MHz, 250-300MHz, 300-380MHz, 380-420MHz, 420-1000MHz
High Pass: 1000MHz
Notch Filters:
FM Filter: greater than 50dB 85-100MHz
MW Filter: greater than 30dB 660-1550kHz
DAB Filter: greater than 30dB 165-230MHz, greater than 30dB 660-1550kHz
colour:Black
Material:Metal + plastic

Package Contents:

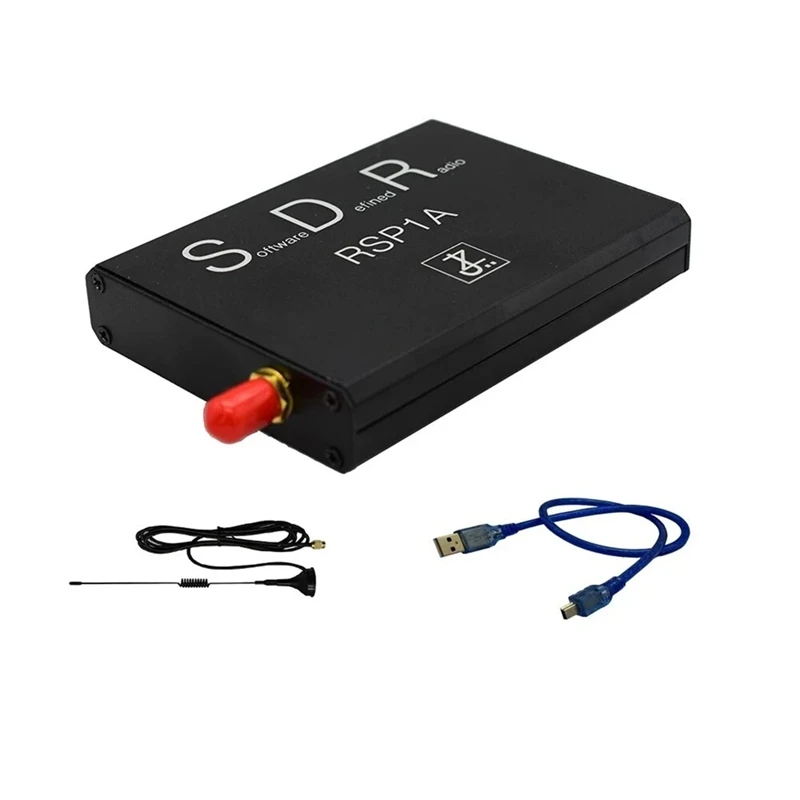

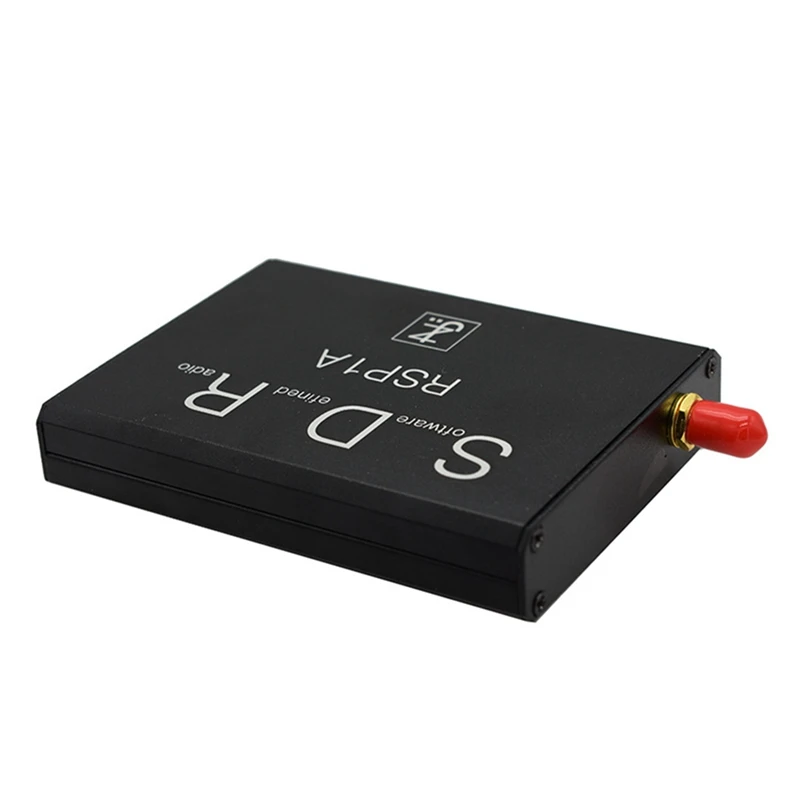

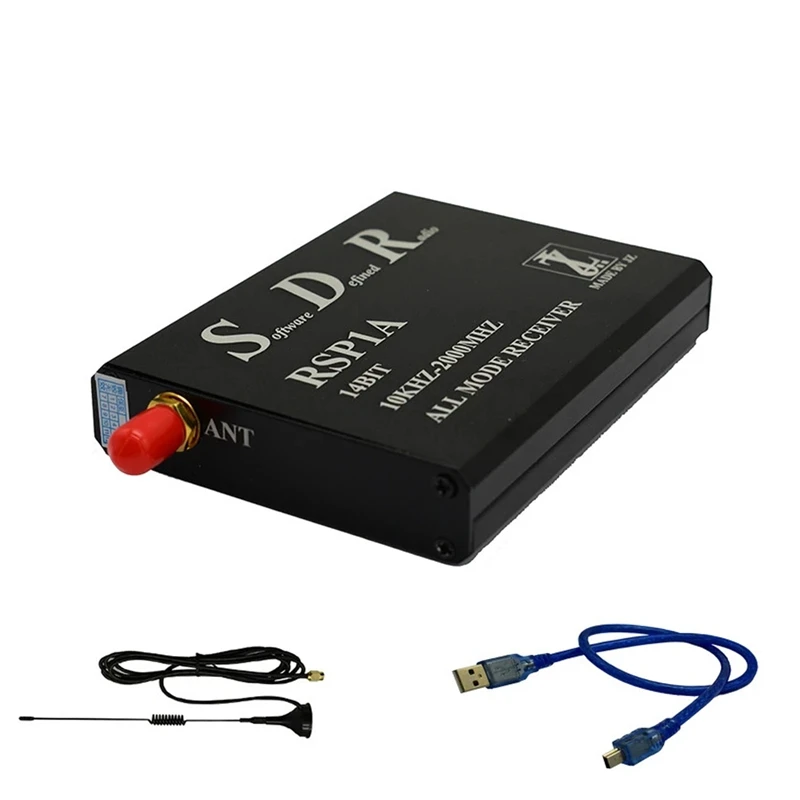

1 set x SDR Receiver

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
