XCAN Карбидный фрезерный резак R0.1-R0.5 с двумя спиральными лезвиями микрофрезер для дерева шариковый носик концевого фрезерного инструмента для станка ЧПУ роутер бит.

XCAN Карбидный фрезерный резак R0.1-R0.5 с двумя спиральными лезвиями микрофрезер для дерева шариковый носик концевого фрезерного инструмента станка ЧПУ роутер бит.

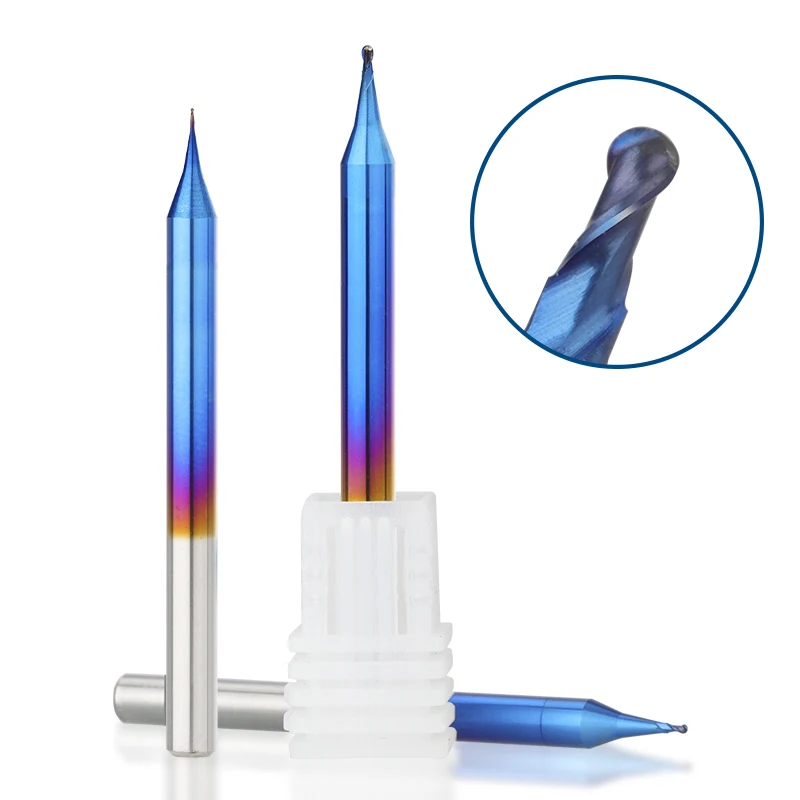

XCAN Carbide Milling Cutter R0.1-R0.5 Two Flute Micro Mill for Wood Ball Nose End Mill CNC Machine Router Bit Milling Tool

Description:

Under the condition of ensuring the chip space, the large core diameter design is adopted to enhance the rigidity of the tool, and the rigidity of the tool and the strict chip discharge performance and the scientific groove control are made, so that the cutting and chip removal of the tool are more stable.

Features:

1.Multi-layer nano-coating: It can directly perform high-speed roughing to fine processing for heat-treated materials below 58°, reducing the number of tool changes and improving machine tool processing efficiency.

2. The new fine-grained tungsten steel base material has high wear resistance and strength, and is specially designed for high-hardness and high-speed cutting applications.

3. 4mm shank . Can fit on most CNC machine, Engraving machine, High speed machine.

Specification:

Type: Ball Nose End Mill

Material: Tungsten Carbide

Coating: Nano Blue Coated

Flute: 2

Shank: 4mm

Radius: 0.1mm 0.15mm 0.2mm 0.25mm 0.3mm 0.35mm 0.4mm 0.45mm 0.5mm

Overall Length: 50mm

User Tips：

In order to obtain a better cutting surface and extend the life of the tool, be sure to use a tool holder with high precision, high rigidity and good dynamic balance.

1. Before using this tool, please measure the tool yaw and the tool yaw accuracy exceeds 0.01MM, please correct it before cutting.

2. The shorter the length of the tool extension clamp, the better, if the extension of the tool is extended, please reduce the rotation speed, feed speed or cutting amount.

3. If abnormal vibration or sound is generated during cutting, reduce the spindle speed and cutting amount until the condition is improved.

4. Steel cooling is best applied by spray or jet to maximize the effect of high aluminum titanium. Insoluble water-soluble cutting fluids are recommended for stainless steel, titanium alloys or heat resistant alloys.

5. The cutting method depends on the influence of workpiece, machine and software. The above data is for reference only. After the cutting condition is stable, the feed rate will be increased30% to 50%.
